Whiteline Front Sway Bar Link - Bushing Kit to Suit Subaru Forester, Impreza, Liberty and Outback

SKU: W22259

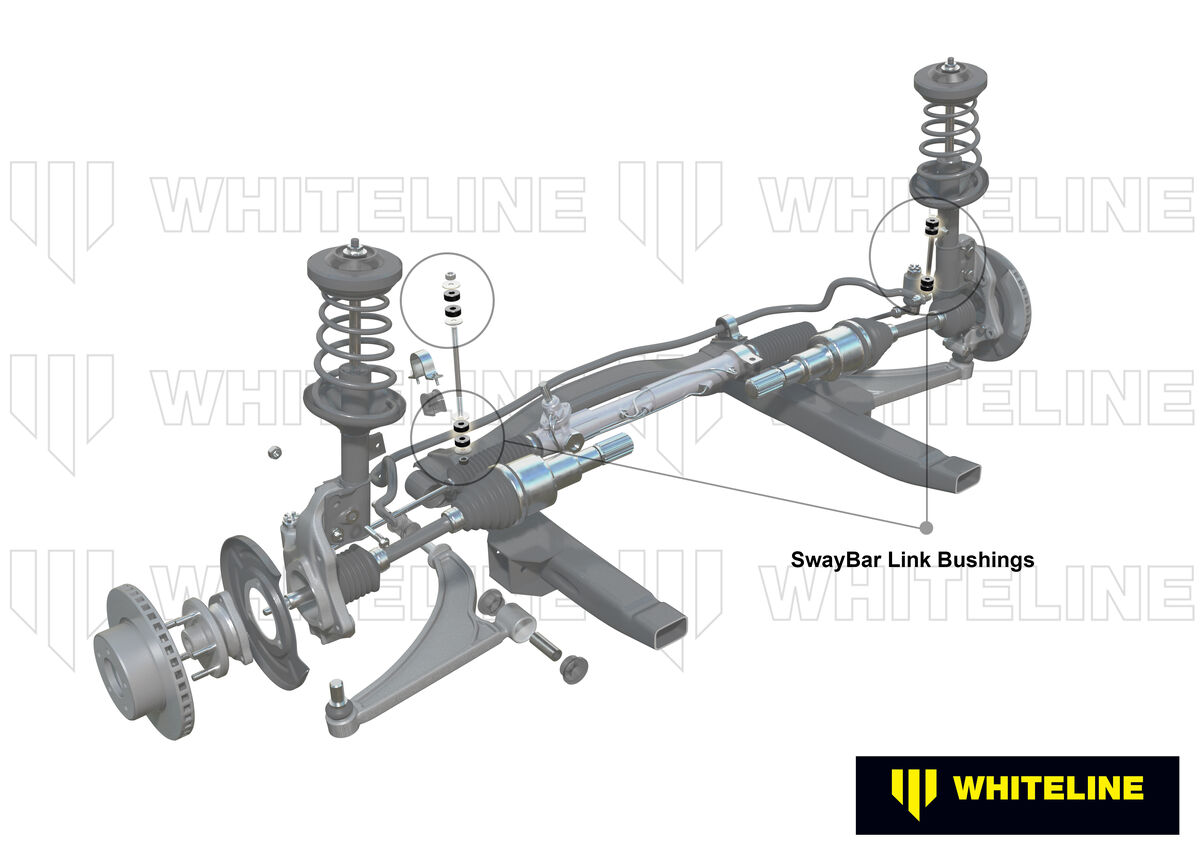

Benefit Note: Worn or deteriorated link bushings although small can have considerable influence over sway bar performance and more notably vehicle handling behaviour. Whiteline bushings are engineered to last and deliver improved driving performance.


Kit Specifications

Bush Type 1 - Shackle Bushing 3 - Half Tapered Cotton Reel Bush
Bush Quantity 4 mm 4 mm
OD (A) 20.6 mm AI=28 AII=25 mm
ID (B) 12.5 mm 16 mm
Length (C) 15.8 mm 18.3 mm
Flange Thickness (D) 4.5 mm 5 mm
Flange OD (E)
C/Tube Quantity 2 2
C/Tube ODxIDxL 12.7x8x29.5 mm 16x10.2x33 mm
Similar Bushing Size Click Here Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Bushing Type 1 - Shackle Bushing
Bushing Type 3 - Half Tapered Cotton Reel Bush

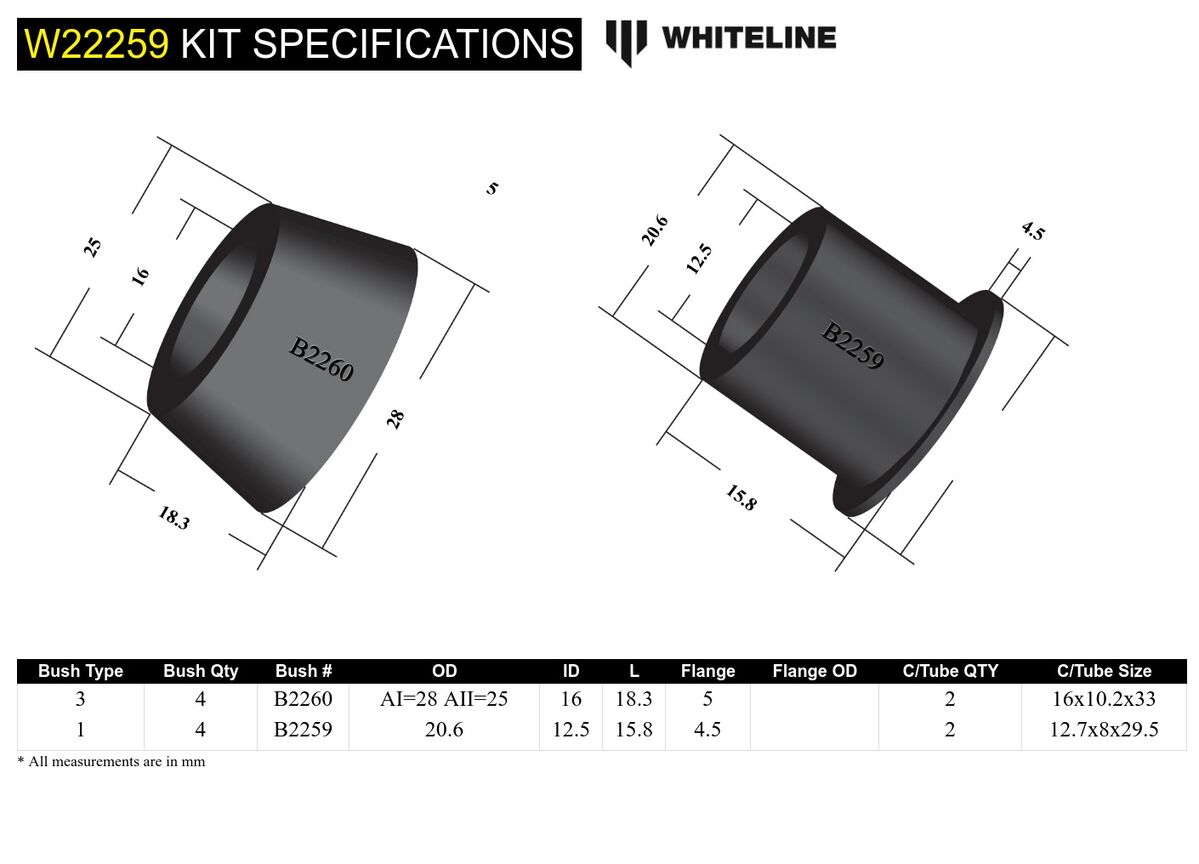

Bushing Design Dimensions (mm)

Bush Type 1 3
QTY 4 4
OD (A) 20.6 AI=28 AII=25
ID (B) 12.5 16
Length (C) 15.8 18.3
FL (D) 4.5 5
FLOD (E)
C/Tube Qty 2 2
C/Tube Size 12.7x8x29.5 16x10.2x33
Similar Bushings Click Here Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Bushing Type 1
Bushing Type 3

Packaged Weight and Dimensions

Unitscm/kgin/lbs
Weight0.23kg0.51lbs
Length7cm2.76"
Width20cm7.87"
Height14cm5.51"

Misc. Product Information

More Information
SKUW22259

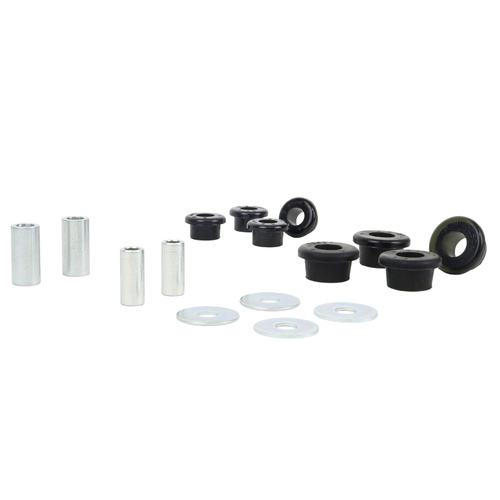

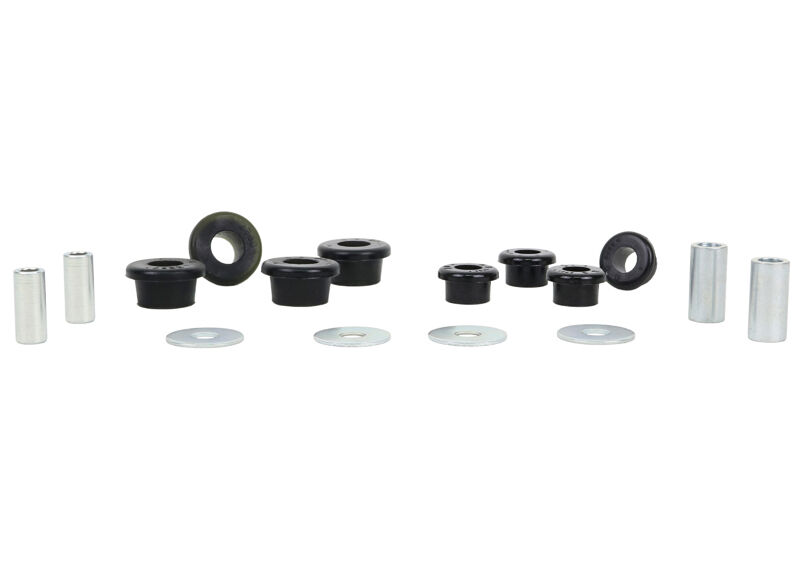

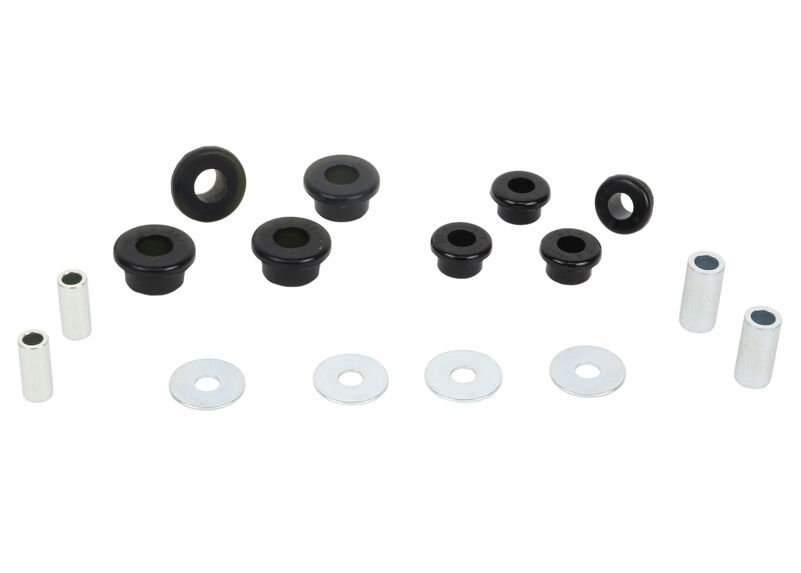

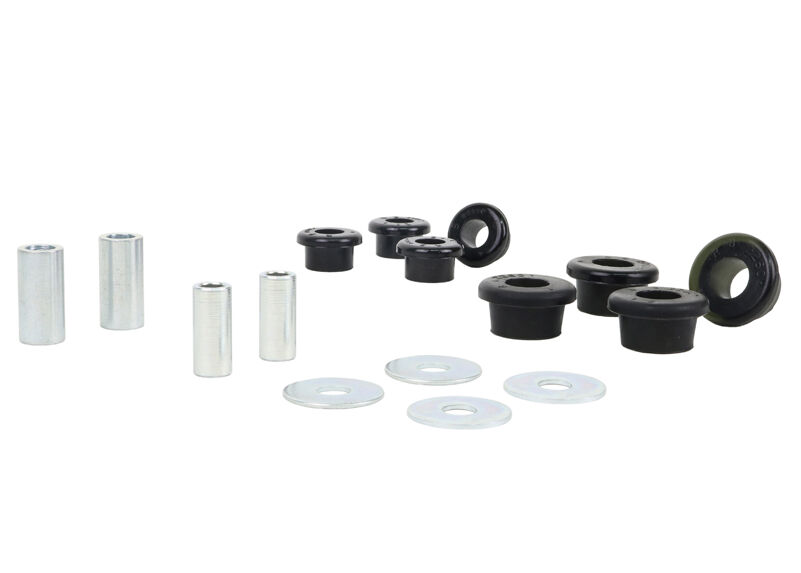

Components Per8 Bushings, 4 Tubes
Kits Required1
Sub brandReplacement
Product NoteReduces body roll, keeping your vehicle flatter through corners; the perfect, complete upgrade. Includes: 8 Bushings, 4 Tubes
EAN9319924350643
  • Lifetime Warranty
Brand Whiteline
SKU W22259
Unit Of Measure Kit
