Whiteline Front Sway Bar - 33mm 2 Point Adjustable to Suit Toyota Fortuner and Hilux 2005-on

SKU: BTF93Z

Benefit Note: Engineered to 'Activate More Grip', sway bars are principally designed to reduce body roll or sway. By reducing body roll, lateral loads are spread more evenly across the tyres thereby increasing cornering grip and improving outright performance. This Whiteline 33mm 2 point adjustable sway bar = more grip = better handling = outright performance - it's the best dollar for dollar handling improvement you can make to your vehicle. In fact, benefits extend to improvements in handling, safety and tyre wear without affecting ride quality or comfort.


Kit Specifications

Diameter (mm) 33
Diameter (in) Fraction 1 19/64"
Diameter (in) Decimal 1.299
Material Solid Spring Steel
Sway Bar Adjustment Type 2 Point Adjustable

Adjusting the sway bar's soft to hard setting will modify its torsion regidity, causing the sway bar to operate as per the size below.


Sway Bar Adjustment Settings

Setting Effective Bar Size (mm) % Change vs Previous Setting % Stiffer Than OE
Soft - Comfort / low grip 32.5 mm - +57.7%
Hard - Maximum roll control 33.5 mm +12.9% +78.1%

Packaged Weight and Dimensions

Unitscm/kgin/lbs
Weight12.5kg27.56lbs
Length220cm86.61"
Width10cm3.94"
Height20cm7.87"

Misc. Product Information

More Information
SKUBTF93Z

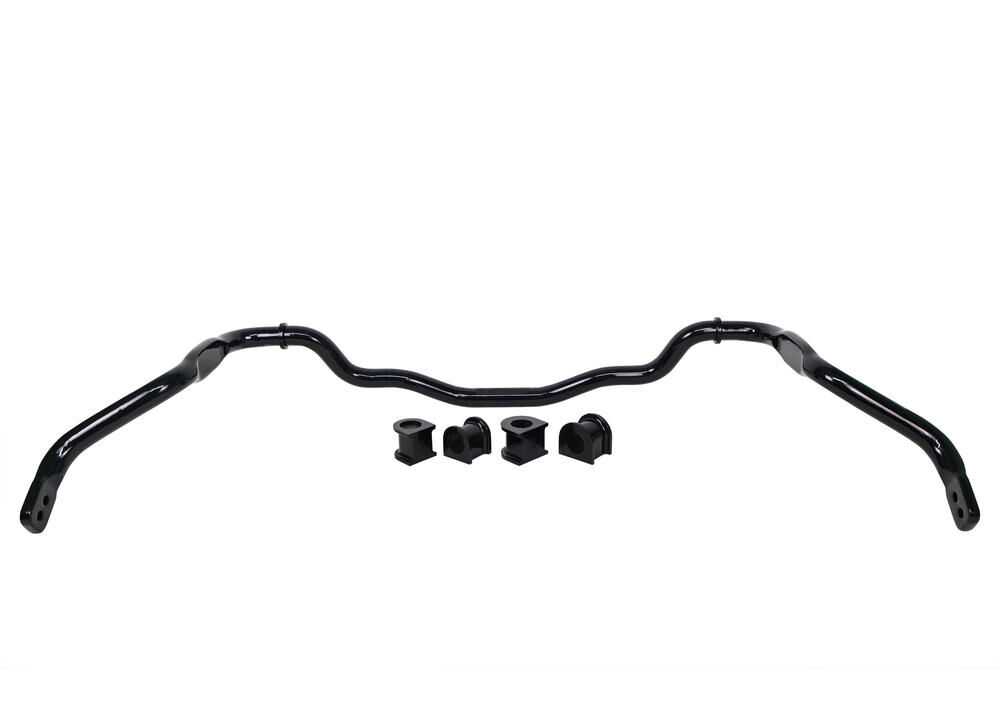

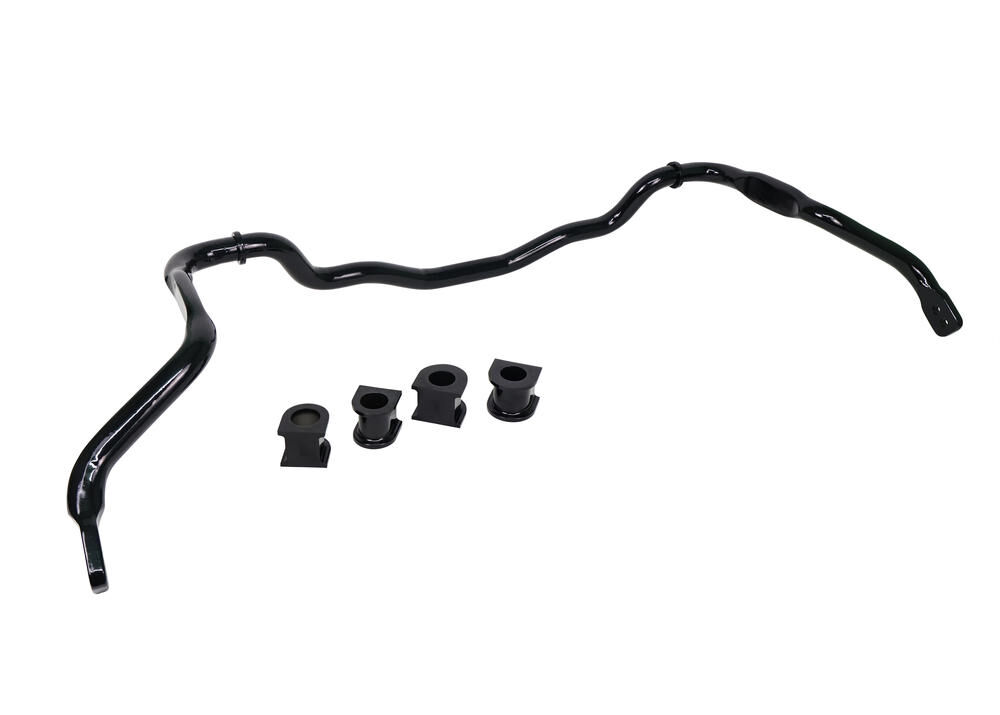

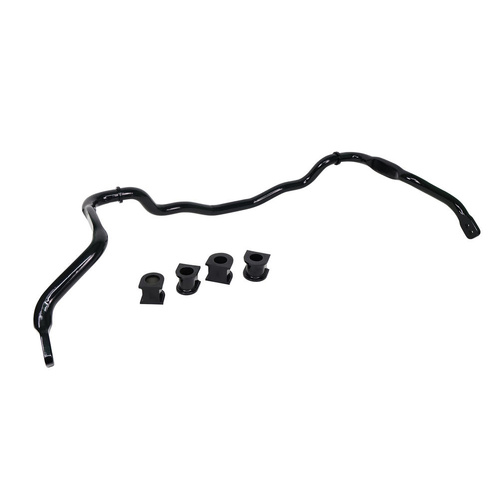

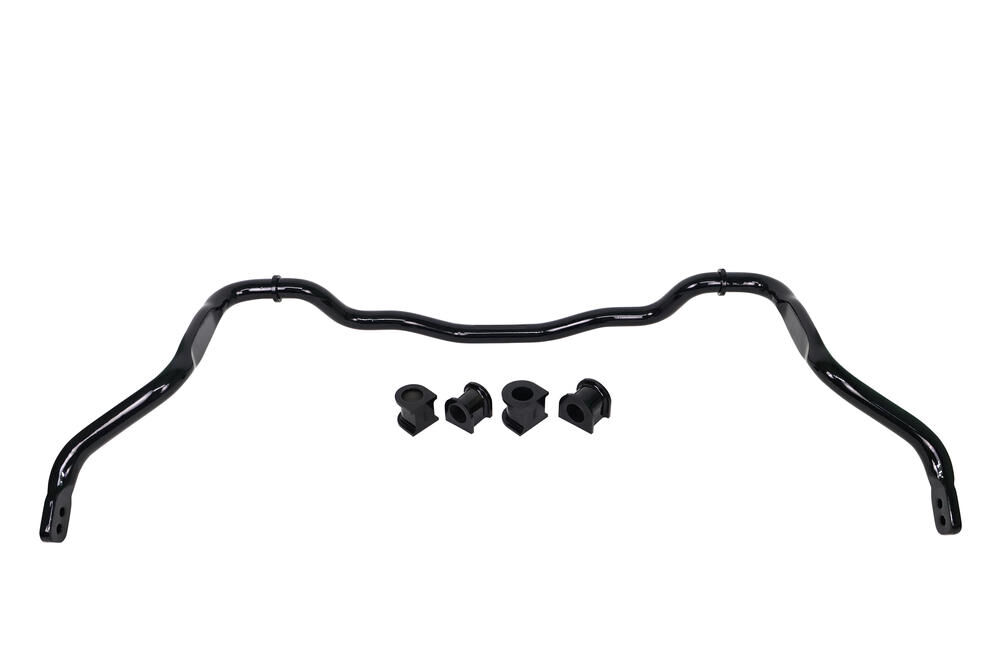

Components Per1 Sway Bar, 4 Bushings
Kits Required1
Sub brandPerformance
Product NoteDesigned to perform under extreme conditions, delivering long-lasting, reliable performance the perfect, complete upgrade. Includes: 1 Sway Bar, 4 Bushings
EAN9319924448432
  • Lifetime Warranty
Brand Whiteline
SKU BTF93Z
