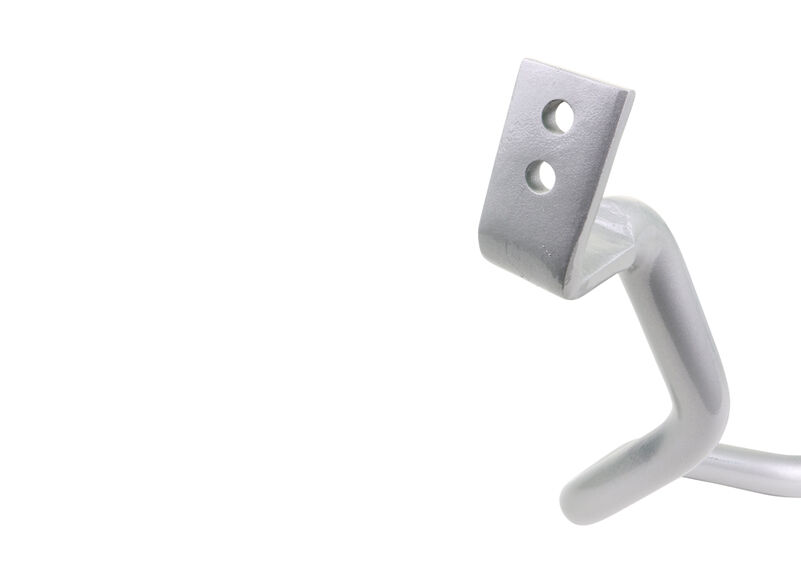

Whiteline Front Sway Bar - 30mm 2 Point Adjustable to Suit Toyota Supra JZA80 and Soarer Z30

SKU: BTF67Z

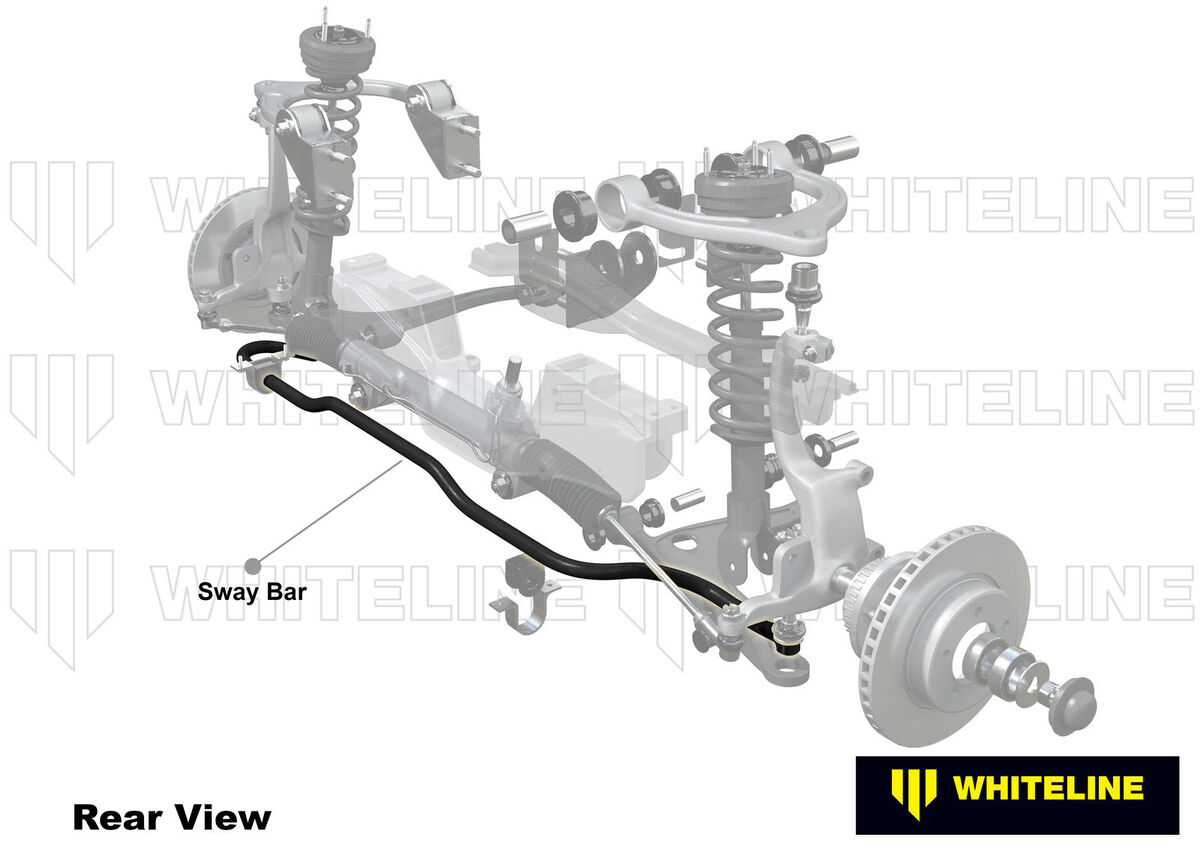

Benefit Note: Engineered to 'Activate More Grip', sway bars are principally designed to reduce body roll or sway. By reducing body roll, lateral loads are spread more evenly across the tyres thereby increasing cornering grip and improving outright performance. This Whiteline 30mm 2 point adjustable sway bar = more grip = better handling = outright performance - it's the best dollar for dollar handling improvement you can make to your vehicle. In fact, benefits extend to improvements in handling, safety and tyre wear without affecting ride quality or comfort.


Kit Specifications

Diameter (mm) 30
Diameter (in) Fraction 1 3/16"
Diameter (in) Decimal 1.181
Material Solid Spring Steel
Sway Bar Adjustment Type 2 Point Adjustable

Adjusting the sway bar's soft to hard setting will modify its torsion regidity, causing the sway bar to operate as per the size below.


Sway Bar Adjustment Settings

Setting Effective Bar Size (mm) % Change vs Previous Setting % Stiffer Than OE
Soft - Comfort / low grip 29.5 mm - +65.7%
Hard - Maximum roll control 30.5 mm +14.3% +89.4%

Packaged Weight and Dimensions

Unitscm/kgin/lbs
Weight10.5kg23.15lbs
Length120cm47.24"
Width10cm3.94"
Height20cm7.87"

Misc. Product Information

More Information
SKUBTF67Z

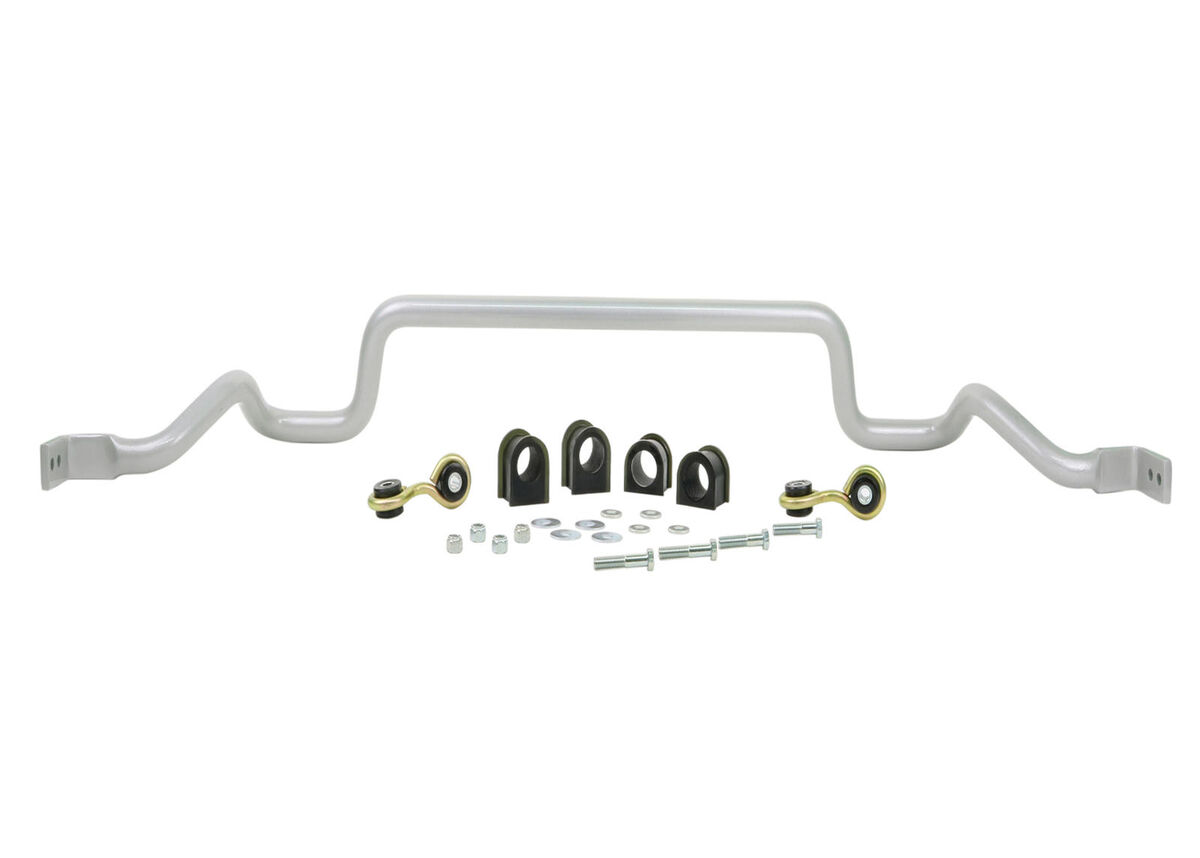

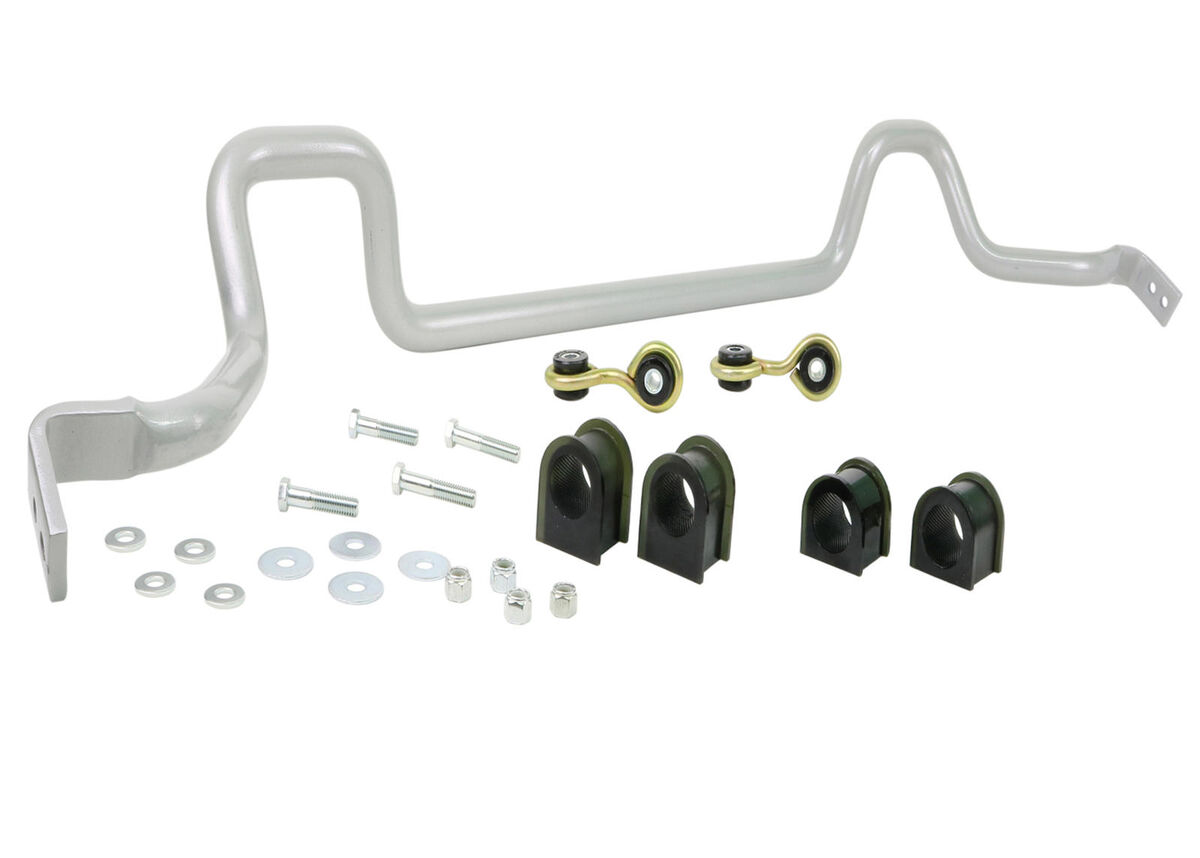

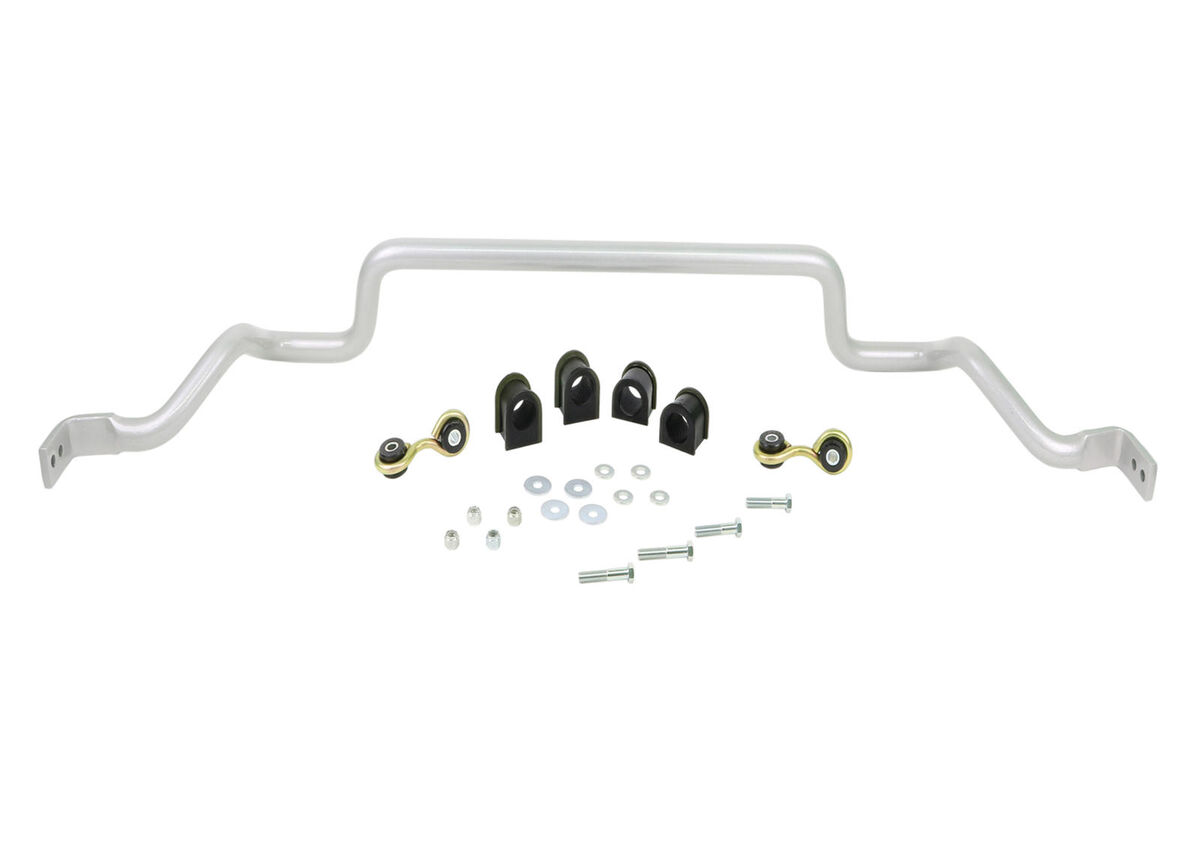

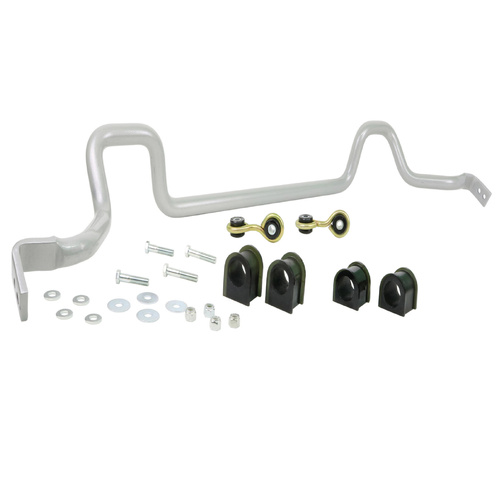

Components Per1 Sway Bar, 2 Links, 4 Bushings, 4 Bolts, 6 Washers, 4 Nuts
Kits Required1
Sub brandPerformance
Product NoteDesigned to perform under extreme conditions, delivering long-lasting, reliable performance the perfect, complete upgrade. Includes: 1 Sway Bar, 2 Links, 4 Bushings, 4 Bolts, 6 Washers, 4 Nuts
EAN9319924327355
  • Lifetime Warranty
Brand Whiteline
SKU BTF67Z
