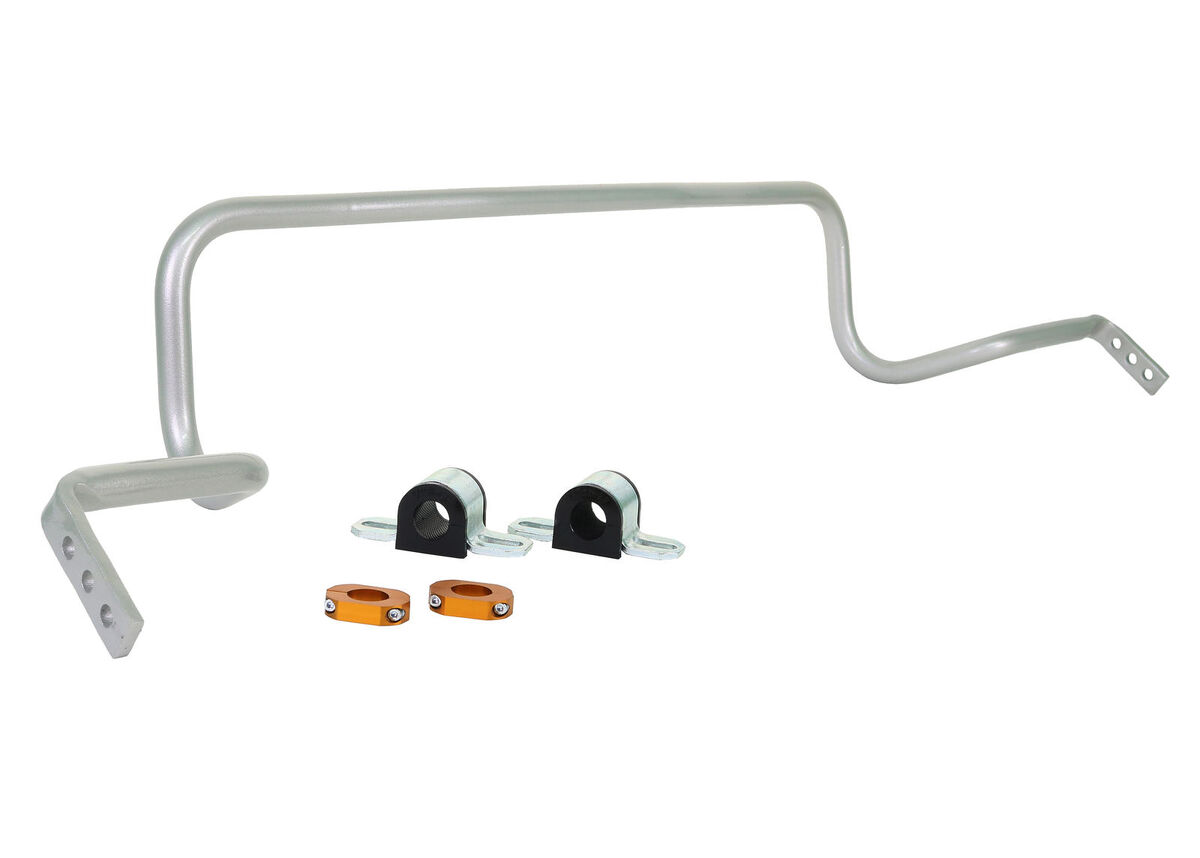

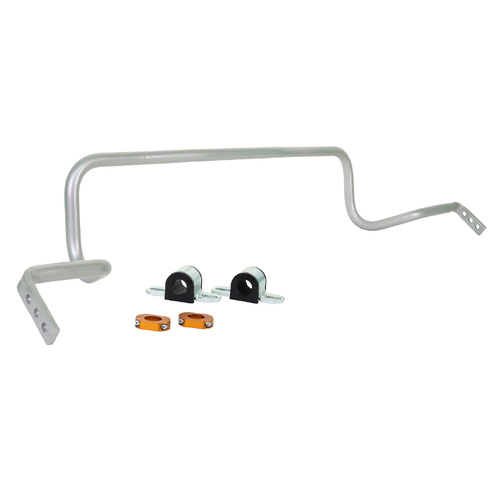

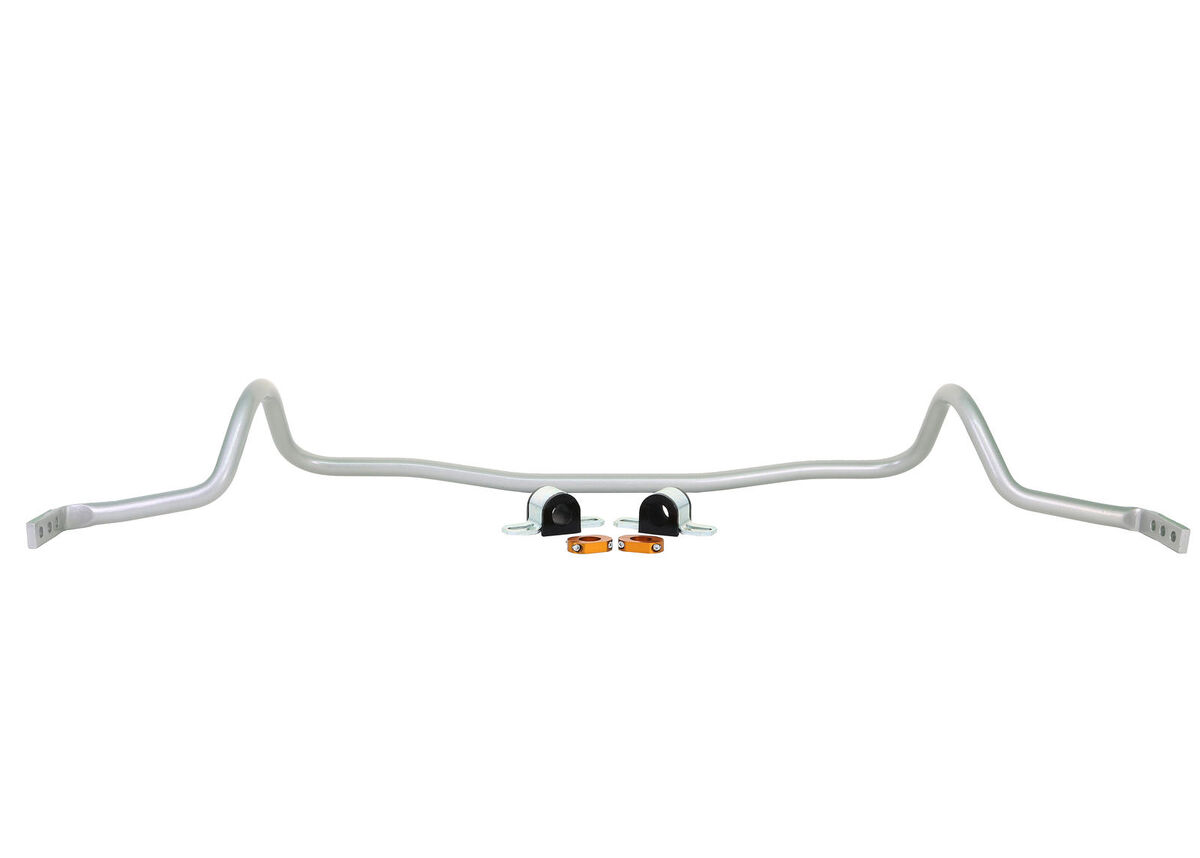

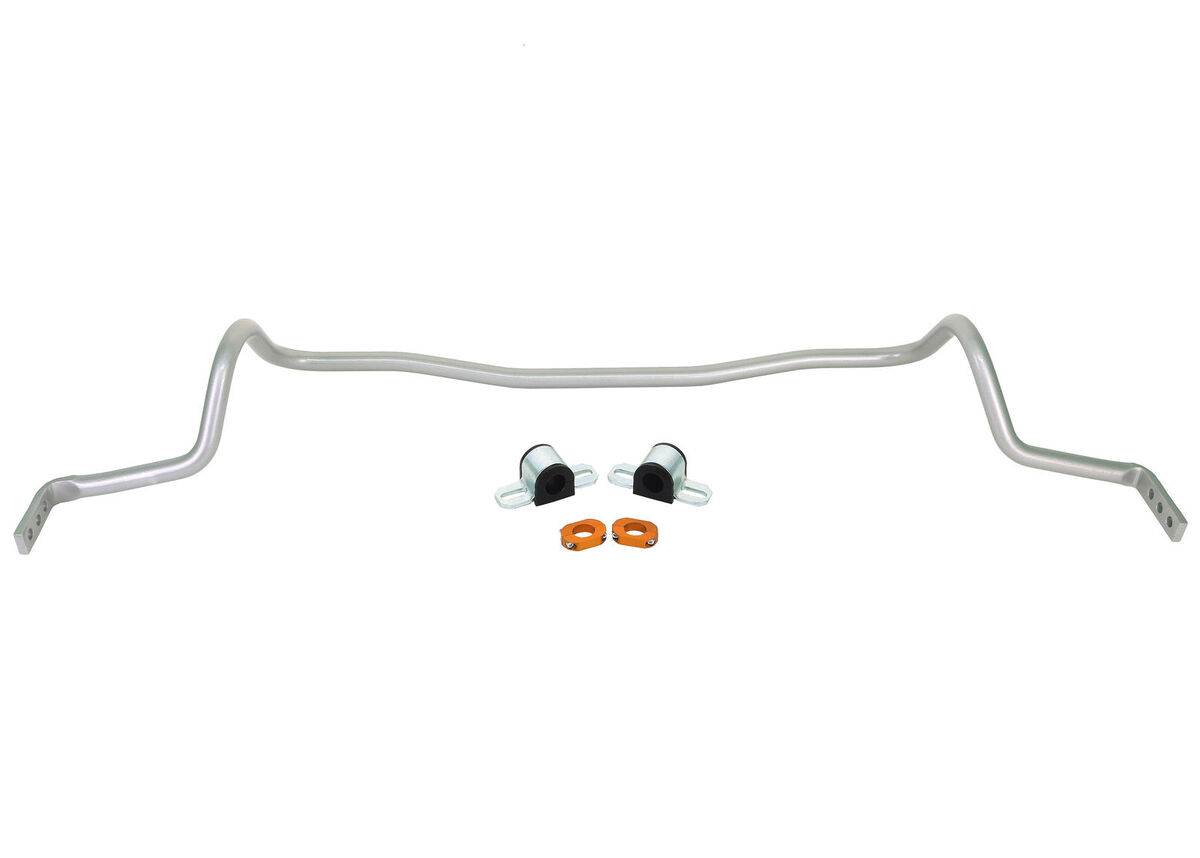

Whiteline Front Sway Bar - 22mm 3 Point Adjustable to Suit Mazda3 BM, BN

SKU: BMF66Z

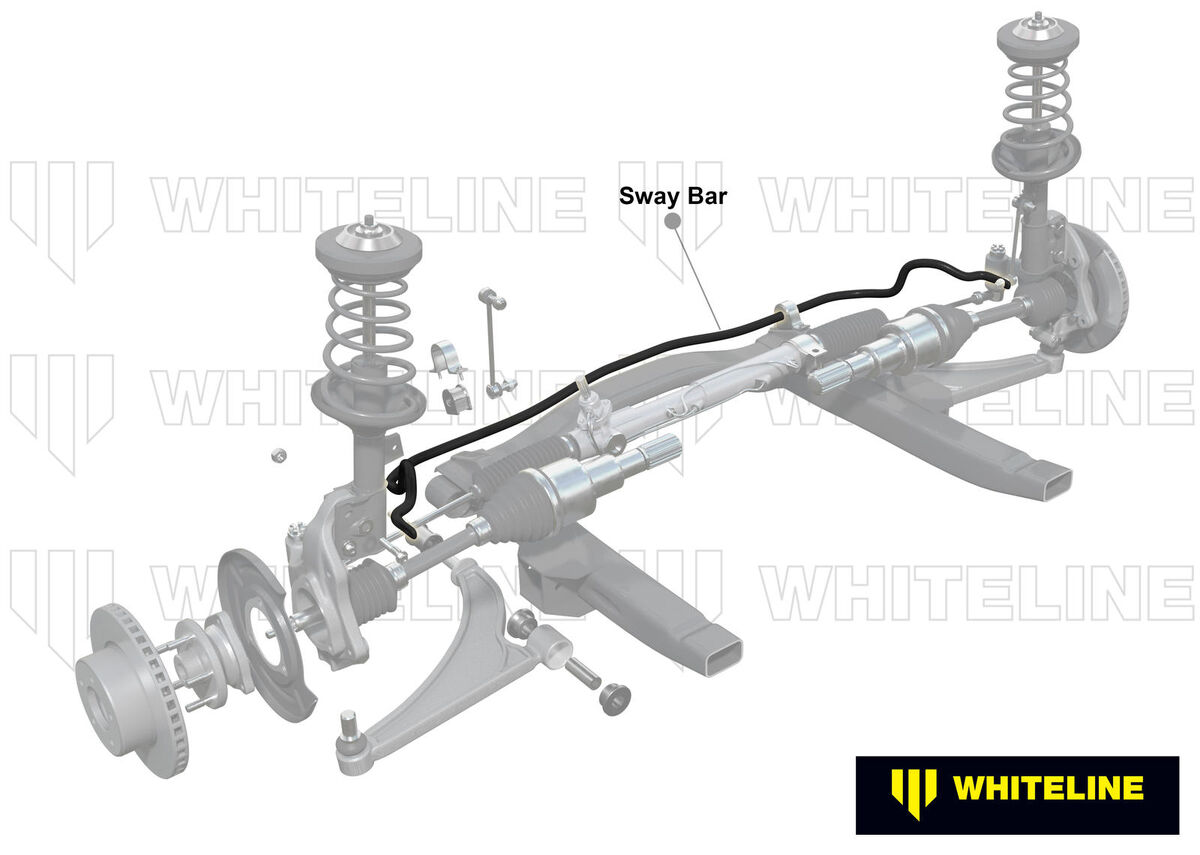

Benefit Note: Engineered to 'Activate More Grip', sway bars are principally designed to reduce body roll or sway. By reducing body roll, lateral loads are spread more evenly across the tyres thereby increasing cornering grip and improving outright performance. This Whiteline 22mm 3 point adjustable sway bar = more grip = better handling = outright performance - it's the best dollar for dollar handling improvement you can make to your vehicle. In fact, benefits extend to improvements in handling, safety and tyre wear without affecting ride quality or comfort.


Kit Specifications

Diameter (mm) 22
Diameter (in) Fraction 7/8"
Diameter (in) Decimal 0.866
Material Solid Spring Steel

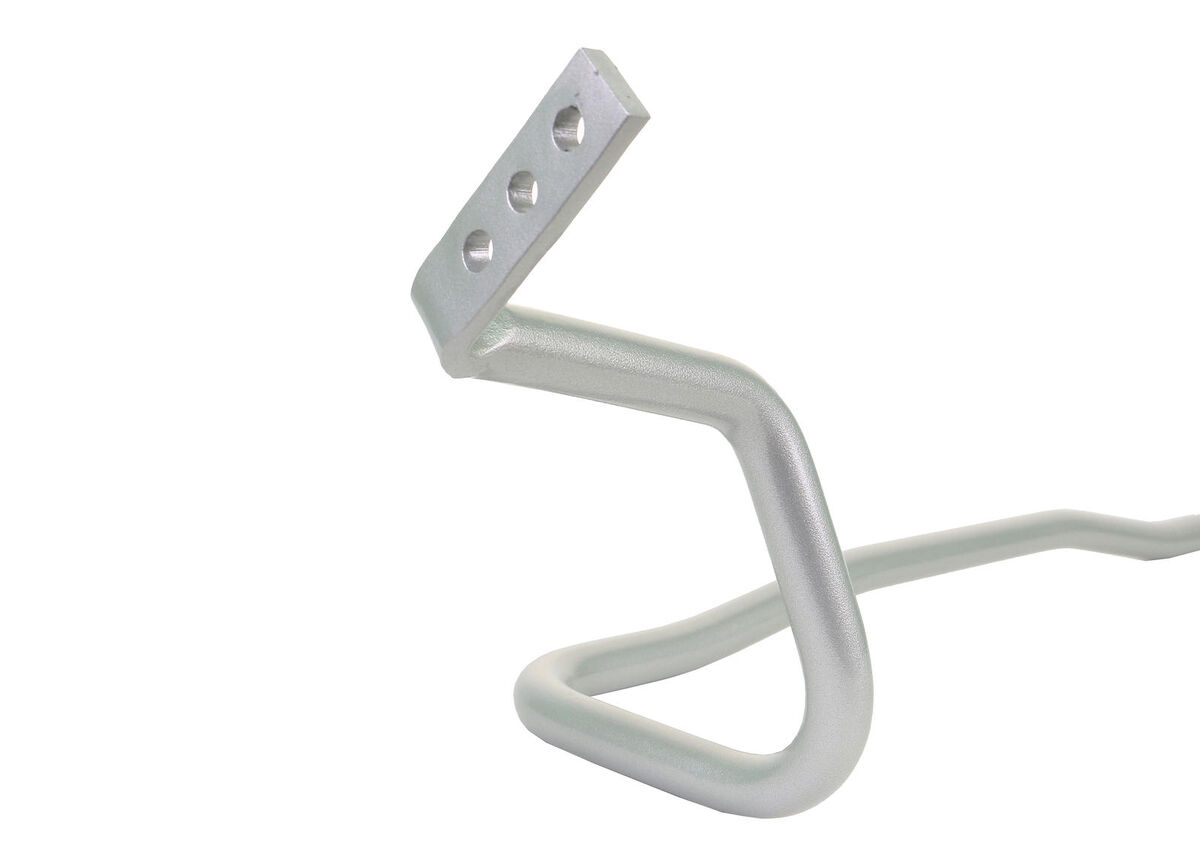

Sway Bar Adjustment Type 3 Point Adjustable

Adjusting the sway bar's soft to hard setting will modify its torsion regidity, causing the sway bar to operate as per the size below.


Sway Bar Adjustment Settings

Setting Effective Bar Size (mm) % Change vs Previous Setting % Stiffer Than OE
Soft - Comfort / low grip 21 mm - -41.4%
Medium - Balanced 22 mm +20.5% -29.4%
Hard - Maximum roll control 23 mm +19.5% -15.7%

Packaged Weight and Dimensions

Unitscm/kgin/lbs
Weight5.5kg12.13lbs
Length120cm47.24"
Width25cm9.84"
Height20cm7.87"

Misc. Product Information

More Information
SKUBMF66Z
Components Per1 Sway Bar, 2 Bushings, 2 Saddles, 2 Lateral Locks
Kits Required1
Sub brandPerformance
Product NoteReduces body roll, keeping your vehicle flatter through corners; the perfect, complete upgrade. Includes: 1 Sway Bar, 2 Bushings, 2 Saddles, 2 Lateral Locks
EAN9319924462087
  • Lifetime Warranty
Brand Whiteline
SKU BMF66Z
