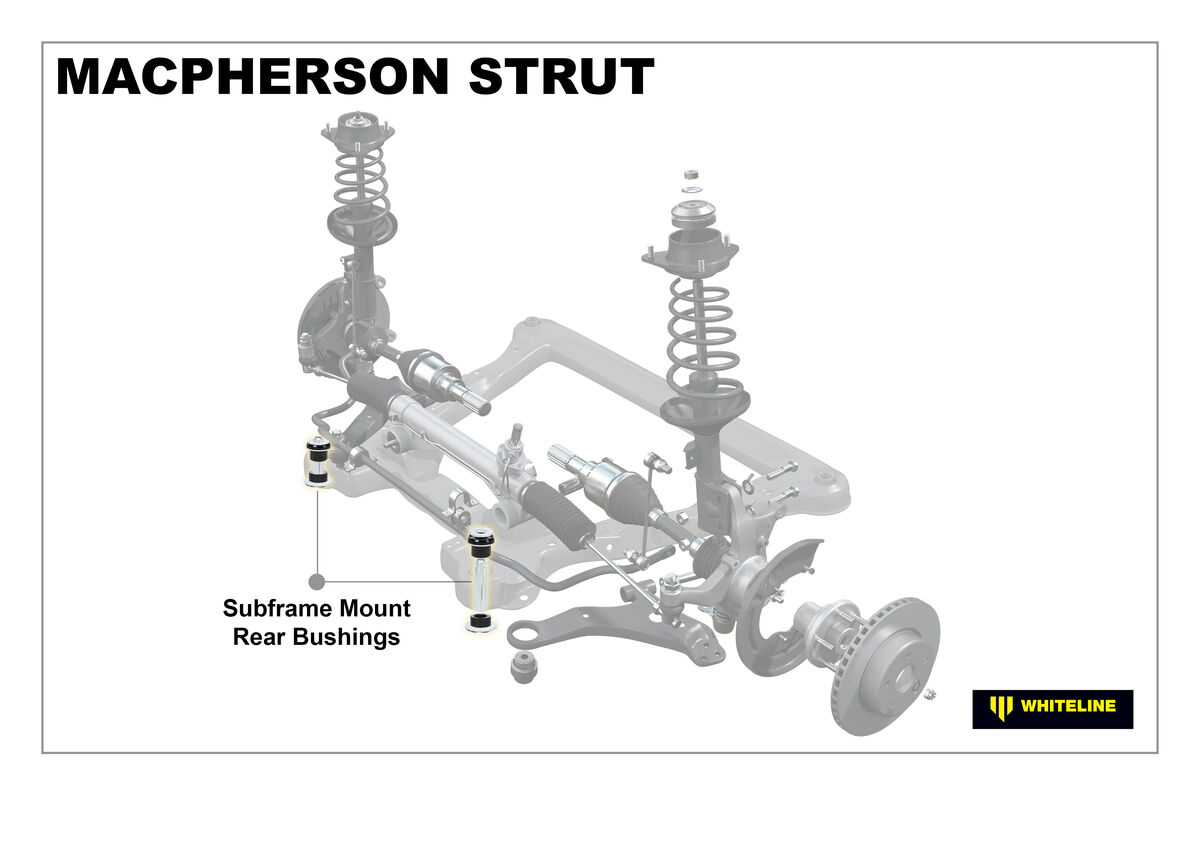

Benefit Note: The Whiteline kit replaces the rear bushings in the front subframe to dramatically reduce front cross member misalignment and movement which allows a more positive feel from the front end during cornering.

Kit Specifications

Bush Type	1 - Shackle Bushing	1 - Shackle Bushing
Bush Quantity	2 mm	2 mm
OD (A)	42.3 mm	42.3 mm
ID (B)	28.6 mm	28.6 mm
Length (C)	43 mm	20.5 mm
Flange Thickness (D)	6.5 mm	5.5 mm
Flange OD (E)	62 mm	62 mm
C/Tube Quantity	2	2
C/Tube ODxIDxL	28.6 / 24.5x17x111.5 mm	28.6 / 24.5x17x111.5 mm
Similar Bushing Size	Click Here	Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Bushing Design Dimensions (mm)

Bush Type	1	1
QTY	2	2
OD (A)	42.3	42.3
ID (B)	28.6	28.6
Length (C)	43.0	20.5
FL (D)	6.5	5.5
FLOD (E)	62	62
C/Tube Qty	2	2
C/Tube Size	28.6 / 24.5x17x111.5	28.6 / 24.5x17x111.5
Similar Bushings	Click Here	Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Packaged Weight and Dimensions

Units	cm/kg	in/lbs
Weight	1kg	2.2lbs
Length	10cm	3.94"
Width	26cm	10.24"
Height	16cm	6.3"

Misc. Product Information

More Information

SKU	W93049

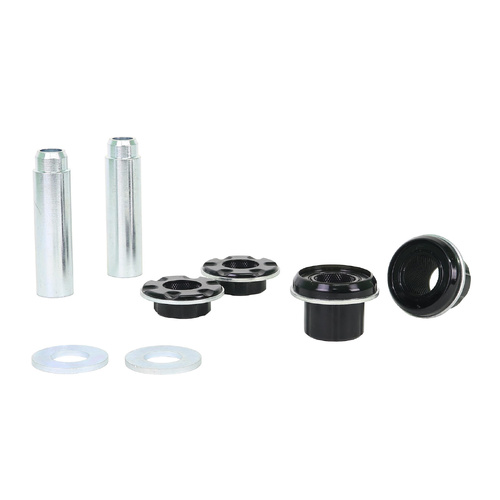

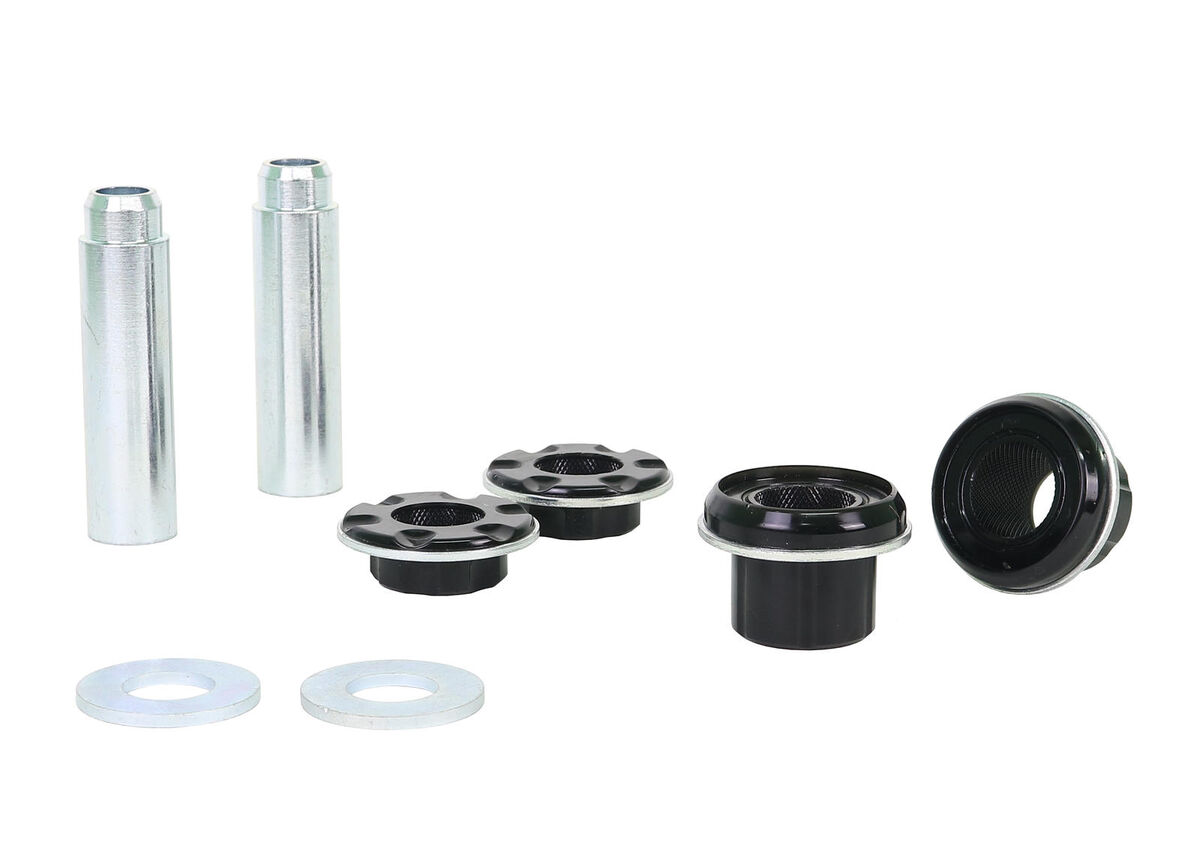

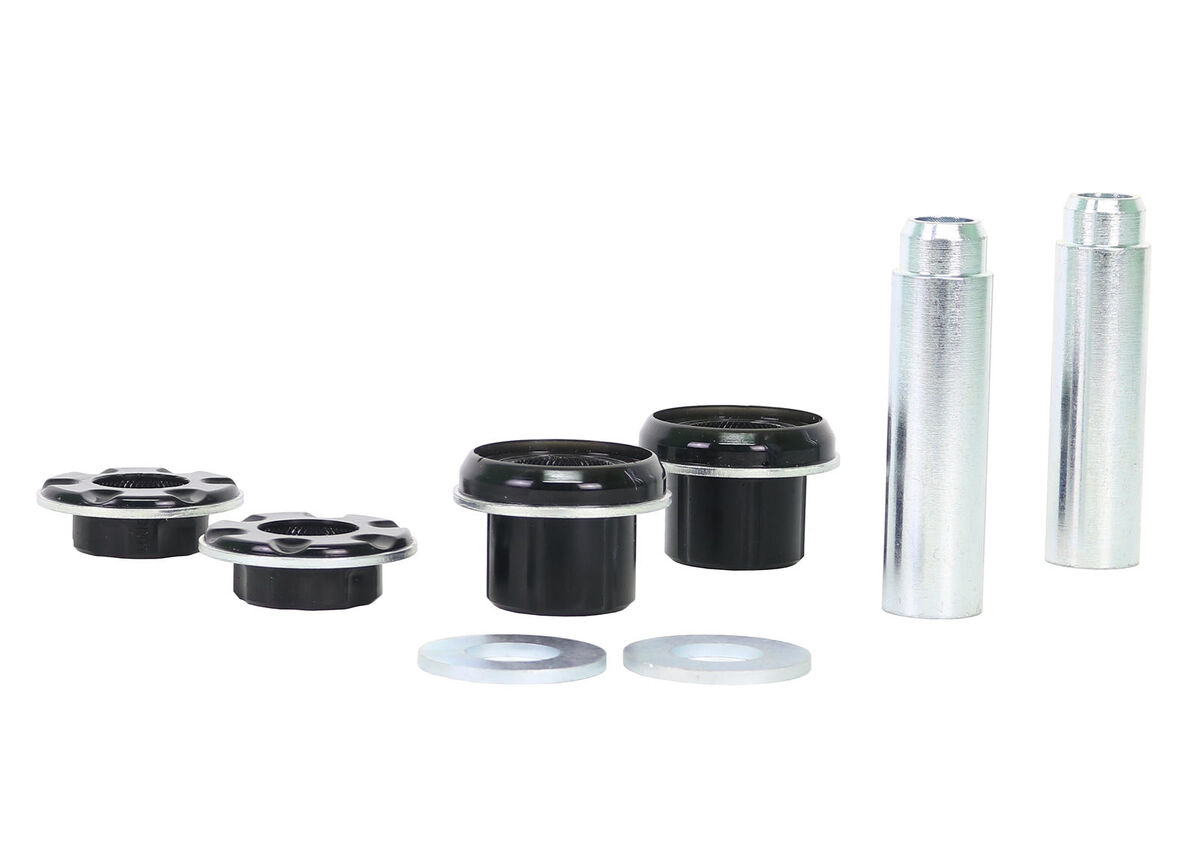

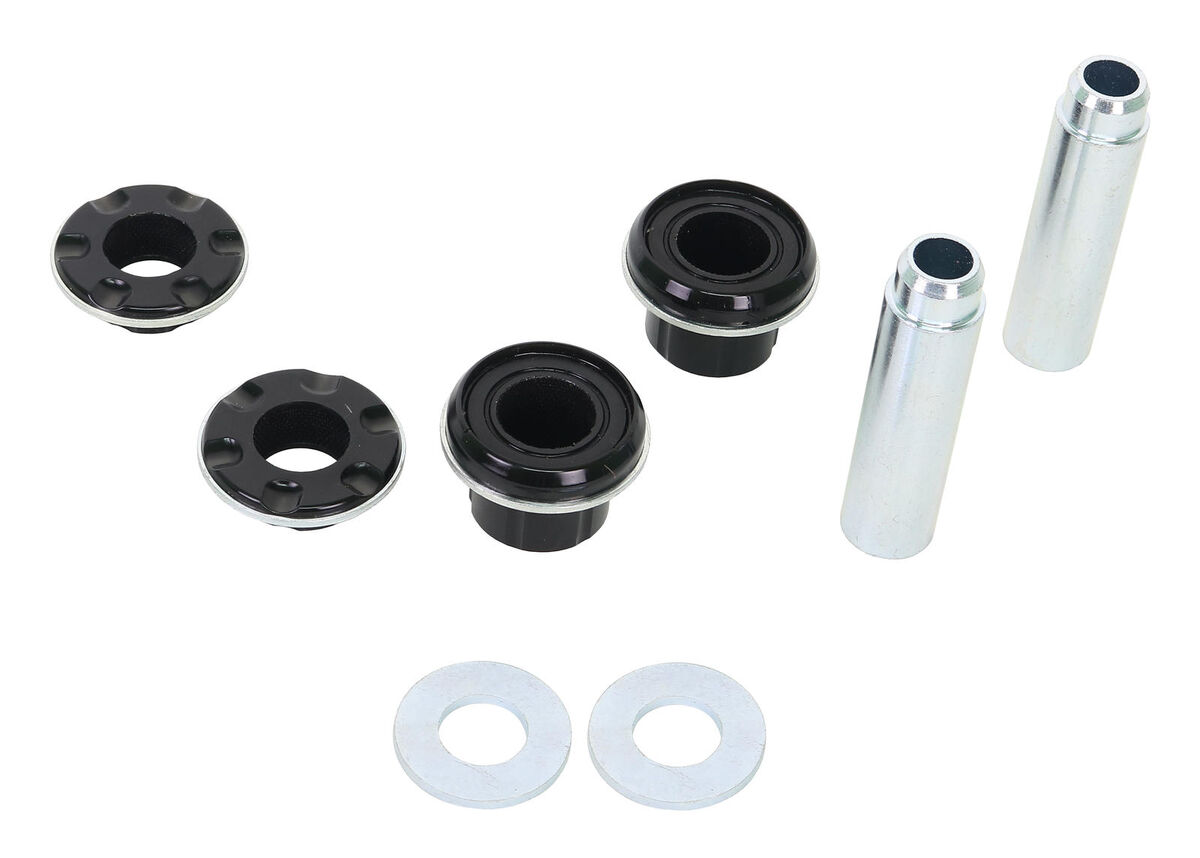

Components Per	4 Bushings, 2 Tubes, 2 Washers
Kits Required	1
Sub brand	Replacement
Product Note	Maximises grip and stability for better control; the perfect, complete upgrade. Includes: 4 Bushings, 2 Tubes & 2 Washers
EAN	9319924463794
