Whiteline Front Subframe - Front Bushing Kit to Suit Nissan Dualis, X-Trail and Renault Koleos

SKU: W93048

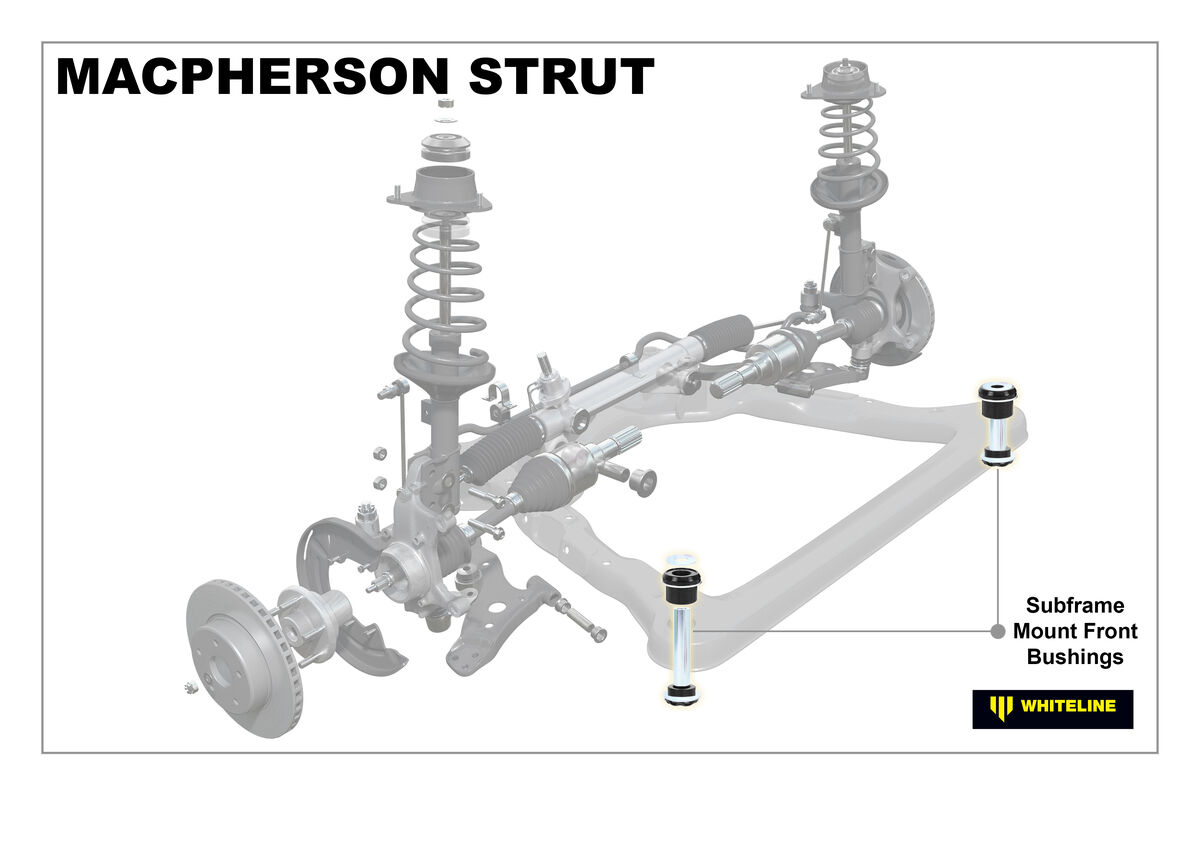

Benefit Note: The Whiteline kit replaces the front bushings in the front subframe to dramatically reduce front cross member misalignment and movement which allows a more positive feel from the front end during cornering.


Kit Specifications

Bush Type 1 - Shackle Bushing 1 - Shackle Bushing
Bush Quantity 2 mm 2 mm
OD (A) 48 mm 48 mm
ID (B) 30 mm 30 mm
Length (C) 44.5 mm 26 mm
Flange Thickness (D) 14.5 mm 11 mm
Flange OD (E) 62 mm 62 mm
C/Tube Quantity 2 2
C/Tube ODxIDxL 30x18.5x140 mm 30x18.5x140 mm
Similar Bushing Size Click Here Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Bushing Type 1 - Shackle Bushing
Bushing Type 1 - Shackle Bushing

Bushing Design Dimensions (mm)

Bush Type 1 1
QTY 2 2
OD (A) 48 48
ID (B) 30 30
Length (C) 44.5 26.0
FL (D) 14.5 11
FLOD (E) 62 62
C/Tube Qty 2 2
C/Tube Size 30x18.5x140 30x18.5x140
Similar Bushings Click Here Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Bushing Type 1

Packaged Weight and Dimensions

Unitscm/kgin/lbs
Weight1kg2.2lbs
Length10cm3.94"
Width26cm10.24"
Height16cm6.3"

Misc. Product Information

More Information
SKUW93048

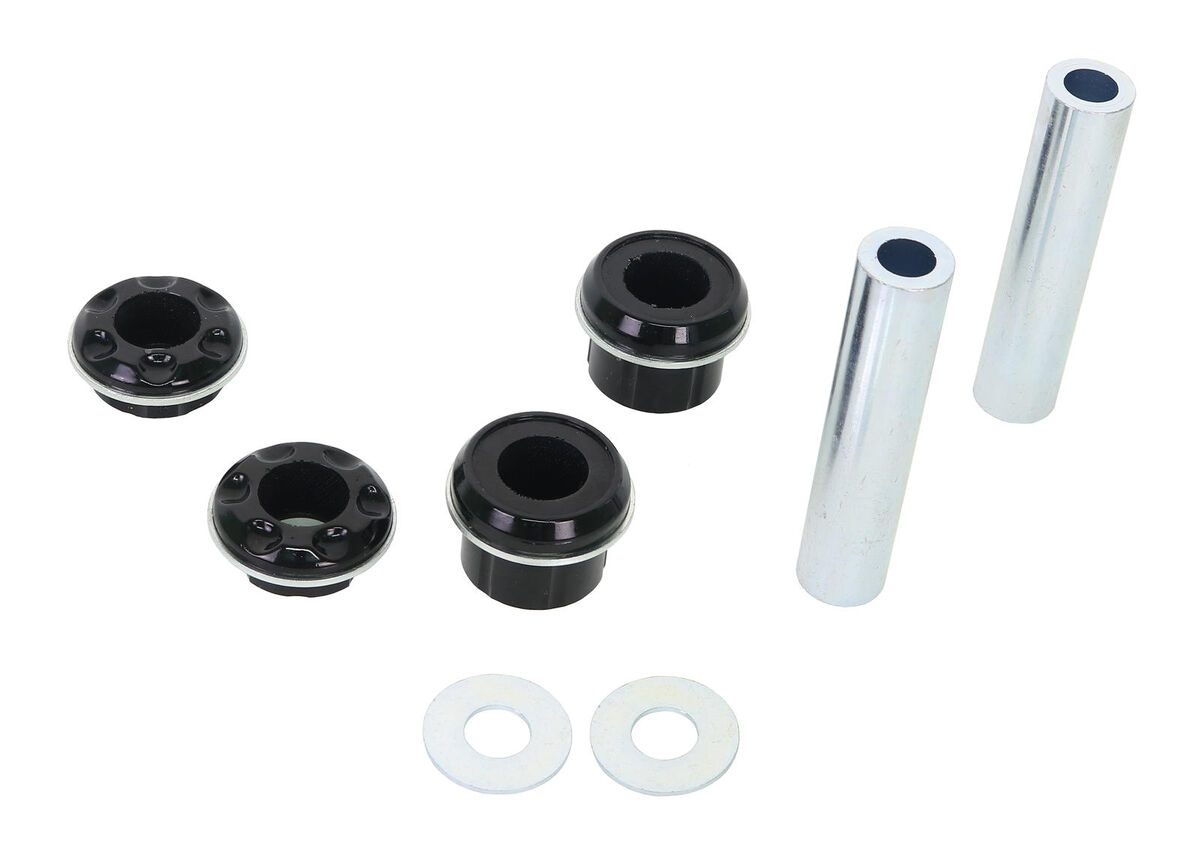

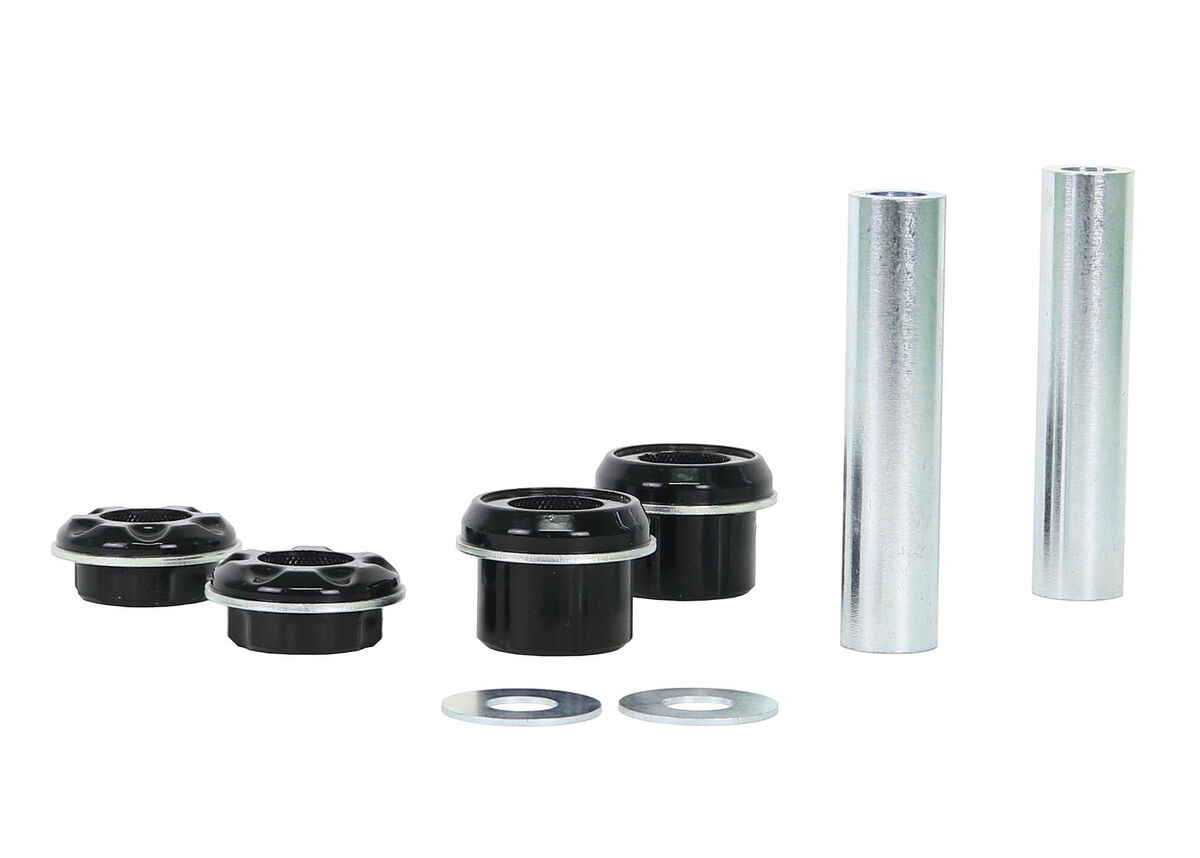

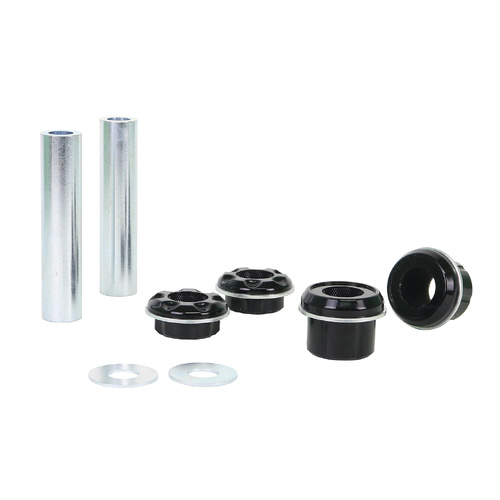

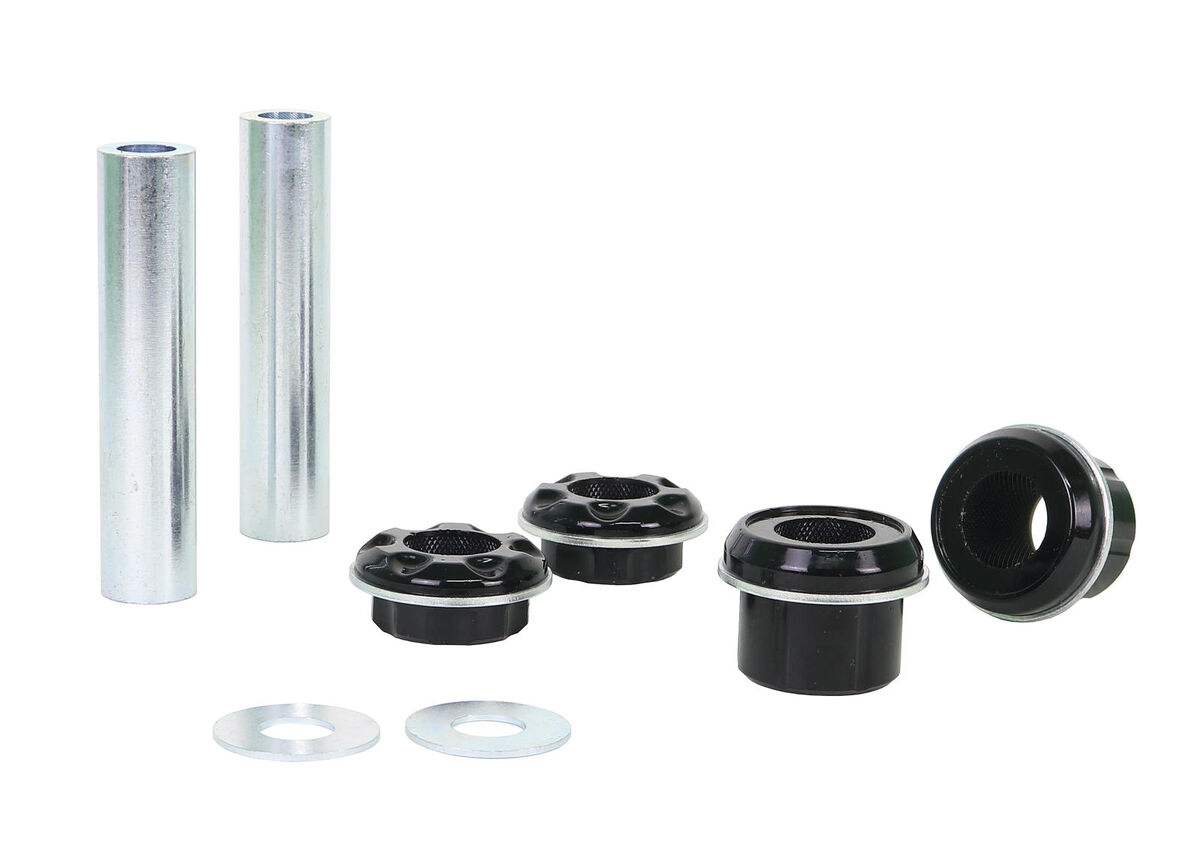

Components Per4 Bushings, 2 Tubes, 2 Washers
Kits Required1
Sub brandReplacement
Product NoteBoosts handling and performance, while optimising suspension geometry; the perfect, complete upgrade. Includes: 4 Bushings, 2 Tubes & 2 Washers
EAN9319924463787
  • Lifetime Warranty
Brand Whiteline
SKU W93048
Unit Of Measure Kit
