Whiteline Front Subframe - Bushing Kit to Suit Holden HQ-WB and Torana LH-LX

SKU: W91107

Benefit Note: The Whiteline kit replaces the bushings in the front subframe to dramatically reduce rear cross member misalignment and movement which allows a more positive feel from the rear end during cornering.


Kit Specifications

Bush Type 7 - Pin Bush With & Without Spigot 7 - Pin Bush With & Without Spigot
Bush Quantity 4 mm 4 mm
OD (A) 46.6 mm AI=50.7 AII=34 mm
ID (B) 21 mm 21 mm
Length (C) 18 mm 18.4 mm
Flange Thickness (D) 4.5 mm
Flange OD (E)
C/Tube Quantity
C/Tube ODxIDxL
Similar Bushing Size Click Here Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Bushing Type 7 - Pin Bush With & Without Spigot
Bushing Type 7 - Pin Bush With & Without Spigot

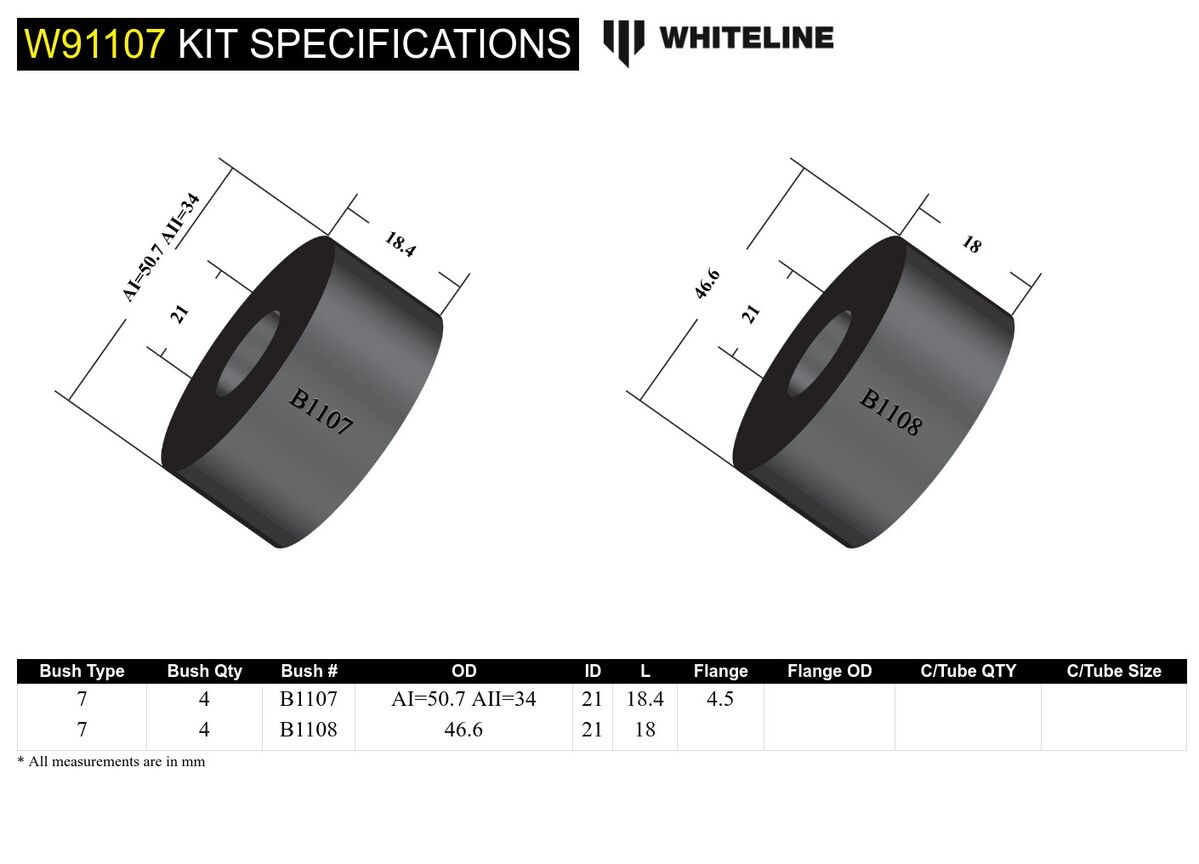

Bushing Design Dimensions (mm)

Bush Type 7 7
QTY 4 4
OD (A) 46.6 AI=50.7 AII=34
ID (B) 21 21
Length (C) 18.0 18.4
FL (D) 4.5
FLOD (E)
C/Tube Qty
C/Tube Size
Similar Bushings Click Here Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Bushing Type 7

Packaged Weight and Dimensions

Unitscm/kgin/lbs
Weight0.762kg1.68lbs
Length10cm3.94"
Width26cm10.24"
Height16cm6.3"

Misc. Product Information

More Information
SKUW91107

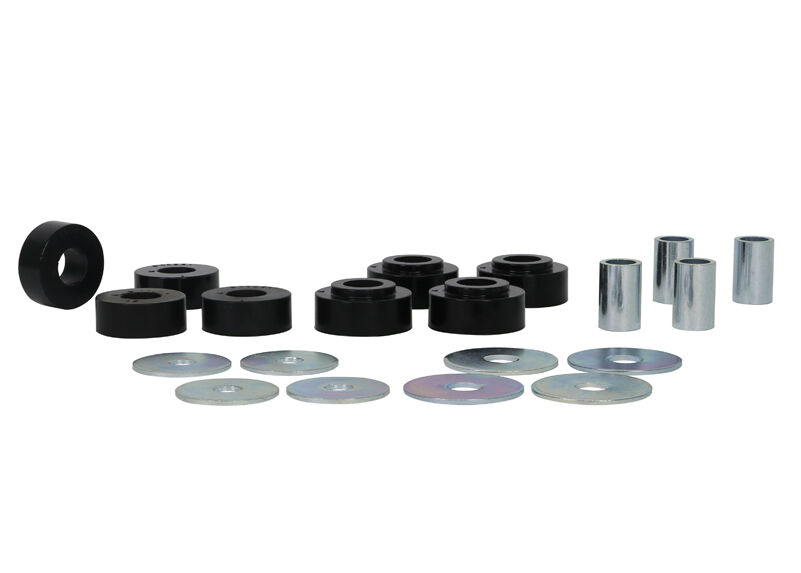

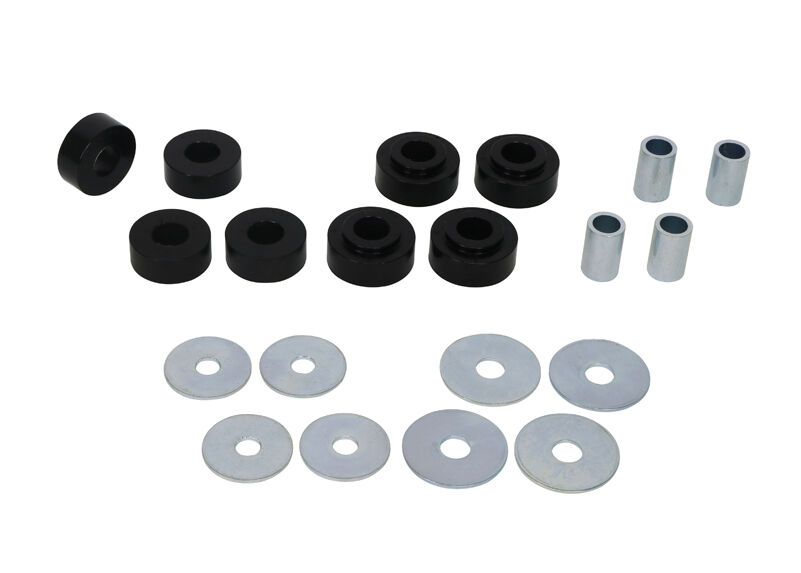

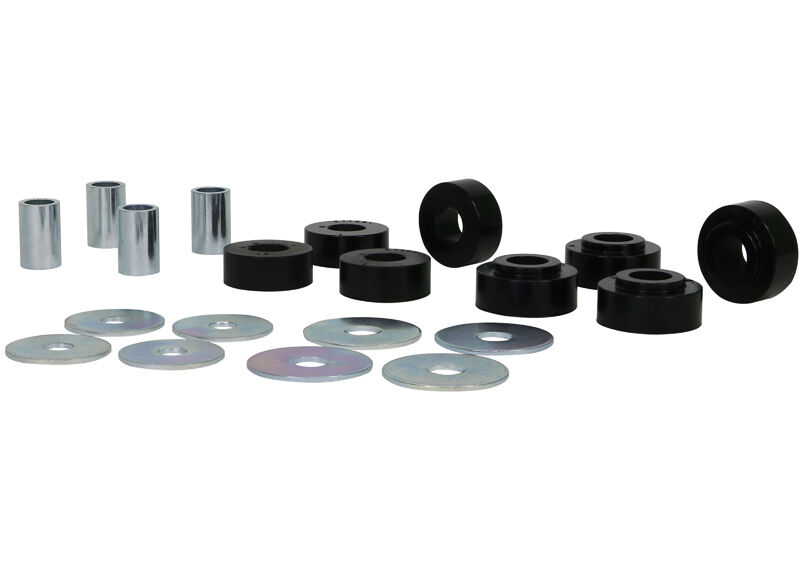

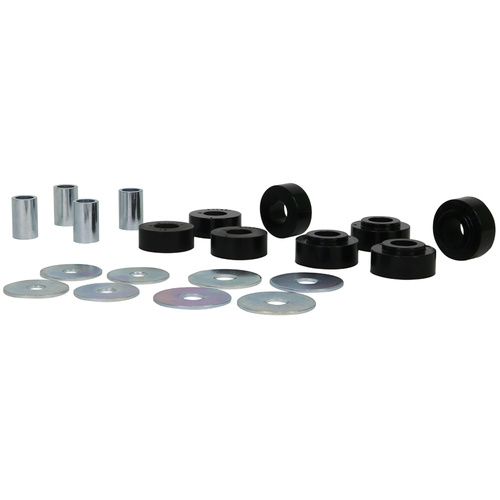

Components Per8 Bushings, 4 Tubes, 8 Washers
Kits Required2
Sub brandReplacement
Product NoteCreates a consistent drive no matter the surface; the perfect, complete upgrade. Includes: 8 Bushings, 4 Tubes & 8 Washers
EAN9319924357604
  • Lifetime Warranty
Brand Whiteline
SKU W91107
Unit Of Measure Kit
