Whiteline Front Strut Tension - Bushing Kit Double Offset Caster Kit to Suit BMW 1, 3 Series and Z4

SKU: KCA430

Benefit Note: Whiteline caster kits are designed to improve cornering grip and vehicle straight line stability. This kit is supplied with dual offset bushings to give greater steering feel, more steering weight, greater precision all through increased static caster and dynamic negative camber gain. In addition, Whiteline bushings provide improved braking performance, and less under load alignment change.

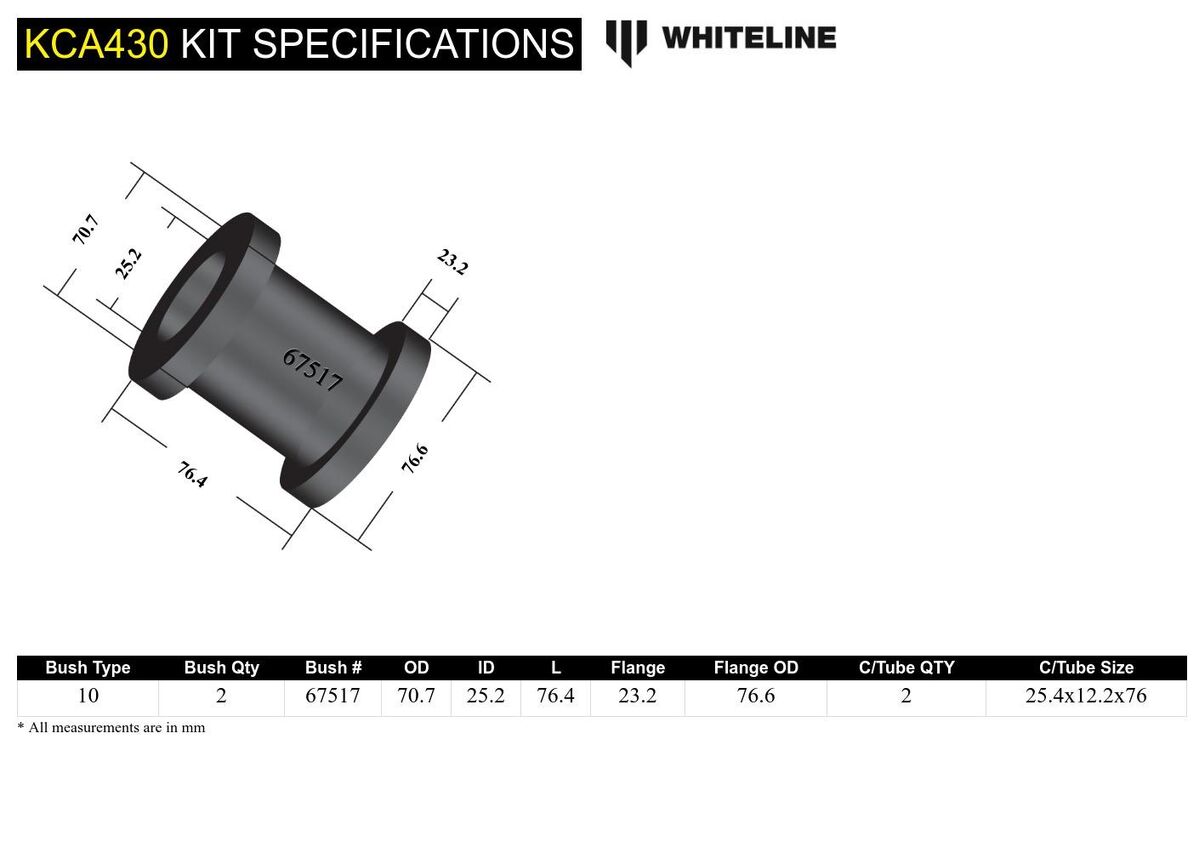

Kit Specifications

Bush Type 10 - Cotton Reel With & Without Tapper Bushing
Bush Quantity 2 mm
OD (A) 70.7 mm
ID (B) 25.2 mm
Length (C) 76.4 mm
Flange Thickness (D) 23.2 mm
Flange OD (E) 76.6 mm
C/Tube Quantity 2
C/Tube ODxIDxL 25.4x12.2x76 mm
Similar Bushing Size Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Bushing Type 10 - Cotton Reel With & Without Tapper Bushing
Alignment Alignment Adjustment Type Alignment On Car Adjustable
Caster Offset No

Bushing Design Dimensions (mm)

Bush Type 10
QTY 2
OD (A) 70.7
ID (B) 25.2
Length (C) 76.4
FL (D) 23.2
FLOD (E) 76.6
C/Tube Qty 2
C/Tube Size 25.4x12.2x76
Similar Bushings Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Bushing Type 10

Packaged Weight and Dimensions

Unitscm/kgin/lbs
Weight1.42kg3.13lbs
Length10cm3.94"
Width16cm6.3"
Height26cm10.24"

Misc. Product Information

More Information
SKUKCA430
Components Per2 Bushings, 2 Tubes
Kits Required1
Sub brandPerformance
Product NoteGreatly increases control and confidence; the perfect, complete upgrade. Includes: 2 Bushings, 2 Tubes
EAN9319924387632
  • Lifetime Warranty
Brand Whiteline
SKU KCA430
Unit Of Measure Kit
