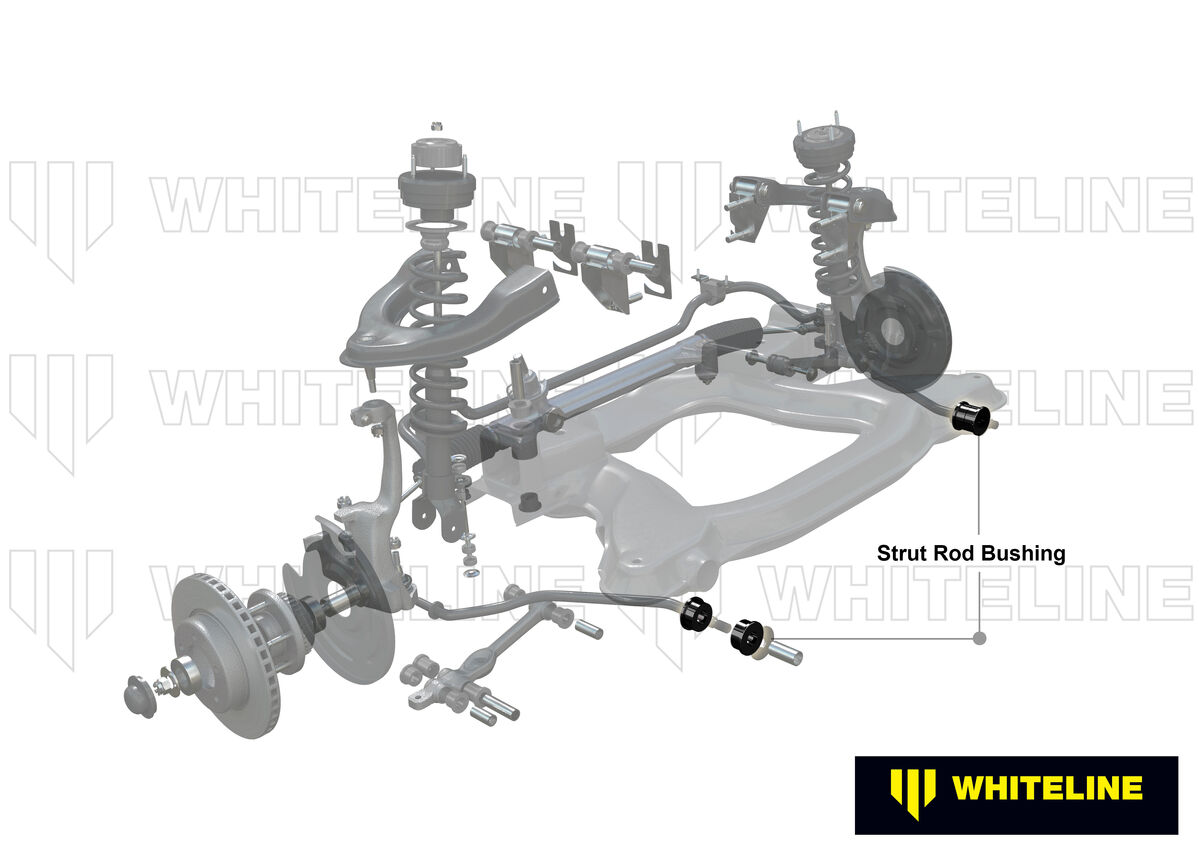

Whiteline Front Strut Rod - To Chassis Bushing Kit to Suit Nissan 350Z, Skyline and Stagea

SKU: W83389

Benefit Note: Not many know but worn suspension bushings have an effect on braking performance. In particular these bushings tend to absorb most of the loads under braking resulting in severe wear and reduced braking efficiency over time. Replace these worn parts with Whiteline synthetic elastomer bushings that offer long lasting durability for a safer more predictable vehicle.

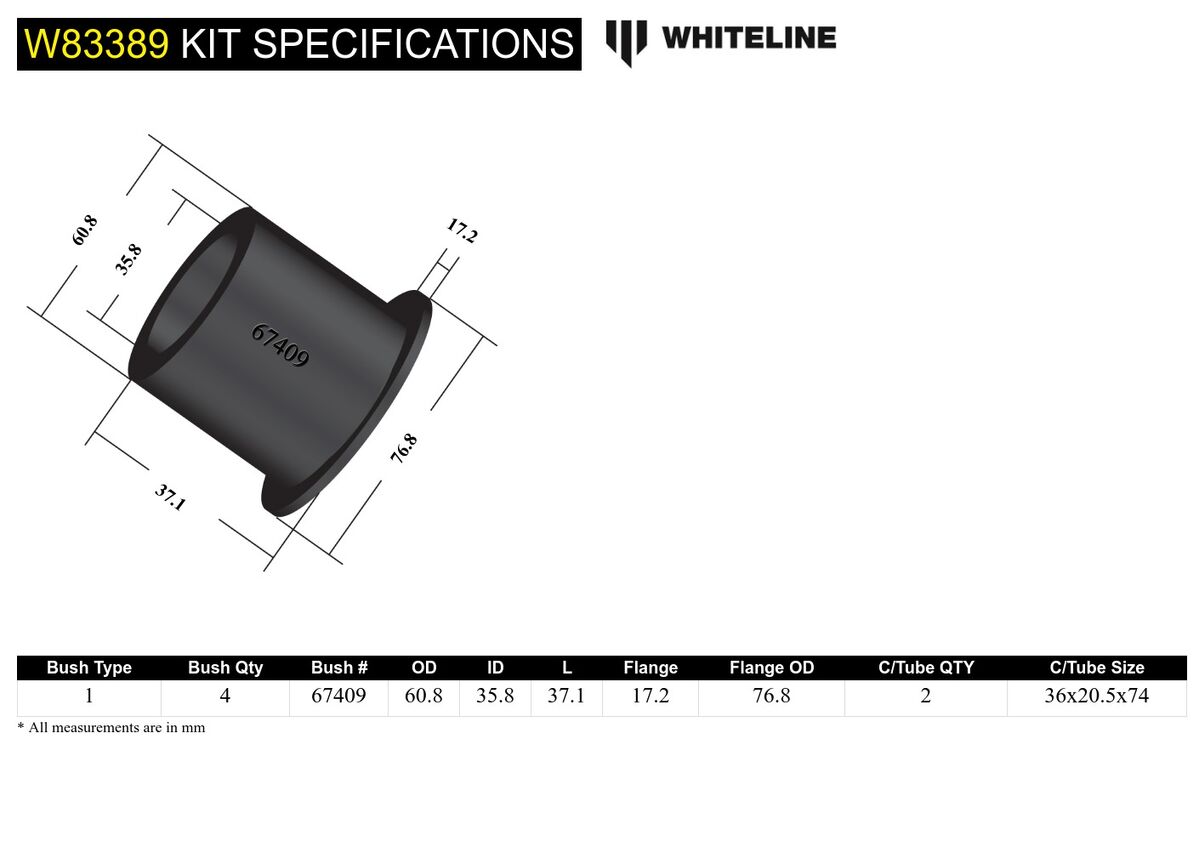

Kit Specifications

Bush Type 1 - Shackle Bushing
Bush Quantity 4 mm
OD (A) 60.8 mm
ID (B) 35.8 mm
Length (C) 37.1 mm
Flange Thickness (D) 17.2 mm
Flange OD (E) 76.8 mm
C/Tube Quantity 2
C/Tube ODxIDxL 36x20.5x74 mm
Similar Bushing Size Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Bushing Type 1 - Shackle Bushing

Bushing Design Dimensions (mm)

Bush Type 1
QTY 4
OD (A) 60.8
ID (B) 35.8
Length (C) 37.1
FL (D) 17.2
FLOD (E) 76.8
C/Tube Qty 2
C/Tube Size 36x20.5x74
Similar Bushings Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Bushing Type 1

Packaged Weight and Dimensions

Unitscm/kgin/lbs
Weight1.142kg2.52lbs
Length10cm3.94"
Width26cm10.24"
Height16cm6.3"

Misc. Product Information

More Information
SKUW83389

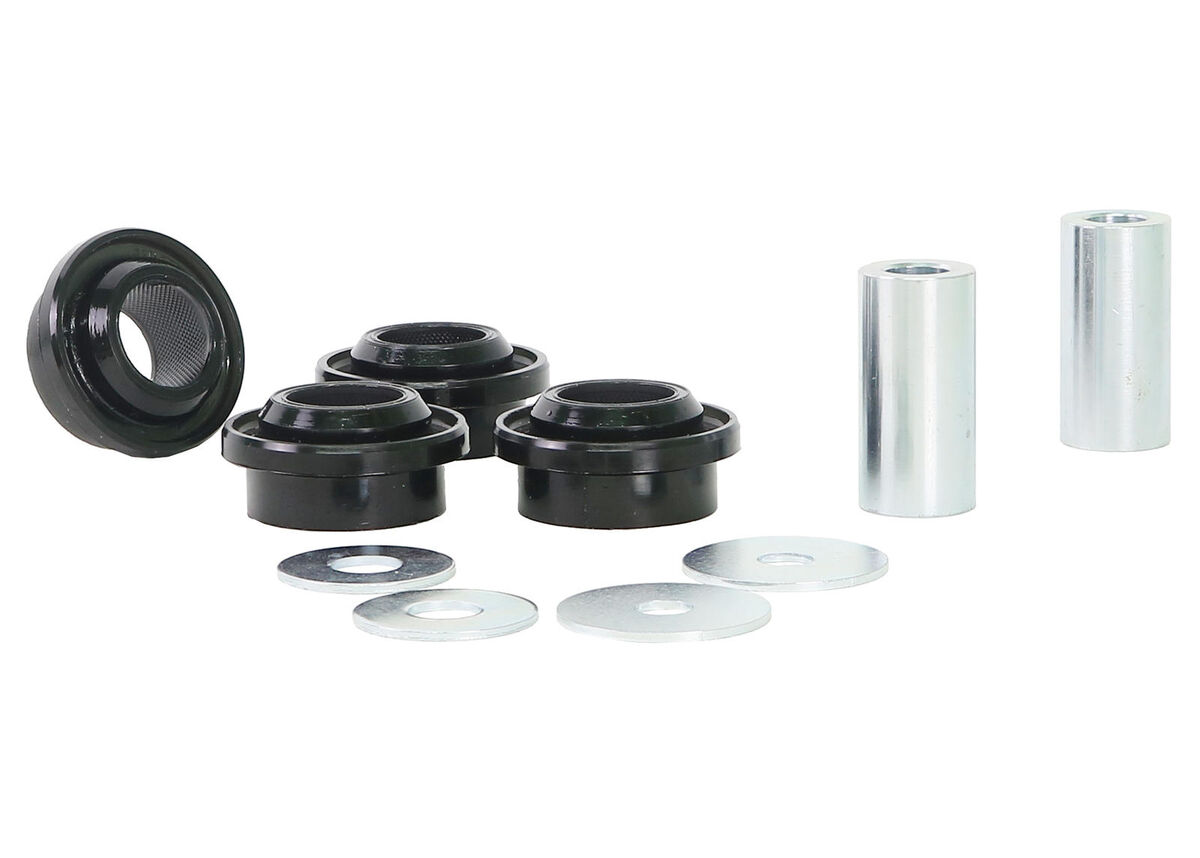

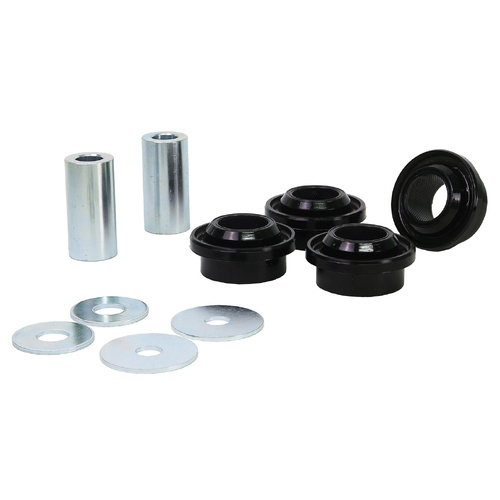

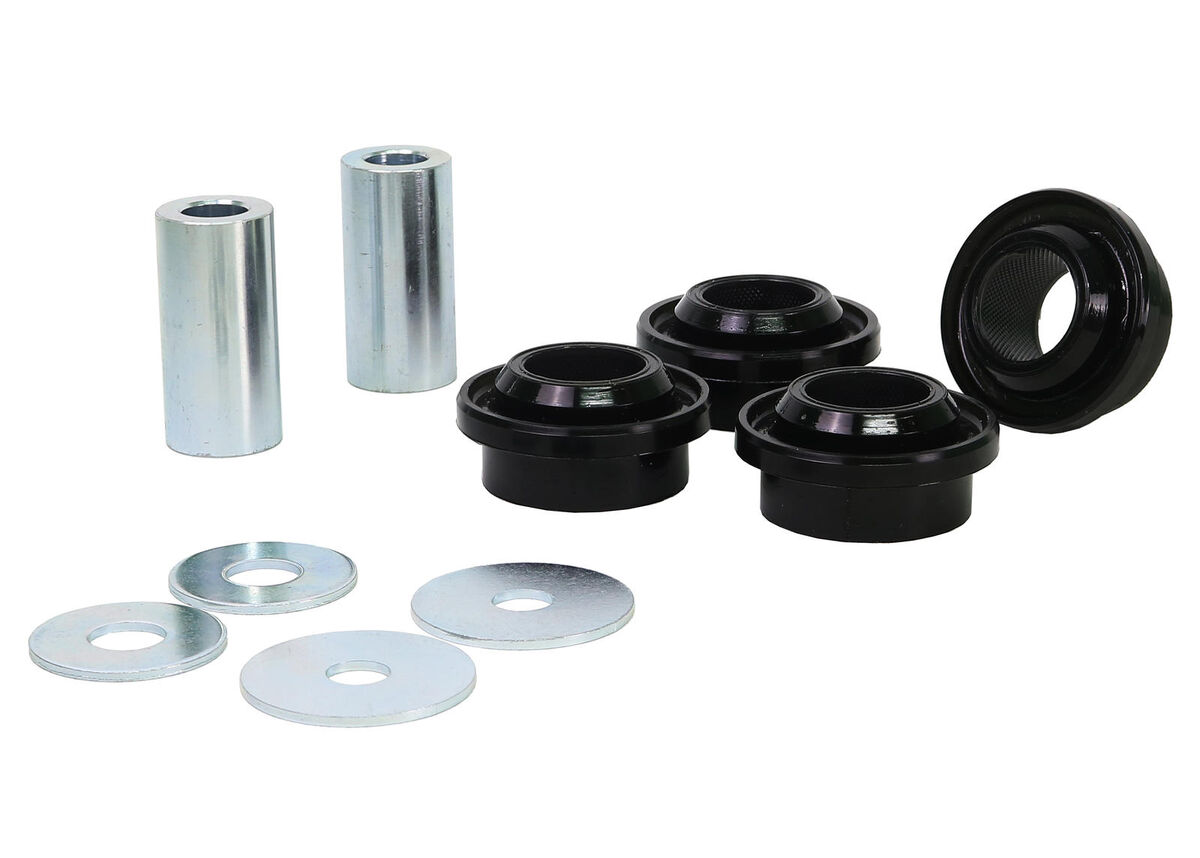

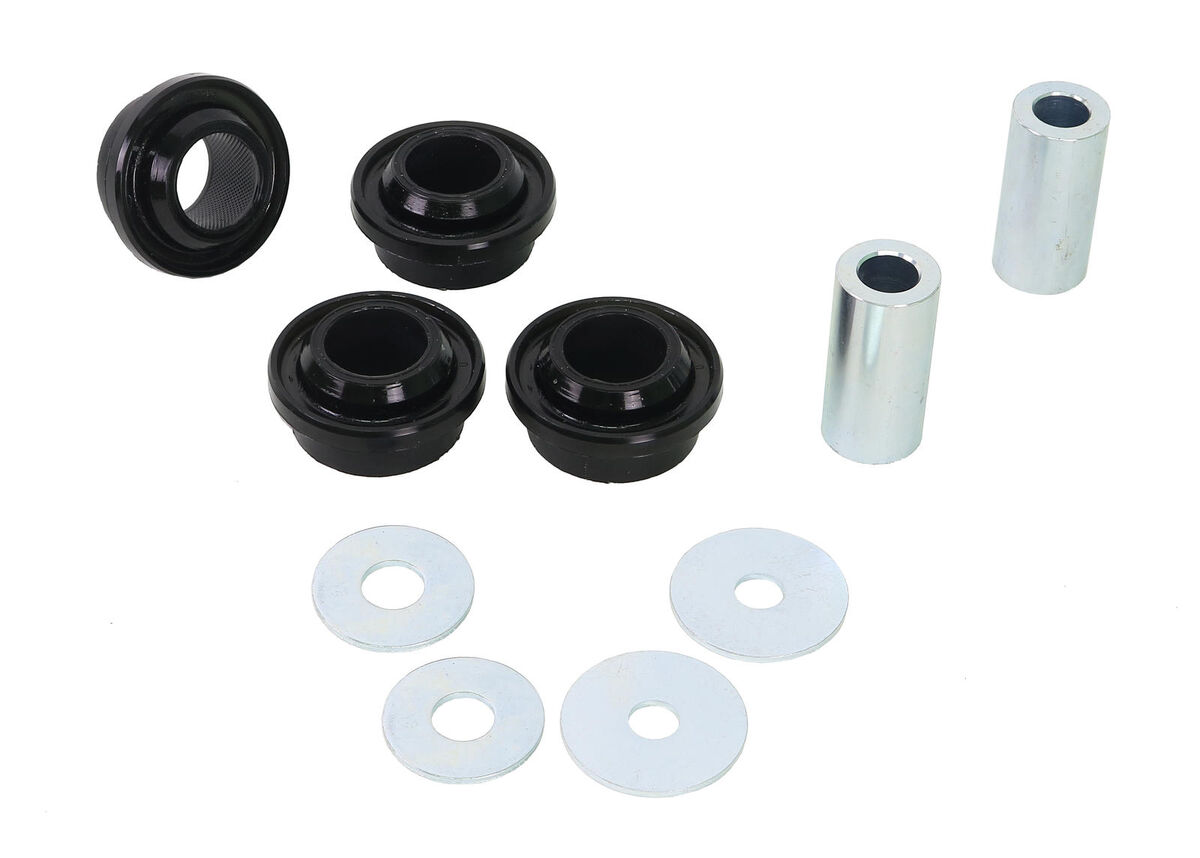

Components Per4 Bushings, 2 Tubes
Kits Required1
Sub brandReplacement
Product NoteBoosts handling and performance, while optimising suspension geometry; the perfect, complete upgrade. Includes: 4 Bushings & 2 Tubes
EAN9319924384099
  • Lifetime Warranty
Brand Whiteline
SKU W83389
Unit Of Measure Kit
