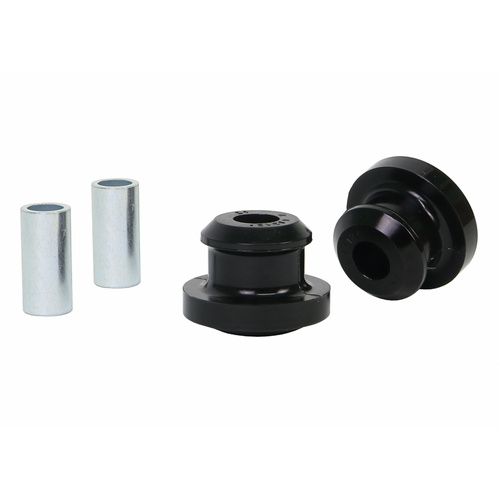

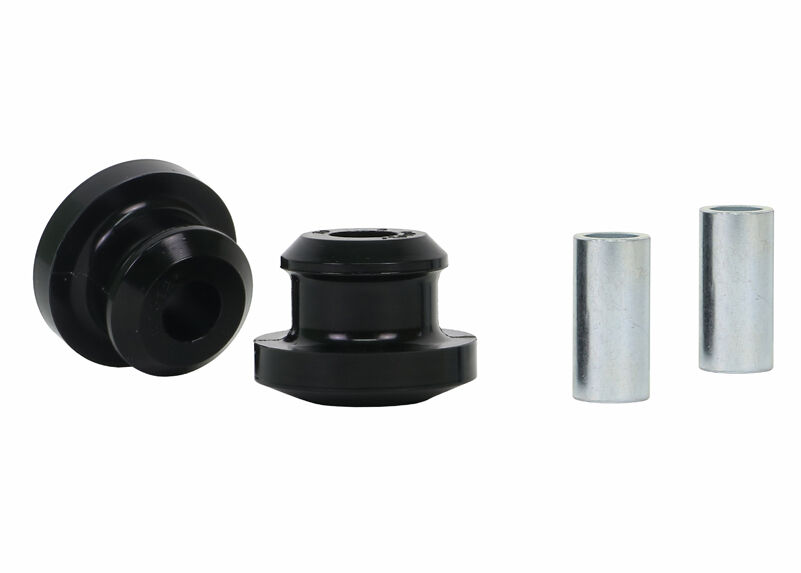

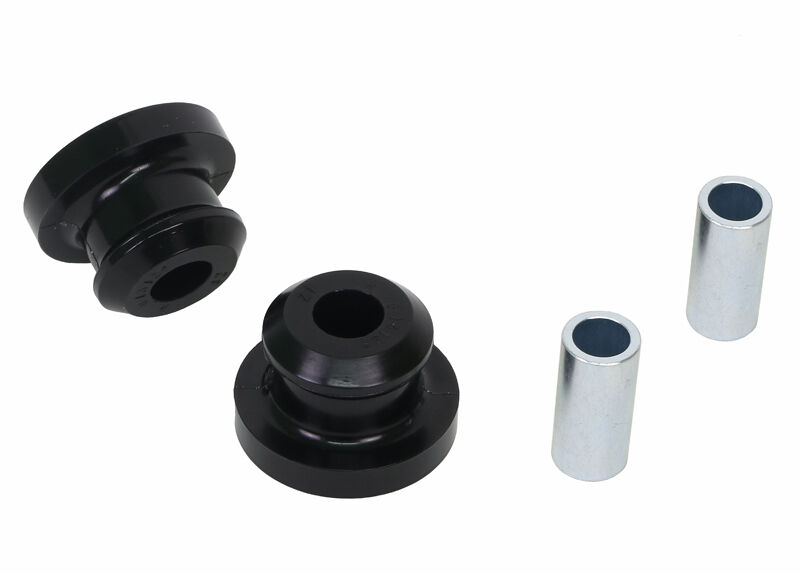

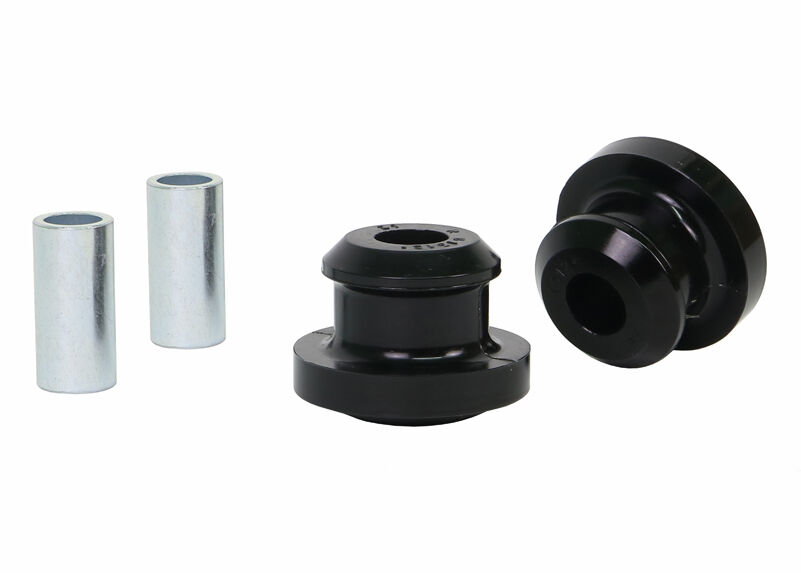

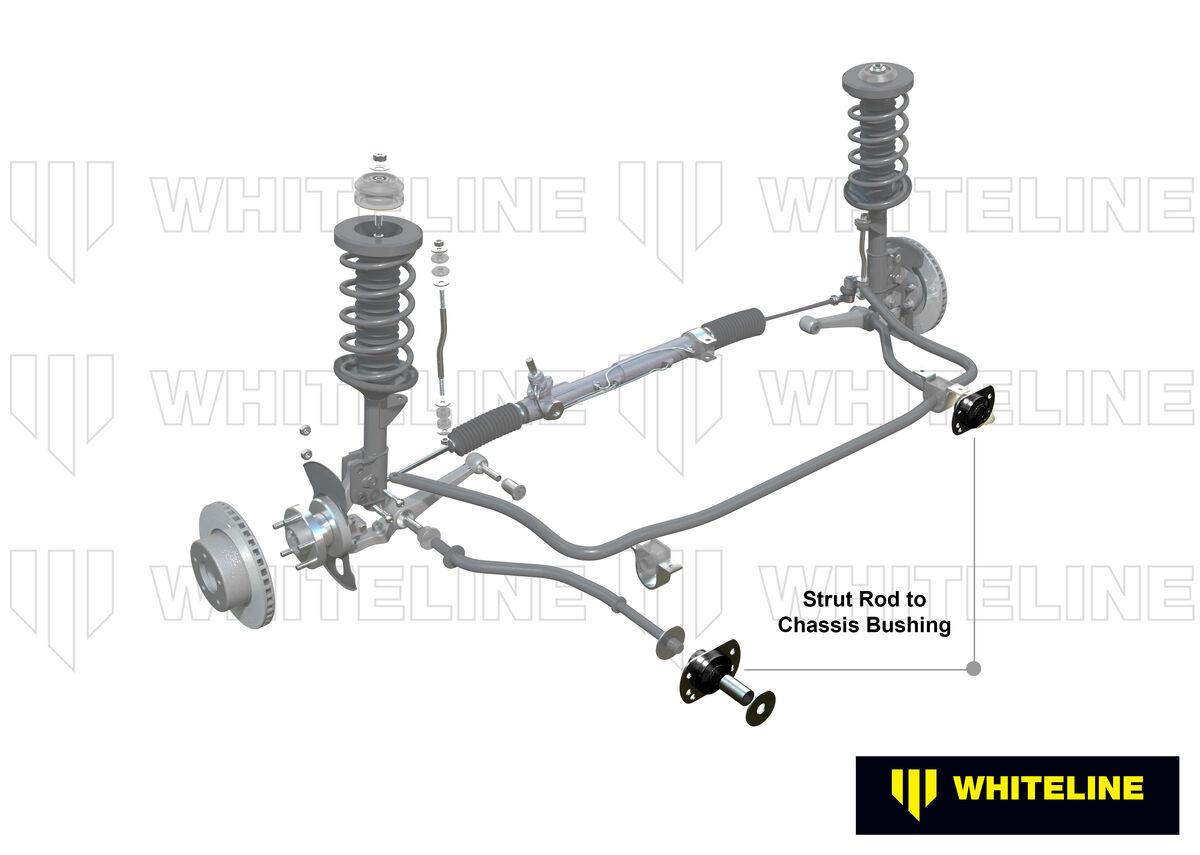

Whiteline Front Strut Rod - To Chassis Bushing Kit to Suit Holden Commodore VB-VS and HSV

SKU: W81312

Benefit Note: Not many know but worn suspension bushings have an effect on braking performance. In particular these bushings tend to absorb most of the loads under braking resulting in severe wear and reduced braking efficiency over time. Replace these worn parts with Whiteline synthetic elastomer bushings that offer long lasting durability for a safer more predictable vehicle.

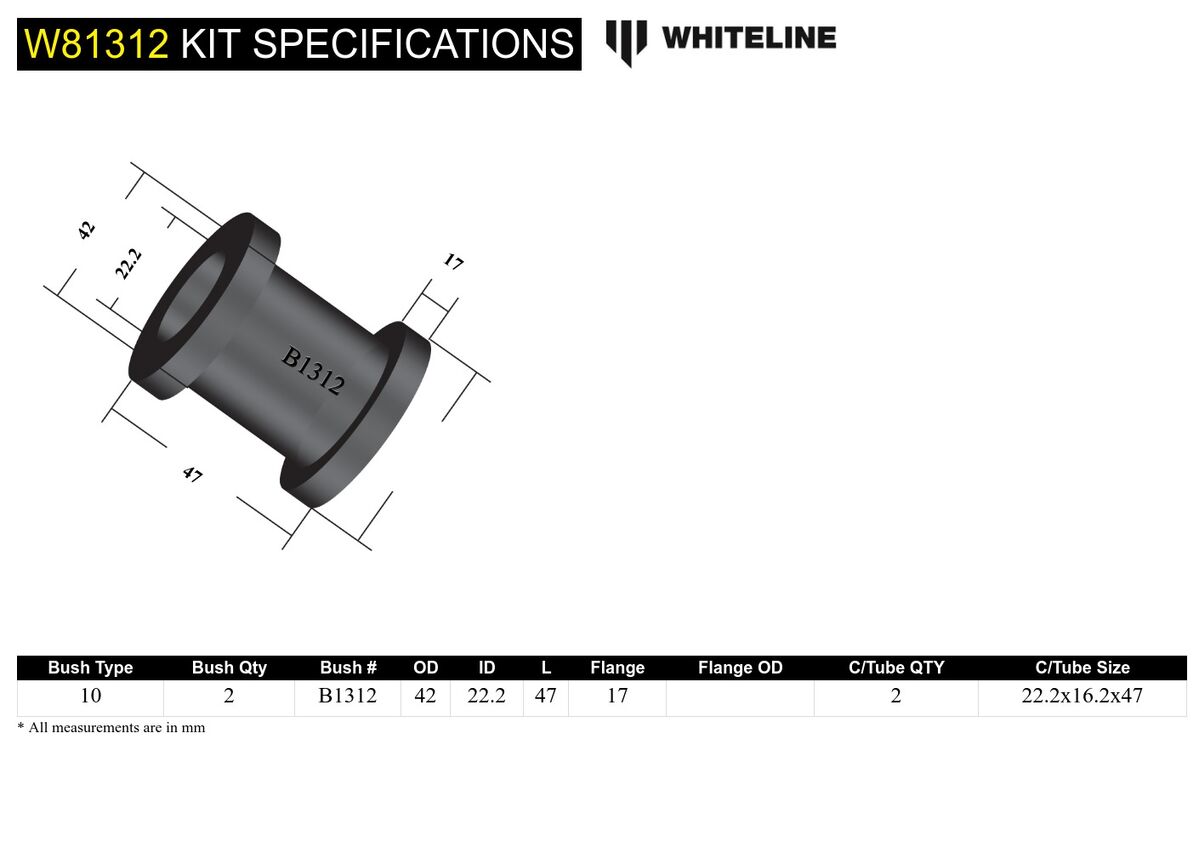

Kit Specifications

Bush Type 10 - Cotton Reel With & Without Tapper Bushing
Bush Quantity 2 mm
OD (A) 42 mm
ID (B) 22.2 mm
Length (C) 47 mm
Flange Thickness (D) 17 mm
Flange OD (E)
C/Tube Quantity 2
C/Tube ODxIDxL 22.2x16.2x47 mm
Similar Bushing Size Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Bushing Type 10 - Cotton Reel With & Without Tapper Bushing

Bushing Design Dimensions (mm)

Bush Type 10
QTY 2
OD (A) 42
ID (B) 22.2
Length (C) 47.0
FL (D) 17
FLOD (E)
C/Tube Qty 2
C/Tube Size 22.2x16.2x47
Similar Bushings Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Bushing Type 10

Packaged Weight and Dimensions

Unitscm/kgin/lbs
Weight0.33kg0.73lbs
Length7cm2.76"
Width20cm7.87"
Height14cm5.51"

Misc. Product Information

More Information
SKUW81312
Components Per2 Bushings, 2 Tubes
Kits Required1
Sub brandReplacement
Product NoteBuilt tough for better durability and long-lasting performance; the perfect, complete upgrade. Includes: 2 Bushings & 2 Tubes
EAN9319924356904
  • Lifetime Warranty
Brand Whiteline
SKU W81312
Unit Of Measure Kit
