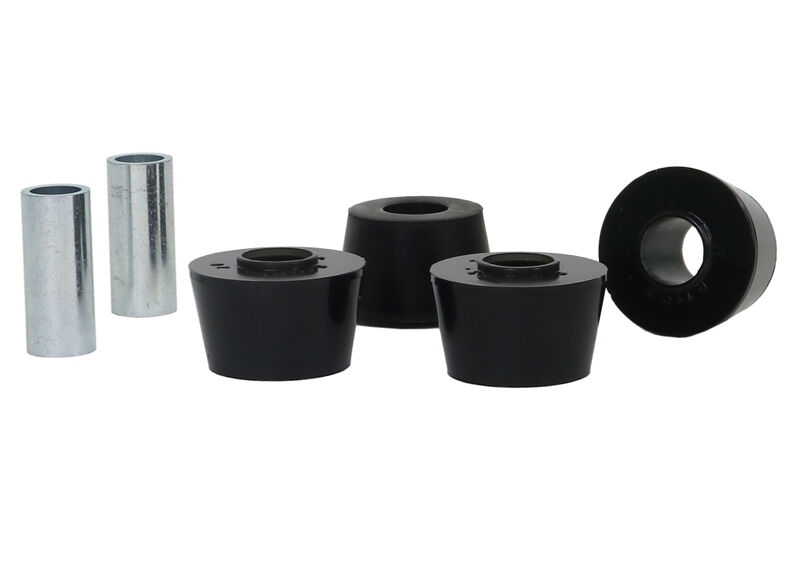

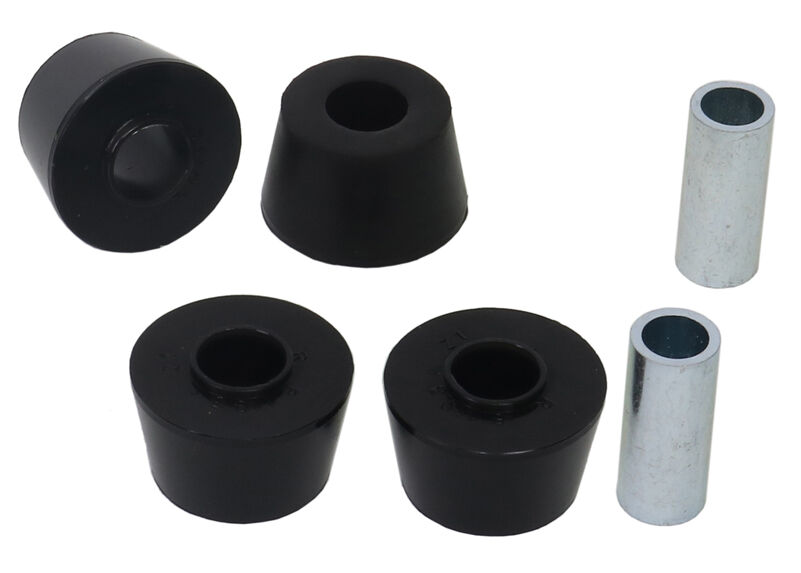

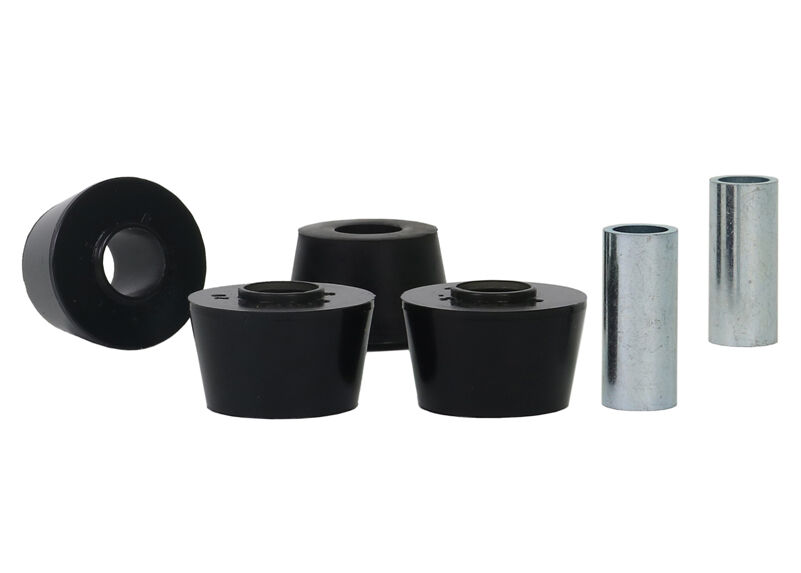

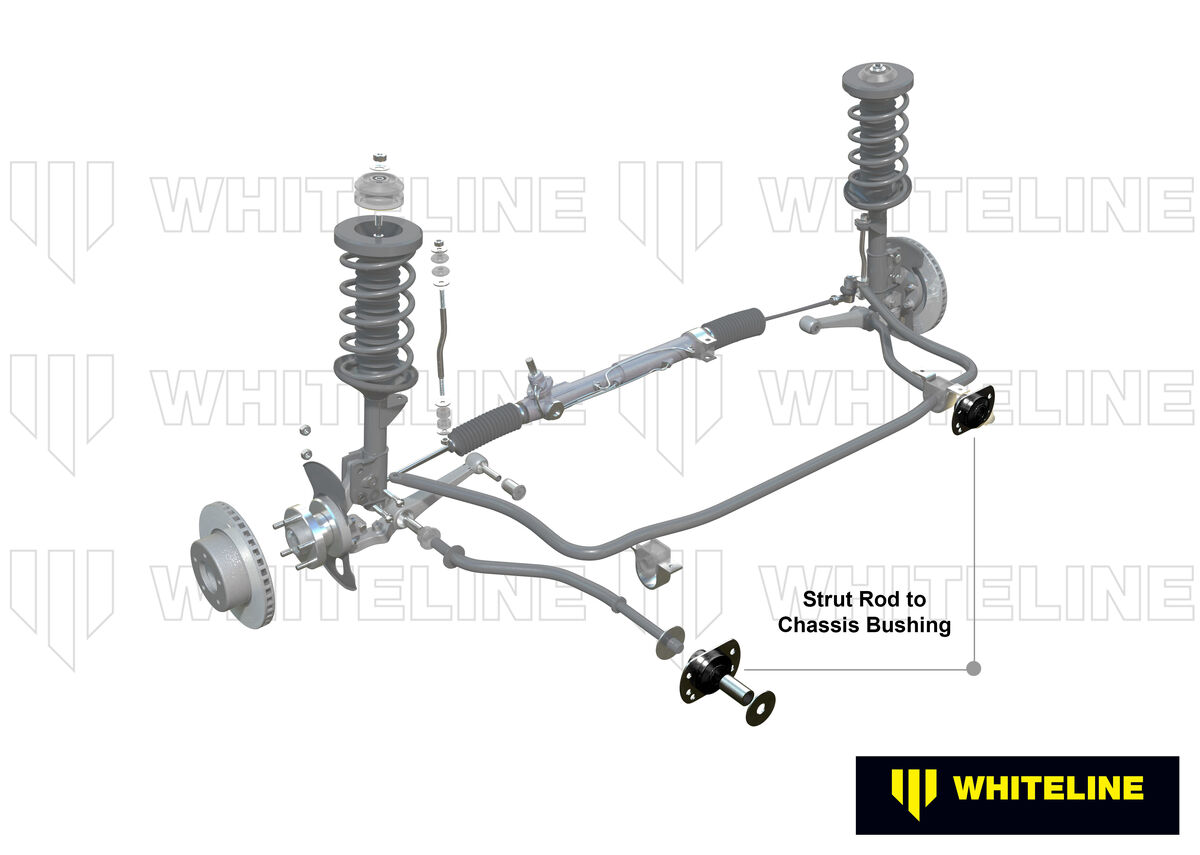

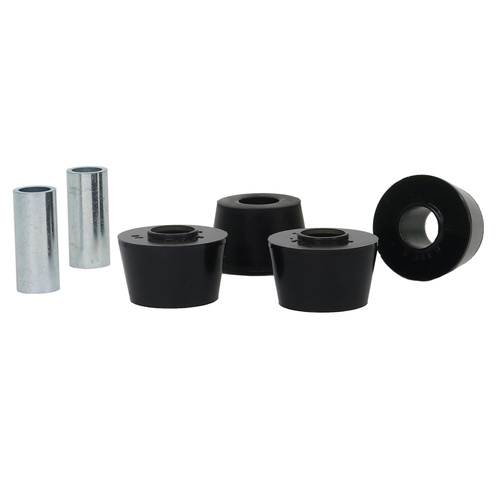

Whiteline Front Strut Rod - To Chassis Bushing Kit to Suit Toyota Corolla, Celica, Corona and Supra

SKU: W81193

Benefit Note: Not many know but worn suspension bushings have an effect on braking performance. In particular these bushings tend to absorb most of the loads under braking resulting in severe wear and reduced braking efficiency over time. Replace these worn parts with Whiteline synthetic elastomer bushings that offer long lasting durability for a safer more predictable vehicle.

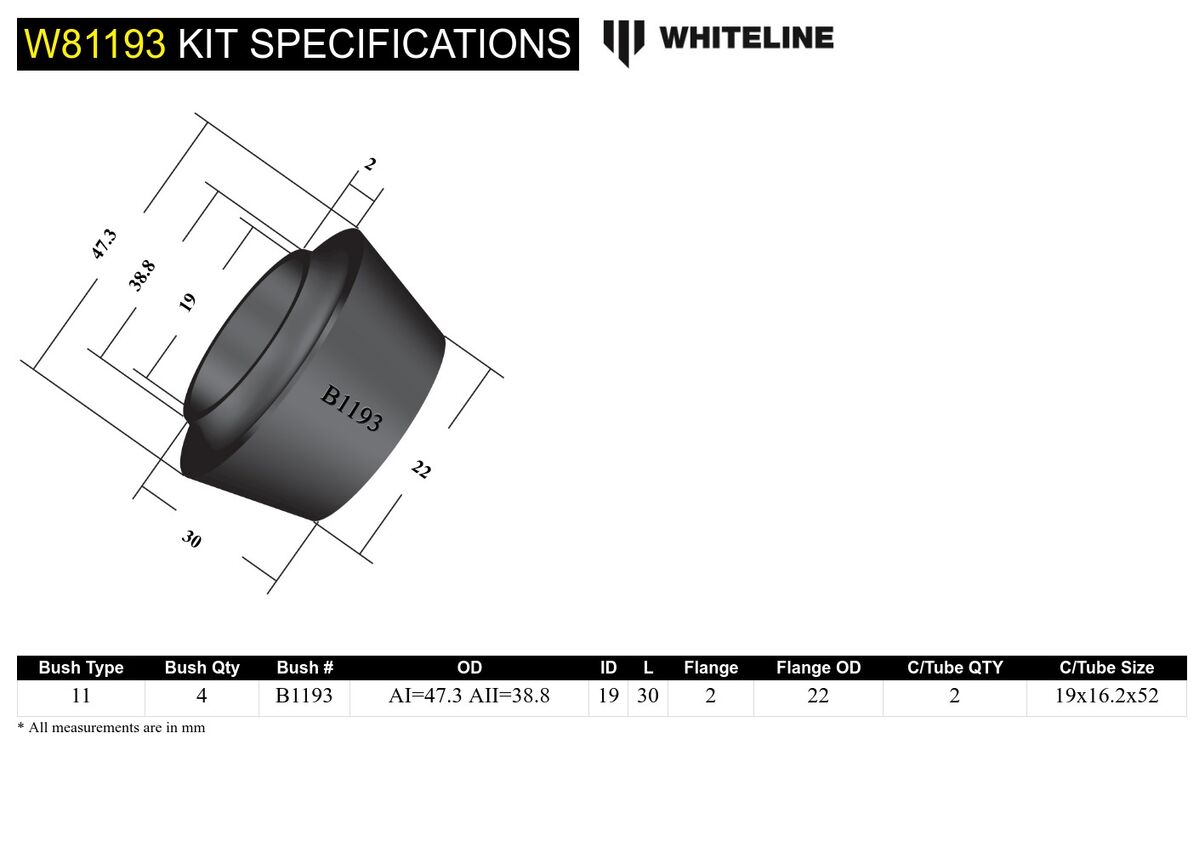

Kit Specifications

Bush Type 11 - Half Tapered With Stepped Head Bushing
Bush Quantity 4 mm
OD (A) AI=47.3 AII=38.8 mm
ID (B) 19 mm
Length (C) 30 mm
Flange Thickness (D) 2 mm
Flange OD (E) 22 mm
C/Tube Quantity 2
C/Tube ODxIDxL 19x16.2x52 mm
Similar Bushing Size Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Bushing Type 11 - Half Tapered With Stepped Head Bushing

Bushing Design Dimensions (mm)

Bush Type 11
QTY 4
OD (A) AI=47.3 AII=38.8
ID (B) 19
Length (C) 30.0
FL (D) 2
FLOD (E) 22
C/Tube Qty 2
C/Tube Size 19x16.2x52
Similar Bushings Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Bushing Type 11

Packaged Weight and Dimensions

Unitscm/kgin/lbs
Weight0.236kg0.52lbs
Length7cm2.76"
Width20cm7.87"
Height14cm5.51"

Misc. Product Information

More Information
SKUW81193
Components Per4 Bushings, 2 Tubes
Kits Required1
Sub brandReplacement
Product NoteCreates a consistent drive no matter the surface; the perfect, complete upgrade. Includes: 4 Bushings & 2 Tubes
EAN9319924356805
  • Lifetime Warranty
Brand Whiteline
SKU W81193
Unit Of Measure Kit
