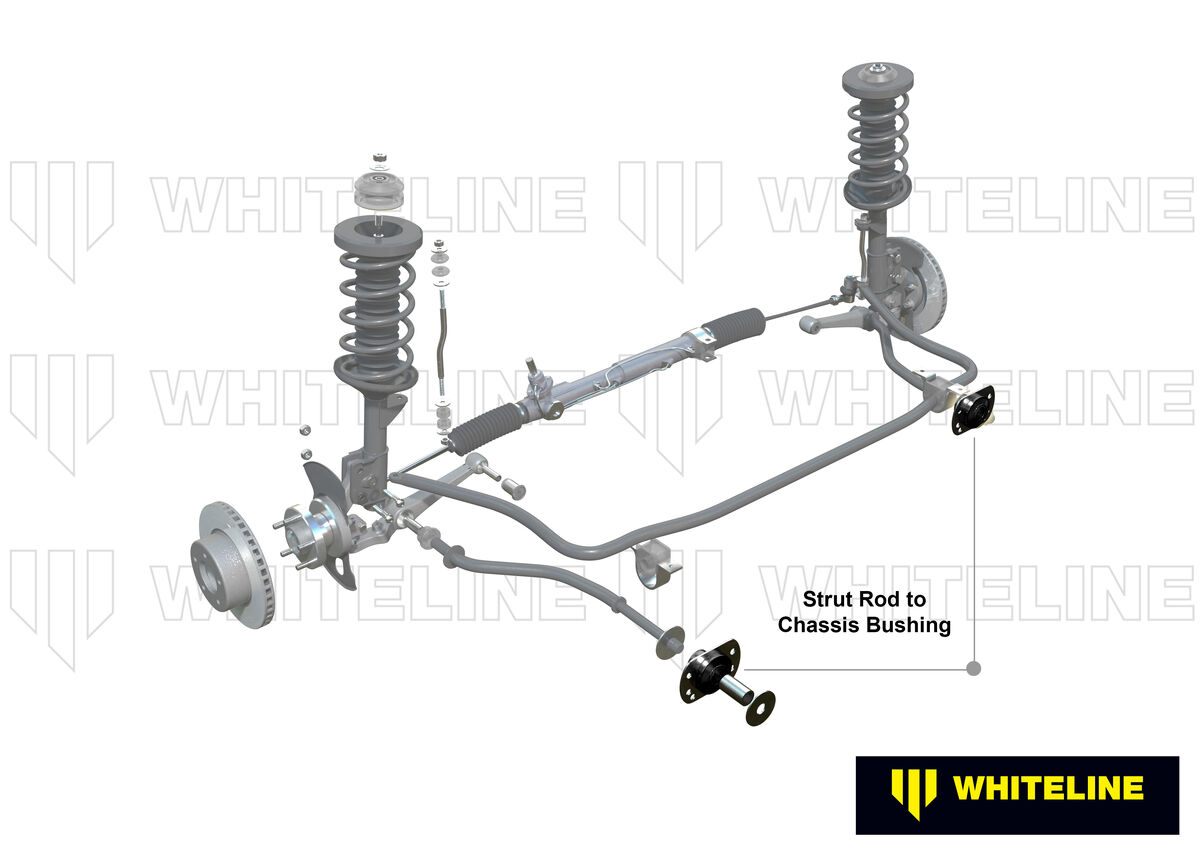

Whiteline Front Strut Rod - To Chassis Bushing Kit to Suit Austin/Leyland Mini and Moke

SKU: W81156

Benefit Note: Not many know but worn suspension bushings have an effect on braking performance. In particular these bushings tend to absorb most of the loads under braking resulting in severe wear and reduced braking efficiency over time. Replace these worn parts with Whiteline synthetic elastomer bushings that offer long lasting durability for a safer more predictable vehicle.

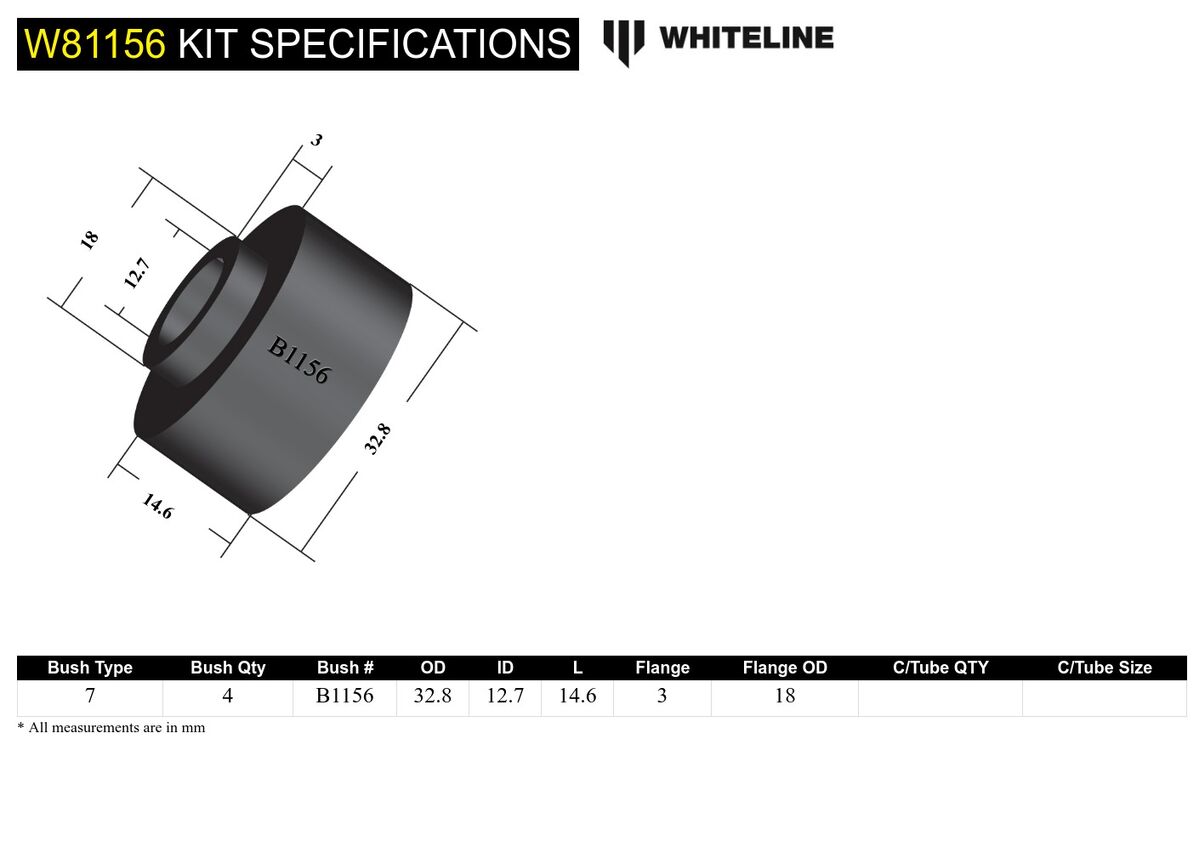

Kit Specifications

Bush Type 7 - Pin Bush With & Without Spigot
Bush Quantity 4 mm
OD (A) 32.8 mm
ID (B) 12.7 mm
Length (C) 14.6 mm
Flange Thickness (D) 3 mm
Flange OD (E) 18 mm
C/Tube Quantity
C/Tube ODxIDxL
Similar Bushing Size Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Bushing Type 7 - Pin Bush With & Without Spigot

Bushing Design Dimensions (mm)

Bush Type 7
QTY 4
OD (A) 32.8
ID (B) 12.7
Length (C) 14.6
FL (D) 3
FLOD (E) 18
C/Tube Qty
C/Tube Size
Similar Bushings Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Bushing Type 7

Packaged Weight and Dimensions

Unitscm/kgin/lbs
Weight0.074kg0.16lbs
Length7cm2.76"
Width20cm7.87"
Height14cm5.51"

Misc. Product Information

More Information
SKUW81156
Components Per4 Bushings
Kits Required1
Sub brandReplacement
Product NoteBalances comfort with performance while minimising noise and vibrations; the perfect, complete upgrade. Includes: 4 Bushings
EAN9319924356768
  • Lifetime Warranty
Brand Whiteline
SKU W81156
Unit Of Measure Kit
