Benefit Note: Not many know but worn suspension bushings have an effect on braking performance. In particular these bushings tend to absorb most of the loads under braking resulting in severe wear and reduced braking efficiency over time. Replace these worn parts with Whiteline synthetic elastomer bushings that offer long lasting durability for a safer more predictable vehicle.

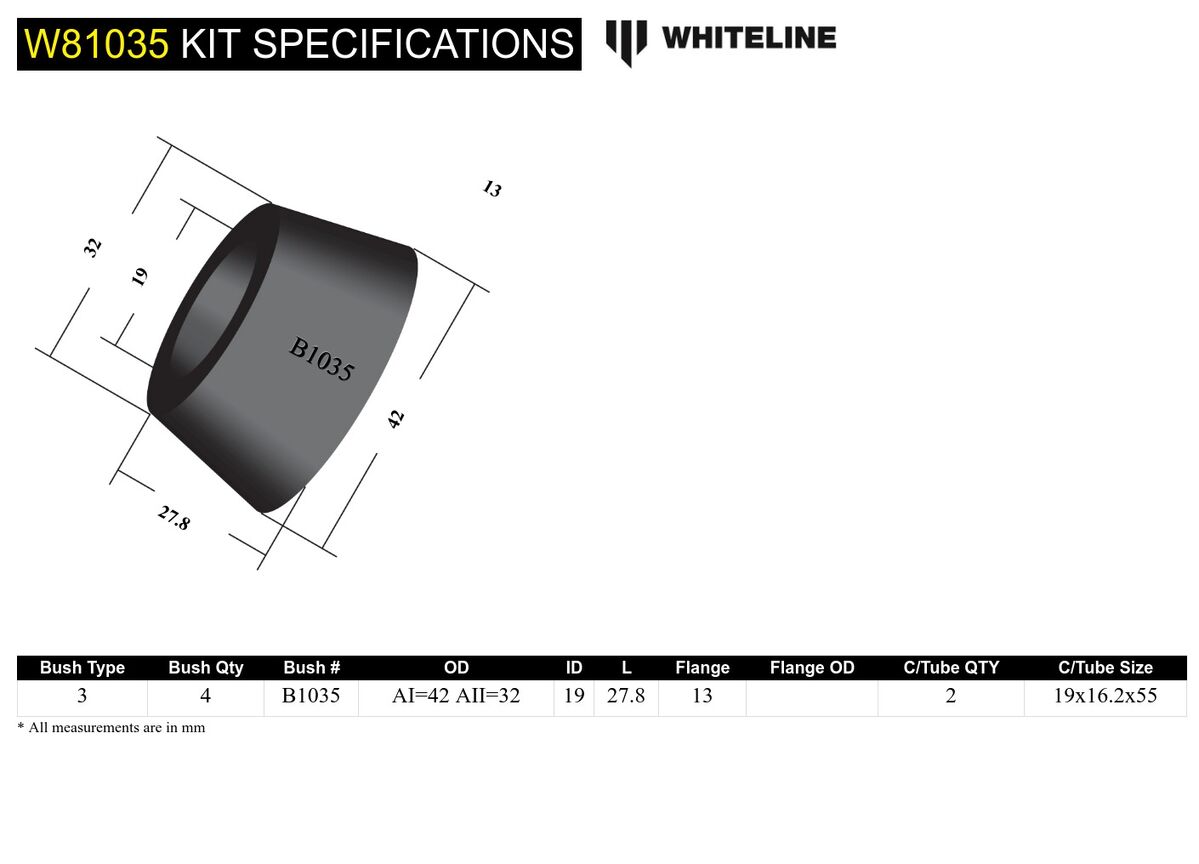

Kit Specifications

Bush Type	3 - Half Tapered Cotton Reel Bush
Bush Quantity	4 mm
OD (A)	AI=42 AII=32 mm
ID (B)	19 mm
Length (C)	27.8 mm
Flange Thickness (D)	13 mm
Flange OD (E)
C/Tube Quantity	2
C/Tube ODxIDxL	19x16.2x55 mm
Similar Bushing Size	Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Bushing Design Dimensions (mm)

Bush Type	3
QTY	4
OD (A)	AI=42 AII=32
ID (B)	19
Length (C)	27.8
FL (D)	13
FLOD (E)
C/Tube Qty	2
C/Tube Size	19x16.2x55
Similar Bushings	Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Packaged Weight and Dimensions

Units	cm/kg	in/lbs
Weight	0.215kg	0.47lbs
Length	7cm	2.76"
Width	20cm	7.87"
Height	14cm	5.51"

Misc. Product Information

More Information

SKU	W81035

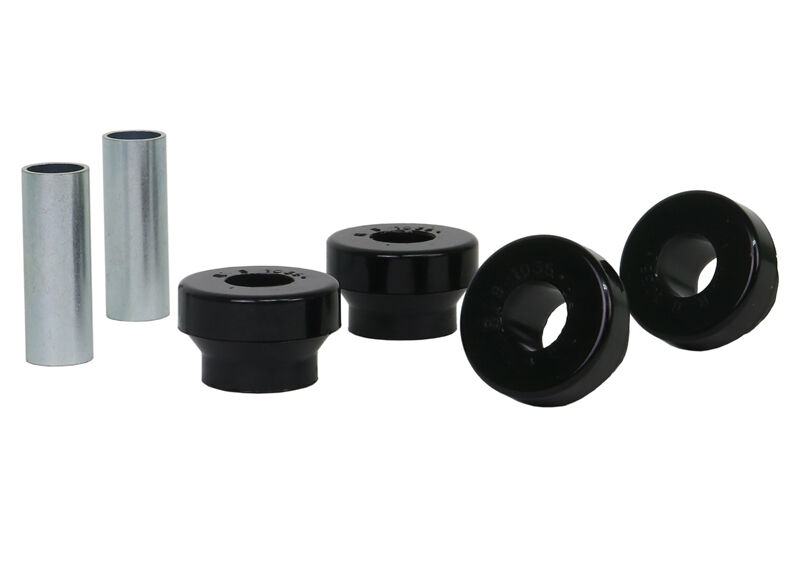

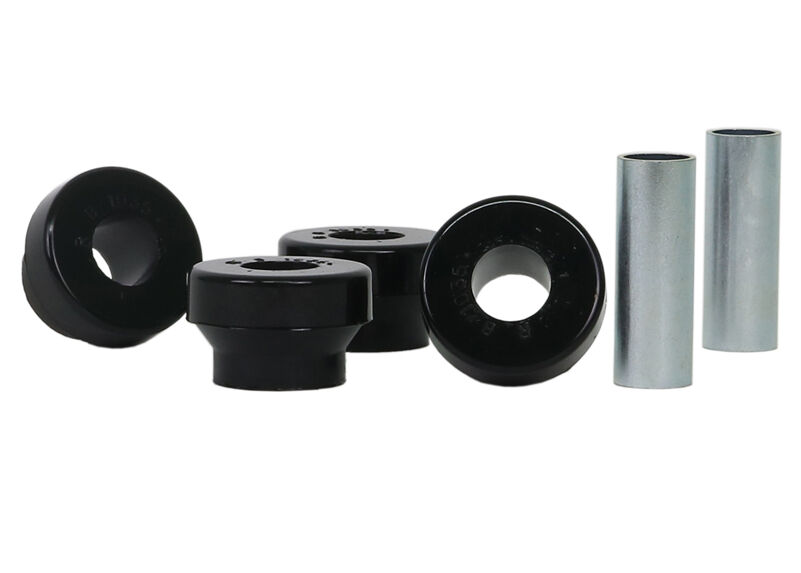

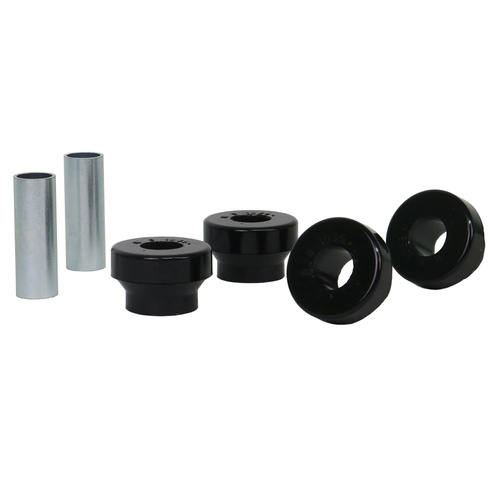

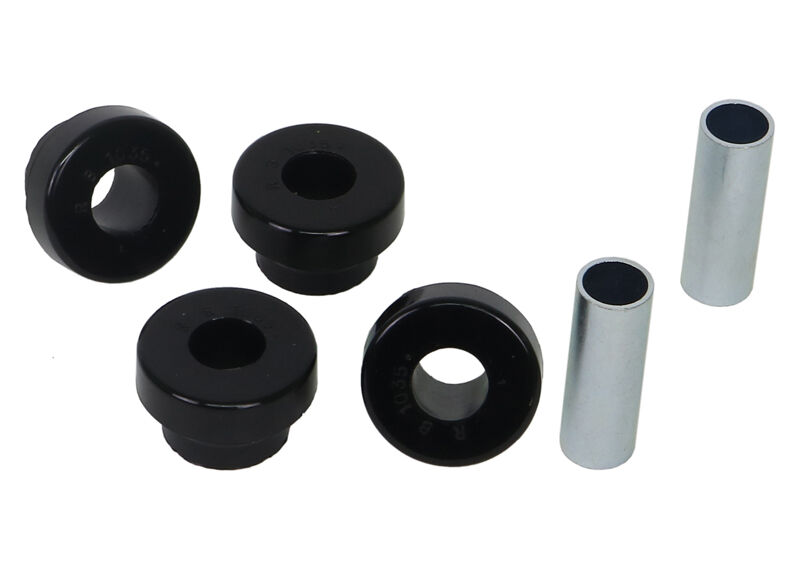

Components Per	4 Bushings, 2 Tubes
Kits Required	1
Sub brand	Replacement
Product Note	Maximises grip and stability for better control; the perfect, complete upgrade. Includes: 4 Bushings & 2 Tubes
EAN	9319924356614
