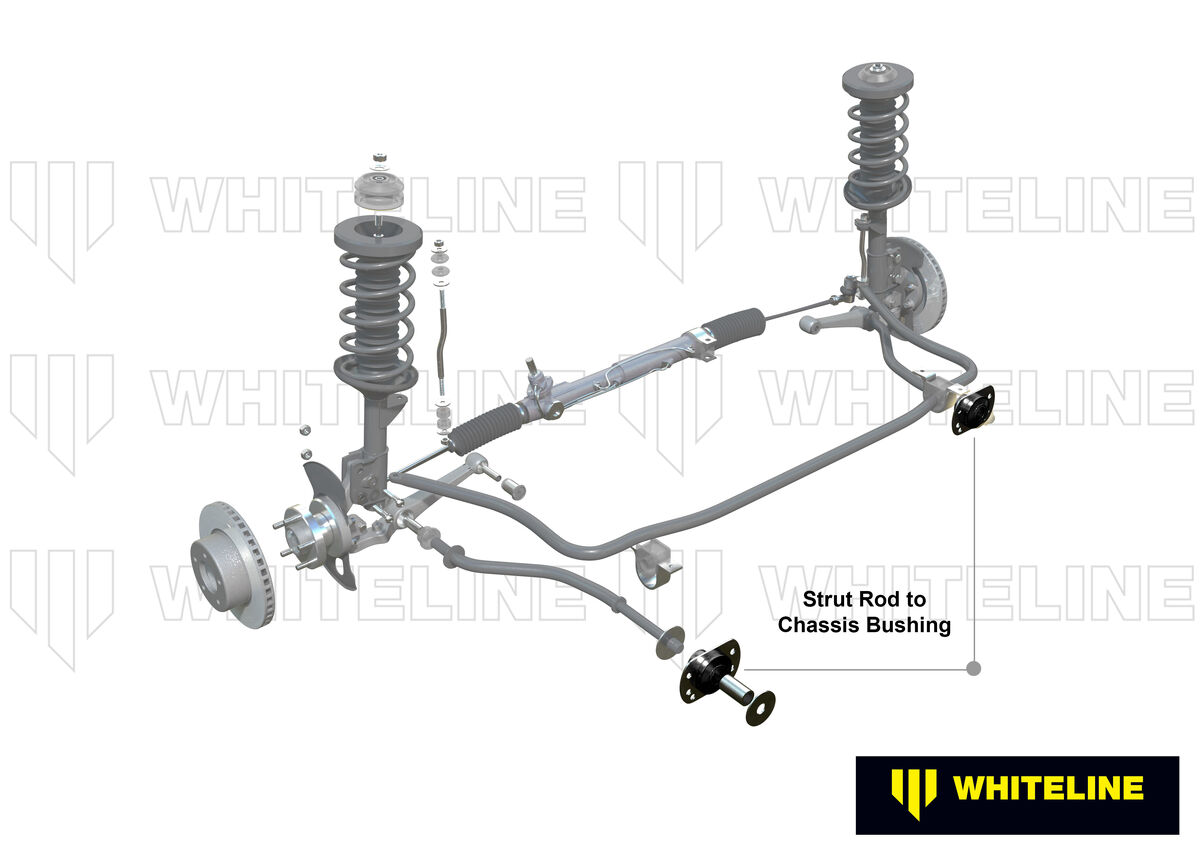

Whiteline Front Strut Rod - To Chassis Bushing Kit to Suit Holden Commodore VB-VS and HSV

SKU: W81004

Benefit Note: Not many know but worn suspension bushings have an effect on braking performance. In particular these bushings tend to absorb most of the loads under braking resulting in severe wear and reduced braking efficiency over time. Replace these worn parts with Whiteline synthetic elastomer bushings that offer long lasting durability for a safer more predictable vehicle.


Kit Specifications

Bush Type 1 - Shackle Bushing 1 - Shackle Bushing
Bush Quantity 2 mm 2 mm
OD (A) 42 mm 42 mm
ID (B) 22.2 mm 22.2 mm
Length (C) 28.1 mm 16.3 mm
Flange Thickness (D) 18 mm 6.4 mm
Flange OD (E)
C/Tube Quantity 2
C/Tube ODxIDxL 22.2x16.2x47 mm
Similar Bushing Size Click Here Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Bushing Type 1 - Shackle Bushing
Bushing Type 1 - Shackle Bushing

Bushing Design Dimensions (mm)

Bush Type 1 1
QTY 2 2
OD (A) 42 42
ID (B) 22.2 22.2
Length (C) 28.1 16.3
FL (D) 18 6.4
FLOD (E)
C/Tube Qty 2
C/Tube Size 22.2x16.2x47
Similar Bushings Click Here Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Bushing Type 1

Packaged Weight and Dimensions

Unitscm/kgin/lbs
Weight0.352kg0.78lbs
Length10cm3.94"
Width26cm10.24"
Height16cm6.3"

Misc. Product Information

More Information
SKUW81004
Components Per4 Bushings, 2 Tubes
Kits Required1
Sub brandReplacement
Product NoteBalances comfort with performance while minimising noise and vibrations; the perfect, complete upgrade. Includes: 4 Bushings & 2 Tubes
EAN9319924356560
  • Lifetime Warranty
Brand Whiteline
SKU W81004
Unit Of Measure Kit
