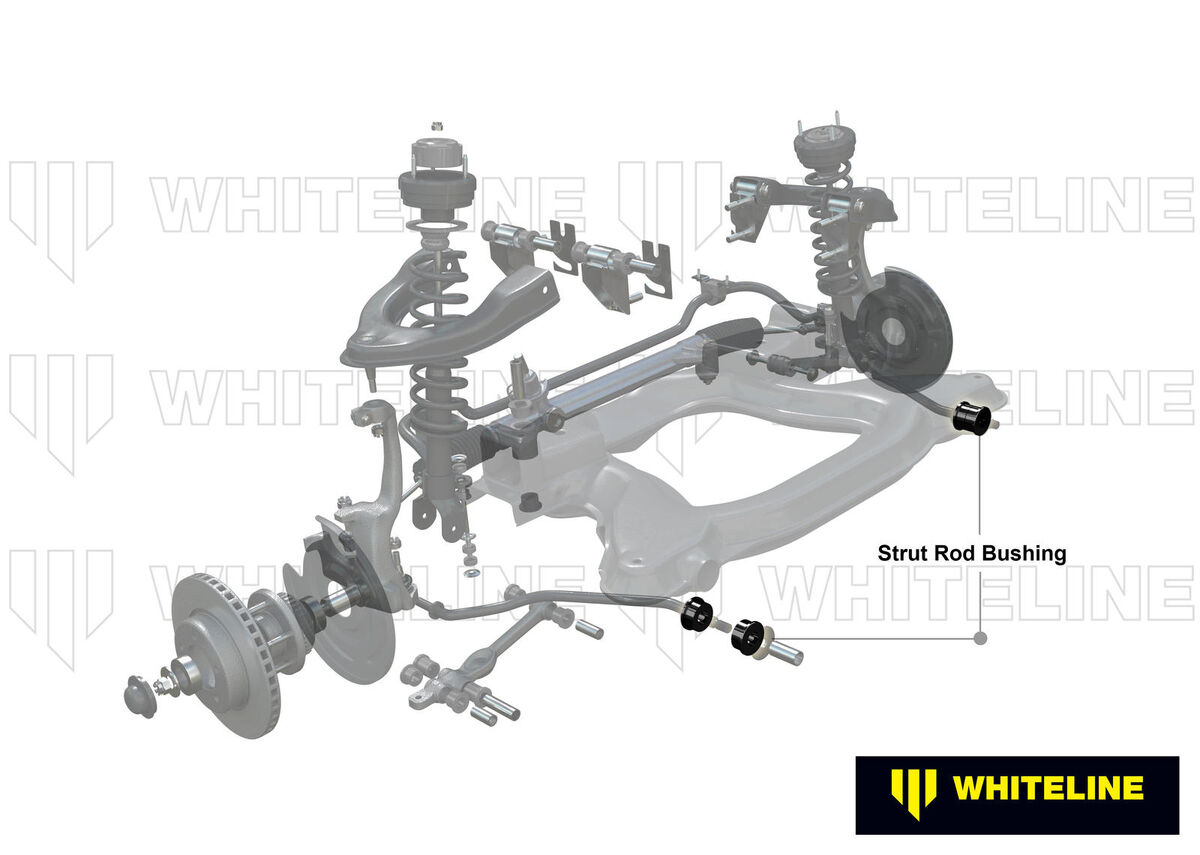

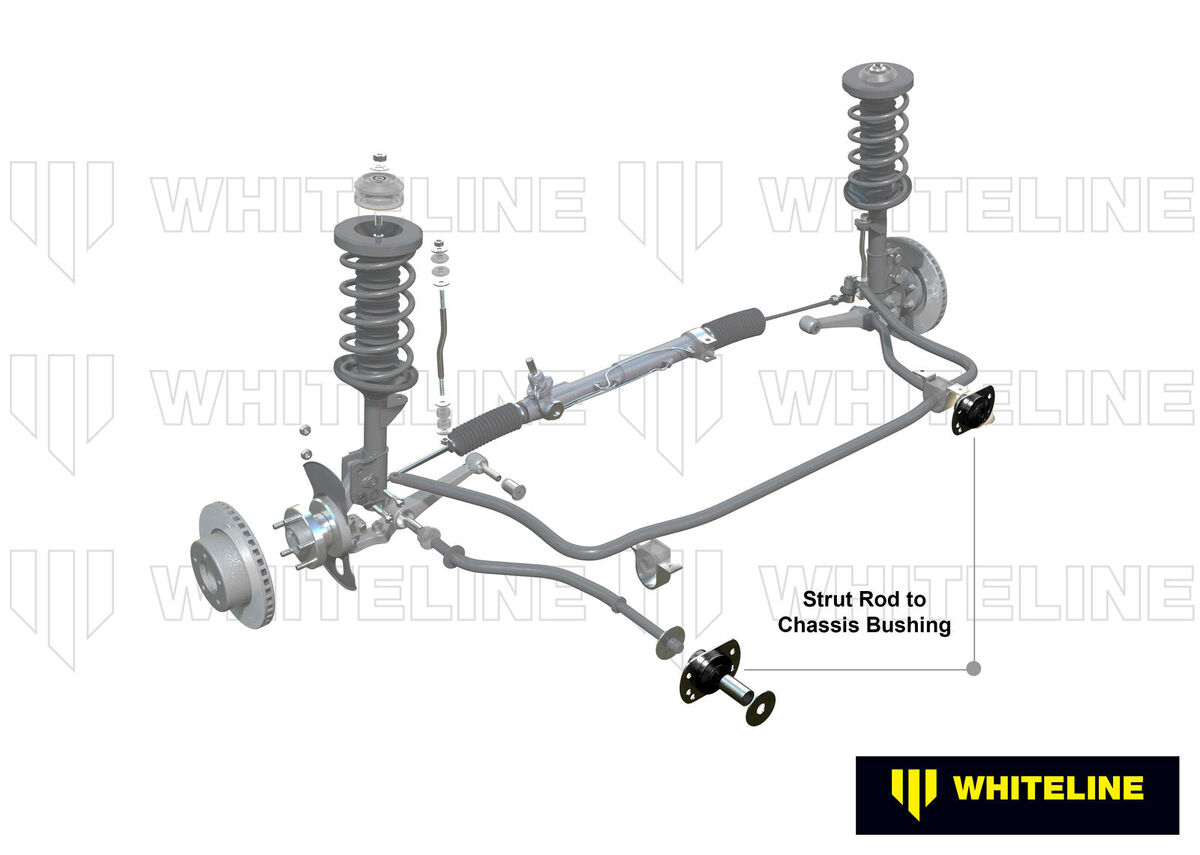

Whiteline Front Strut Rod - To Chassis Bushing Kit Double Offset to Suit Nissan 180SX, 200SX. 300ZX and Skyline

SKU: KCA331

Benefit Note: Whiteline caster kits are designed to improve cornering grip and vehicle straight line stability. This kit is supplied with dual offset bushings to give greater steering feel, more steering weight, greater precision all through increased static caster and dynamic negative camber gain. In addition, Whiteline bushings provide improved braking performance, and less under load alignment change.

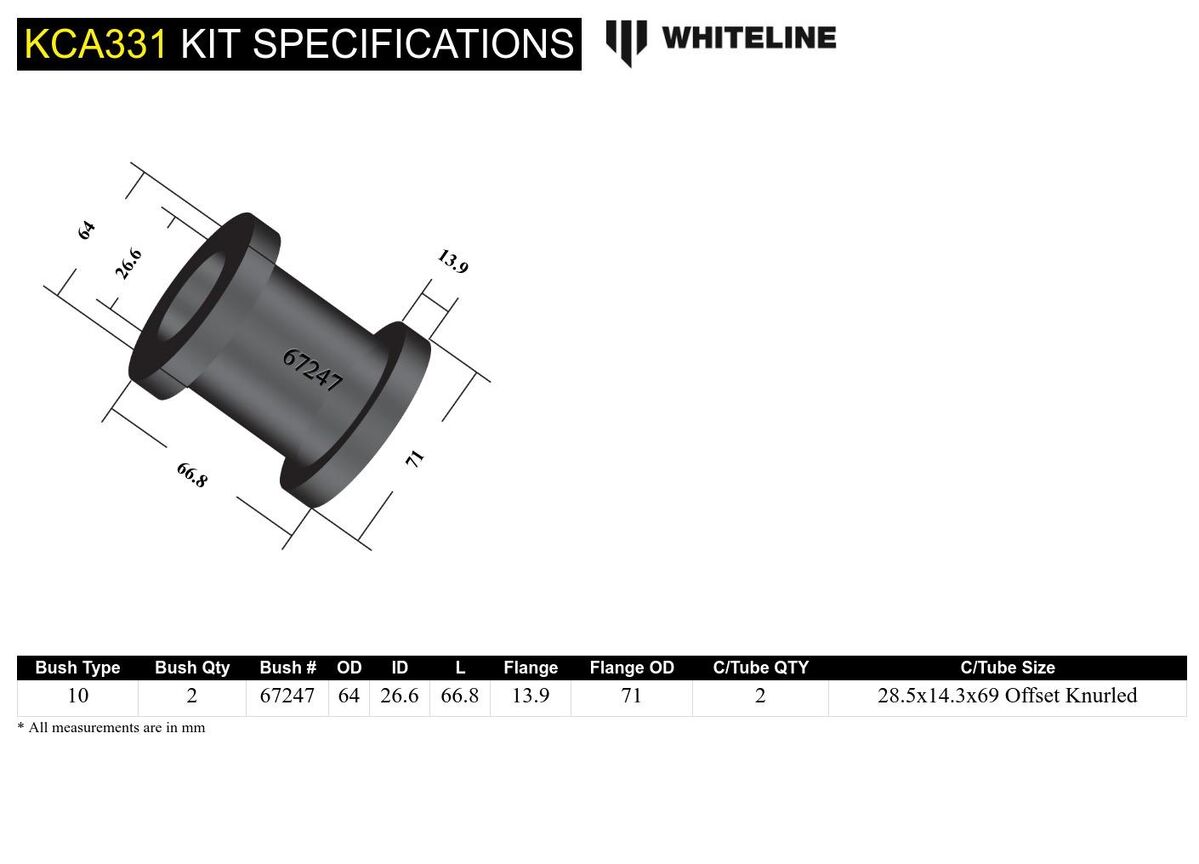

Kit Specifications

Bush Type 10 - Cotton Reel With & Without Tapper Bushing
Bush Quantity 2 mm
OD (A) 64 mm
ID (B) 26.6 mm
Length (C) 66.8 mm
Flange Thickness (D) 13.9 mm
Flange OD (E) 71 mm
C/Tube Quantity 2
C/Tube ODxIDxL 28.5x14.3x69 Offset Knurled mm
Similar Bushing Size Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Bushing Type 10 - Cotton Reel With & Without Tapper Bushing
Alignment Alignment Adjustment Type Alignment On Car Adjustable
Caster Eccentric Yes

Bushing Design Dimensions (mm)

Bush Type 10
QTY 2
OD (A) 64
ID (B) 26.6
Length (C) 66.8
FL (D) 13.9
FLOD (E) 71
C/Tube Qty 2
C/Tube Size 28.5x14.3x69 Offset Knurled
Similar Bushings Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Bushing Type 10

Packaged Weight and Dimensions

Unitscm/kgin/lbs
Weight0.924kg2.04lbs
Length10cm3.94"
Width26cm10.24"
Height16cm6.3"

Misc. Product Information

More Information
SKUKCA331
Components Per4 Bushings, 2 Tubes
Kits Required1
Sub brandPerformance

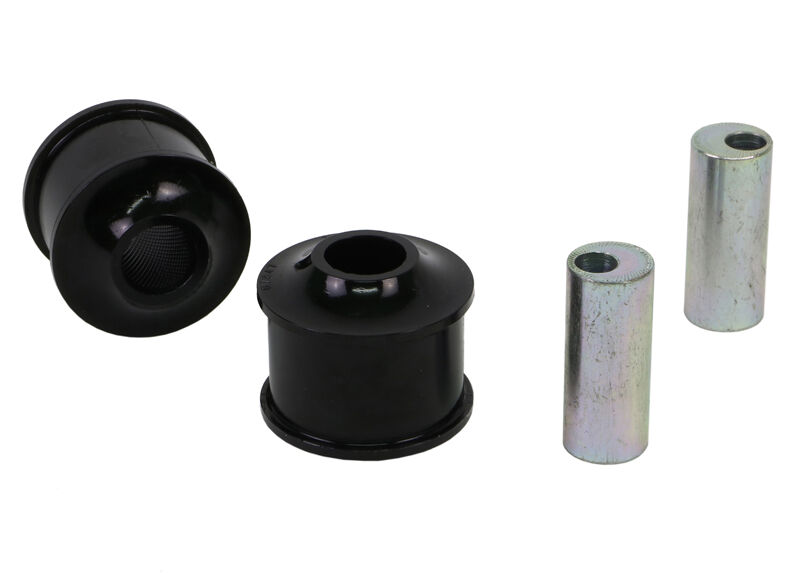

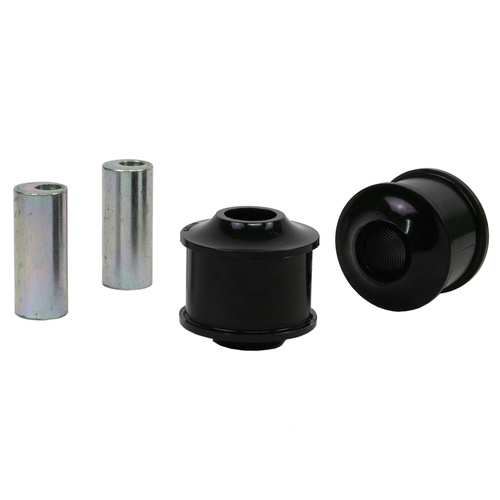

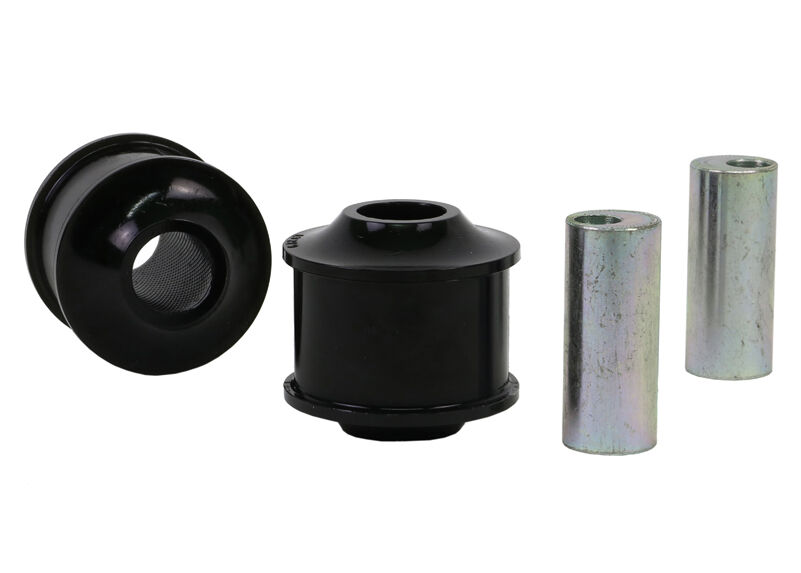

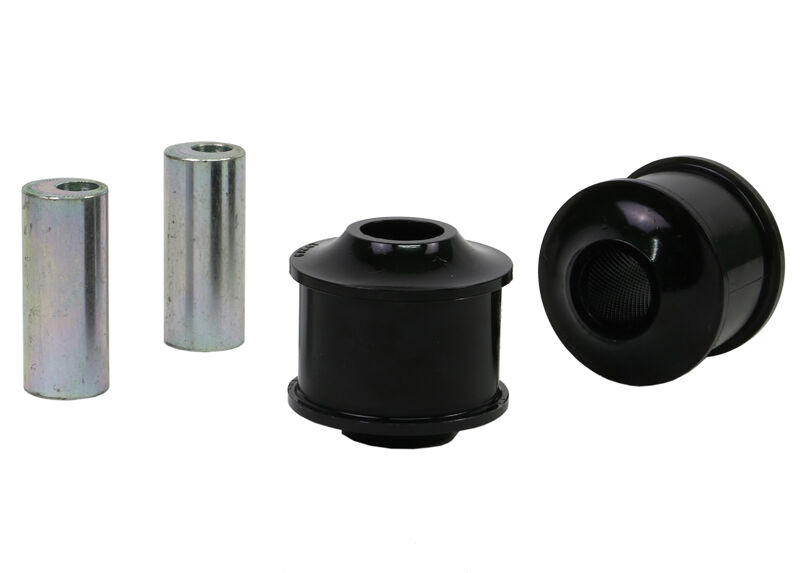

Product NoteMaximises grip and stability for better control; the perfect, complete upgrade. Includes: 4 Bushings & 2 Tubes
EAN9319924325535
  • Lifetime Warranty
Brand Whiteline
SKU KCA331
Unit Of Measure Kit
