Whiteline Front Strut Mount - Bushing Kit to Suit Mitsubishi Pajero NM-NX

SKU: W44111

Benefit Note: Hard working or lifted commercial or 4x4 vehicles tend to suffer from premature wear of the upper strut mount/ shock absorber bushings. Designed to work with the original OEM strut top, each Whiteline Kit Contains both upper strut mount pads and shock absorber pin bushings to restore the strut mount to as new condition.

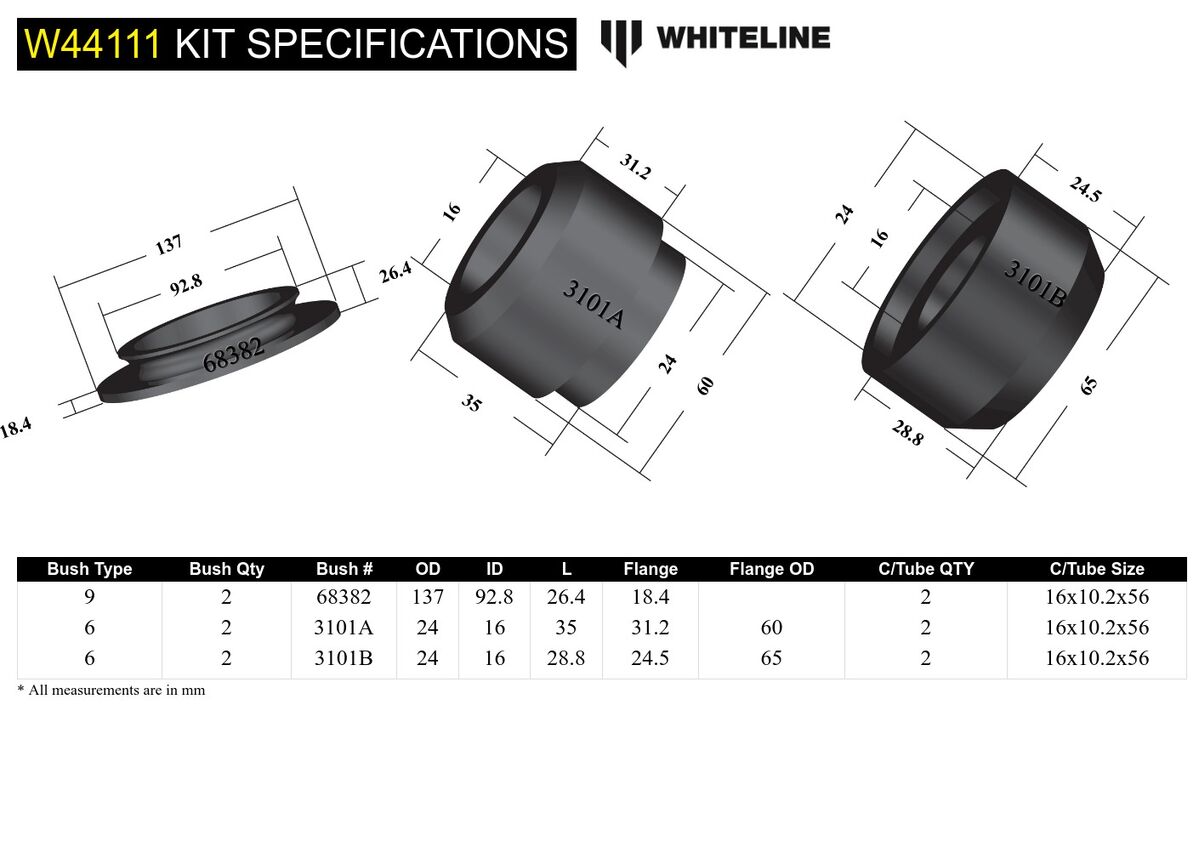

Kit Specifications

Bush Type 9 - Coil Spring Seats And Spacer Bushing 6 - Male/female Interconnecting Bushing 6 - Male/female Interconnecting Bushing
Bush Quantity 2 mm 2 mm 2 mm
OD (A) 137 mm 24 mm 24 mm
ID (B) 92.8 mm 16 mm 16 mm
Length (C) 26.4 mm 35 mm 28.8 mm
Flange Thickness (D) 18.4 mm 31.2 mm 24.5 mm
Flange OD (E) 60 mm 65 mm
C/Tube Quantity 2 2 2
C/Tube ODxIDxL 16x10.2x56 mm 16x10.2x56 mm 16x10.2x56 mm
Similar Bushing Size Click Here Click Here Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Bushing Type 9 - Coil Spring Seats And Spacer Bushing
Bushing Type 6 - Male/female Interconnecting Bushing
Bushing Type 6 - Male/female Interconnecting Bushing

Bushing Design Dimensions (mm)

Bush Type 9 6 6
QTY 2 2 2
OD (A) 137 24 24
ID (B) 92.8 16 16
Length (C) 26.4 35.0 28.8
FL (D) 18.4 31.2 24.5
FLOD (E) 60 65
C/Tube Qty 2 2 2
C/Tube Size 16x10.2x56 16x10.2x56 16x10.2x56
Similar Bushings Click Here Click Here Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Bushing Type 6
Bushing Type 9

Packaged Weight and Dimensions

Unitscm/kgin/lbs
Weight0.779kg1.72lbs
Length40cm15.75"
Width10cm3.94"
Height20cm7.87"

Misc. Product Information

More Information
SKUW44111
Components Per6 Bushings, 2 Tubes
Kits Required1
Sub brandReplacement
Product NoteEnhances suspension precision and alignment stability; a complete, premium upgrade. Includes: Upper Strut Mount Pads and Shock Absorber Pin Bushings.
EAN9319924396788
  • Lifetime Warranty
Brand Whiteline
SKU W44111
Unit Of Measure Kit
