Whiteline Front Strut Mount - Bushing Kit to Suit Holden Colorado, Trailblazer, Isuzu D-Max, MU-X and Mazda BT-50

SKU: W44115

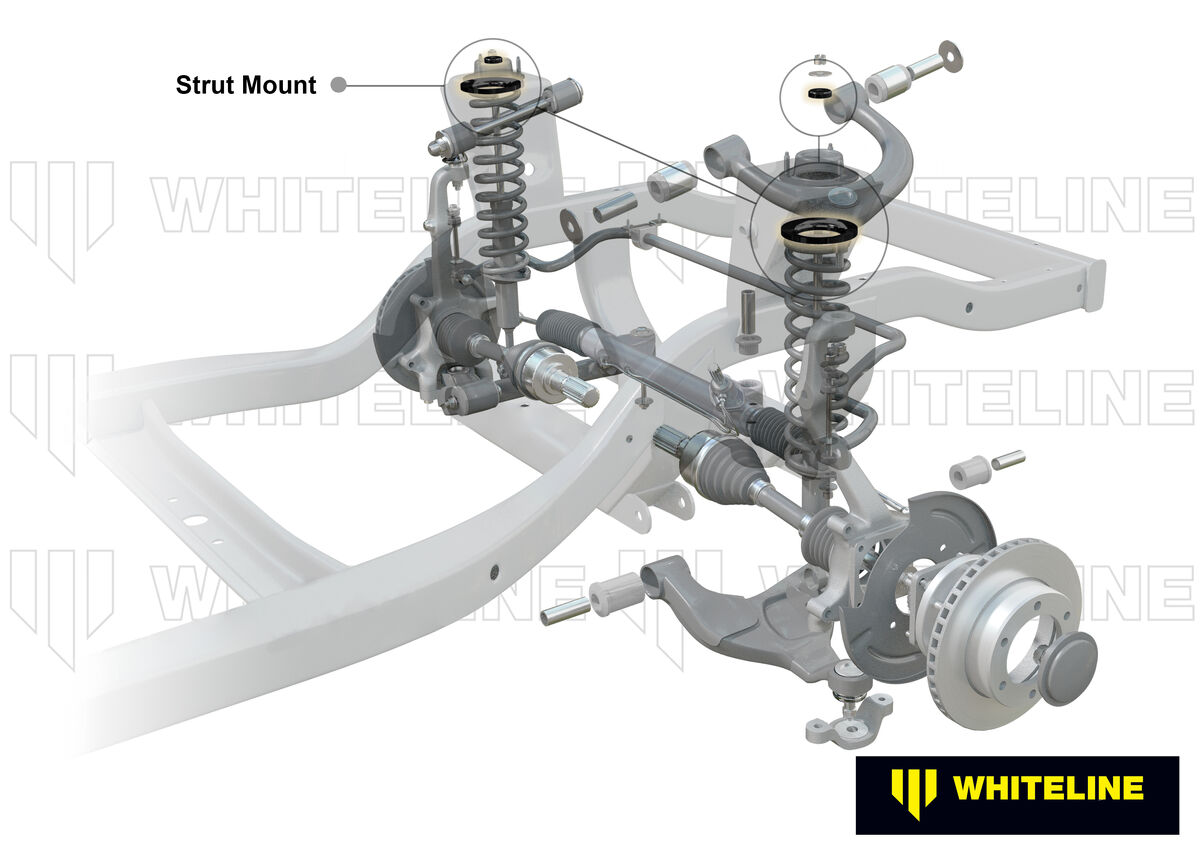

Benefit Note: Hard working or lifted commercial or 4x4 vehicles tend to suffer from premature wear of the upper strut mount/ shock absorber bushings. The Whiteline Kit Contains new strut top, upper strut mount pads and shock absorber pin bushings to restore the strut mount to as new condition.


Kit Specifications

Bush Type 7 - Pin Bush With & Without Spigot 7 - Pin Bush With & Without Spigot 9 - Coil Spring Seats And Spacer Bushing
Bush Quantity 2 mm 2 mm 2 mm
OD (A) 41.5 mm 66.1 mm 117 mm
ID (B) 11.9 mm 11.9 mm 80 mm
Length (C) 15 mm 21.3 mm 38 mm
Flange Thickness (D) 2.5 mm 25.5 mm
Flange OD (E) 18.2 mm
C/Tube Quantity
C/Tube ODxIDxL
Similar Bushing Size Click Here Click Here Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Bushing Type 7 - Pin Bush With & Without Spigot
Bushing Type 7 - Pin Bush With & Without Spigot
Bushing Type 9 - Coil Spring Seats And Spacer Bushing

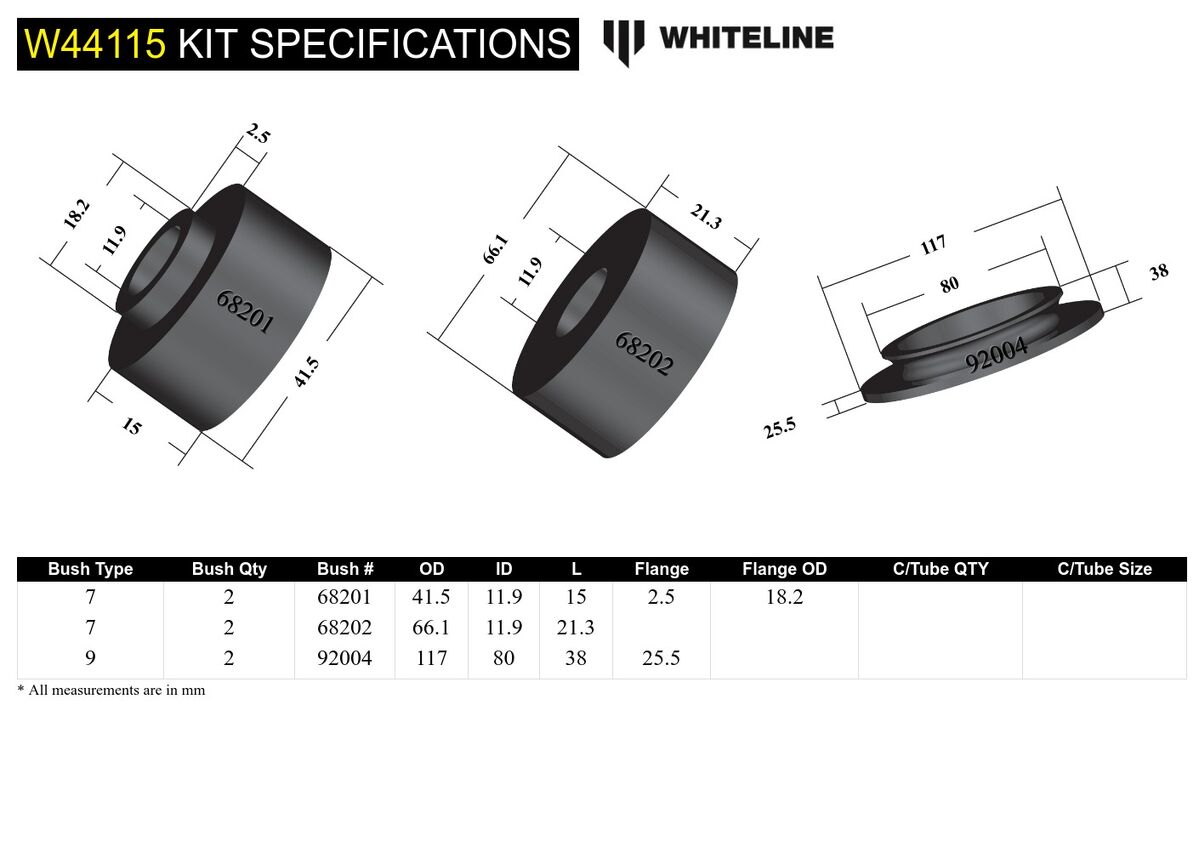

Bushing Design Dimensions (mm)

Bush Type 7 7 9
QTY 2 2 2
OD (A) 41.5 66.1 117
ID (B) 11.9 11.9 80
Length (C) 15.0 21.3 38.0
FL (D) 2.5 25.5
FLOD (E) 18.2
C/Tube Qty
C/Tube Size
Similar Bushings Click Here Click Here Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Bushing Type 7
Bushing Type 9

Packaged Weight and Dimensions

Unitscm/kgin/lbs
Weight0.6kg1.32lbs
Length10cm3.94"
Width26cm10.24"
Height16cm6.3"

Misc. Product Information

More Information
SKUW44115
Components Per6 Bushings, 4 Washers
Kits Required1
Sub brandReplacement
Product NoteEnhances suspension precision and alignment stability; a complete, premium upgrade. Includes: Upper Strut Mount Pads and Shock Absorber Pin Bushings.
EAN9319924465415
  • 3 years warranty or up to 60,000km
Brand Whiteline
SKU W44115
Unit Of Measure Kit
