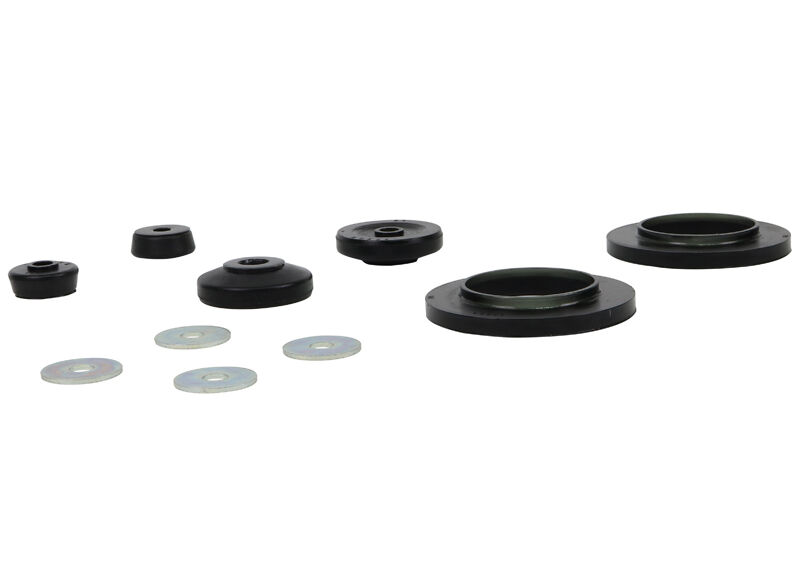

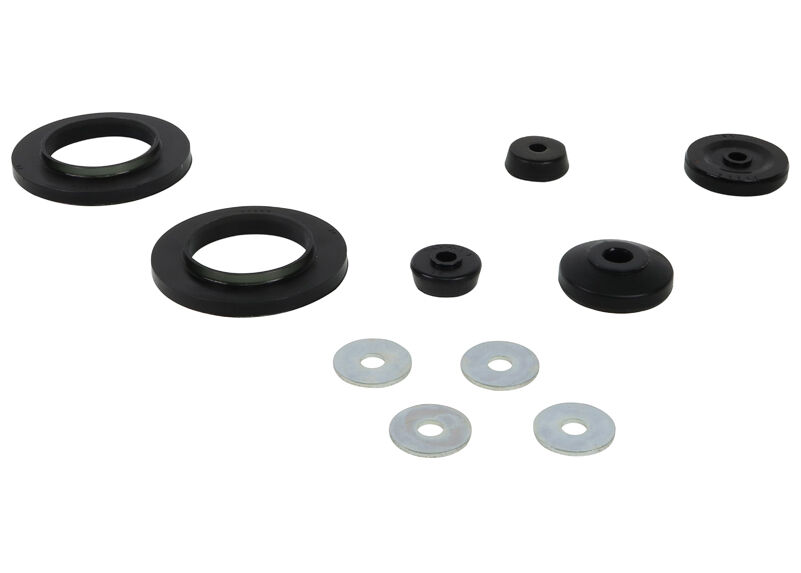

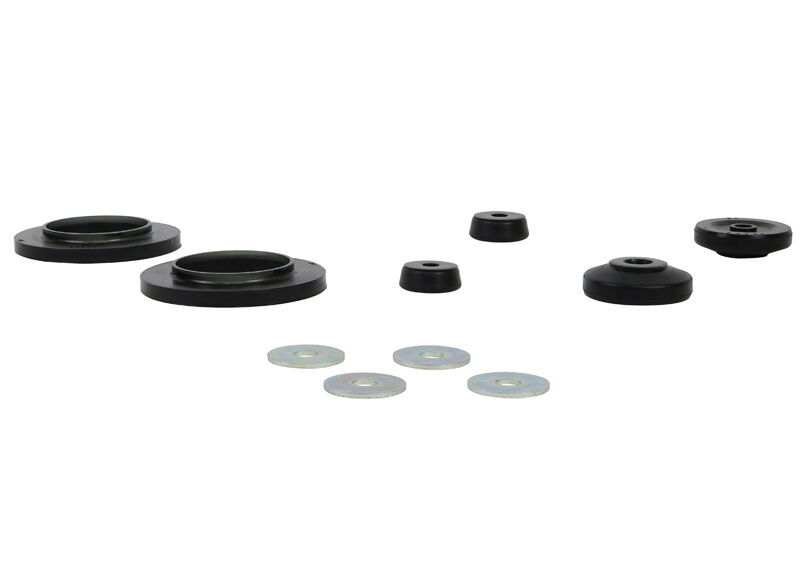

Whiteline Front Strut Mount - Bushing Kit to Suit Holden Colorado, Isuzu D-Max and LDV T60

SKU: W44108

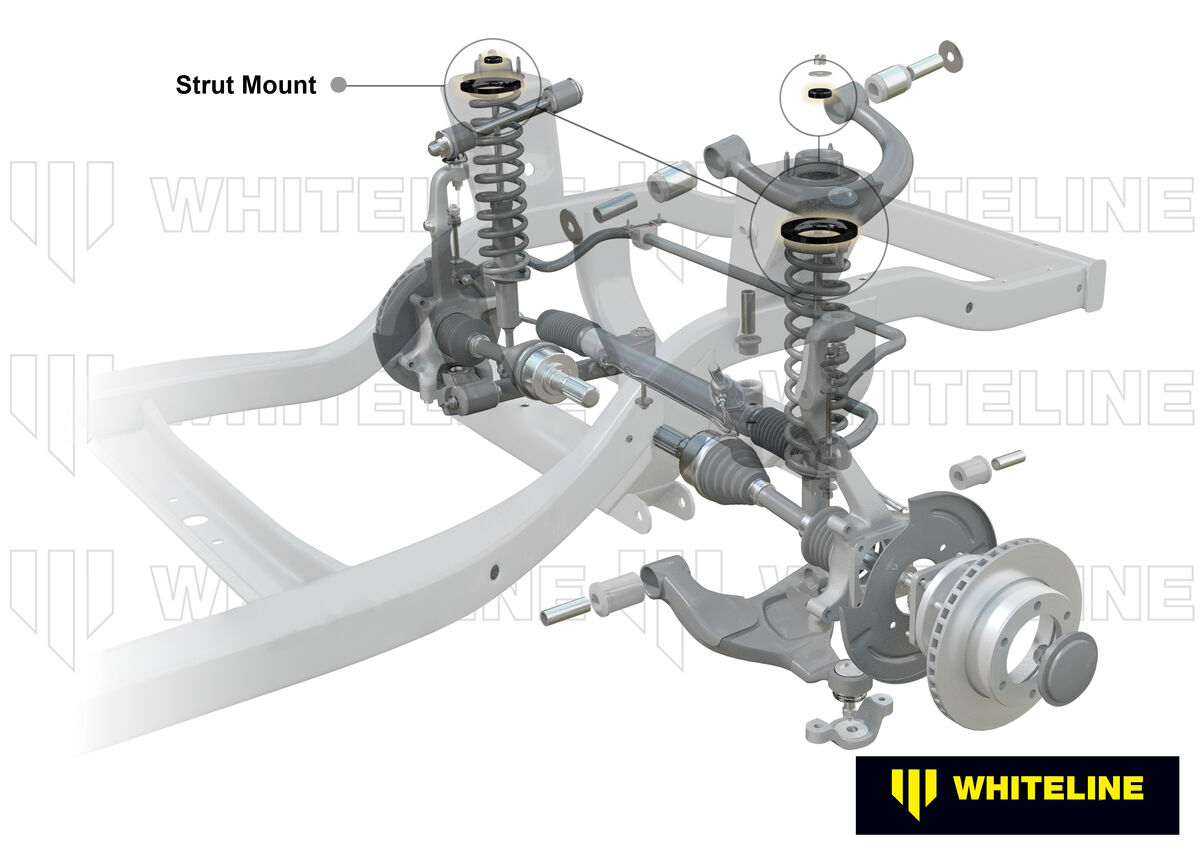

Benefit Note: Hard working or lifted commercial or 4x4 vehicles tend to suffer from premature wear of the upper strut mount/ shock absorber bushings. Designed to work with the original OEM strut top, each Whiteline Kit Contains both upper strut mount pads and shock absorber pin bushings to restore the strut mount to as new condition.

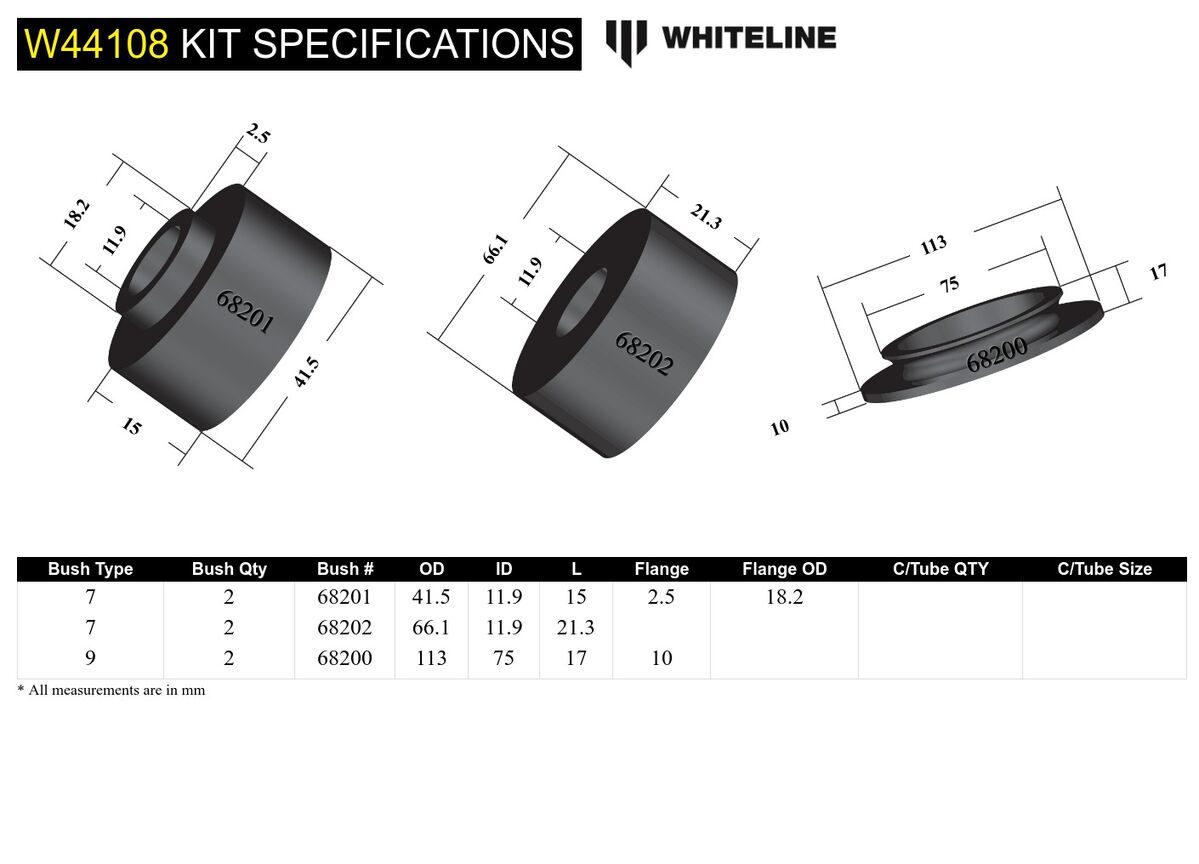

Kit Specifications

Bush Type 9 - Coil Spring Seats And Spacer Bushing 7 - Pin Bush With & Without Spigot 7 - Pin Bush With & Without Spigot
Bush Quantity 2 mm 2 mm 2 mm
OD (A) 113 mm 41.5 mm 66.1 mm
ID (B) 75 mm 11.9 mm 11.9 mm
Length (C) 17 mm 15 mm 21.3 mm
Flange Thickness (D) 10 mm 2.5 mm
Flange OD (E) 18.2 mm
C/Tube Quantity
C/Tube ODxIDxL
Similar Bushing Size Click Here Click Here Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Bushing Type 9 - Coil Spring Seats And Spacer Bushing
Bushing Type 7 - Pin Bush With & Without Spigot
Bushing Type 7 - Pin Bush With & Without Spigot

Bushing Design Dimensions (mm)

Bush Type 9 7 7
QTY 2 2 2
OD (A) 113 41.5 66.1
ID (B) 75 11.9 11.9
Length (C) 17.0 15.0 21.3
FL (D) 10 2.5
FLOD (E) 18.2
C/Tube Qty
C/Tube Size
Similar Bushings Click Here Click Here Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Bushing Type 7
Bushing Type 9

Packaged Weight and Dimensions

Unitscm/kgin/lbs
Weight0.416kg0.92lbs
Length10cm3.94"
Width26cm10.24"
Height16cm6.3"

Misc. Product Information

More Information
SKUW44108
Components Per6 Bushings, 4 Washers
Kits Required1
Sub brandReplacement
Product NoteEnhances suspension precision and alignment stability; a complete, premium upgrade. Includes: Upper Strut Mount Pads and Shock Absorber Pin Bushings.
EAN9319924395255
  • Lifetime Warranty
Brand Whiteline
SKU W44108
Unit Of Measure Kit
