Whiteline Front Steering Rack and Pinion - Mount Bushing Kit to Suit Toyota Avensis T27

SKU: W13402

Benefit Note: Power steering, aggressive wheel alignment geometry, wider wheels and lower profile tyres have all put radically increased loading on the steering systems of modern cars. Add to that engine bay contaminants such as oil leaks that also help to degrade the performance of steering rack mount bushings. Whiteline steering rack mounts are engineered to outlast and enhance steering precision and feedback.

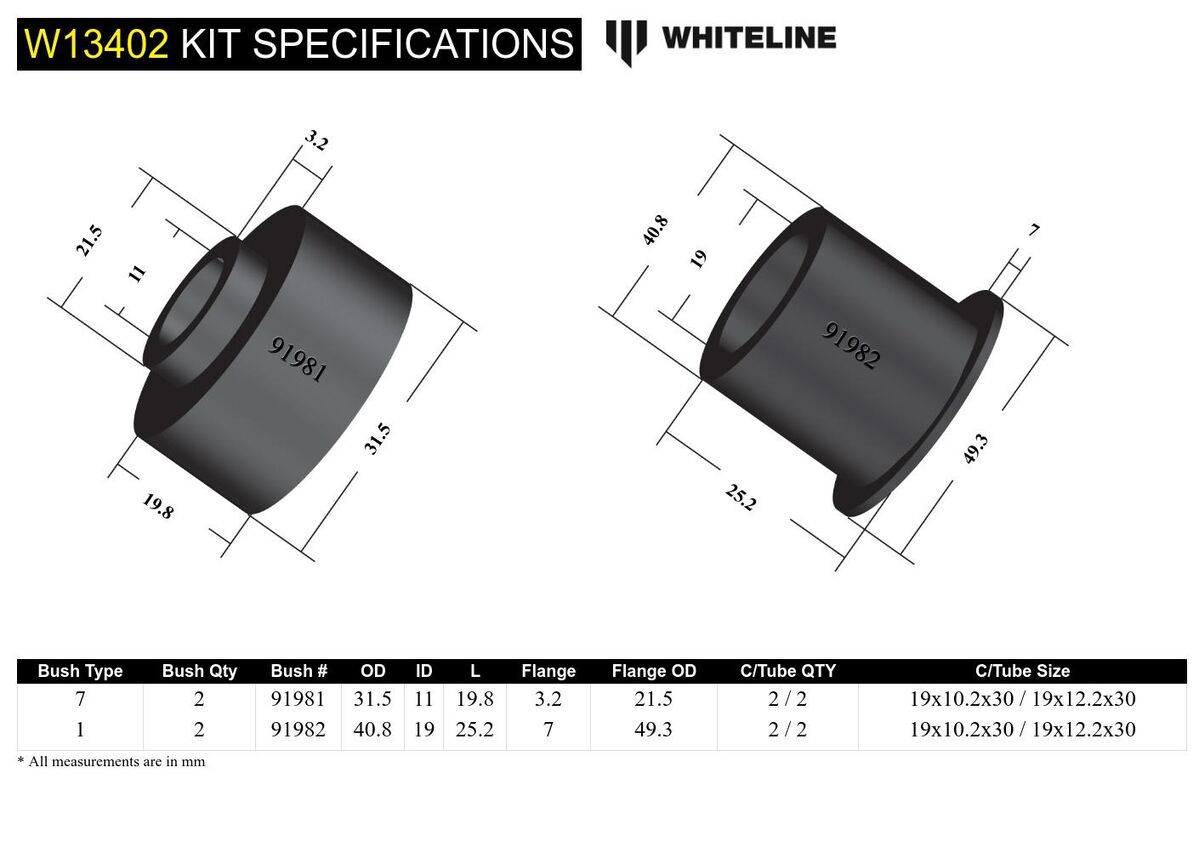

Kit Specifications

Bush Type 1 - Shackle Bushing 7 - Pin Bush With & Without Spigot
Bush Quantity 2 mm 2 mm
OD (A) 40.8 mm 31.5 mm
ID (B) 19 mm 11 mm
Length (C) 25.2 mm 19.8 mm
Flange Thickness (D) 7 mm 3.2 mm
Flange OD (E) 49.3 mm 21.5 mm
C/Tube Quantity 2 / 2 2 / 2
C/Tube ODxIDxL 19x10.2x30 / 19x12.2x30 mm 19x10.2x30 / 19x12.2x30 mm
Similar Bushing Size Click Here Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Bushing Type 1 - Shackle Bushing
Bushing Type 7 - Pin Bush With & Without Spigot

Bushing Design Dimensions (mm)

Bush Type 1 7
QTY 2 2
OD (A) 40.8 31.5
ID (B) 19 11
Length (C) 25.2 19.8
FL (D) 7 3.2
FLOD (E) 49.3 21.5
C/Tube Qty 2 / 2 2 / 2
C/Tube Size 19x10.2x30 / 19x12.2x30 19x10.2x30 / 19x12.2x30
Similar Bushings Click Here Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Bushing Type 1
Bushing Type 7

Packaged Weight and Dimensions

Unitscm/kgin/lbs
Weight0.28kg0.62lbs
Length10cm3.94"
Width26cm10.24"
Height16cm6.3"

Misc. Product Information

More Information
SKUW13402

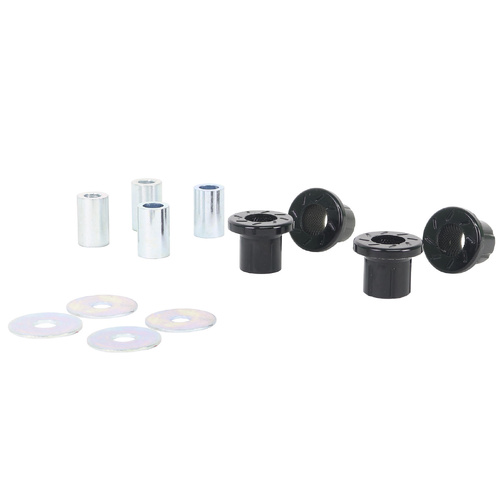

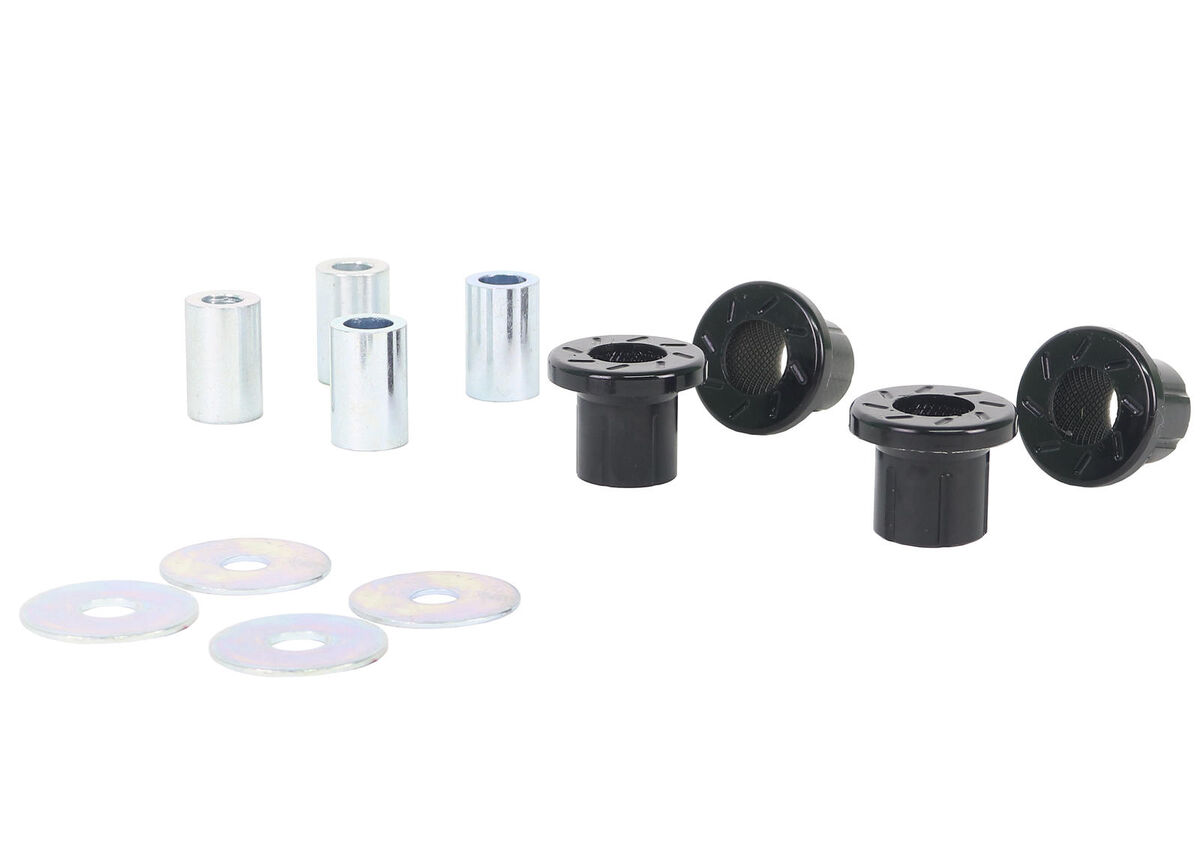

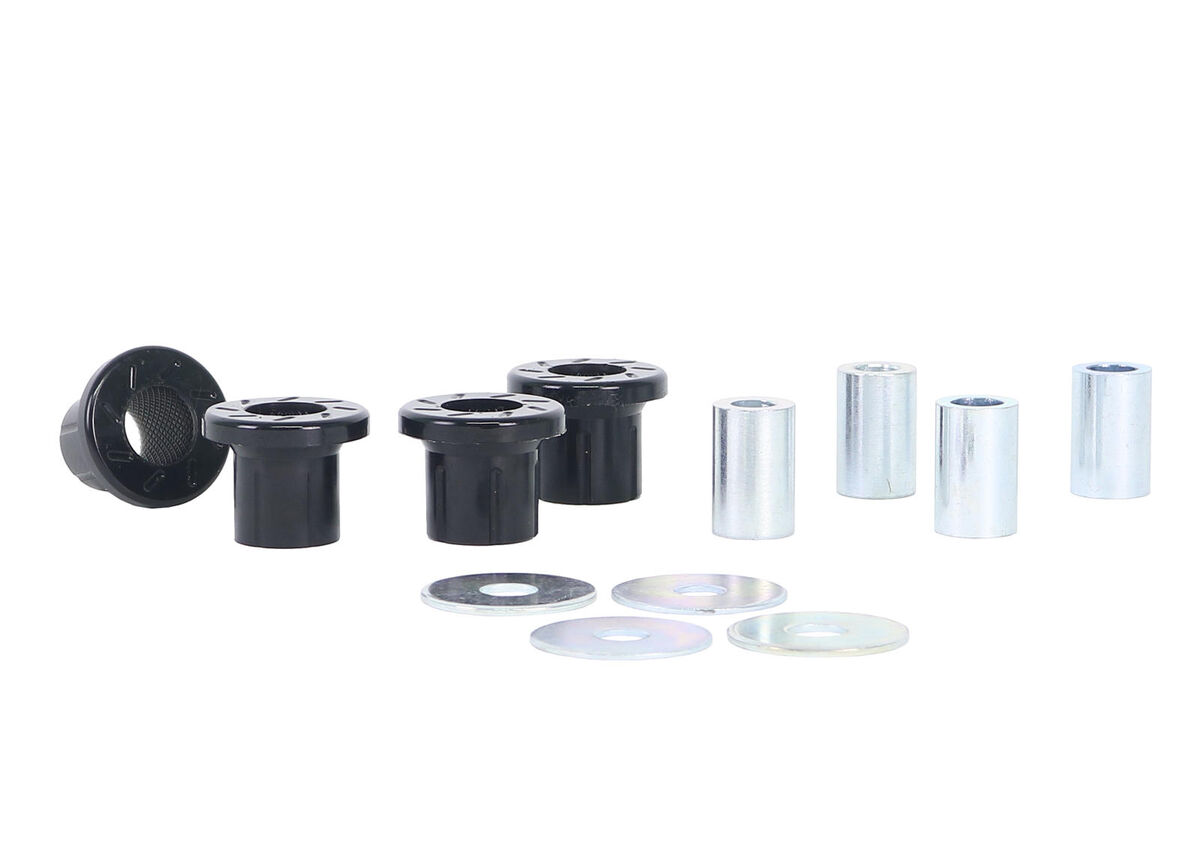

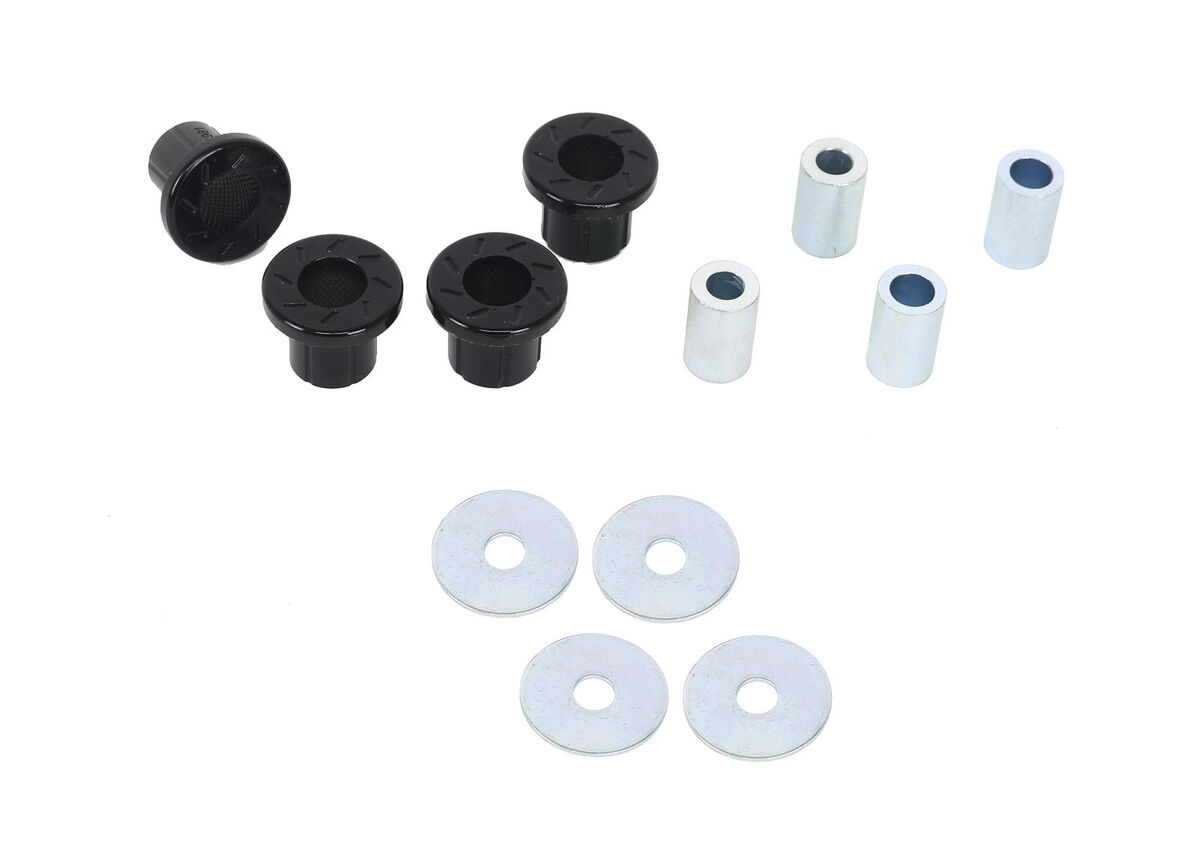

Components Per4 Bushings, 4 Tubes, 4 Washers
Kits Required1
Sub brandReplacement
Product NoteBalances comfort with performance while minimising noise and vibrations; the perfect, complete upgrade. Includes: 4 Bushings, 4 Tubes & 4 Washers
EAN9319924464036
  • Lifetime Warranty
Brand Whiteline
SKU W13402
Unit Of Measure Kit
