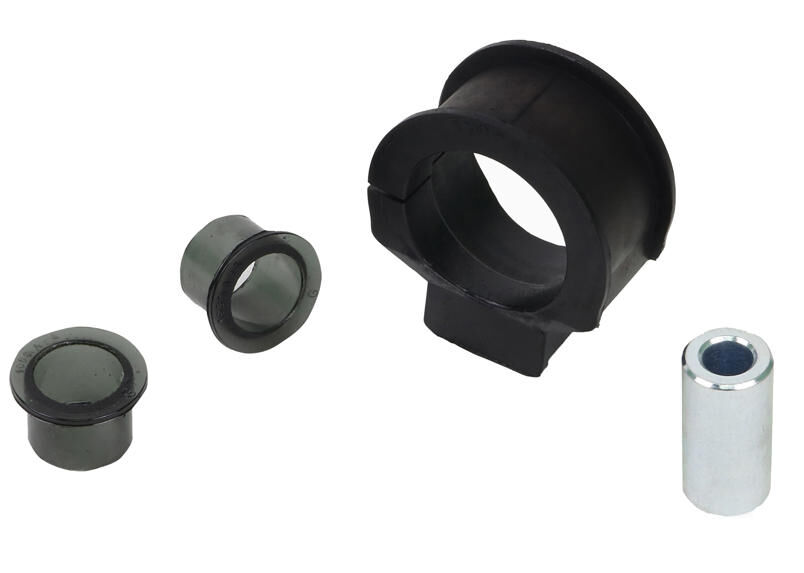

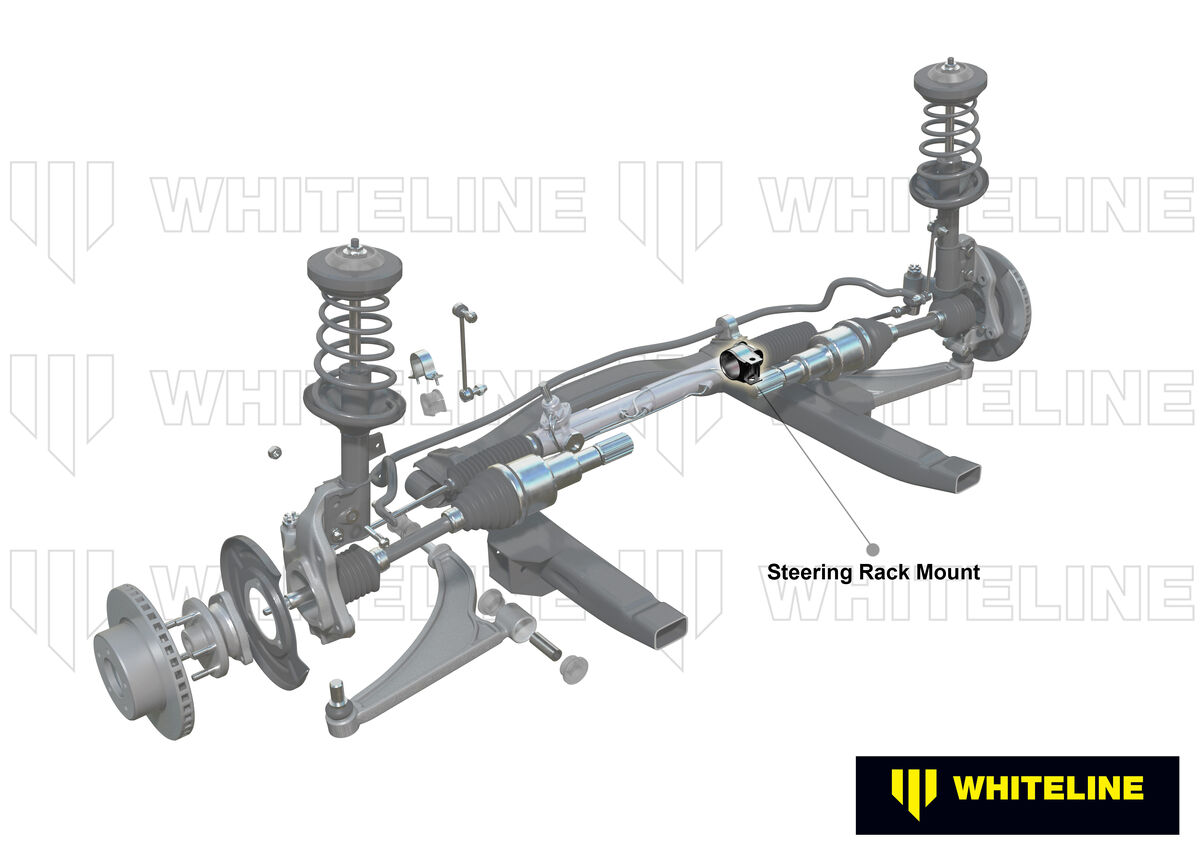

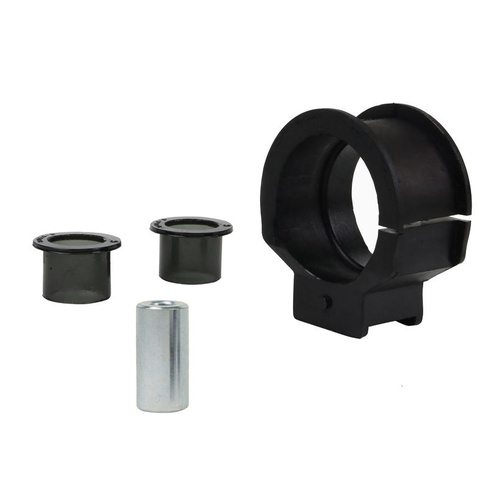

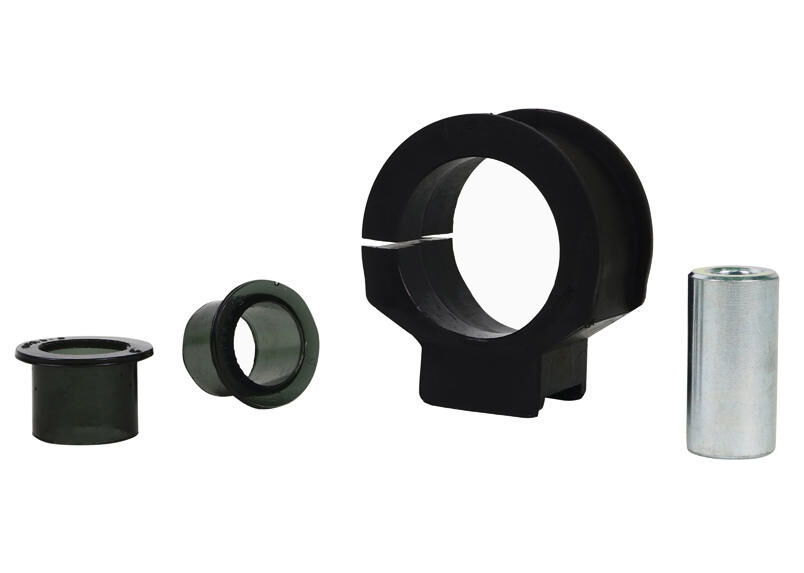

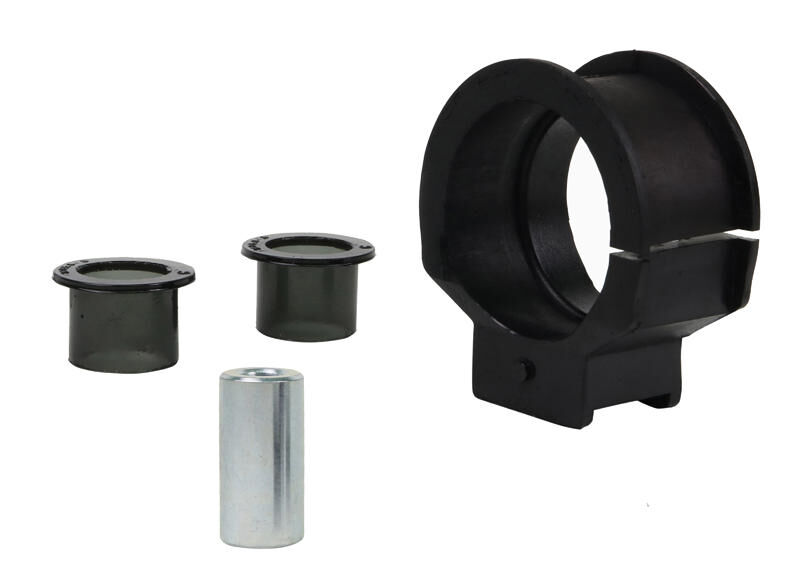

Whiteline Front Steering Rack and Pinion - Mount Bushing Kit to Suit Toyota Rav 4 SXA10, 11, 16

SKU: W13396

Benefit Note: Power steering, aggressive wheel alignment geometry, wider wheels and lower profile tyres have all put radically increased loadings on the steering systems of modern cars. Add to that engine bat contaminants such as oil leaks that also help to degrade the performance of steering rack mount bushings. Whiteline steering rack mounts are engineered to outlast and enhance steering precision and feedback.


Kit Specifications

Bush Type 4 - D-bushing With Flange 1 - Shackle Bushing
Bush Quantity 1 mm 2 mm
OD (A) 67.3 mm 26 mm
ID (B) 50.8 mm 22.2 mm
Length (C) 36 mm 22 mm
Flange Thickness (D) 3 mm 2.2 mm
Flange OD (E) 75.3 mm 34 mm
C/Tube Quantity 1 1
C/Tube ODxIDxL 22.2x12.2x45 mm 22.2x12.2x45 mm
Similar Bushing Size Click Here Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Bushing Type 4 - D-bushing With Flange
Bushing Type 1 - Shackle Bushing

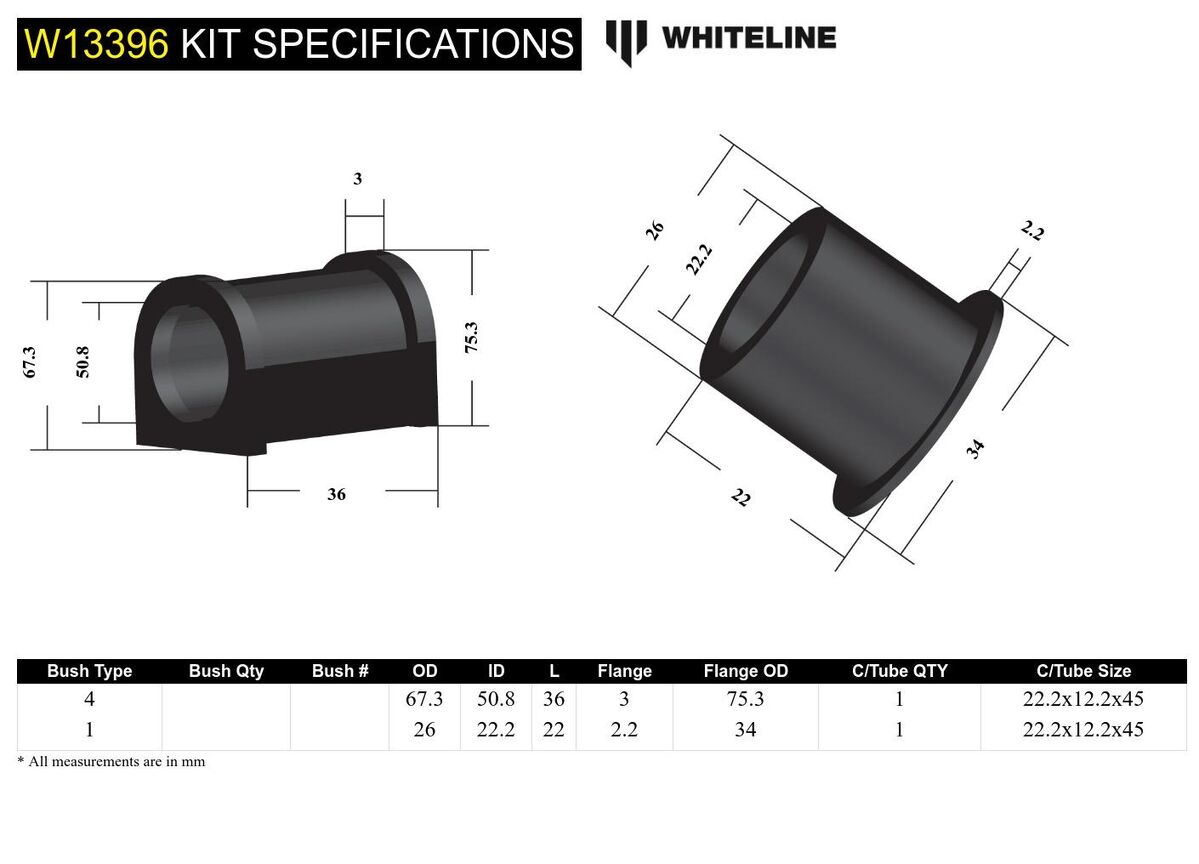

Bushing Design Dimensions (mm)

Bush Type 4 1
QTY 1 2
OD (A) 67.3 26
ID (B) 50.8 22.2
Length (C) 36.0 22.0
FL (D) 3 2.2
FLOD (E) 75.3 34
C/Tube Qty 1 1
C/Tube Size 22.2x12.2x45 22.2x12.2x45
Similar Bushings Click Here Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Bushing Type 1
Bushing Type 4

Packaged Weight and Dimensions

Unitscm/kgin/lbs
Weight0.19kg0.42lbs
Length7cm2.76"
Width20cm7.87"
Height14cm5.51"

Misc. Product Information

More Information
SKUW13396
Components Per3 Bushings, 1 Tube
Kits Required1
Sub brandReplacement
Product NoteBalances comfort with performance while minimising noise and vibrations; the perfect, complete upgrade. Includes: 3 Bushings & 1 Tube
EAN9319924463527
  • Lifetime Warranty
Brand Whiteline
SKU W13396
Unit Of Measure Kit
