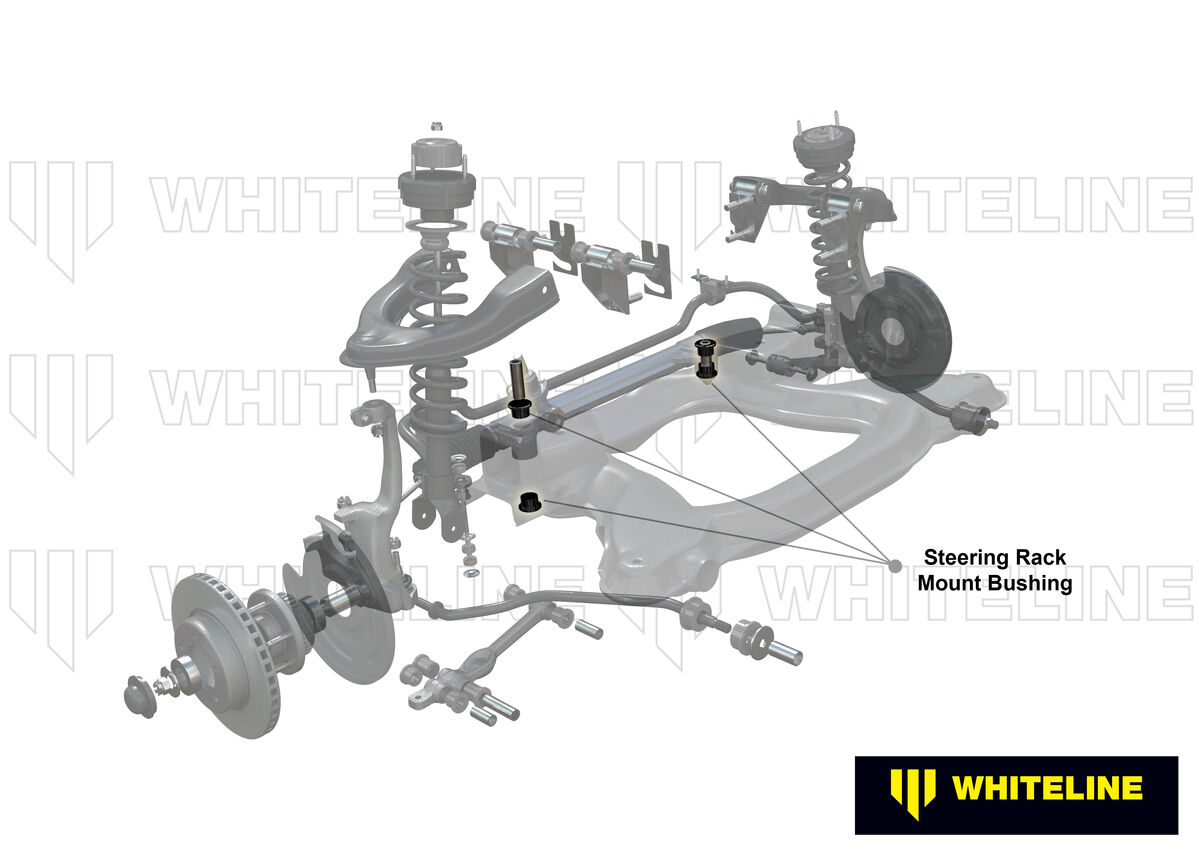

Whiteline Front Steering Rack and Pinion - Mount Bushing Kit to Suit Honda Integra DA, DB

SKU: W13394

Benefit Note: Power steering, aggressive wheel alignment geometry, wider wheels and lower profile tyres have all put radically increased loading on the steering systems of modern cars. Add to that engine bay contaminants such as oil leaks that also help to degrade the performance of steering rack mount bushings. Whiteline steering rack mounts are engineered to outlast and enhance steering precision and feedback.

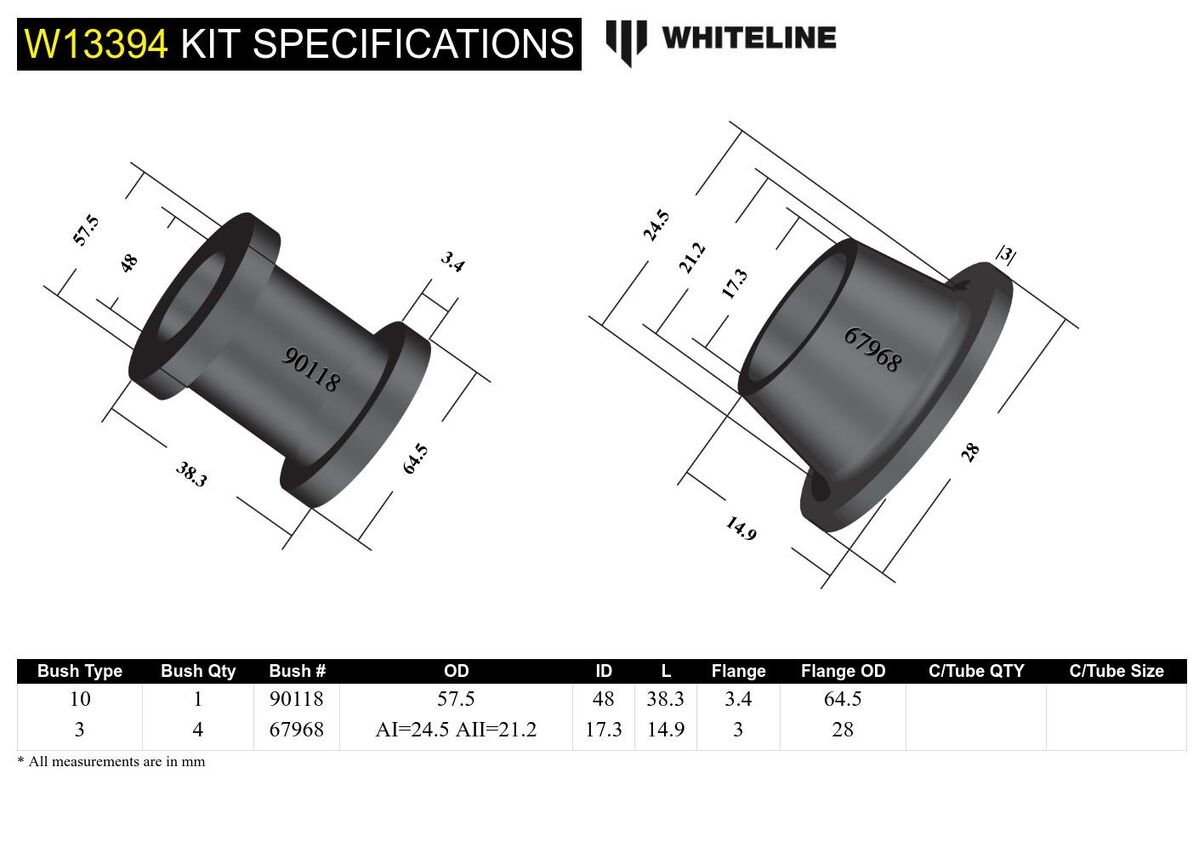

Kit Specifications

Bush Type 10 - Cotton Reel With & Without Tapper Bushing 3 - Half Tapered Cotton Reel Bush
Bush Quantity 1 mm 4 mm
OD (A) 57.5 mm AI=24.5 AII=21.2 mm
ID (B) 48 mm 17.3 mm
Length (C) 38.3 mm 14.9 mm
Flange Thickness (D) 3.4 mm 3 mm
Flange OD (E) 64.5 mm 28 mm
C/Tube Quantity
C/Tube ODxIDxL
Similar Bushing Size Click Here Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Bushing Type 10 - Cotton Reel With & Without Tapper Bushing
Bushing Type 3 - Half Tapered Cotton Reel Bush

Bushing Design Dimensions (mm)

Bush Type 10 3
QTY 1 4
OD (A) 57.5 AI=24.5 AII=21.2
ID (B) 48 17.3
Length (C) 38.3 14.9
FL (D) 3.4 3
FLOD (E) 64.5 28
C/Tube Qty
C/Tube Size
Similar Bushings Click Here Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Bushing Type 3
Bushing Type 10

Packaged Weight and Dimensions

Unitscm/kgin/lbs
Weight0.08kg0.18lbs
Length7cm2.76"
Width20cm7.87"
Height14cm5.51"

Misc. Product Information

More Information
SKUW13394
Components Per5 Bushings
Kits Required1
Sub brandReplacement

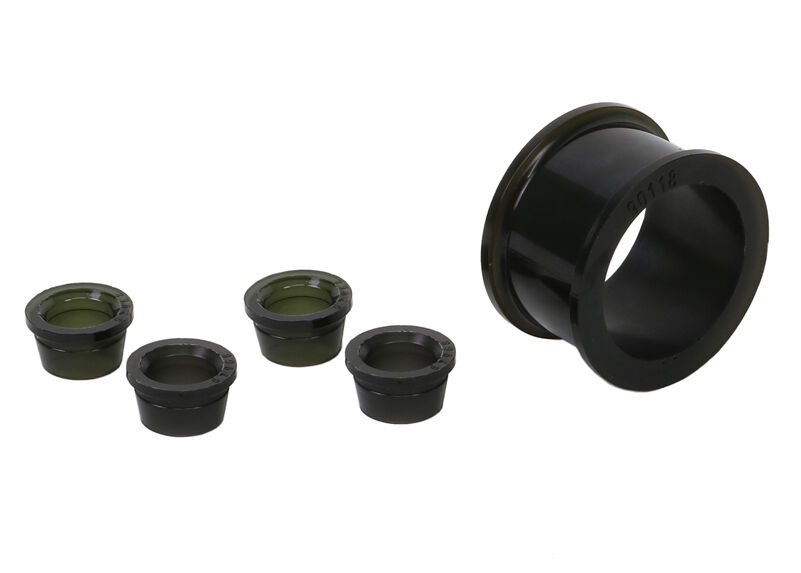

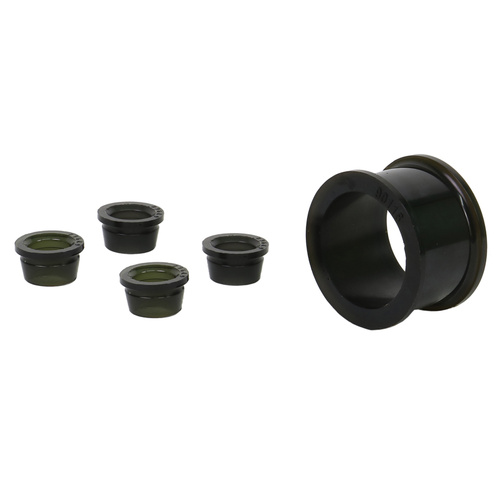

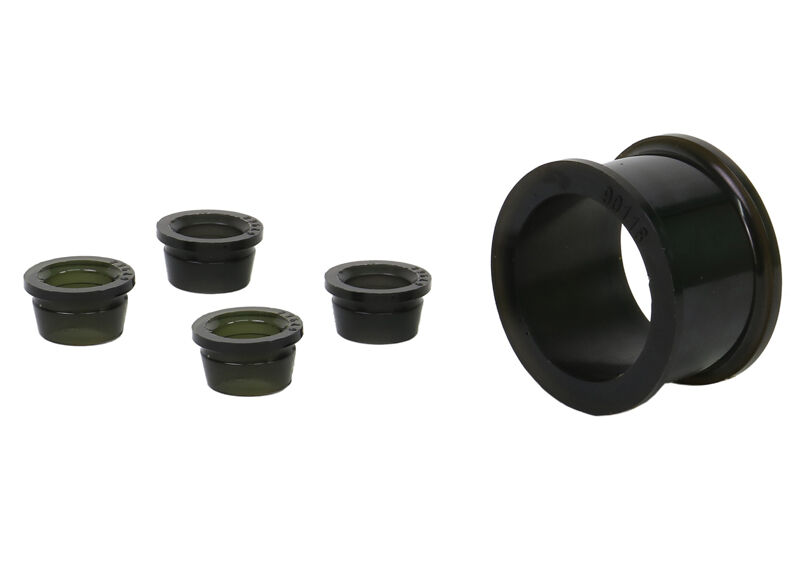

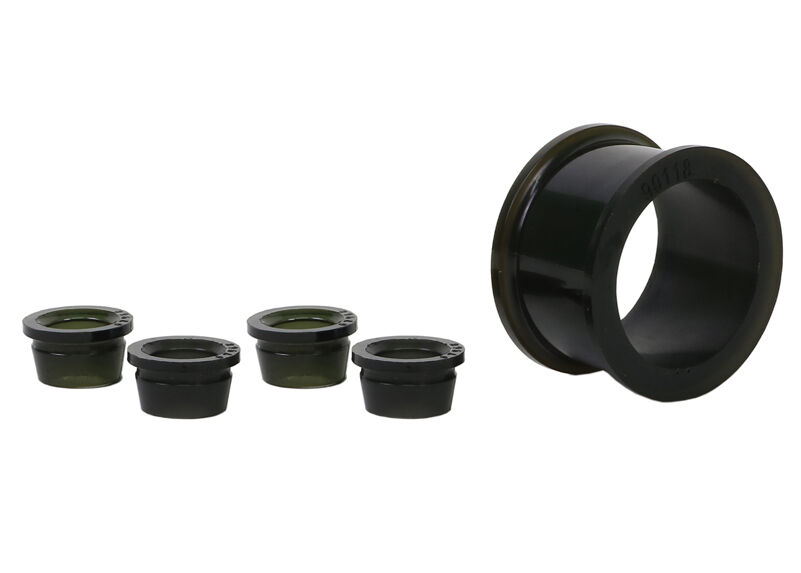

Product NoteBoosts handling and performance, while optimising suspension geometry; the perfect, complete upgrade. Includes: 5 Bushings
EAN9319924456055
  • Lifetime Warranty
Brand Whiteline
SKU W13394
Unit Of Measure Kit
