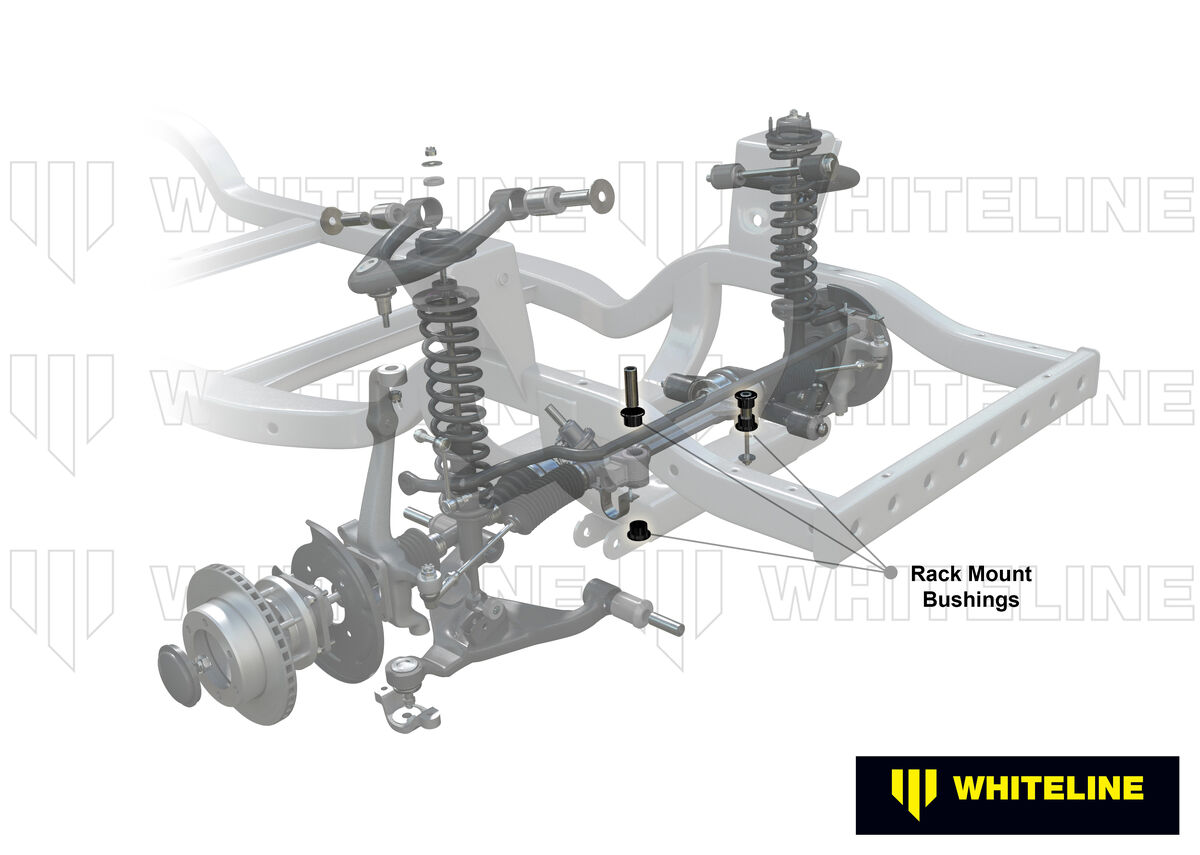

Benefit Note: Power steering, aggressive wheel alignment geometry, wider wheels and lower profile tyres have all put radically increased loading on the steering systems of modern cars. Add to that engine bay contaminants such as oil leaks that also help to degrade the performance of steering rack mount bushings. Whiteline steering rack mounts are engineered to outlast and enhance steering precision and feedback.

Kit Specifications

Bush Type	10 - Cotton Reel With & Without Tapper Bushing	1 - Shackle Bushing
Bush Quantity	1 mm	4 mm
OD (A)	61 mm	36.7 mm
ID (B)	53.5 mm	25.2 mm
Length (C)	40.5 mm	21.8 mm
Flange Thickness (D)	5 mm	3 mm
Flange OD (E)	70.85 mm	45.2 mm
C/Tube Quantity	2	2
C/Tube ODxIDxL	25.4x17x51 mm	25.4x17x51 mm
Similar Bushing Size	Click Here	Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

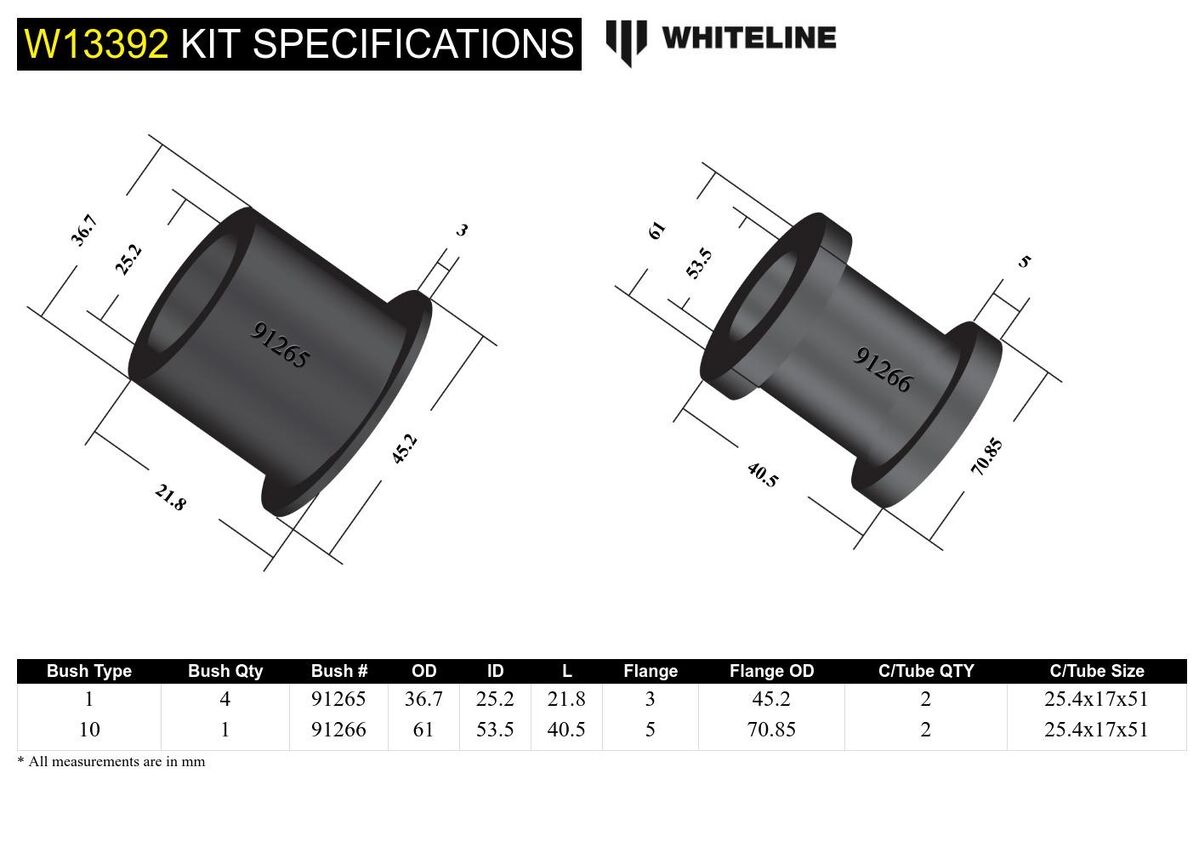

Bushing Design Dimensions (mm)

Bush Type	10	1
QTY	1	4
OD (A)	61	36.7
ID (B)	53.5	25.2
Length (C)	40.5	21.8
FL (D)	5	3
FLOD (E)	70.85	45.2
C/Tube Qty	2	2
C/Tube Size	25.4x17x51	25.4x17x51
Similar Bushings	Click Here	Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Packaged Weight and Dimensions

Units	cm/kg	in/lbs
Weight	0.34kg	0.75lbs
Length	10cm	3.94"
Width	26cm	10.24"
Height	16cm	6.3"

Misc. Product Information

More Information

SKU	W13392

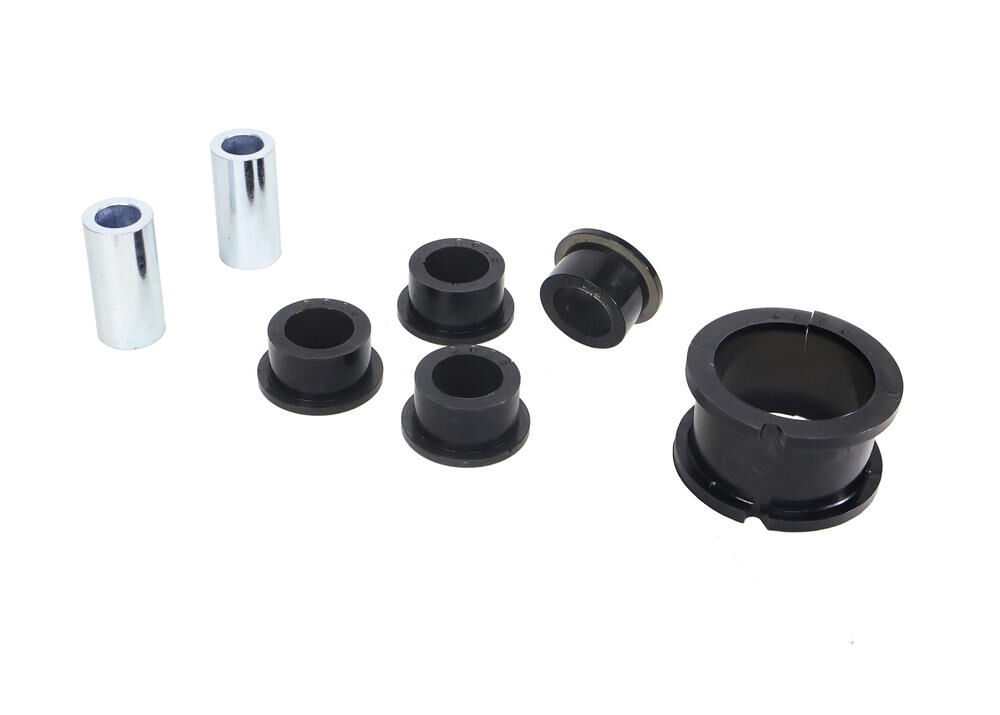

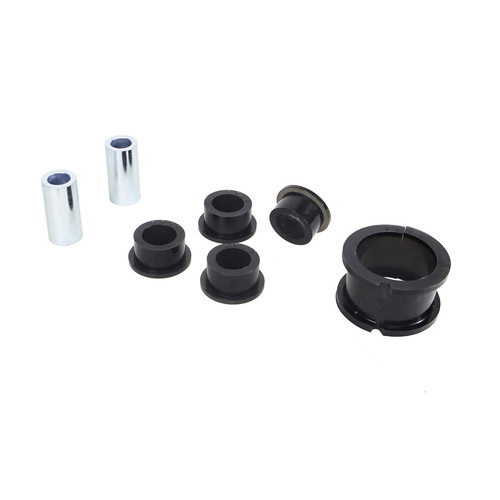

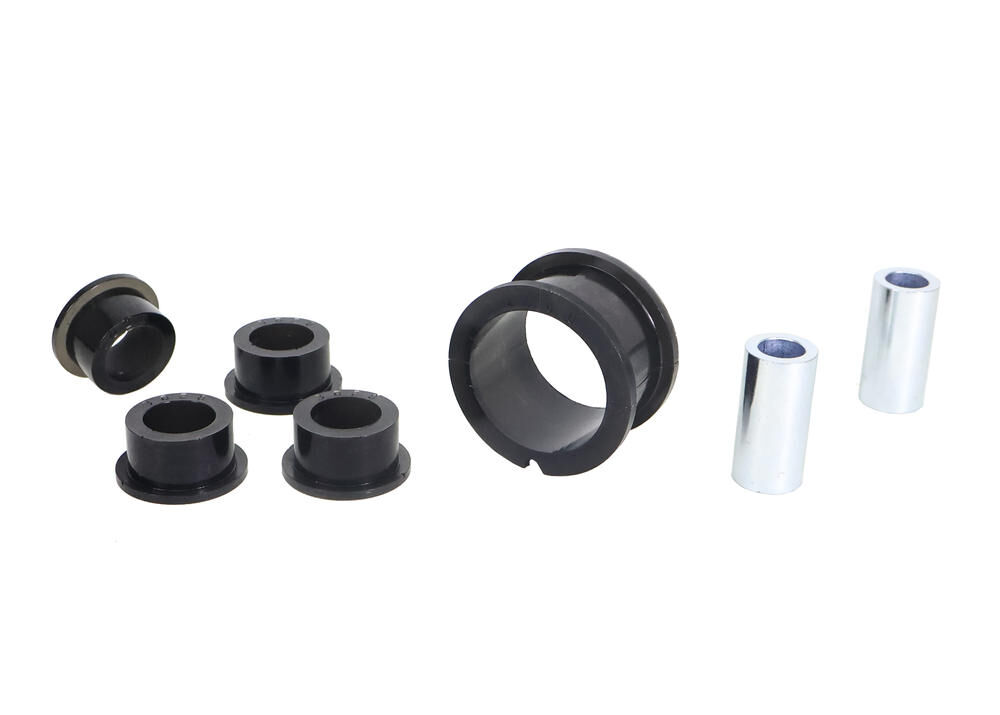

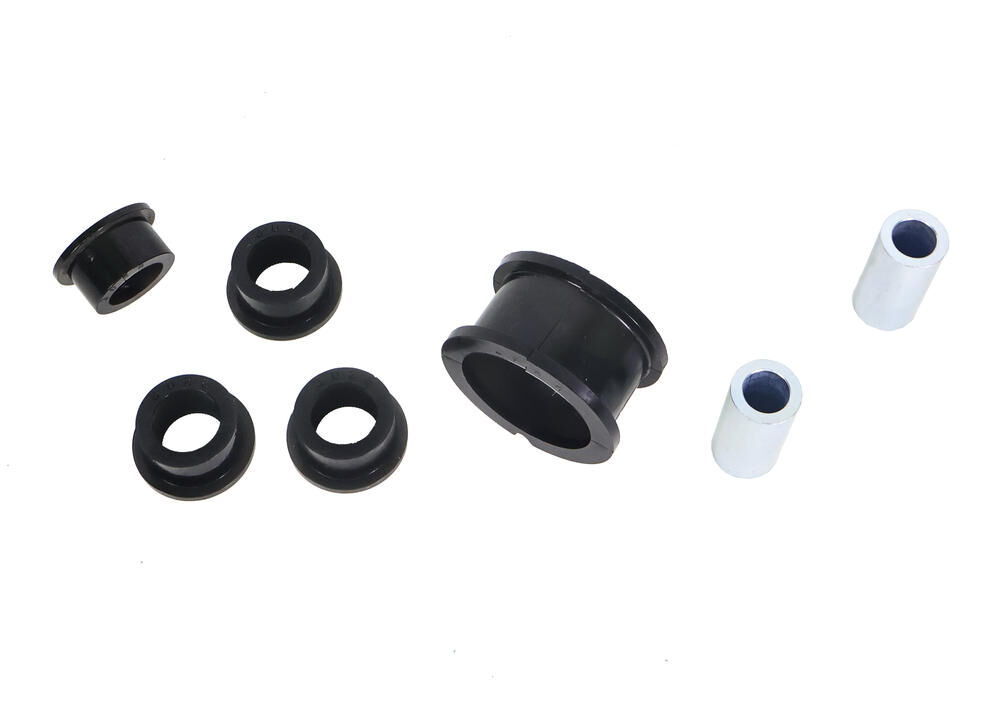

Components Per	5 Bushings, 2 Tubes
Kits Required	1
Sub brand	Replacement
Product Note	Maximises grip and stability for better control; the perfect, complete upgrade. Includes: 5 Bushings & 2 Tubes
EAN	9319924455614
