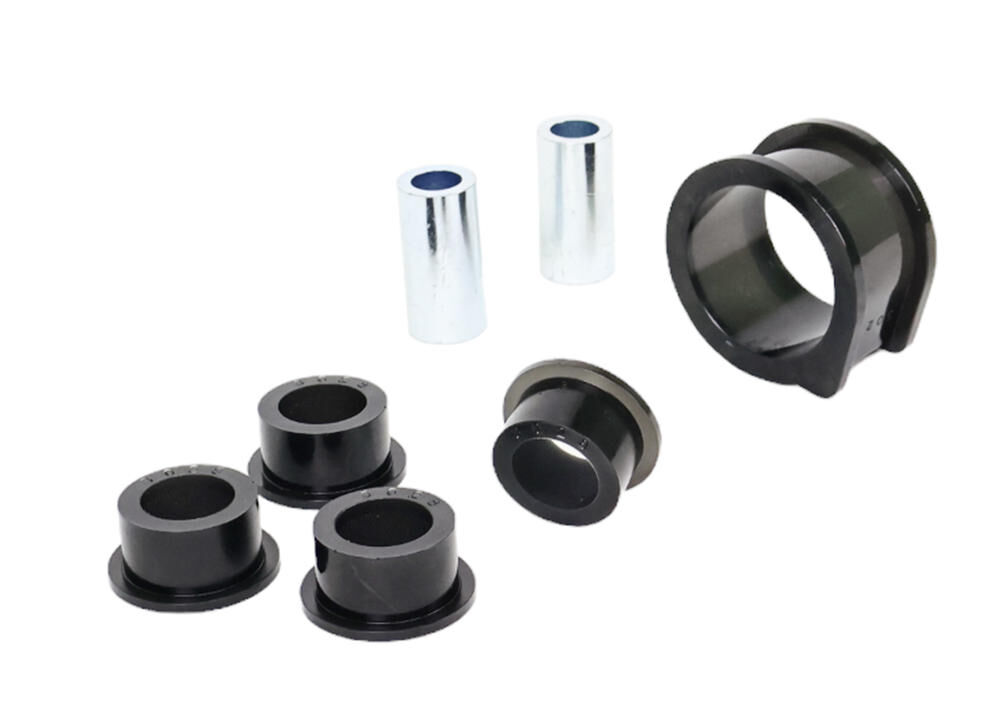

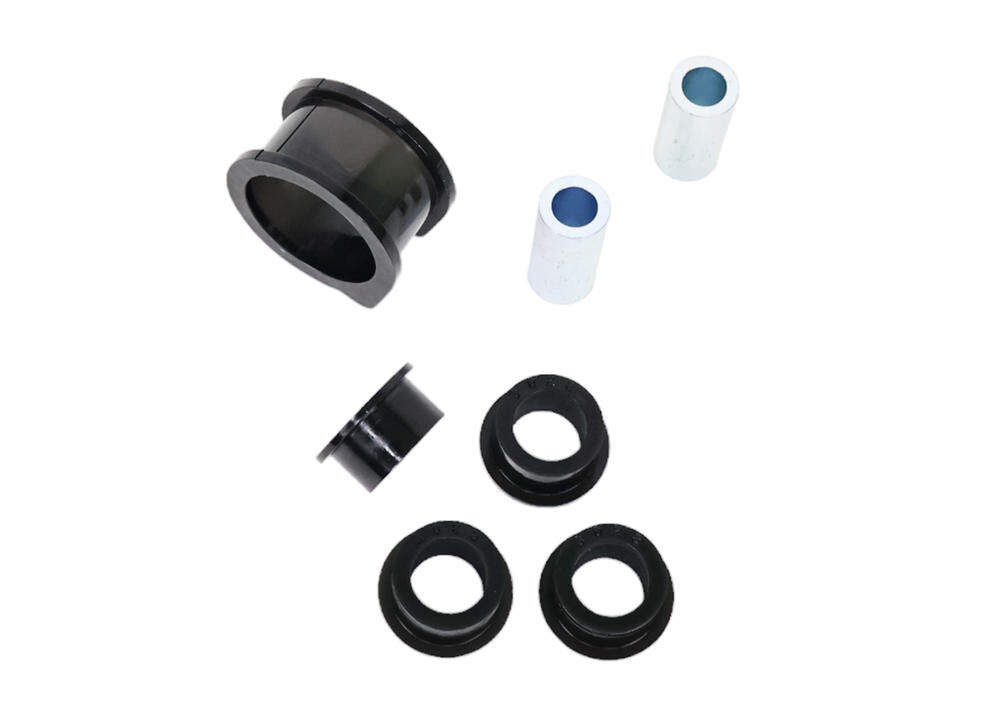

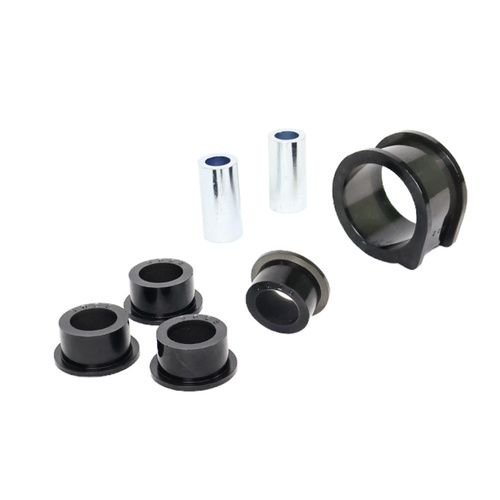

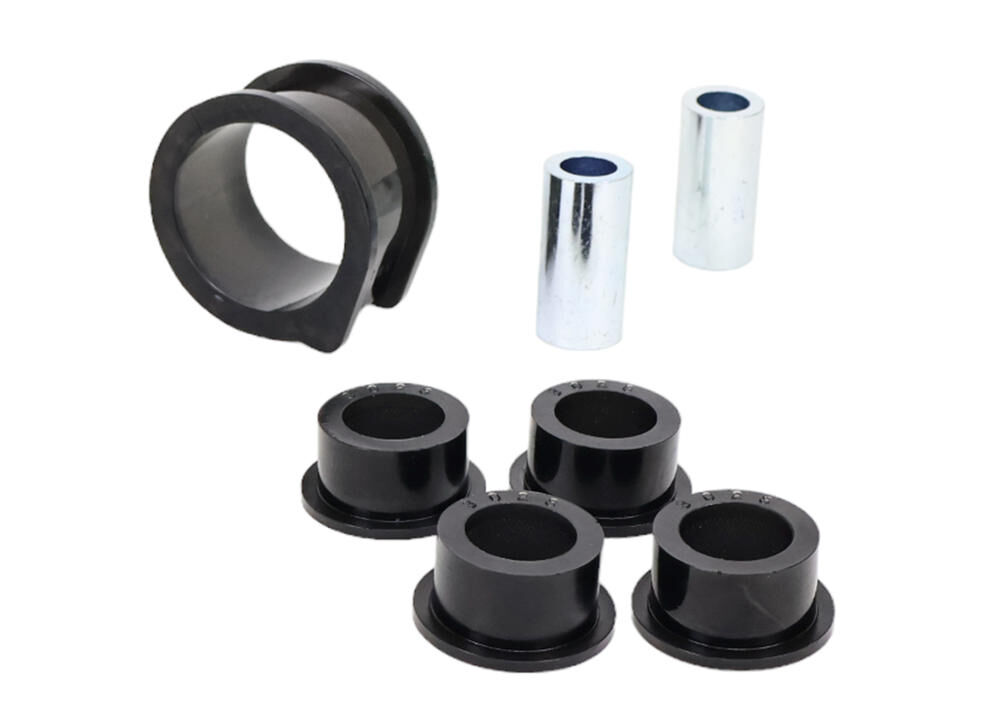

Whiteline Front Steering Rack and Pinion - Mount Bushing Kit to Suit Nissan Navara D40 and Pathfinder R51

SKU: W13391

Benefit Note: Power steering, aggressive wheel alignment geometry, wider wheels and lower profile tyres have all put radically increased loading on the steering systems of modern cars. Add to that engine bay contaminants such as oil leaks that also help to degrade the performance of steering rack mount bushings. Whiteline steering rack mounts are engineered to outlast and enhance steering precision and feedback.

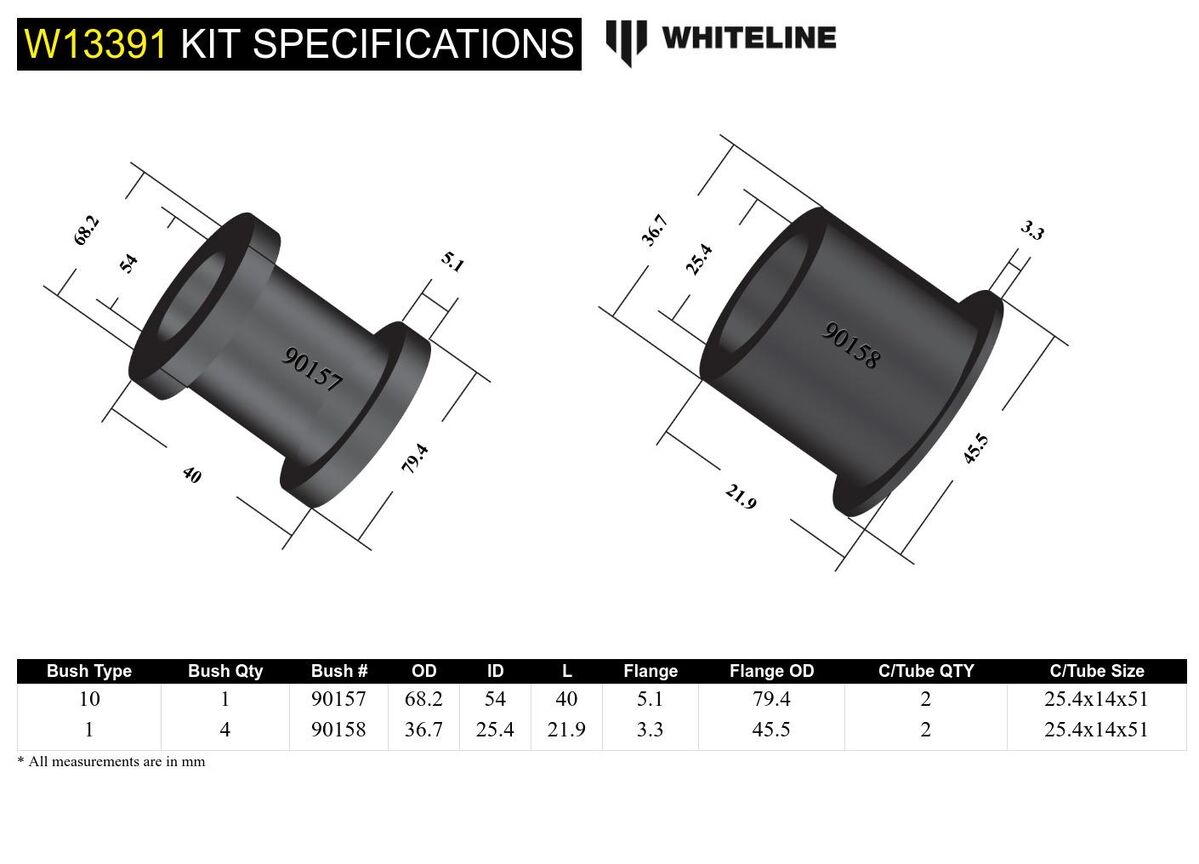

Kit Specifications

Bush Type 1 - Shackle Bushing 10 - Cotton Reel With & Without Tapper Bushing
Bush Quantity 4 mm 1 mm
OD (A) 36.7 mm 68.2 mm
ID (B) 25.4 mm 54 mm
Length (C) 21.9 mm 40 mm
Flange Thickness (D) 3.3 mm 5.1 mm
Flange OD (E) 45.5 mm 79.4 mm
C/Tube Quantity 2 2
C/Tube ODxIDxL 25.4x14x51 mm 25.4x14x51 mm
Similar Bushing Size Click Here Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Bushing Type 1 - Shackle Bushing
Bushing Type 10 - Cotton Reel With & Without Tapper Bushing

Bushing Design Dimensions (mm)

Bush Type 1 10
QTY 4 1
OD (A) 36.7 68.2
ID (B) 25.4 54
Length (C) 21.9 40.0
FL (D) 3.3 5.1
FLOD (E) 45.5 79.4
C/Tube Qty 2 2
C/Tube Size 25.4x14x51 25.4x14x51
Similar Bushings Click Here Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Bushing Type 1
Bushing Type 10

Packaged Weight and Dimensions

Unitscm/kgin/lbs
Weight0.35kg0.77lbs
Length7cm2.76"
Width20cm7.87"
Height14cm5.51"

Misc. Product Information

More Information
SKUW13391
Components Per5 Bushings, 2 Tubes
Kits Required1
Sub brandReplacement
Product NoteBalances comfort with performance while minimising noise and vibrations; the perfect, complete upgrade. Includes: 5 Bushings & 2 Tubes
EAN9319924453573
  • Lifetime Warranty
Brand Whiteline
SKU W13391
Unit Of Measure Kit
