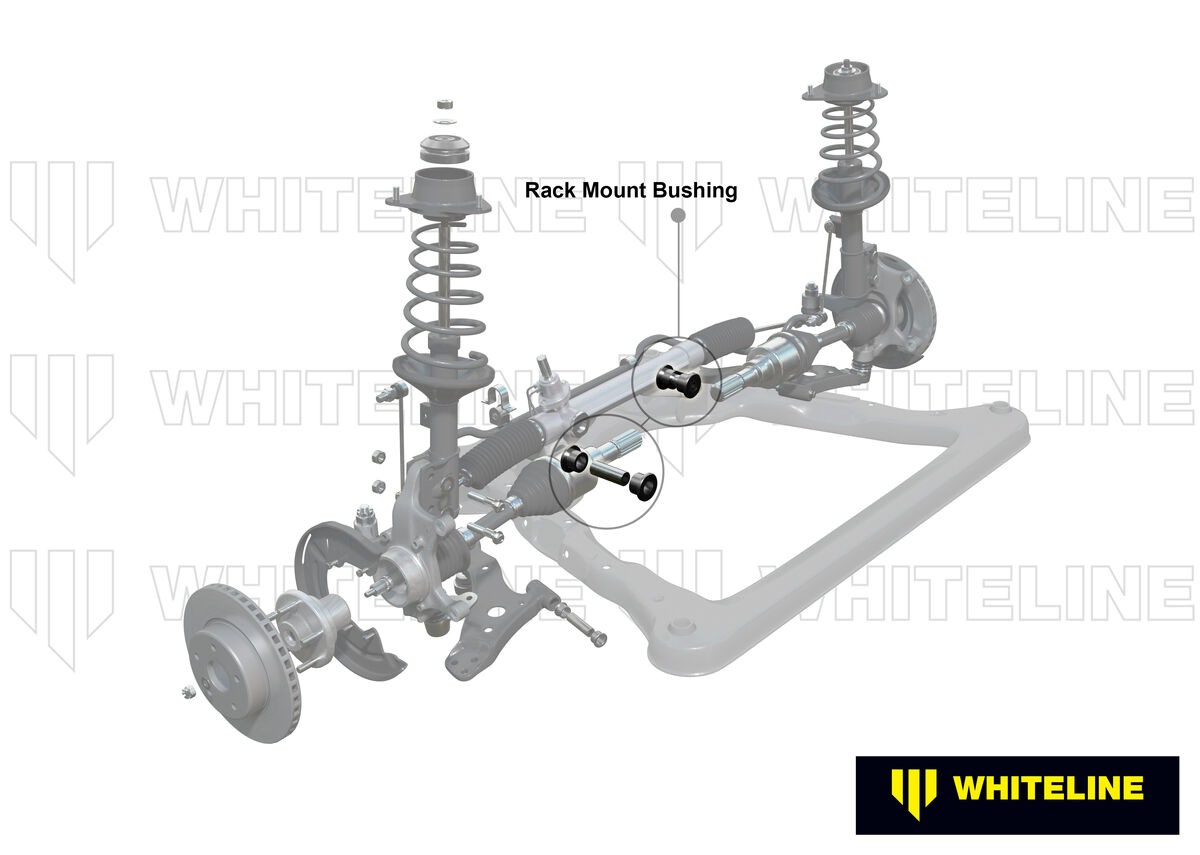

Whiteline Front Steering Rack and Pinion - Mount Bushing Kit to Suit Toyota Avensis Verso ACM20

SKU: W13380

Benefit Note: Power steering, aggressive wheel alignment geometry, wider wheels and lower profile tyres have all put radically increased loading on the steering systems of modern cars. Add to that engine bay contaminants such as oil leaks that also help to degrade the performance of steering rack mount bushings. Whiteline steering rack mounts are engineered to outlast and enhance steering precision and feedback.


Kit Specifications

Bush Type 1 - Shackle Bushing 1 - Shackle Bushing
Bush Quantity 2 mm 2 mm
OD (A) 26 mm 24 mm
ID (B) 19 mm 19 mm
Length (C) 30.8 mm 31.2 mm
Flange Thickness (D) 7.3 mm 7.2 mm
Flange OD (E) 38 mm 36 mm
C/Tube Quantity 2 2
C/Tube ODxIDxL 19x12.2x30 mm 19x12.2x30 mm
Similar Bushing Size Click Here Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Bushing Type 1 - Shackle Bushing
Bushing Type 1 - Shackle Bushing

Bushing Design Dimensions (mm)

Bush Type 1 1
QTY 2 2
OD (A) 26 24
ID (B) 19 19
Length (C) 30.8 31.2
FL (D) 7.3 7.2
FLOD (E) 38 36
C/Tube Qty 2 2
C/Tube Size 19x12.2x30 19x12.2x30
Similar Bushings Click Here Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Bushing Type 1

Packaged Weight and Dimensions

Unitscm/kgin/lbs
Weight0.288kg0.63lbs
Length7cm2.76"
Width20cm7.87"
Height14cm5.51"

Misc. Product Information

More Information
SKUW13380

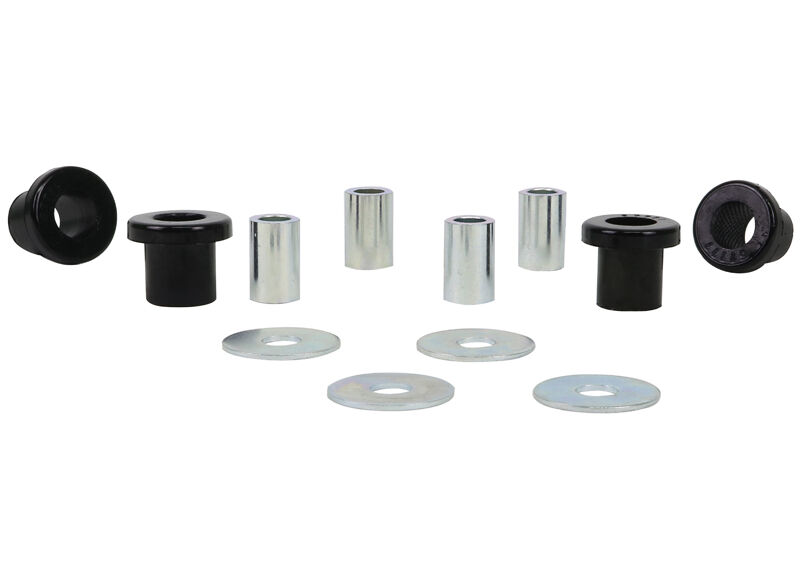

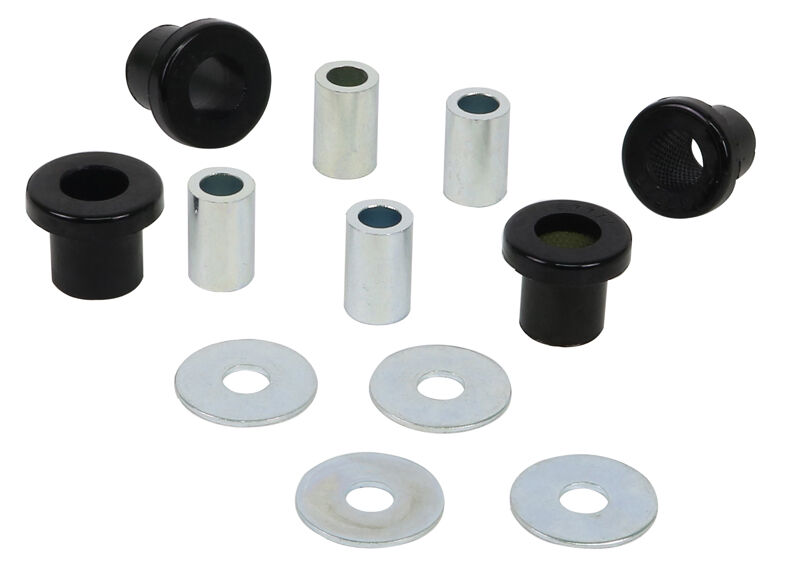

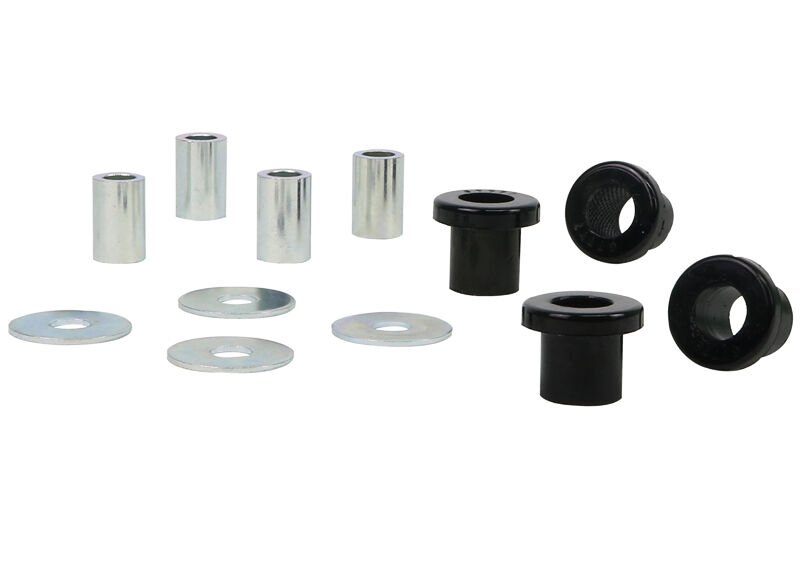

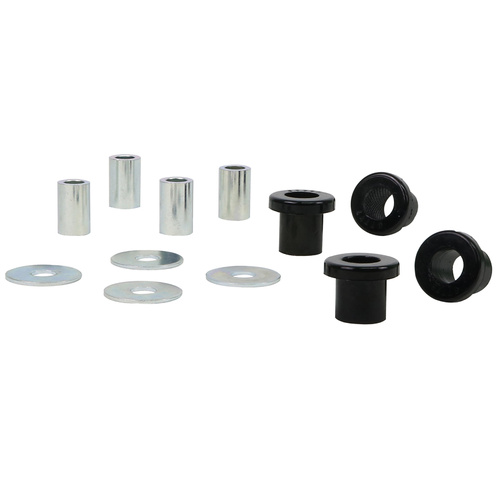

Components Per4 Bushings, 4 Tubes, 4 Washers
Kits Required1
Sub brandReplacement
Product NoteMaximises grip and stability for better control; the perfect, complete upgrade. Includes: 4 Bushings, 4 Tubes & 4 Washers
EAN9319924390182
  • Lifetime Warranty
Brand Whiteline
SKU W13380
Unit Of Measure Kit
