Whiteline Front Steering Rack and Pinion - Mount Bushing Kit to Suit Toyota Tarago ACR30

SKU: W13379

Benefit Note: Power steering, aggressive wheel alignment geometry, wider wheels and lower profile tyres have all put radically increased loading on the steering systems of modern cars. Add to that engine bay contaminants such as oil leaks that also help to degrade the performance of steering rack mount bushings. Whiteline steering rack mounts are engineered to outlast and enhance steering precision and feedback.

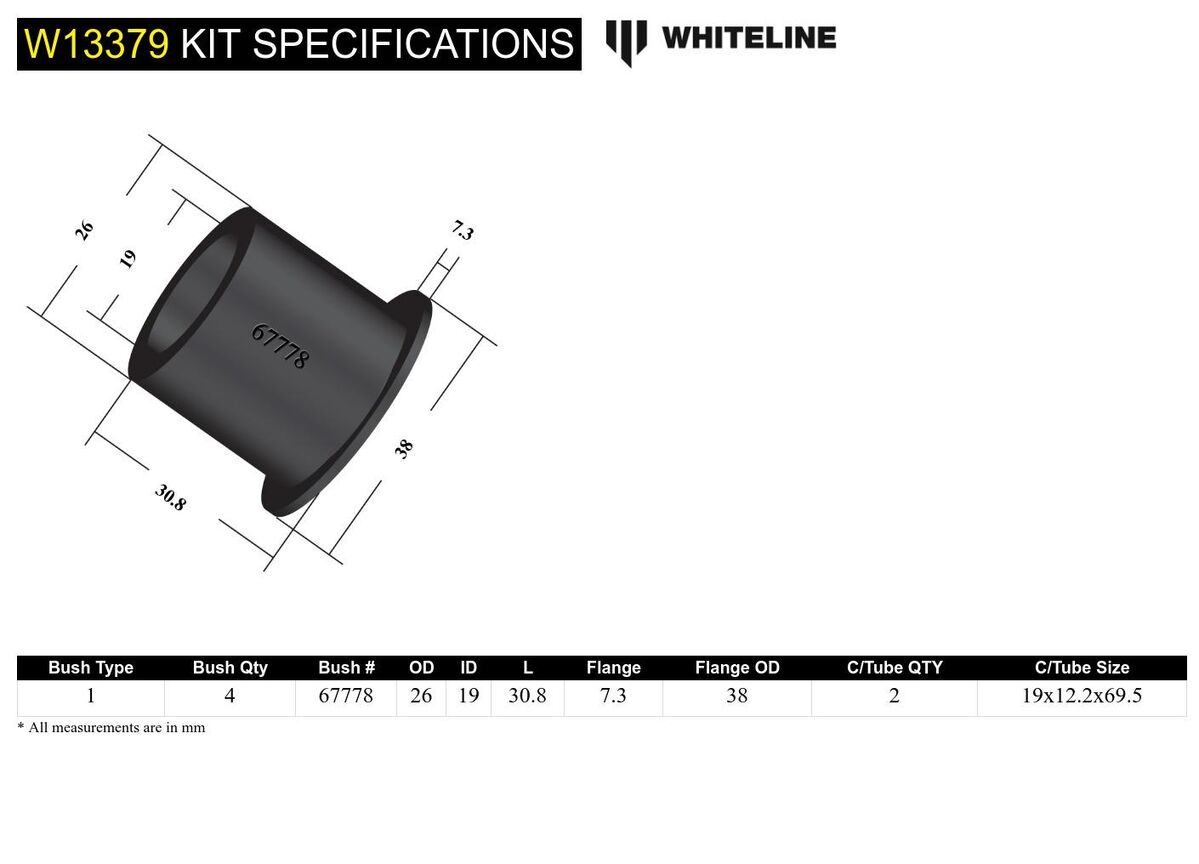

Kit Specifications

Bush Type 1 - Shackle Bushing
Bush Quantity 4 mm
OD (A) 26 mm
ID (B) 19 mm
Length (C) 30.8 mm
Flange Thickness (D) 7.3 mm
Flange OD (E) 38 mm
C/Tube Quantity 2
C/Tube ODxIDxL 19x12.2x69.5 mm
Similar Bushing Size Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Bushing Type 1 - Shackle Bushing

Bushing Design Dimensions (mm)

Bush Type 1
QTY 4
OD (A) 26
ID (B) 19
Length (C) 30.8
FL (D) 7.3
FLOD (E) 38
C/Tube Qty 2
C/Tube Size 19x12.2x69.5
Similar Bushings Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Bushing Type 1

Packaged Weight and Dimensions

Unitscm/kgin/lbs
Weight0.285kg0.63lbs
Length7cm2.76"
Width20cm7.87"
Height14cm5.51"

Misc. Product Information

More Information
SKUW13379

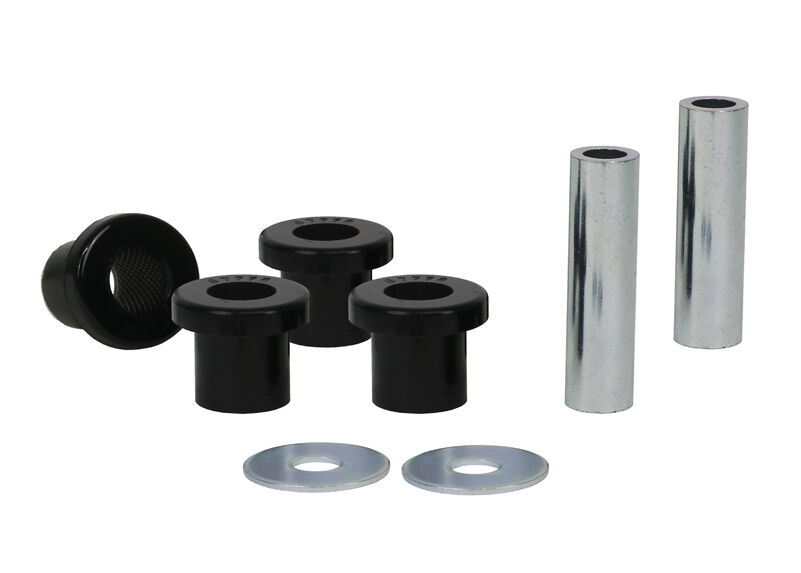

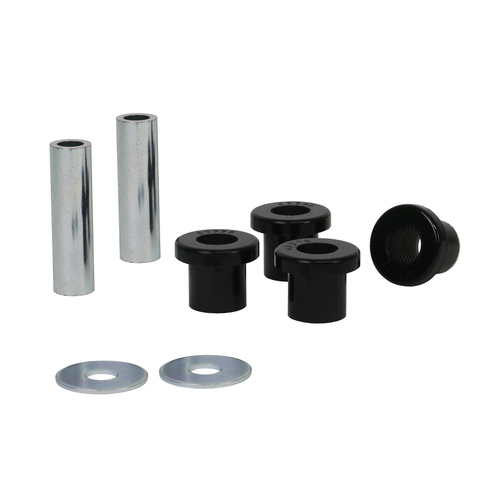

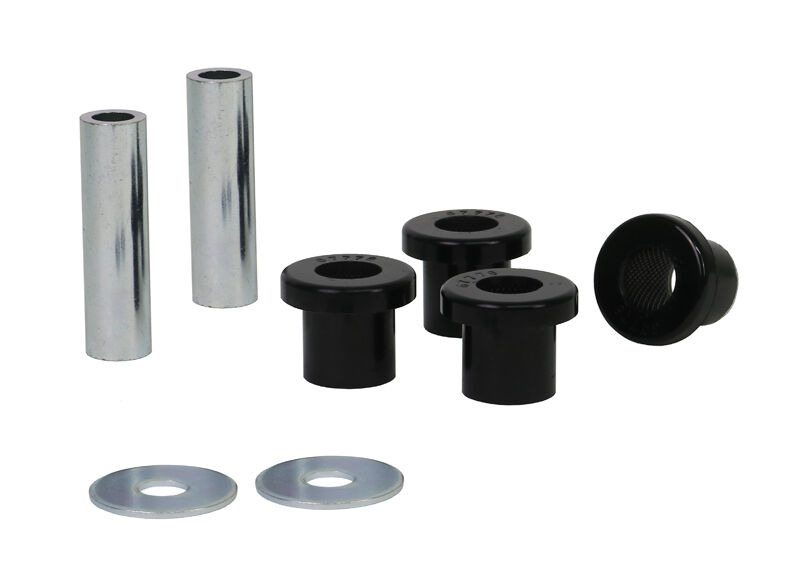

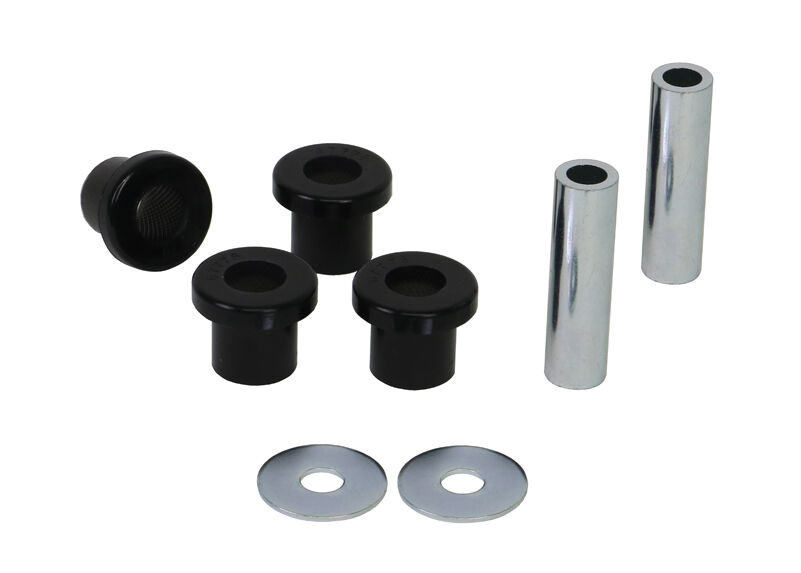

Components Per4 Bushings, 2 Tubes, 2 Washers
Kits Required1
Sub brandReplacement
Product NoteBoosts handling and performance, while optimising suspension geometry; the perfect, complete upgrade. Includes: 4 Bushings, 2 Tubes & 2 Washers
EAN9319924390540
  • Lifetime Warranty
Brand Whiteline
SKU W13379
Unit Of Measure Kit
