Whiteline Front Steering Rack and Pinion - Mount Bushing Kit to Suit Hyundai iLoad, iMax and Mitsubishi Triton

SKU: W13213

Benefit Note: Power steering, aggressive wheel alignment geometry, wider wheels and lower profile tyres have all put radically increased loading on the steering systems of modern cars. Add to that engine bay contaminants such as oil leaks that also help to degrade the performance of steering rack mount bushings. Whiteline steering rack mounts are engineered to outlast and enhance steering precision and feedback.

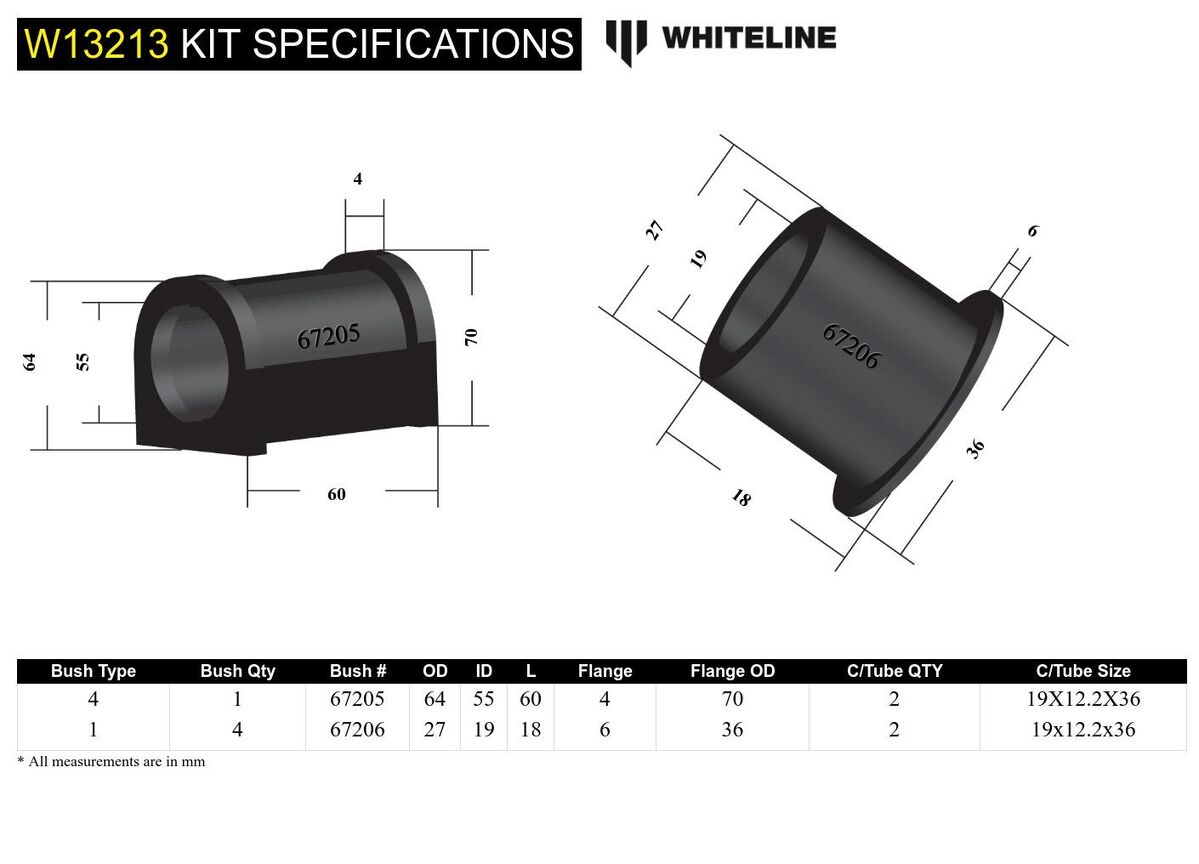

Kit Specifications

Bush Type 1 - Shackle Bushing 4 - D-bushing With Flange
Bush Quantity 4 mm 1 mm
OD (A) 27 mm 64 mm
ID (B) 19 mm 55 mm
Length (C) 18 mm 60 mm
Flange Thickness (D) 6 mm 4 mm
Flange OD (E) 36 mm 70 mm
C/Tube Quantity 2 2
C/Tube ODxIDxL 19x12.2x36 mm 19x12.2x36 mm
Similar Bushing Size Click Here Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Bushing Type 1 - Shackle Bushing
Bushing Type 4 - D-bushing With Flange

Bushing Design Dimensions (mm)

Bush Type 1 4
QTY 4 1
OD (A) 27 64
ID (B) 19 55
Length (C) 18.0 60.0
FL (D) 6 4
FLOD (E) 36 70
C/Tube Qty 2 2
C/Tube Size 19x12.2x36 19x12.2x36
Similar Bushings Click Here Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Bushing Type 1
Bushing Type 4

Packaged Weight and Dimensions

Unitscm/kgin/lbs
Weight0.226kg0.5lbs
Length10cm3.94"
Width26cm10.24"
Height16cm6.3"

Misc. Product Information

More Information
SKUW13213
Components Per5 Bushings, 2 Tubes
Kits Required1
Sub brandReplacement
Product NoteBalances comfort with performance while minimising noise and vibrations; the perfect, complete upgrade. Includes: 5 Bushings & 2 Tubes
EAN9319924388356
  • Lifetime Warranty
Brand Whiteline
SKU W13213
Unit Of Measure Kit
