Whiteline Front Steering Rack and Pinion - Mount Bushing Kit to Suit Toyota Land Cruiser 100 Series IFS

SKU: W13208

Benefit Note: Power steering, aggressive wheel alignment geometry, wider wheels and lower profile tyres have all put radically increased loading on the steering systems of modern cars. Add to that engine bay contaminants such as oil leaks that also help to degrade the performance of steering rack mount bushings. Whiteline steering rack mounts are engineered to outlast and enhance steering precision and feedback.


Kit Specifications

Bush Type 3 - Half Tapered Cotton Reel Bush
Bush Quantity 4 mm
OD (A) AI=39 AII=34 mm
ID (B) 22 mm
Length (C) 27 mm
Flange Thickness (D) 7 mm
Flange OD (E) 54 mm
C/Tube Quantity 2
C/Tube ODxIDxL 22.2x14.3x54.5 mm
Similar Bushing Size Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Bushing Type 3 - Half Tapered Cotton Reel Bush

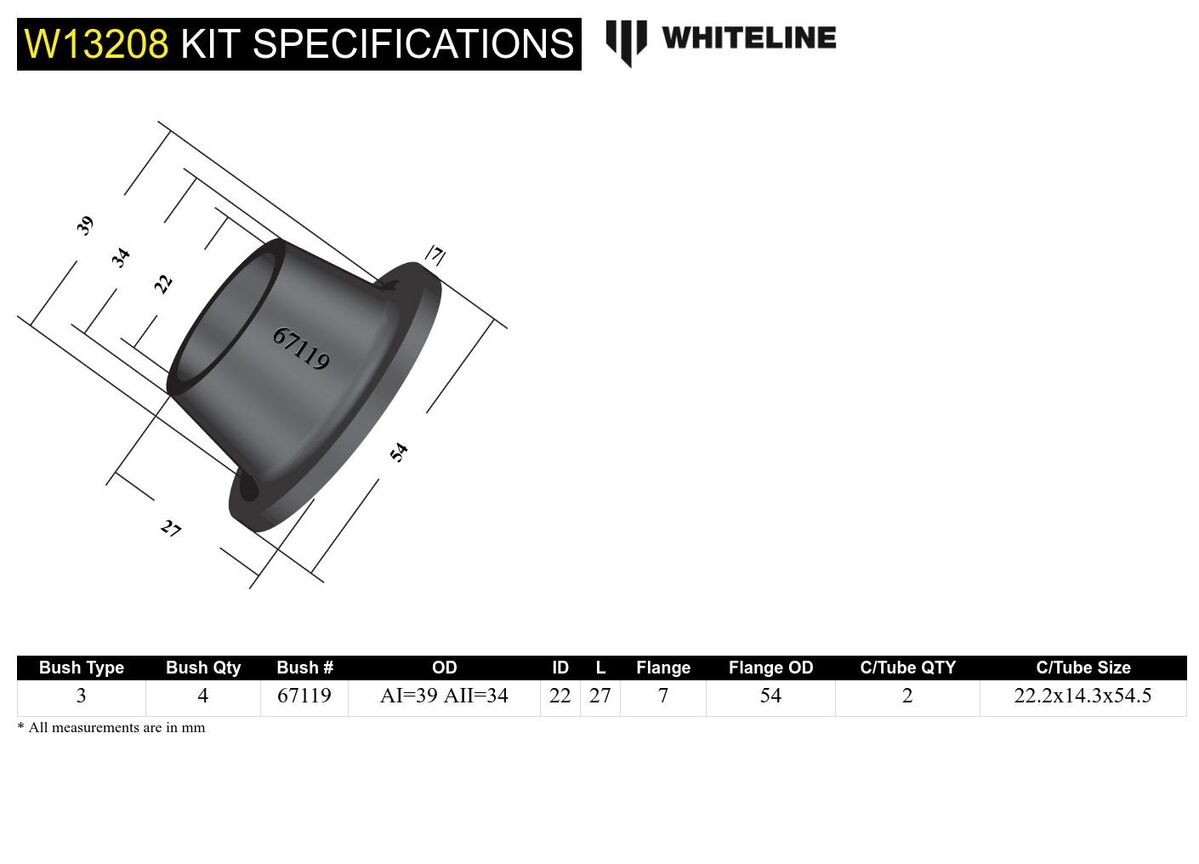

Bushing Design Dimensions (mm)

Bush Type 3
QTY 4
OD (A) AI=39 AII=34
ID (B) 22
Length (C) 27.0
FL (D) 7
FLOD (E) 54
C/Tube Qty 2
C/Tube Size 22.2x14.3x54.5
Similar Bushings Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Bushing Type 3

Packaged Weight and Dimensions

Unitscm/kgin/lbs
Weight0.405kg0.89lbs
Length7cm2.76"
Width20cm7.87"
Height14cm5.51"

Misc. Product Information

More Information
SKUW13208

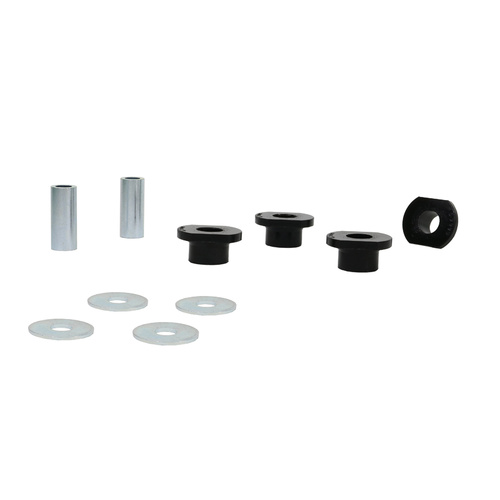

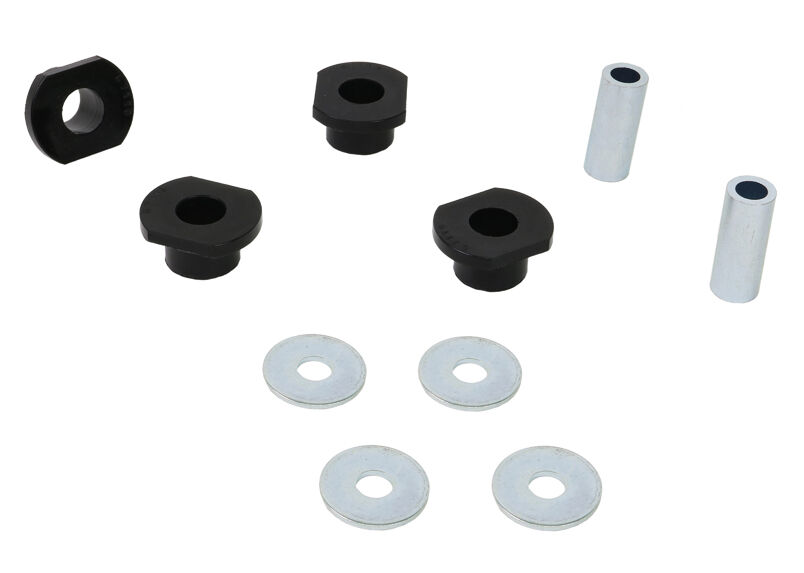

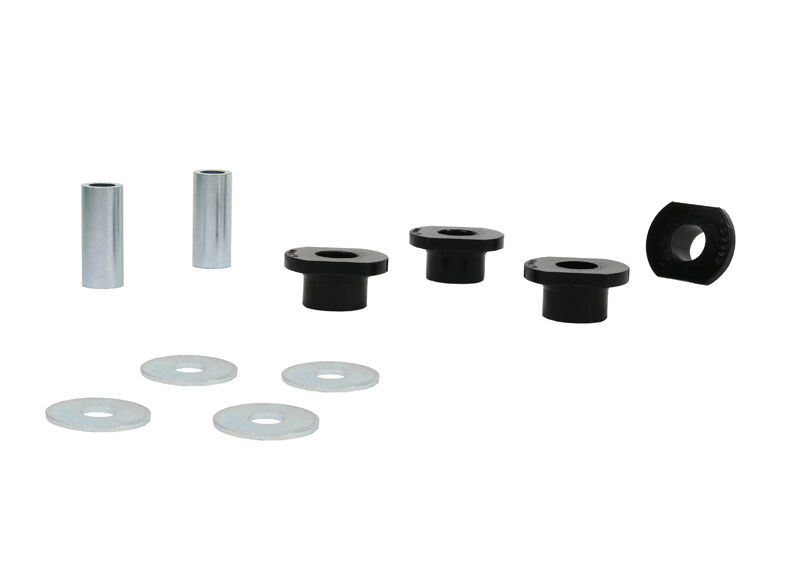

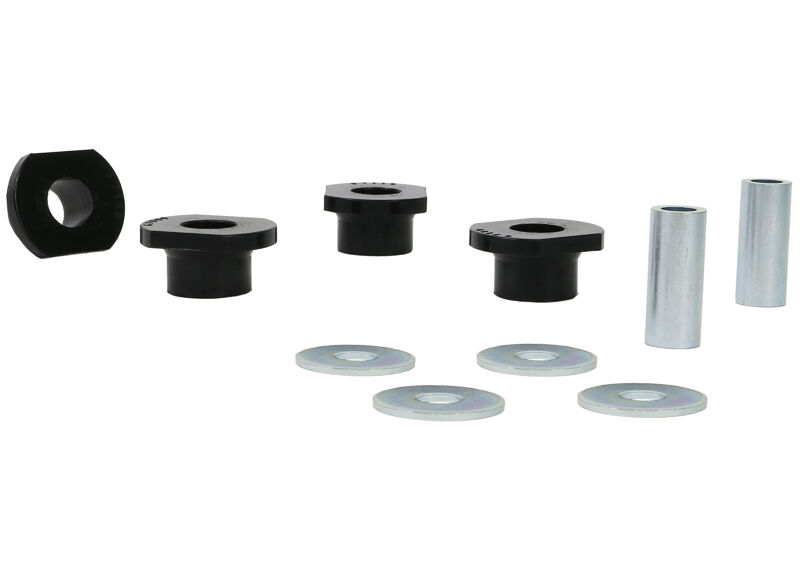

Components Per4 Bushings, 2 Tubes, 4 Washers
Kits Required1
Sub brandReplacement
Product NoteBoosts handling and performance, while optimising suspension geometry; the perfect, complete upgrade. Includes: 4 Bushings, 2 Tubes & 4 Washers
EAN9319924376872
  • Lifetime Warranty
Brand Whiteline
SKU W13208
Unit Of Measure Kit
