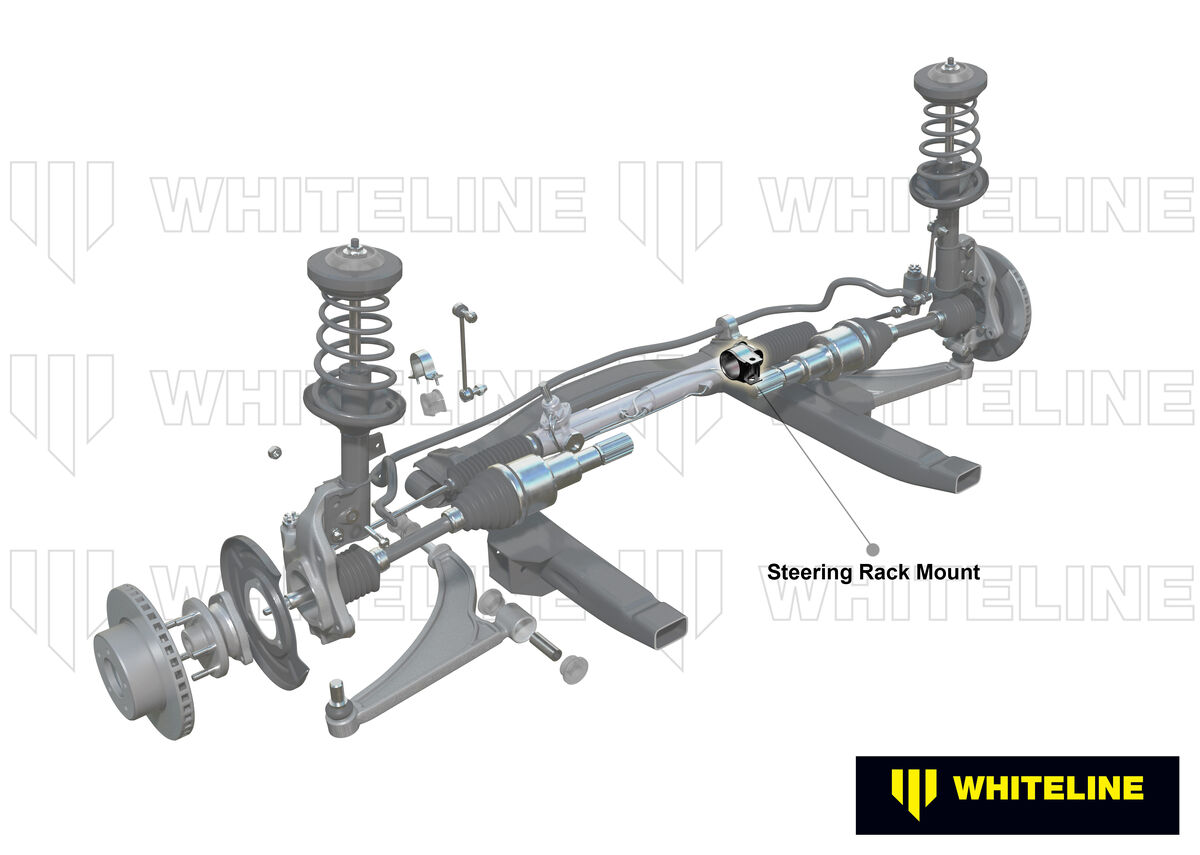

Benefit Note: Power steering, aggressive wheel alignment geometry, wider wheels and lower profile tyres have all put radically increased loading on the steering systems of modern cars. Add to that engine bay contaminants such as oil leaks that also help to degrade the performance of steering rack mount bushings. Whiteline steering rack mounts are engineered to outlast and enhance steering precision and feedback.

Kit Specifications

Bush Type	4 - D-bushing With Flange	10 - Cotton Reel With & Without Tapper Bushing
Bush Quantity	1 mm	1 mm
OD (A)	50 mm	55.8 mm
ID (B)	47 mm	47.8 mm
Length (C)	44 mm	46.3 mm
Flange Thickness (D)	4 mm	4 mm
Flange OD (E)	61.5 mm	63 mm
C/Tube Quantity
C/Tube ODxIDxL
Similar Bushing Size	Click Here	Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

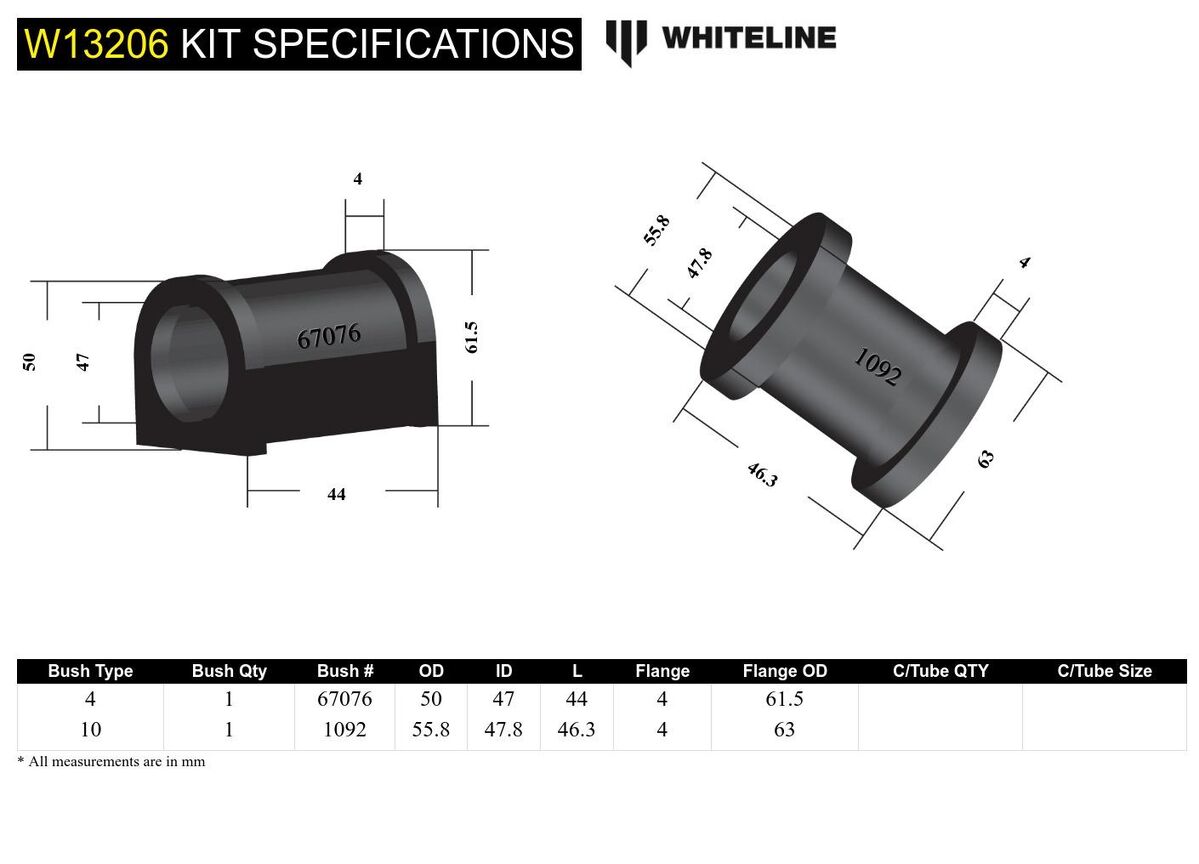

Bushing Design Dimensions (mm)

Bush Type	4	10
QTY	1	1
OD (A)	50	55.8
ID (B)	47	47.8
Length (C)	44.0	46.3
FL (D)	4	4
FLOD (E)	61.5	63
C/Tube Qty
C/Tube Size
Similar Bushings	Click Here	Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Packaged Weight and Dimensions

Units	cm/kg	in/lbs
Weight	0.085kg	0.19lbs
Length	7cm	2.76"
Width	20cm	7.87"
Height	14cm	5.51"

Misc. Product Information

More Information

SKU	W13206
Components Per	2 Bushings
Kits Required	1
Sub brand	Replacement
Product Note	Boosts handling and performance, while optimising suspension geometry; the perfect, complete upgrade. Includes: 2 Bushings
EAN	9319924376551
