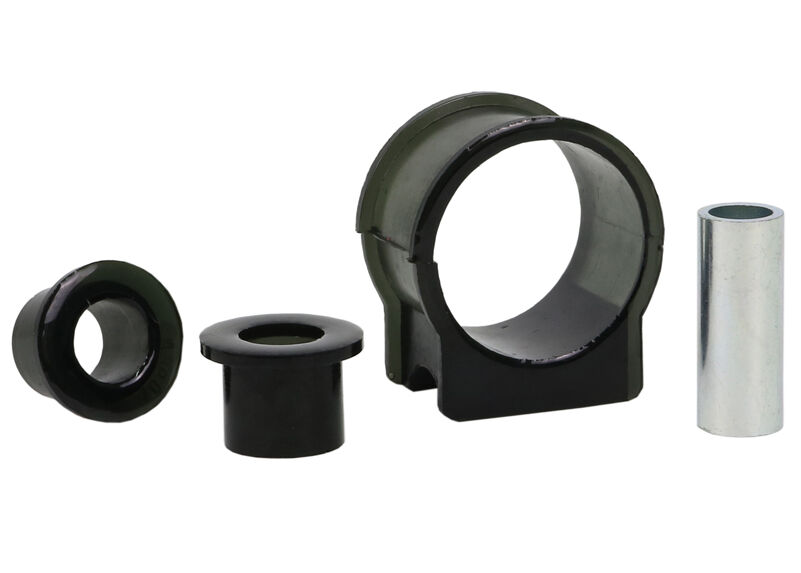

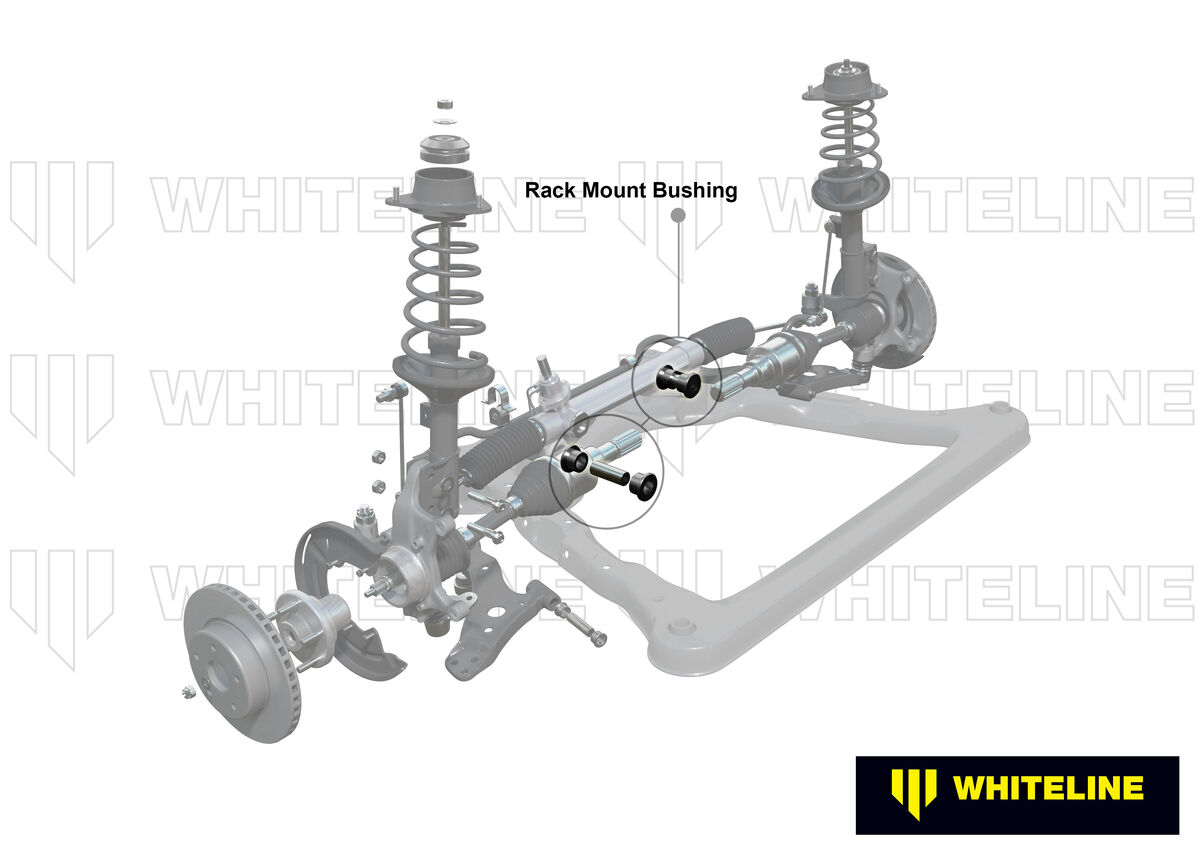

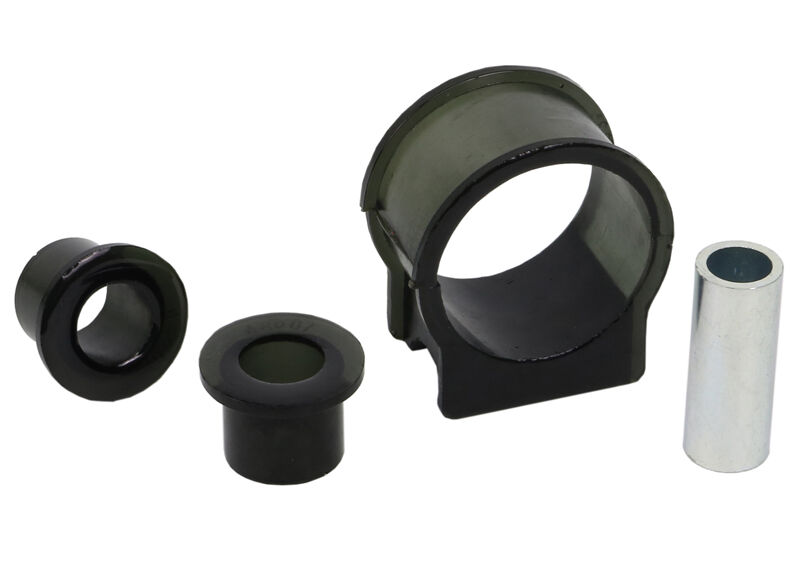

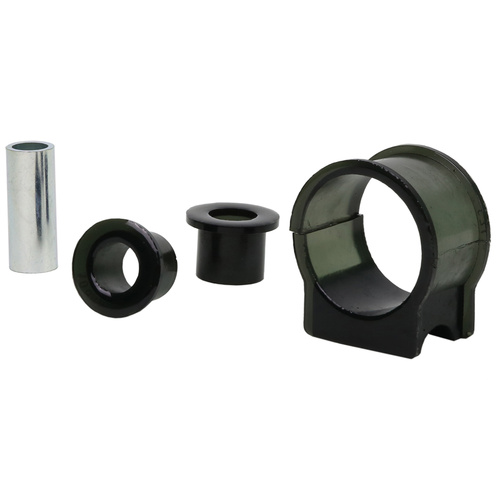

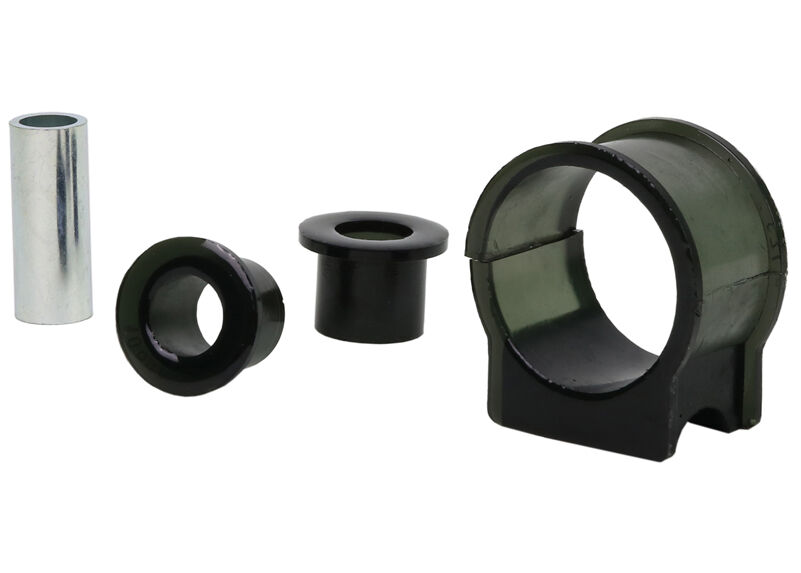

Whiteline Front Steering Rack and Pinion - Mount Bushing Kit to Suit Toyota Camry, Avalon and Holden Apollo

SKU: W11722

Benefit Note: Power steering, aggressive wheel alignment geometry, wider wheels and lower profile tyres have all put radically increased loading on the steering systems of modern cars. Add to that engine bay contaminants such as oil leaks that also help to degrade the performance of steering rack mount bushings. Whiteline steering rack mounts are engineered to outlast and enhance steering precision and feedback.

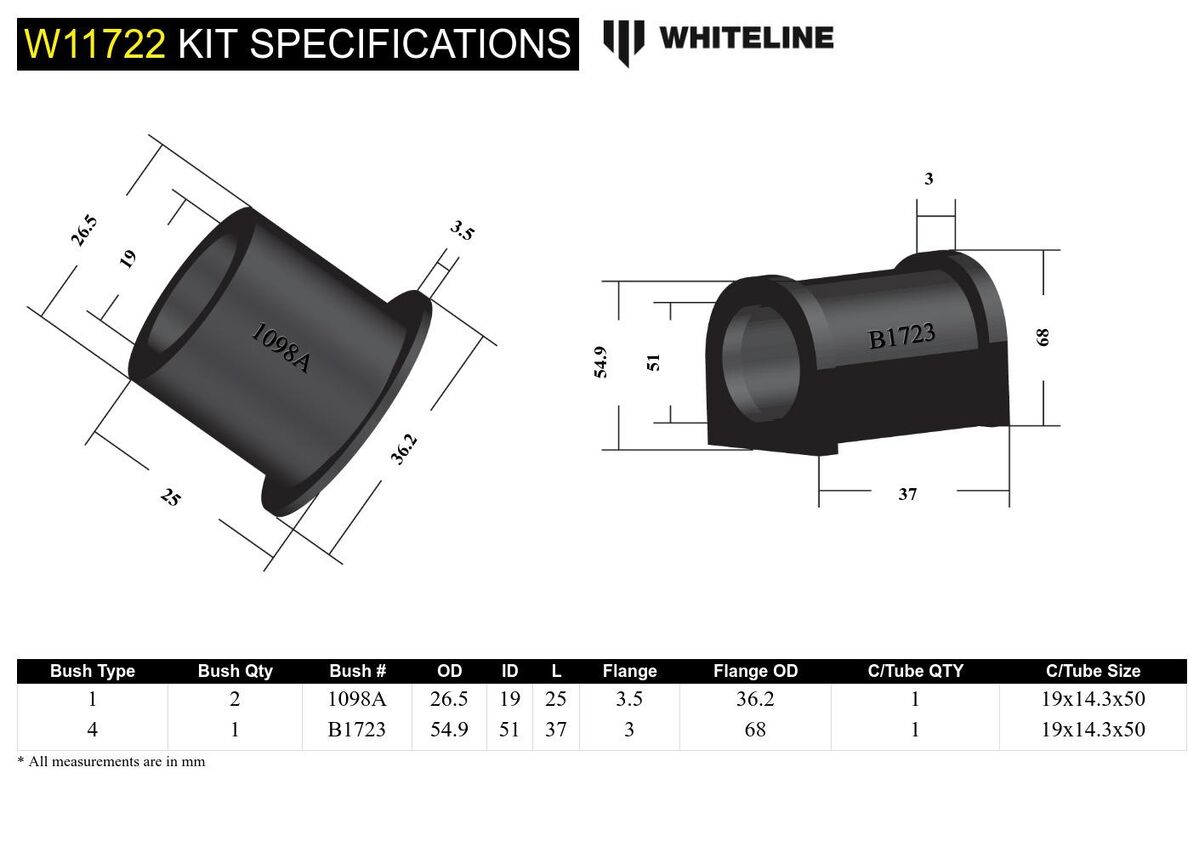

Kit Specifications

Bush Type 4 - D-bushing With Flange 1 - Shackle Bushing
Bush Quantity 1 mm 2 mm
OD (A) 54.9 mm 26.5 mm
ID (B) 51 mm 19 mm
Length (C) 37 mm 25 mm
Flange Thickness (D) 3 mm 3.5 mm
Flange OD (E) 68 mm 36.2 mm
C/Tube Quantity 1 1
C/Tube ODxIDxL 19x14.3x50 mm 19x14.3x50 mm
Similar Bushing Size Click Here Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Bushing Type 4 - D-bushing With Flange
Bushing Type 1 - Shackle Bushing

Bushing Design Dimensions (mm)

Bush Type 4 1
QTY 1 2
OD (A) 54.9 26.5
ID (B) 51 19
Length (C) 37.0 25.0
FL (D) 3 3.5
FLOD (E) 68 36.2
C/Tube Qty 1 1
C/Tube Size 19x14.3x50 19x14.3x50
Similar Bushings Click Here Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Bushing Type 1
Bushing Type 4

Packaged Weight and Dimensions

Unitscm/kgin/lbs
Weight0.116kg0.26lbs
Length7cm2.76"
Width20cm7.87"
Height14cm5.51"

Misc. Product Information

More Information
SKUW11722
Components Per3 Bushings, 1 Tube
Kits Required1
Sub brandReplacement
Product NoteBoosts handling and performance, while optimising suspension geometry; the perfect, complete upgrade. Includes: 3 Bushings & 1 Tube
EAN9319924349289
  • Lifetime Warranty
Brand Whiteline
SKU W11722
Unit Of Measure Kit
