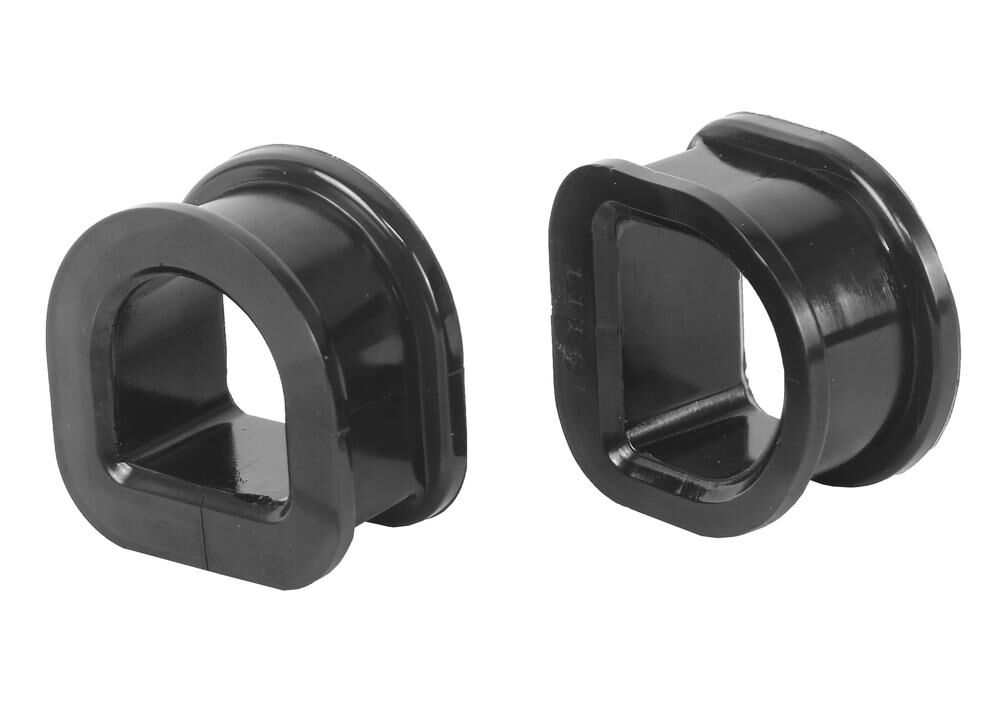

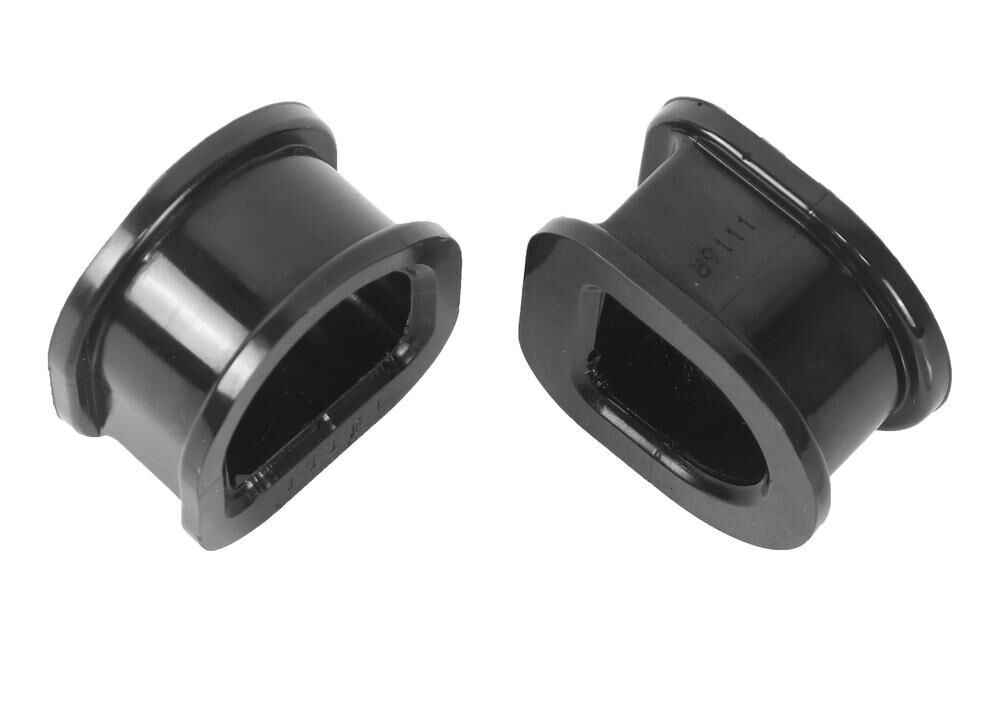

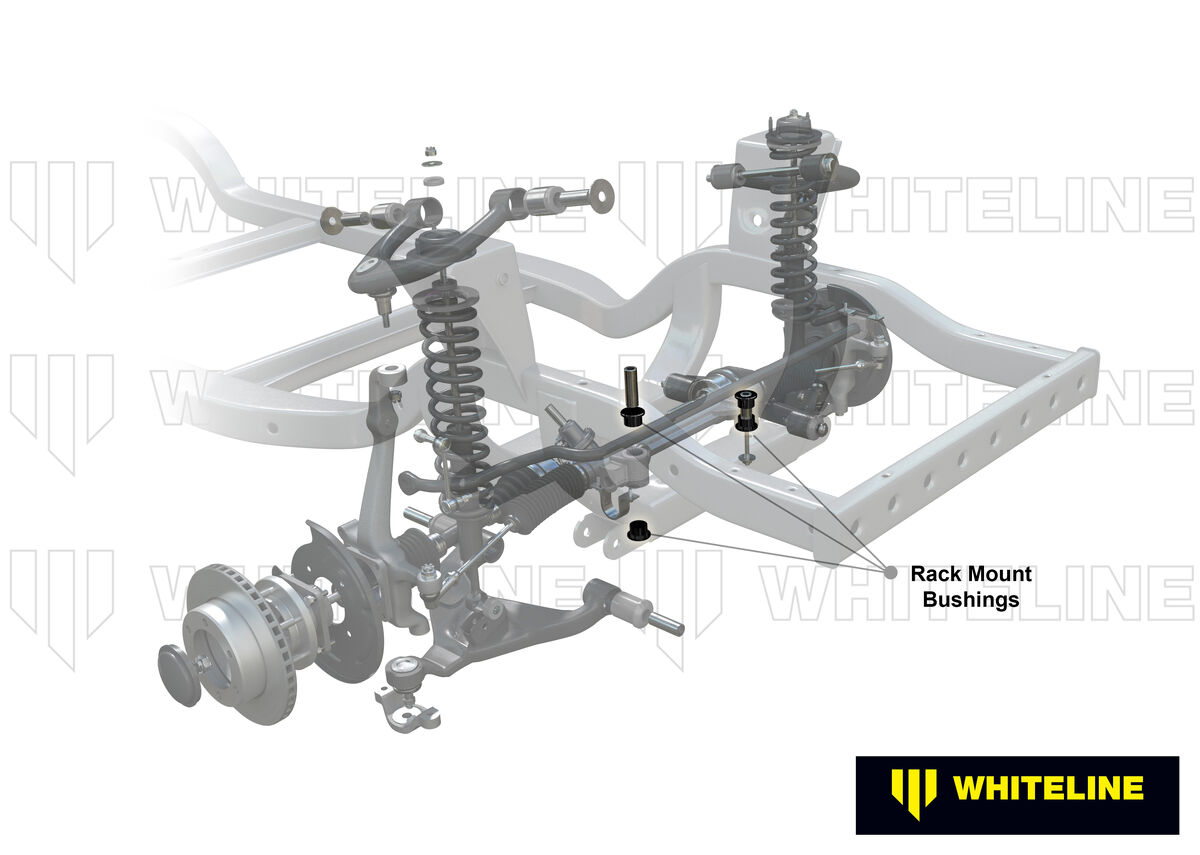

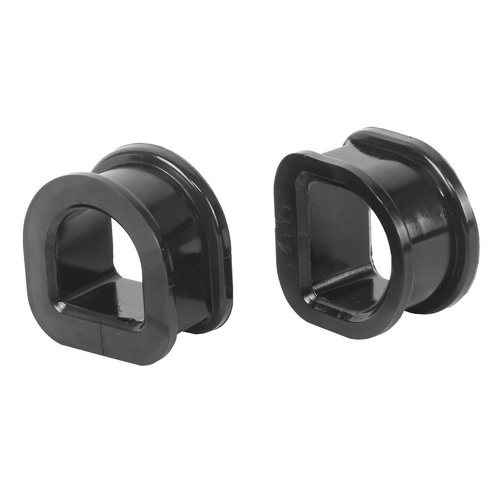

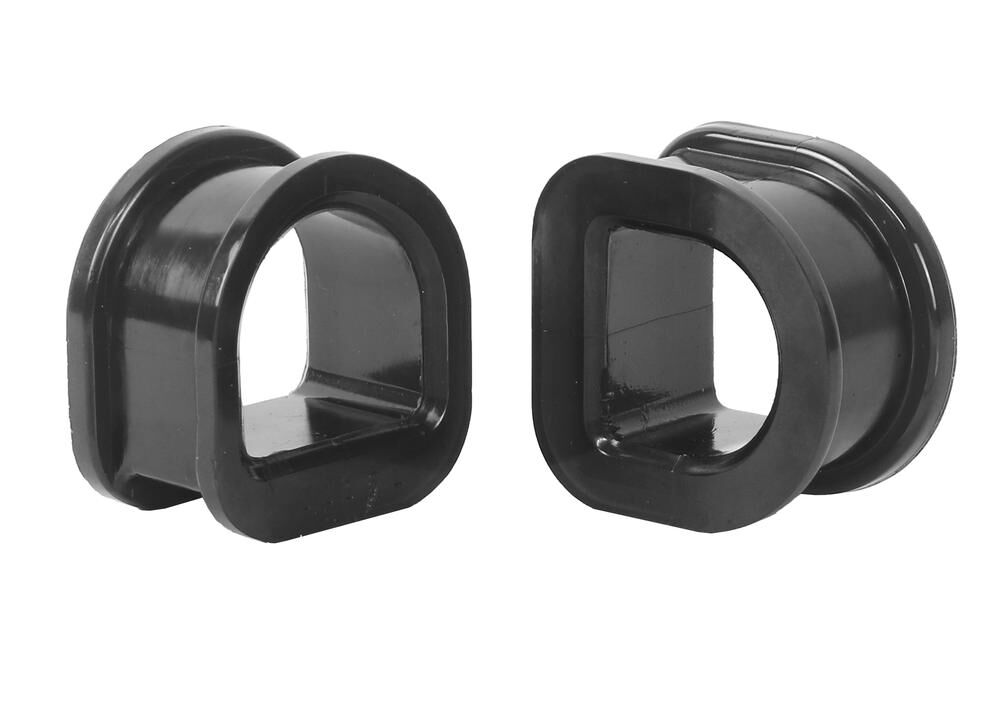

Whiteline Front Steering Rack and Pinion - Mount Bushing Kit to Suit Holden Gemini TX, TC, TD, TE, TF, TG

SKU: W11164

Benefit Note: Power steering, aggressive wheel alignment geometry, wider wheels and lower profile tyres have all put radically increased loading on the steering systems of modern cars. Add to that engine bay contaminants such as oil leaks that also help to degrade the performance of steering rack mount bushings. Whiteline steering rack mounts are engineered to outlast and enhance steering precision and feedback.


Kit Specifications

Bush Type 4 - D-bushing With Flange 4 - D-bushing With Flange
Bush Quantity 1 mm 1 mm
OD (A) 47.5 mm 47.5 mm
ID (B) 44 mm 37.5 mm
Length (C) 32.5 mm 32 mm
Flange Thickness (D) 5 mm 5 mm
Flange OD (E)
C/Tube Quantity
C/Tube ODxIDxL
Similar Bushing Size Click Here Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Bushing Type 4 - D-bushing With Flange
Bushing Type 4 - D-bushing With Flange

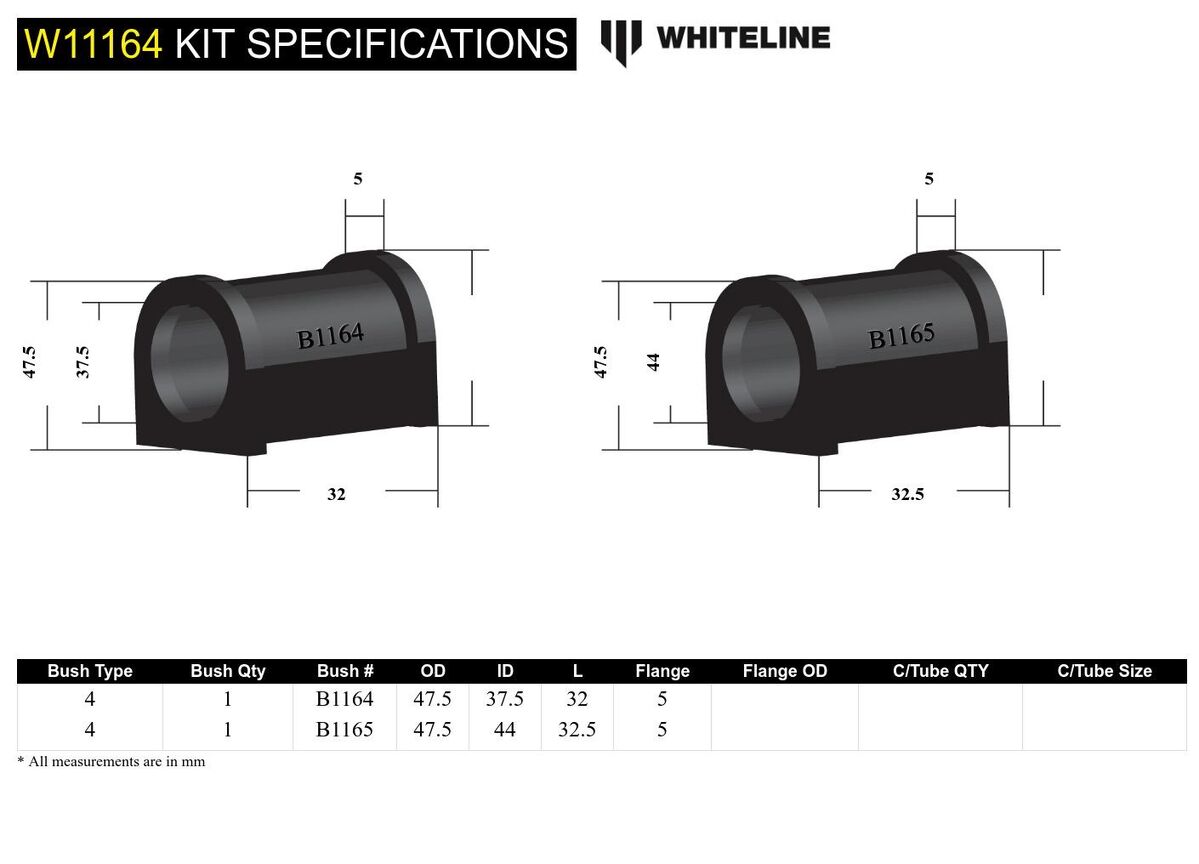

Bushing Design Dimensions (mm)

Bush Type 4 4
QTY 1 1
OD (A) 47.5 47.5
ID (B) 44 37.5
Length (C) 32.5 32.0
FL (D) 5 5
FLOD (E)
C/Tube Qty
C/Tube Size
Similar Bushings Click Here Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Bushing Type 4

Packaged Weight and Dimensions

Unitscm/kgin/lbs
Weight0.05kg0.11lbs
Length7cm2.76"
Width20cm7.87"
Height14cm5.51"

Misc. Product Information

More Information
SKUW11164
Components Per2 Bushings
Kits Required1
Sub brandReplacement
Product NoteBalances comfort with performance while minimising noise and vibrations; the perfect, complete upgrade. Includes: 2 Bushings
EAN9319924349081
  • Lifetime Warranty
Brand Whiteline
SKU W11164
Unit Of Measure Kit
