Whiteline Front Steering Rack and Pinion - Mount Bushing Kit to Suit Ford Capri and Escort

SKU: W11071

Benefit Note: Power steering, aggressive wheel alignment geometry, wider wheels and lower profile tyres have all put radically increased loading on the steering systems of modern cars. Add to that engine bay contaminants such as oil leaks that also help to degrade the performance of steering rack mount bushings. Whiteline steering rack mounts are engineered to outlast and enhance steering precision and feedback.

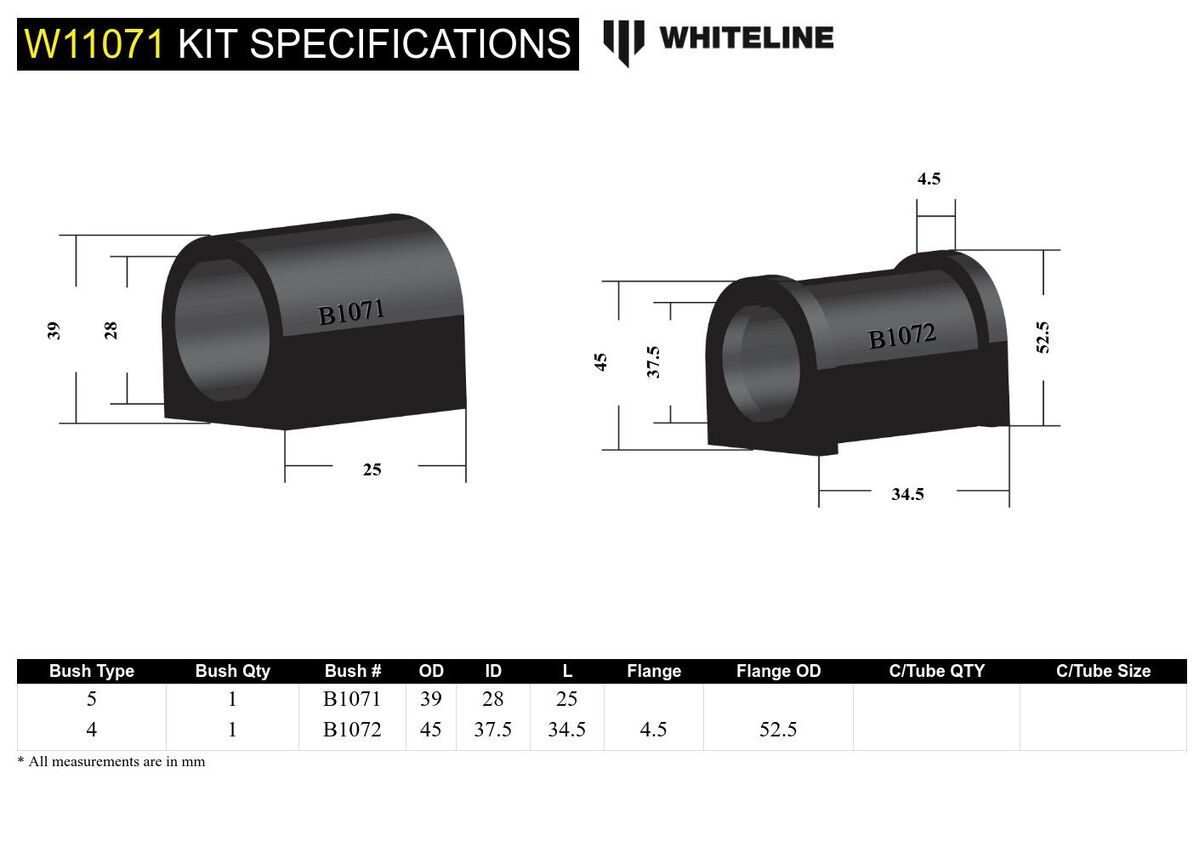

Kit Specifications

Bush Type 4 - D-bushing With Flange 5 - D-bushing Without Flange
Bush Quantity 1 mm 1 mm
OD (A) 45 mm 39 mm
ID (B) 37.5 mm 28 mm
Length (C) 34.5 mm 25 mm
Flange Thickness (D) 4.5 mm
Flange OD (E) 52.5 mm
C/Tube Quantity
C/Tube ODxIDxL
Similar Bushing Size Click Here Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Bushing Type 4 - D-bushing With Flange
Bushing Type 5 - D-bushing Without Flange

Bushing Design Dimensions (mm)

Bush Type 4 5
QTY 1 1
OD (A) 45 39
ID (B) 37.5 28
Length (C) 34.5 25.0
FL (D) 4.5
FLOD (E) 52.5
C/Tube Qty
C/Tube Size
Similar Bushings Click Here Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Bushing Type 4
Bushing Type 5

Packaged Weight and Dimensions

Unitscm/kgin/lbs
Weight0.064kg0.14lbs
Length7cm2.76"
Width20cm7.87"
Height14cm5.51"

Misc. Product Information

More Information
SKUW11071
Components Per2 Bushings
Kits Required1
Sub brandReplacement
Product NoteCreates a consistent drive no matter the surface; the perfect, complete upgrade. Includes: 2 Bushings
EAN9319924349012
  • Lifetime Warranty
Brand Whiteline
SKU W11071
Unit Of Measure Kit
