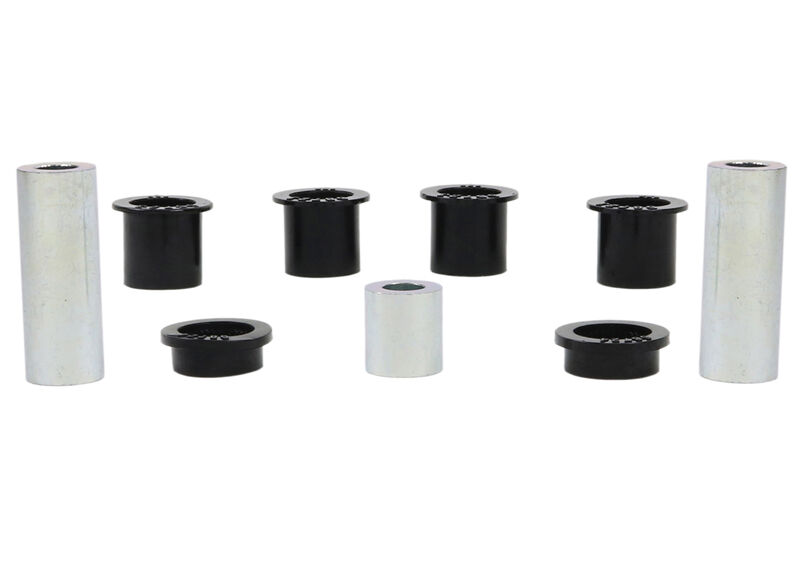

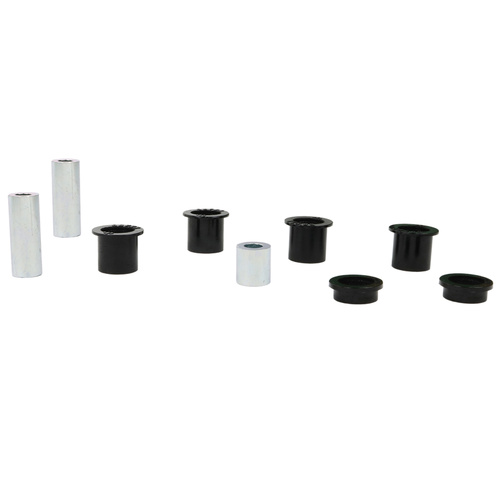

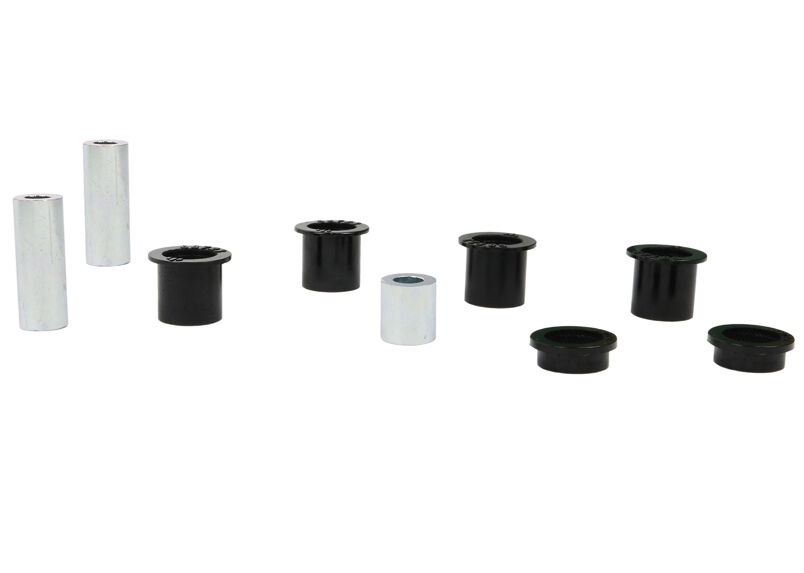

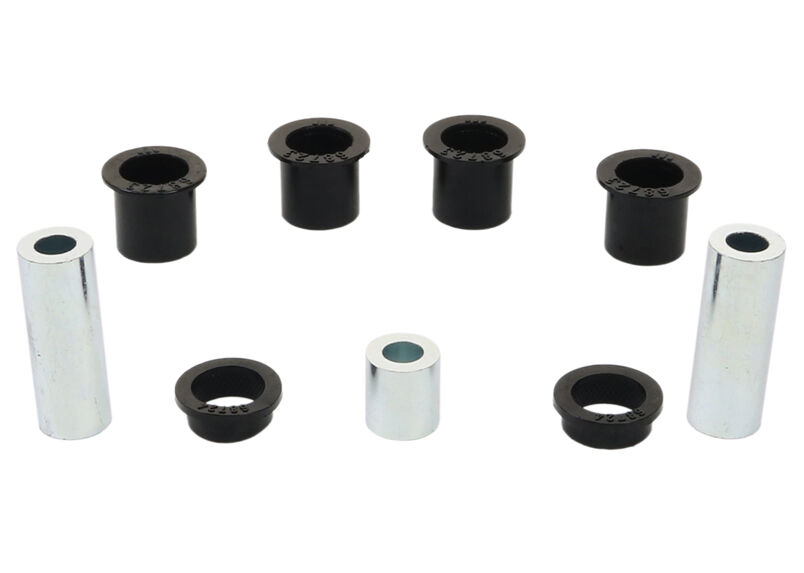

Whiteline Front Steering Rack and Pinion - Mount Bushing Kit to Suit Mitsubishi Lancer Evolution 10

SKU: KSR211

Benefit Note: Power steering, aggressive wheel alignment geometry, wider wheels and lower profile tyres have all put radically increased loading on the steering systems of modern cars. Add to that engine bay contaminants such as oil leaks that also help to degrade the performance of steering rack mount bushings. Whiteline steering rack mounts are engineered to outlast and enhance steering precision and feedback.


Kit Specifications

Bush Type 1 - Shackle Bushing 1 - Shackle Bushing
Bush Quantity 4 mm 2 mm
OD (A) 27 mm 27 mm
ID (B) 22.2 mm 22.2 mm
Length (C) 28.4 mm 11.5 mm
Flange Thickness (D) 2 mm 3.3 mm
Flange OD (E) 34.4 mm 32.2 mm
C/Tube Quantity 2 / 2 2 / 2
C/Tube ODxIDxL 22.2x12.2x24 / 22.2x12.2x60.5 mm 22.2x12.2x24 / 22.2x12.2x60.5 mm
Similar Bushing Size Click Here Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Bushing Type 1 - Shackle Bushing
Bushing Type 1 - Shackle Bushing

Bushing Design Dimensions (mm)

Bush Type 1 1
QTY 4 2
OD (A) 27 27
ID (B) 22.2 22.2
Length (C) 28.4 11.5
FL (D) 2 3.3
FLOD (E) 34.4 32.2
C/Tube Qty 2 / 2 2 / 2
C/Tube Size 22.2x12.2x24 / 22.2x12.2x60.5 22.2x12.2x24 / 22.2x12.2x60.5
Similar Bushings Click Here Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Bushing Type 1

Packaged Weight and Dimensions

Unitscm/kgin/lbs
Weight0.36kg0.79lbs
Length7cm2.76"
Width20cm7.87"
Height14cm5.51"

Misc. Product Information

More Information
SKUKSR211
Components Per6 Bushings, 3 Tubes
Kits Required1
Sub brandPerformance
Product NoteBoosts handling and performance, while optimising suspension geometry; the perfect, complete upgrade. Includes: 6 Bushings & 3 Tubes
EAN9319924436811
  • 3 years warranty or up to 60,000km
Brand Whiteline
SKU KSR211
Unit Of Measure Kit
