Whiteline Front Steering Rack and Pinion - Mount Bushing Kit to Suit Subaru BRZ and Toyota 86

SKU: KSR210

Benefit Note: Power steering, aggressive wheel alignment geometry, wider wheels and lower profile tyres have all put radically increased loading on the steering systems of modern cars. Add to that engine bay contaminants such as oil leaks that also help to degrade the performance of steering rack mount bushings. Whiteline steering rack mounts are engineered to outlast and enhance steering precision and feedback.

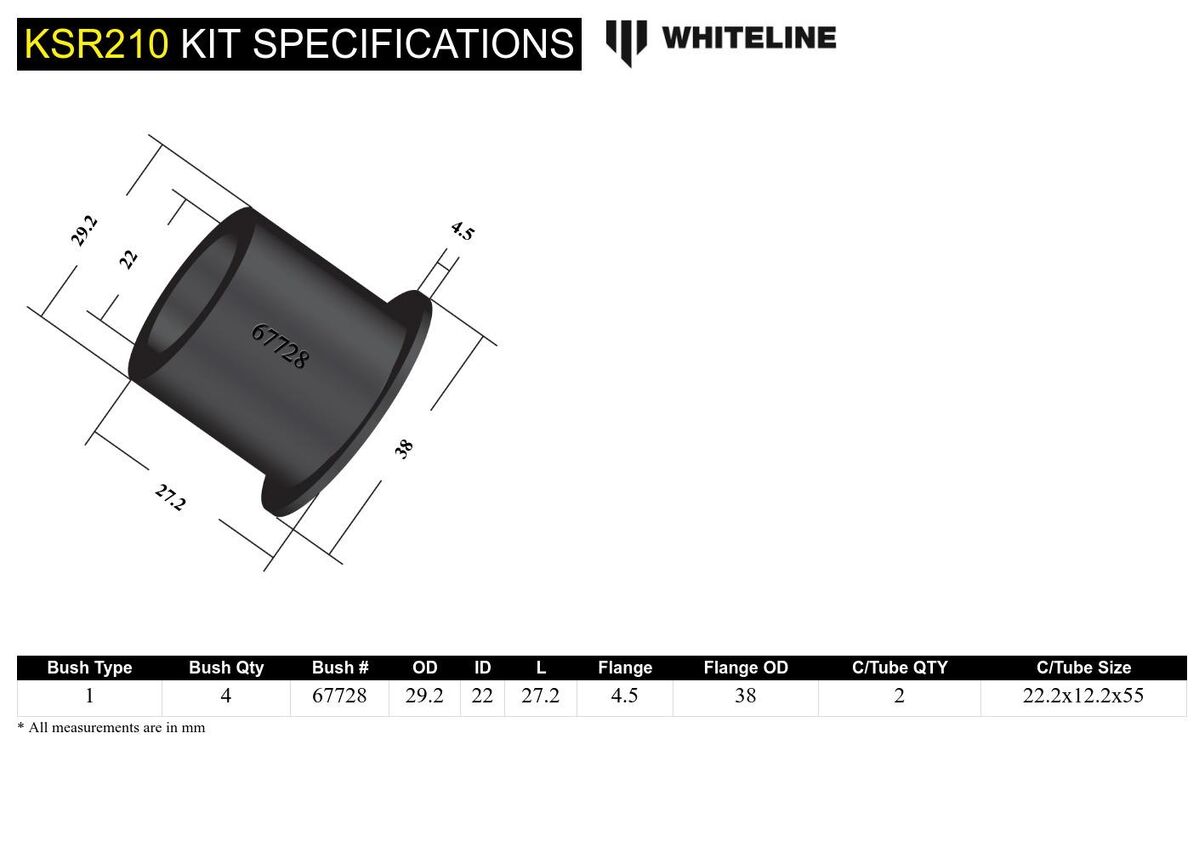

Kit Specifications

Bush Type 1 - Shackle Bushing
Bush Quantity 4 mm
OD (A) 29.2 mm
ID (B) 22 mm
Length (C) 27.2 mm
Flange Thickness (D) 4.5 mm
Flange OD (E) 38 mm
C/Tube Quantity 2
C/Tube ODxIDxL 22.2x12.2x55 mm
Similar Bushing Size Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Bushing Type 1 - Shackle Bushing

Bushing Design Dimensions (mm)

Bush Type 1
QTY 4
OD (A) 29.2
ID (B) 22
Length (C) 27.2
FL (D) 4.5
FLOD (E) 38
C/Tube Qty 2
C/Tube Size 22.2x12.2x55
Similar Bushings Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Bushing Type 1

Packaged Weight and Dimensions

Unitscm/kgin/lbs
Weight0.291kg0.64lbs
Length7cm2.76"
Width20cm7.87"
Height14cm5.51"

Misc. Product Information

More Information
SKUKSR210
Components Per4 Bushings, 2 Tubes
Kits Required1
Sub brandPerformance
Product NoteBalances comfort with performance while minimising noise and vibrations; the perfect, complete upgrade. Includes: 4 Bushings & 2 Tubes
EAN9319924389001
  • Lifetime Warranty
Brand Whiteline
SKU KSR210
Unit Of Measure Kit
