Whiteline Front Steering Rack and Pinion - Mount Bushing Kit to Suit Subaru Impreza GD incl WRX/STi

SKU: KSR206

Benefit Note: Power steering, aggressive wheel alignment geometry, wider wheels and lower profile tyres have all put radically increased loading on the steering systems of modern cars. Add to that engine bay contaminants such as oil leaks that also help to degrade the performance of steering rack mount bushings. Whiteline steering rack mounts are engineered to outlast and enhance steering precision and feedback.

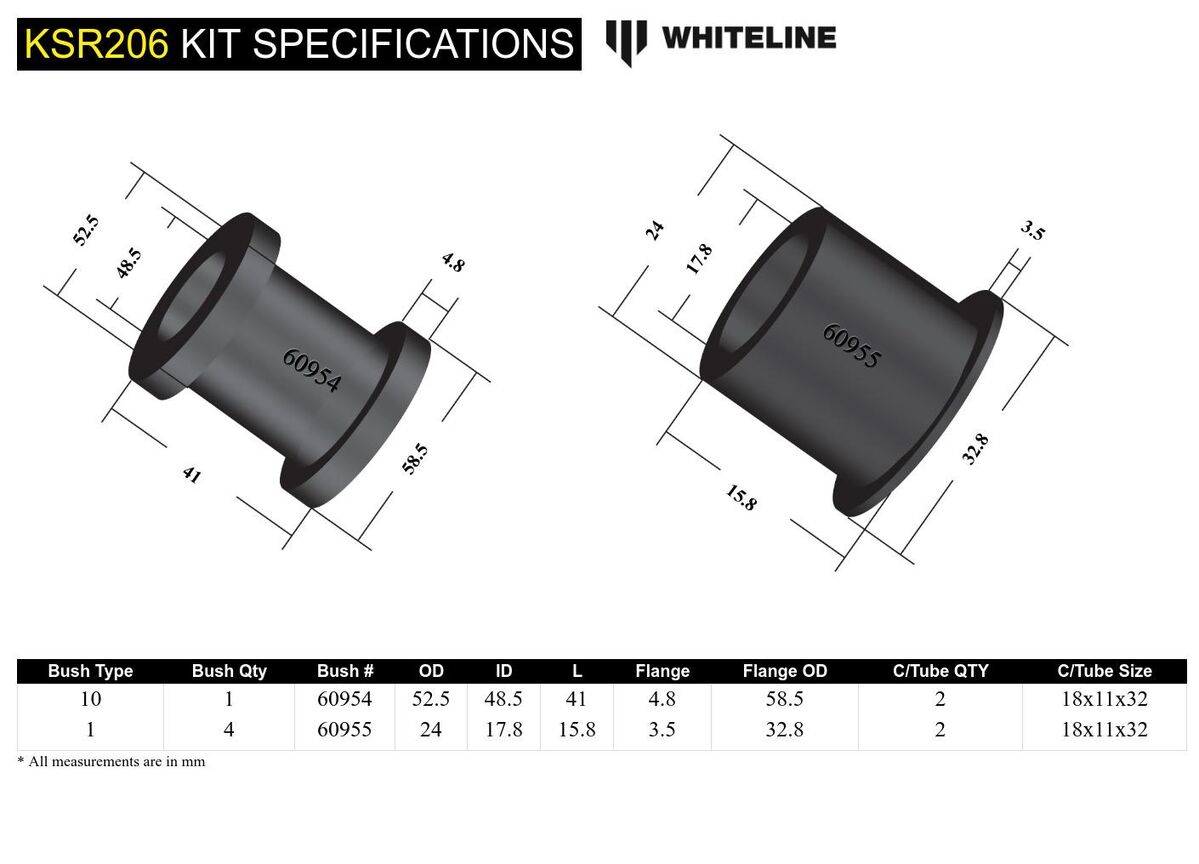

Kit Specifications

Bush Type 10 - Cotton Reel With & Without Tapper Bushing 1 - Shackle Bushing
Bush Quantity 1 mm 4 mm
OD (A) 52.5 mm 24 mm
ID (B) 48.5 mm 17.8 mm
Length (C) 41 mm 15.8 mm
Flange Thickness (D) 4.8 mm 3.5 mm
Flange OD (E) 58.5 mm 32.8 mm
C/Tube Quantity 2 2
C/Tube ODxIDxL 18x11x32 mm 18x11x32 mm
Similar Bushing Size Click Here Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Bushing Type 10 - Cotton Reel With & Without Tapper Bushing
Bushing Type 1 - Shackle Bushing

Bushing Design Dimensions (mm)

Bush Type 10 1
QTY 1 4
OD (A) 52.5 24
ID (B) 48.5 17.8
Length (C) 41.0 15.8
FL (D) 4.8 3.5
FLOD (E) 58.5 32.8
C/Tube Qty 2 2
C/Tube Size 18x11x32 18x11x32
Similar Bushings Click Here Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Bushing Type 1
Bushing Type 10

Packaged Weight and Dimensions

Unitscm/kgin/lbs
Weight0.33kg0.73lbs
Length7cm2.76"
Width20cm7.87"
Height14cm5.51"

Misc. Product Information

More Information
SKUKSR206

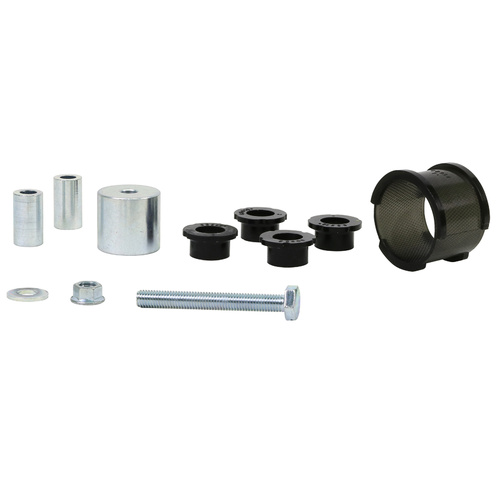

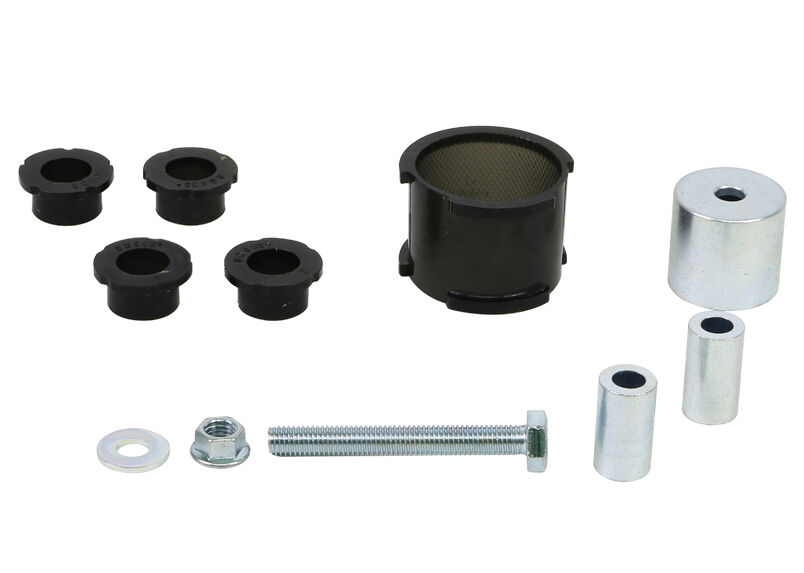

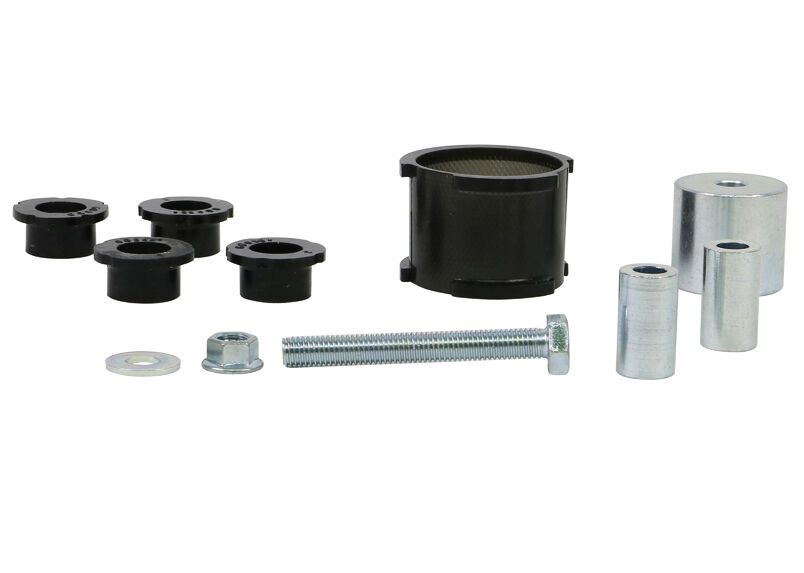

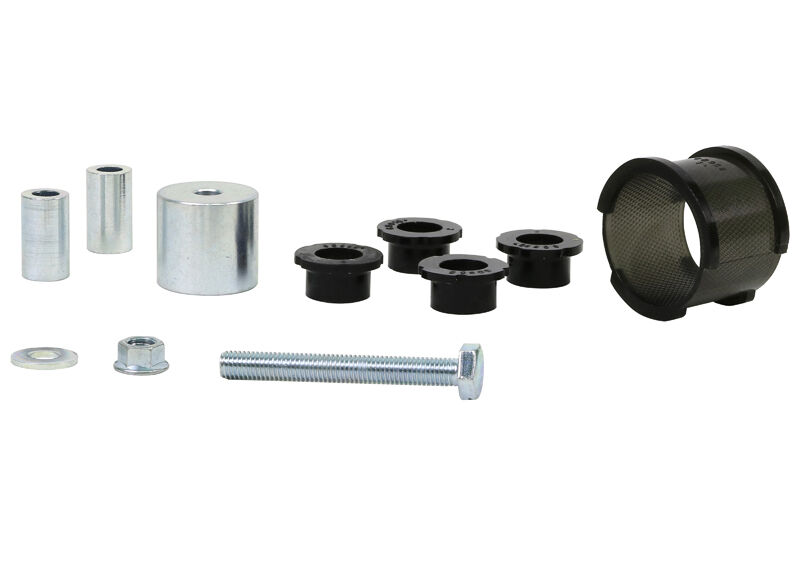

Components Per5 Bushings, 2 Tubes, Removal Tool
Kits Required1
Sub brandPerformance
Product NoteCreates a consistent drive no matter the surface; the perfect, complete upgrade. Includes: 5 Bushings, 2 Tubes & Removal Tool
EAN9319924346028
  • 3 years warranty or up to 60,000km
Brand Whiteline
SKU KSR206
Unit Of Measure Kit
