Benefit Note: Power steering, aggressive wheel alignment geometry, wider wheels and lower profile tyres have all put radically increased loading on the steering systems of modern cars. Add to that engine bay contaminants such as oil leaks that also help to degrade the performance of steering rack mount bushings. Whiteline steering rack mounts are engineered to outlast and enhance steering precision and feedback.

Kit Specifications

Bush Type	10 - Cotton Reel With & Without Tapper Bushing	10 - Cotton Reel With & Without Tapper Bushing	4 - D-bushing With Flange
Bush Quantity	1 mm	1 mm	1 mm
OD (A)	50 mm	48 mm	48 mm
ID (B)	45.2 mm	42 mm	43 mm
Length (C)	30 mm	36.5 mm	36 mm
Flange Thickness (D)	2.5 mm	3 mm	2.5 mm
Flange OD (E)	62 mm	60.6 mm	56 mm
C/Tube Quantity
C/Tube ODxIDxL
Similar Bushing Size	Click Here	Click Here	Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

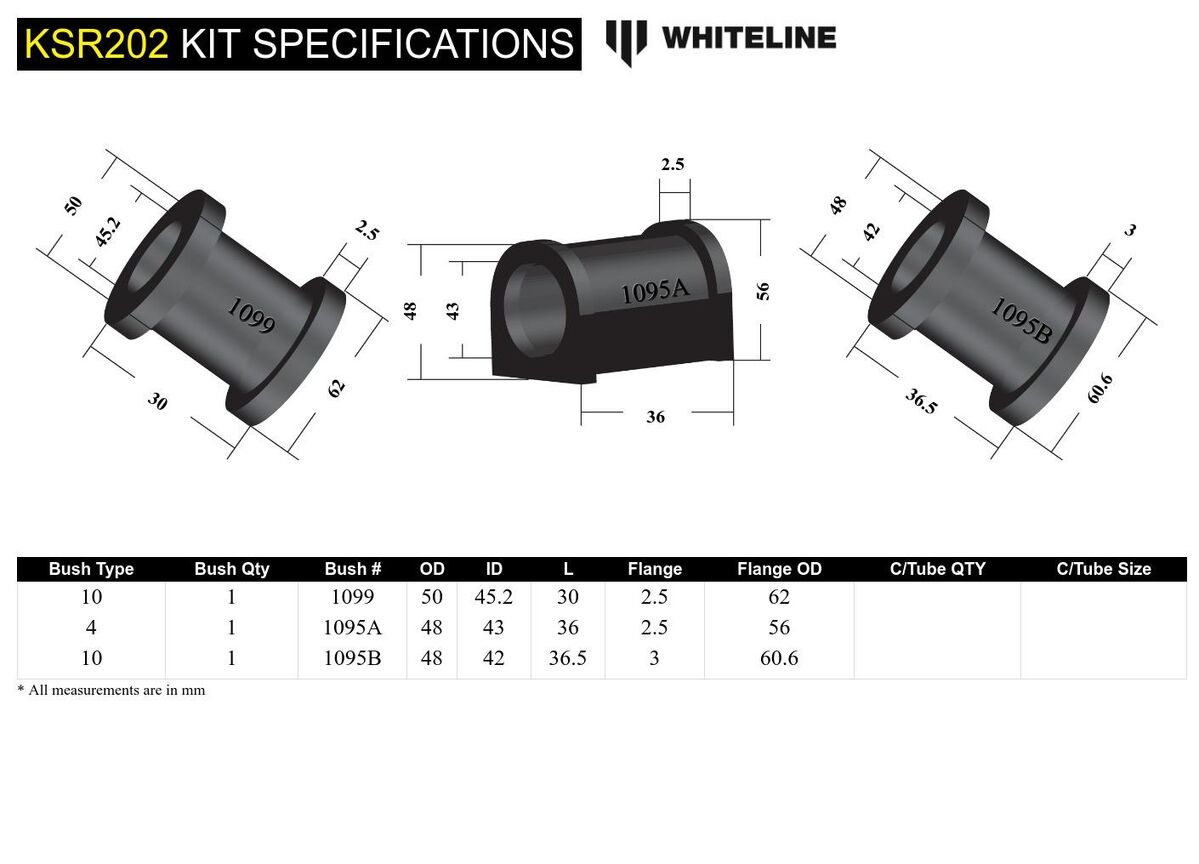

Bushing Design Dimensions (mm)

Bush Type	10	10	4
QTY	1	1	1
OD (A)	50	48	48
ID (B)	45.2	42	43
Length (C)	30.0	36.5	36.0
FL (D)	2.5	3	2.5
FLOD (E)	62	60.6	56
C/Tube Qty
C/Tube Size
Similar Bushings	Click Here	Click Here	Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Packaged Weight and Dimensions

Units	cm/kg	in/lbs
Weight	0.094kg	0.21lbs
Length	7cm	2.76"
Width	20cm	7.87"
Height	14cm	5.51"

Misc. Product Information

More Information

SKU	KSR202
Components Per	3 Bushings
Kits Required	1
Sub brand	Performance
Product Note	Balances comfort with performance while minimising noise and vibrations; the perfect, complete upgrade. Includes: 3 Bushings
EAN	9319924343430
