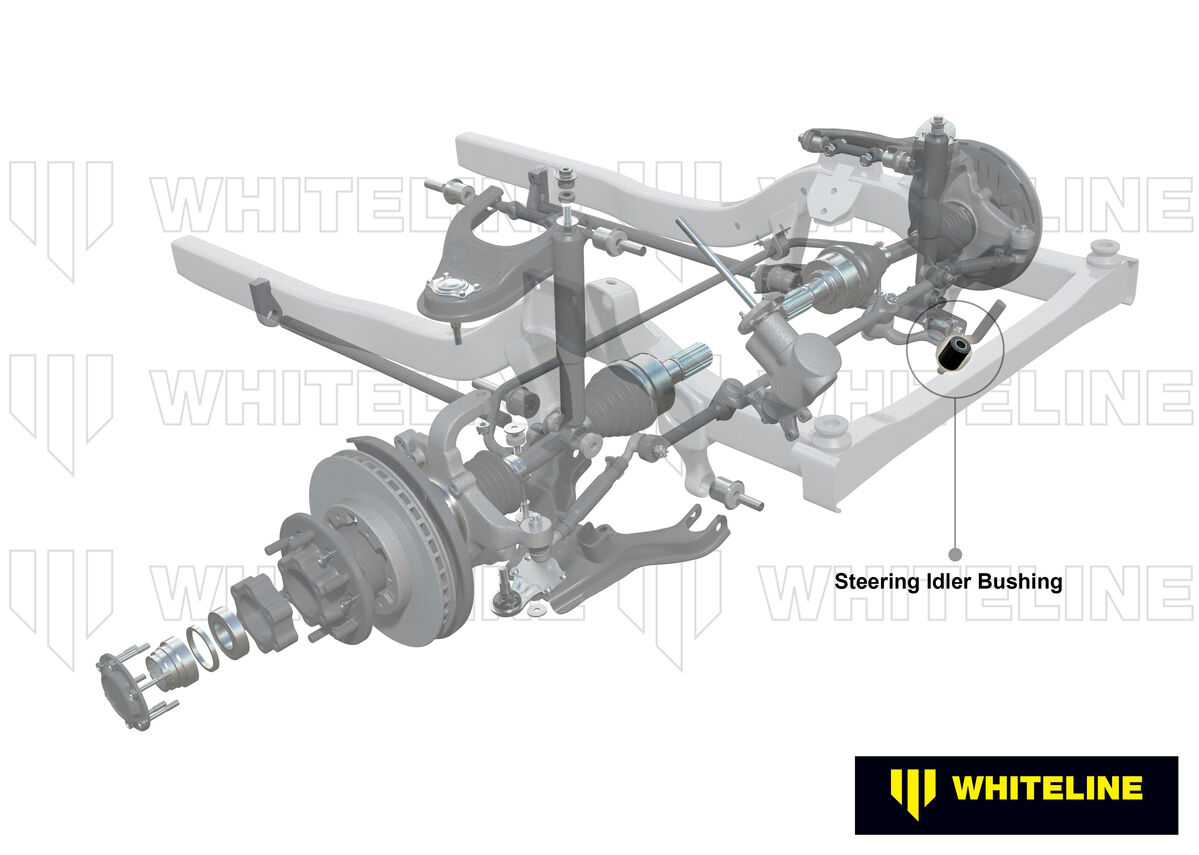

Whiteline Front Steering Idler Arm - Bushing Kit to Suit Toyota HiLux and 4Runner

SKU: W12580

Benefit Note: Utilising Whiteline's advanced synthetic elastomer bushings with core characteristics ensuring superior elasticity, memory and outright durability induce positive steering precision and feedback.


Kit Specifications

Bush Type 1 - Shackle Bushing
Bush Quantity 2 mm
OD (A) 24 mm
ID (B) 19.4 mm
Length (C) 20 mm
Flange Thickness (D) 2 mm
Flange OD (E) 33 mm
C/Tube Quantity
C/Tube ODxIDxL
Similar Bushing Size Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Bushing Type 1 - Shackle Bushing

Bushing Design Dimensions (mm)

Bush Type 1
QTY 2
OD (A) 24
ID (B) 19.4
Length (C) 20.0
FL (D) 2
FLOD (E) 33
C/Tube Qty
C/Tube Size
Similar Bushings Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Bushing Type 1

Packaged Weight and Dimensions

Unitscm/kgin/lbs
Weight0.027kg0.06lbs
Length7cm2.76"
Width20cm7.87"
Height14cm5.51"

Misc. Product Information

More Information
SKUW12580
Components Per2 Bushings
Kits Required1
Sub brandReplacement
Product NoteDelivers a balanced mix of comfort, precision, and durability; the perfect, complete upgrade. Includes: 2 Bushings
EAN9319924349456
  • Lifetime Warranty
Brand Whiteline
SKU W12580
Unit Of Measure Kit
