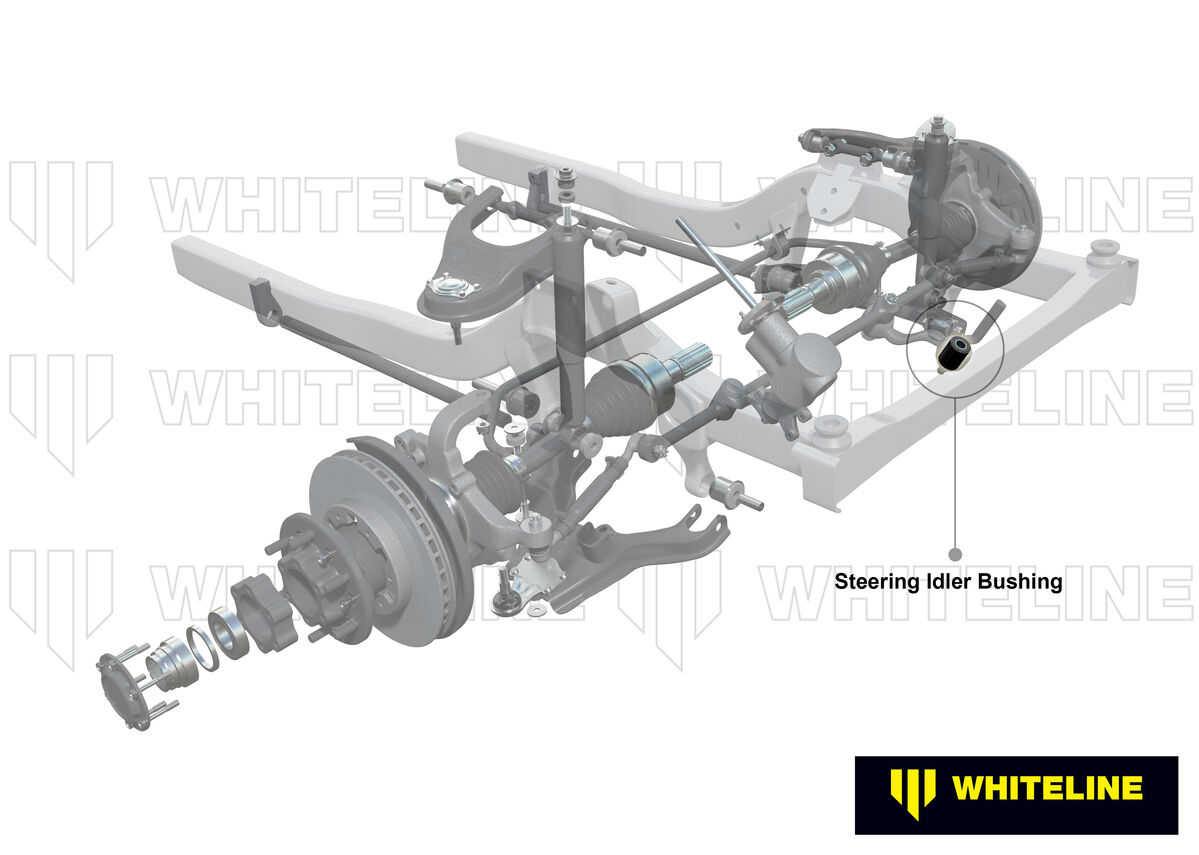

Whiteline Front Steering Idler Arm - Bushing Kit to Suit Mitsubishi Pajero and Triton

SKU: W12055

Benefit Note: Utilising Whiteline's advanced synthetic elastomer bushings with core characteristics ensuring superior elasticity, memory and outright durability induce positive steering precision and feedback.

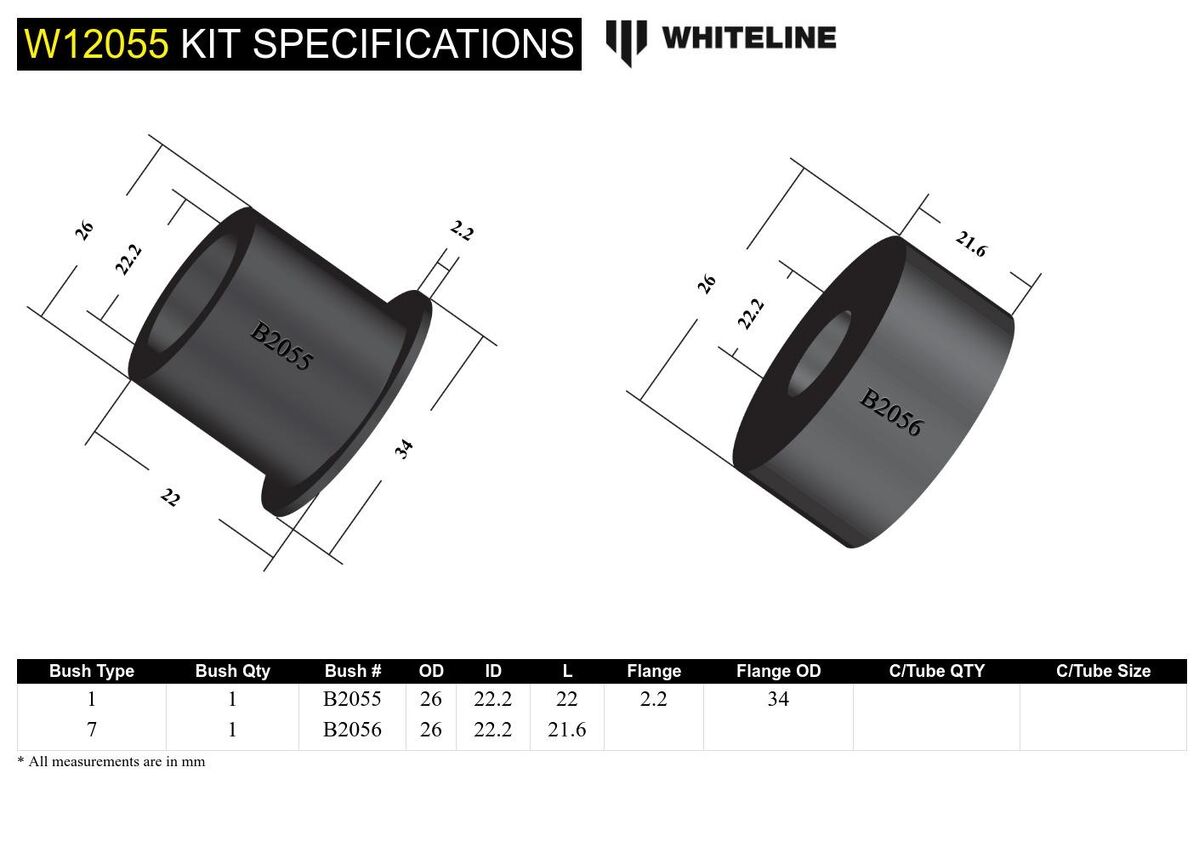

Kit Specifications

Bush Type 7 - Pin Bush With & Without Spigot 1 - Shackle Bushing
Bush Quantity 1 mm 1 mm
OD (A) 26 mm 26 mm
ID (B) 22.2 mm 22.2 mm
Length (C) 21.6 mm 22 mm
Flange Thickness (D) 2.2 mm
Flange OD (E) 34 mm
C/Tube Quantity
C/Tube ODxIDxL
Similar Bushing Size Click Here Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Bushing Type 7 - Pin Bush With & Without Spigot
Bushing Type 1 - Shackle Bushing

Bushing Design Dimensions (mm)

Bush Type 7 1
QTY 1 1
OD (A) 26 26
ID (B) 22.2 22.2
Length (C) 21.6 22.0
FL (D) 2.2
FLOD (E) 34
C/Tube Qty
C/Tube Size
Similar Bushings Click Here Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Bushing Type 1
Bushing Type 7

Packaged Weight and Dimensions

Unitscm/kgin/lbs
Weight0.028kg0.06lbs
Length7cm2.76"
Width20cm7.87"
Height14cm5.51"

Misc. Product Information

More Information
SKUW12055
Components Per2 Bushings
Kits Required1
Sub brandReplacement
Product NoteEnhances steering response, delivering sharper handling and more predictable vehicle dynamics; the perfect, complete upgrade. Includes: 2 Bushings
EAN9319924349340
  • Lifetime Warranty
Brand Whiteline
SKU W12055
Unit Of Measure Kit
