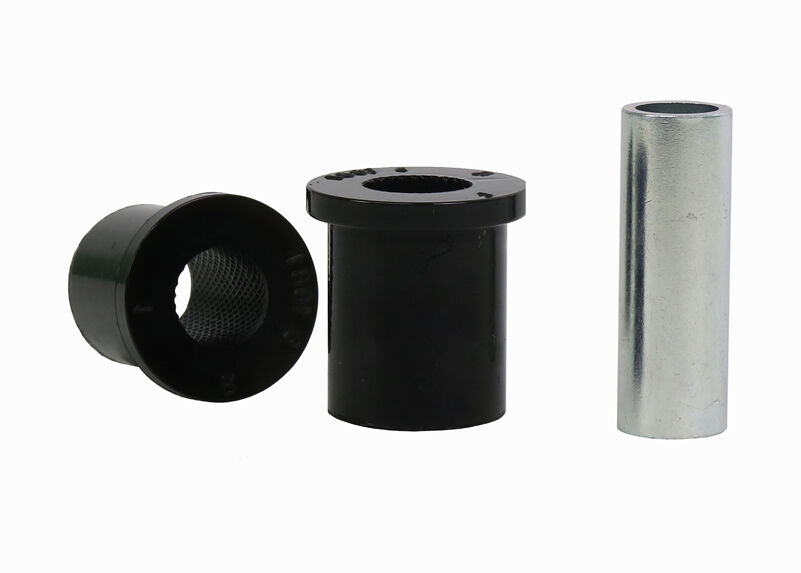

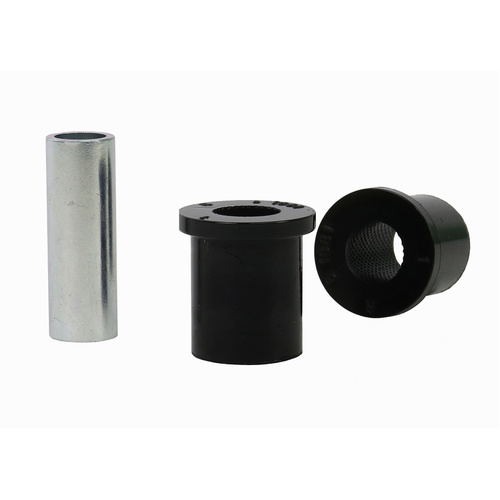

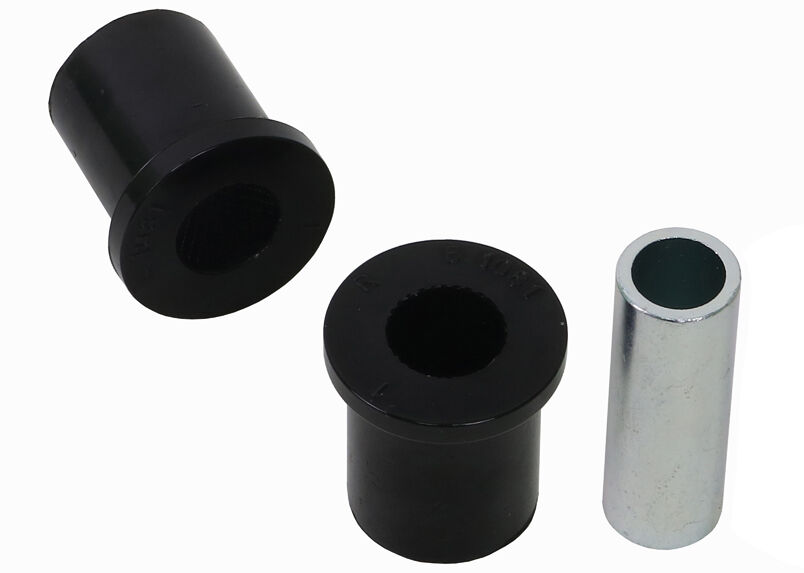

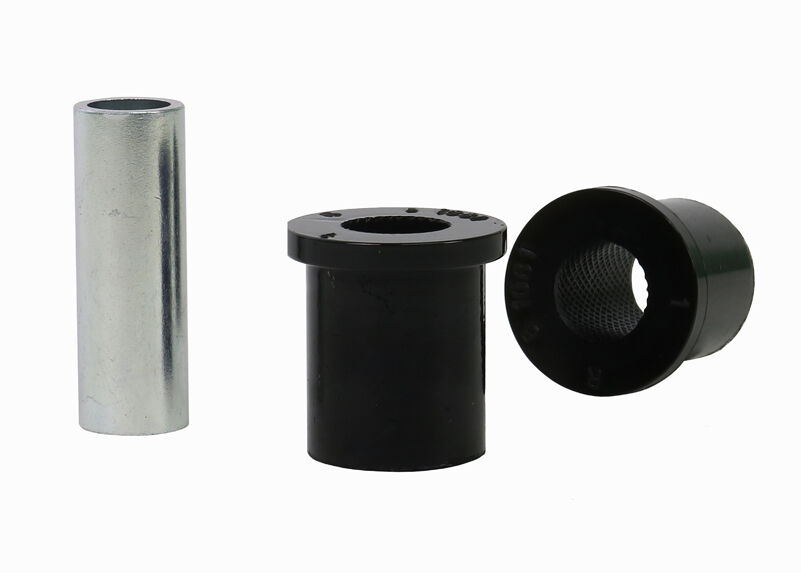

Whiteline Front Steering Idler Arm - Bushing Kit to Suit Toyota Celica and Corona

SKU: W11081

Benefit Note: Utilising Whiteline's advanced synthetic elastomer bushings with core characteristics ensuring superior elasticity, memory and outright durability induce positive steering precision and feedback.


Kit Specifications

Bush Type 1 - Shackle Bushing
Bush Quantity 2 mm
OD (A) 27.9 mm
ID (B) 19 mm
Length (C) 26.7 mm
Flange Thickness (D) 5.1 mm
Flange OD (E) 37.2 mm
C/Tube Quantity 1
C/Tube ODxIDxL 19x14.3x56 mm
Similar Bushing Size Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Bushing Type 1 - Shackle Bushing

Bushing Design Dimensions (mm)

Bush Type 1
QTY 2
OD (A) 27.9
ID (B) 19
Length (C) 26.7
FL (D) 5.1
FLOD (E) 37.2
C/Tube Qty 1
C/Tube Size 19x14.3x56
Similar Bushings Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Bushing Type 1

Packaged Weight and Dimensions

Unitscm/kgin/lbs
Weight0.104kg0.23lbs
Length7cm2.76"
Width20cm7.87"
Height14cm5.51"

Misc. Product Information

More Information
SKUW11081
Components Per2 Bushings, 1 Tube
Kits Required1
Sub brandReplacement
Product NoteEnsures long-lasting durability, matter matter the purpose; the perfect, complete upgrade. Includes: 2 Bushings, 1 Tube
EAN9319924349036
  • Lifetime Warranty
Brand Whiteline
SKU W11081
Unit Of Measure Kit
