Whiteline Front Steering Coupling - Bushing Kit to Suit Holden Gemini TX-TG

SKU: W11283

Benefit Note: Utilising Whiteline's advanced synthetic elastomer bushings with core characteristics ensuring superior elasticity, memory and outright durability induce positive steering precision and feedback.

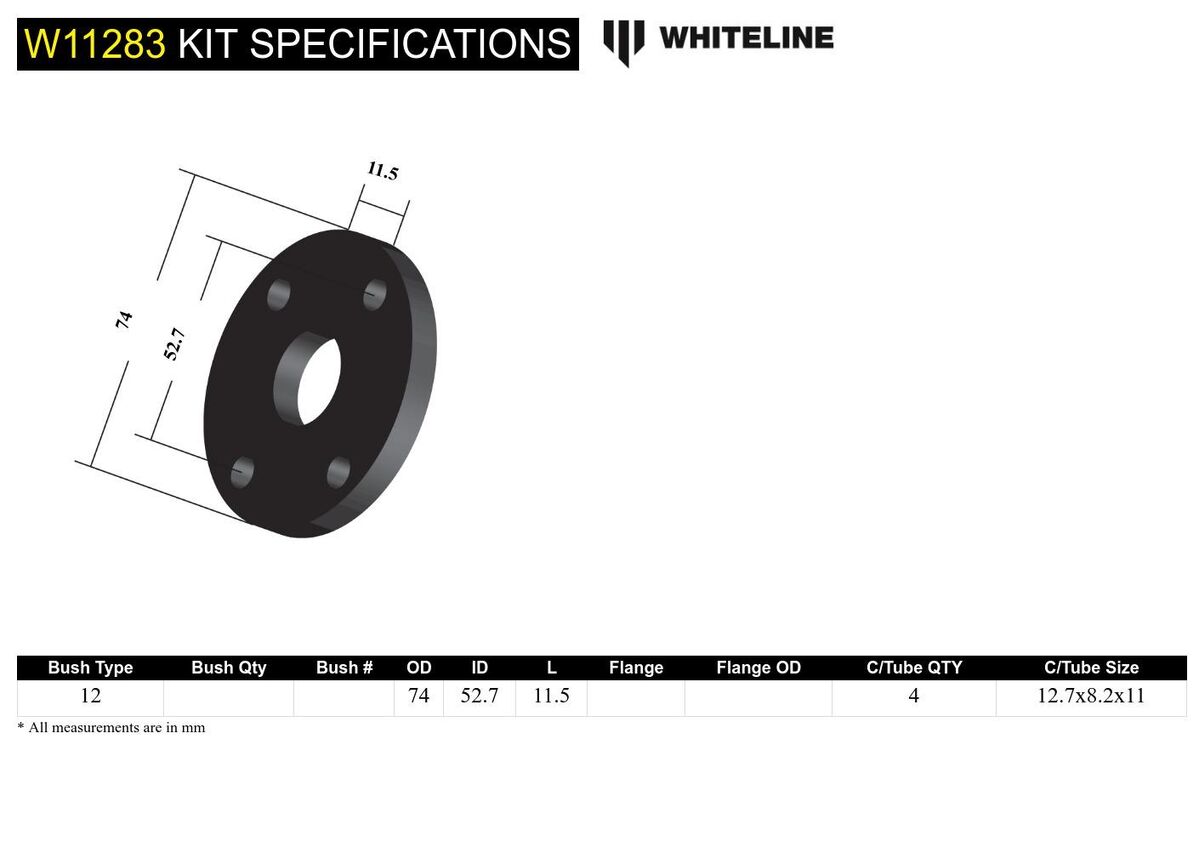

Kit Specifications

Bush Type 12 - Steering Coupling Bushing
Bush Quantity 1 mm
OD (A) 74 mm
ID (B) 52.7 mm
Length (C) 11.5 mm
Flange Thickness (D)
Flange OD (E)
C/Tube Quantity 4
C/Tube ODxIDxL 12.7x8.2x11 mm
Similar Bushing Size Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Bushing Type 12 - Steering Coupling Bushing

Bushing Design Dimensions (mm)

Bush Type 12
QTY 1
OD (A) 74
ID (B) 52.7
Length (C) 11.5
FL (D)
FLOD (E)
C/Tube Qty 4
C/Tube Size 12.7x8.2x11
Similar Bushings Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Bushing Type 12

Packaged Weight and Dimensions

Unitscm/kgin/lbs
Weight0.195kg0.43lbs
Length7cm2.76"
Width20cm7.87"
Height14cm5.51"

Misc. Product Information

More Information
SKUW11283

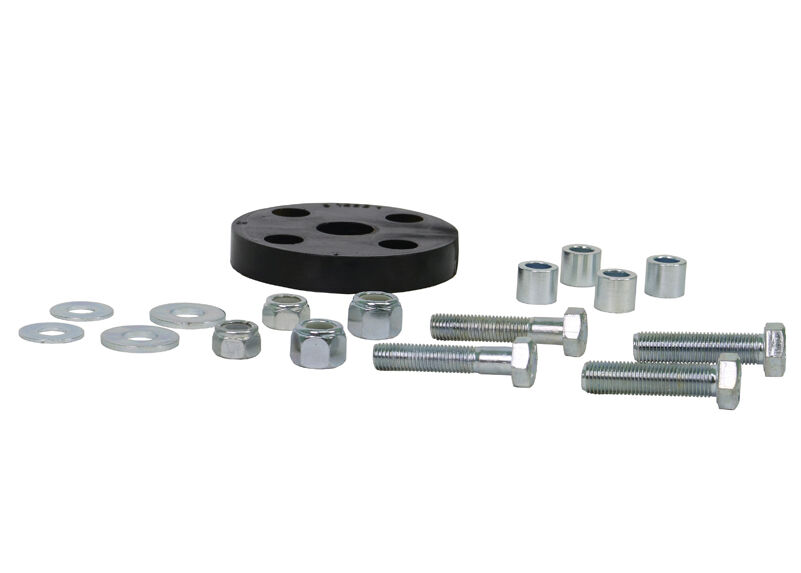

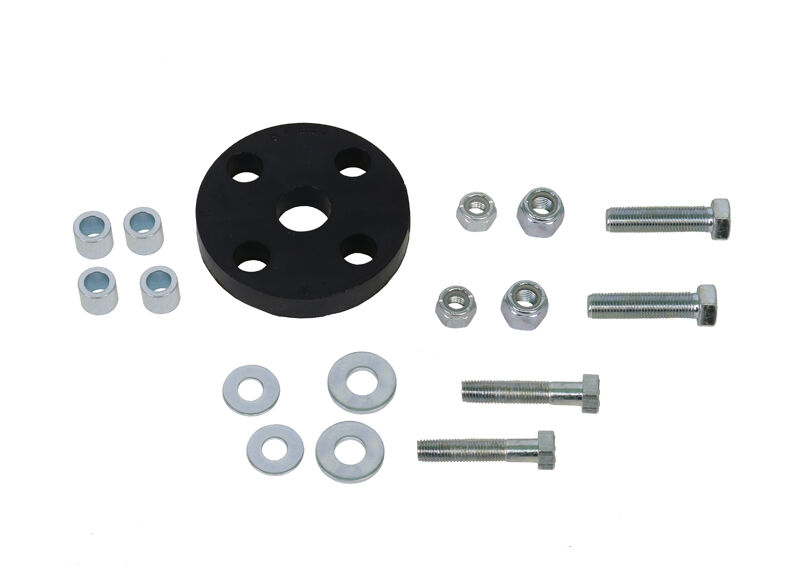

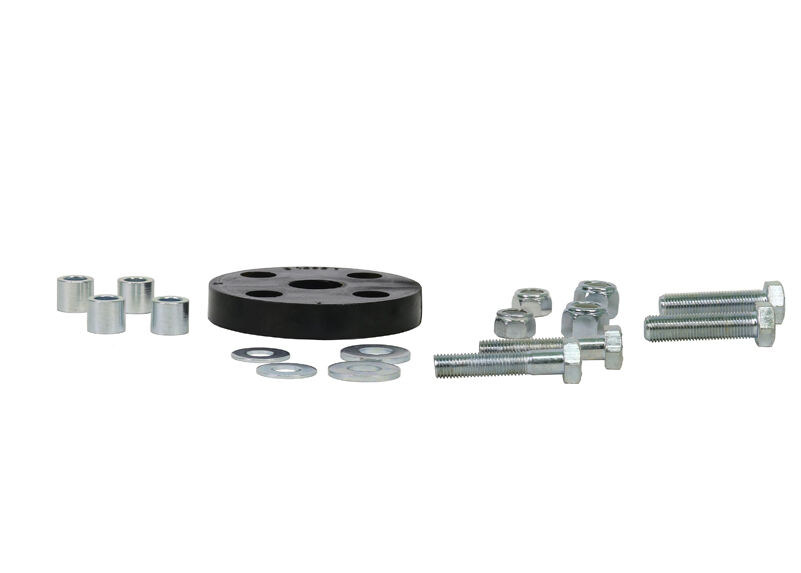

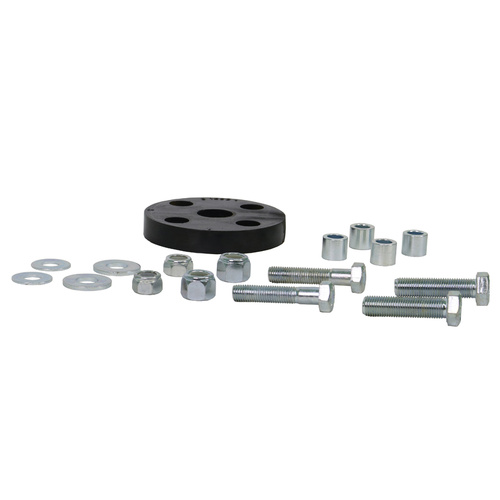

Components Per1 Bushing, 4 Tubes, 4 Bolts, 4 Washers, 4 Nuts
Kits Required1
Sub brandReplacement
Product NoteOD=74, PCD=52.7, Thickness=11.5mm, Bolt Dia=5/16
EAN9319924349173
  • Lifetime Warranty
Brand Whiteline
SKU W11283
Unit Of Measure Kit
