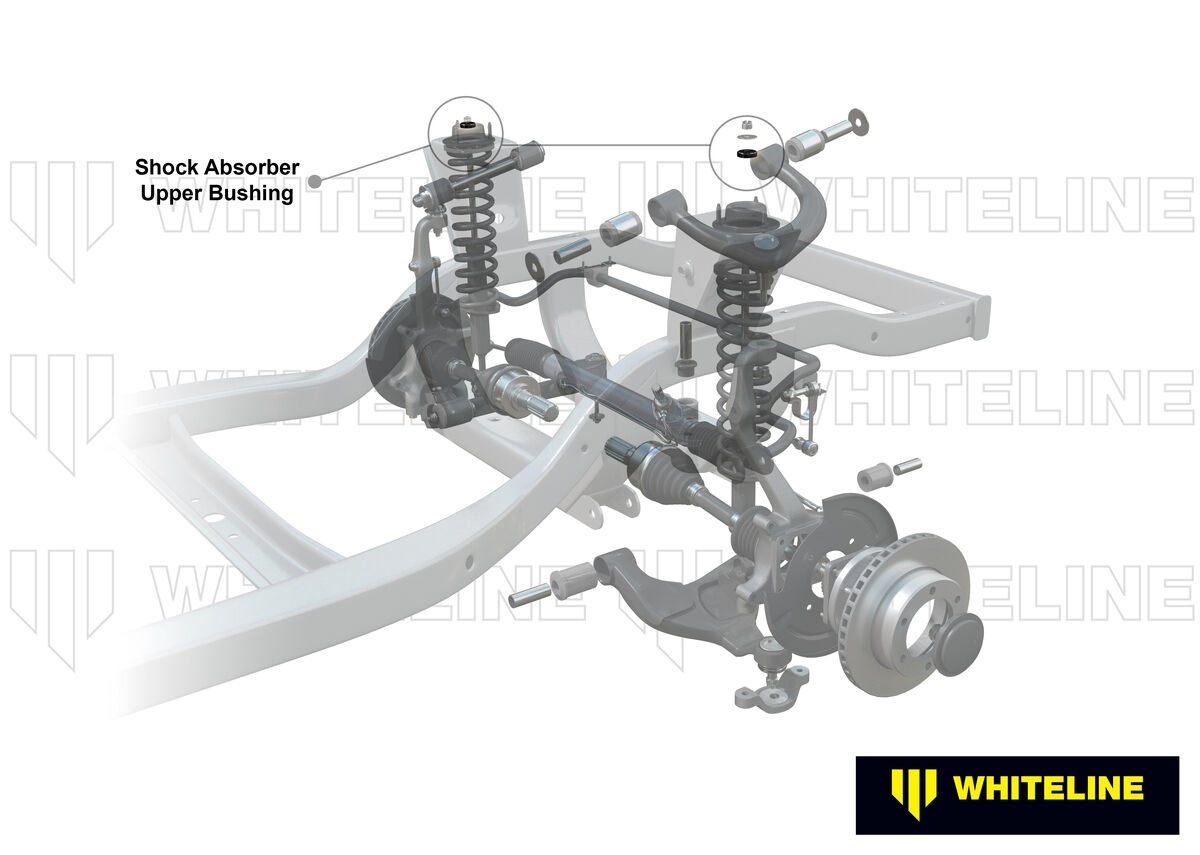

Whiteline Front Shock Absorber - Upper Bushing Kit to Suit Ford Everest, Ranger and Mazda BT-50

SKU: W33350

Benefit Note: Shock absorber advances and demands for improved travel and load bearing has placed extra importance and stress on shock absorber bushings. Whiteline's superior formulation shock bushings enhance the performance of new and used shock absorbers.

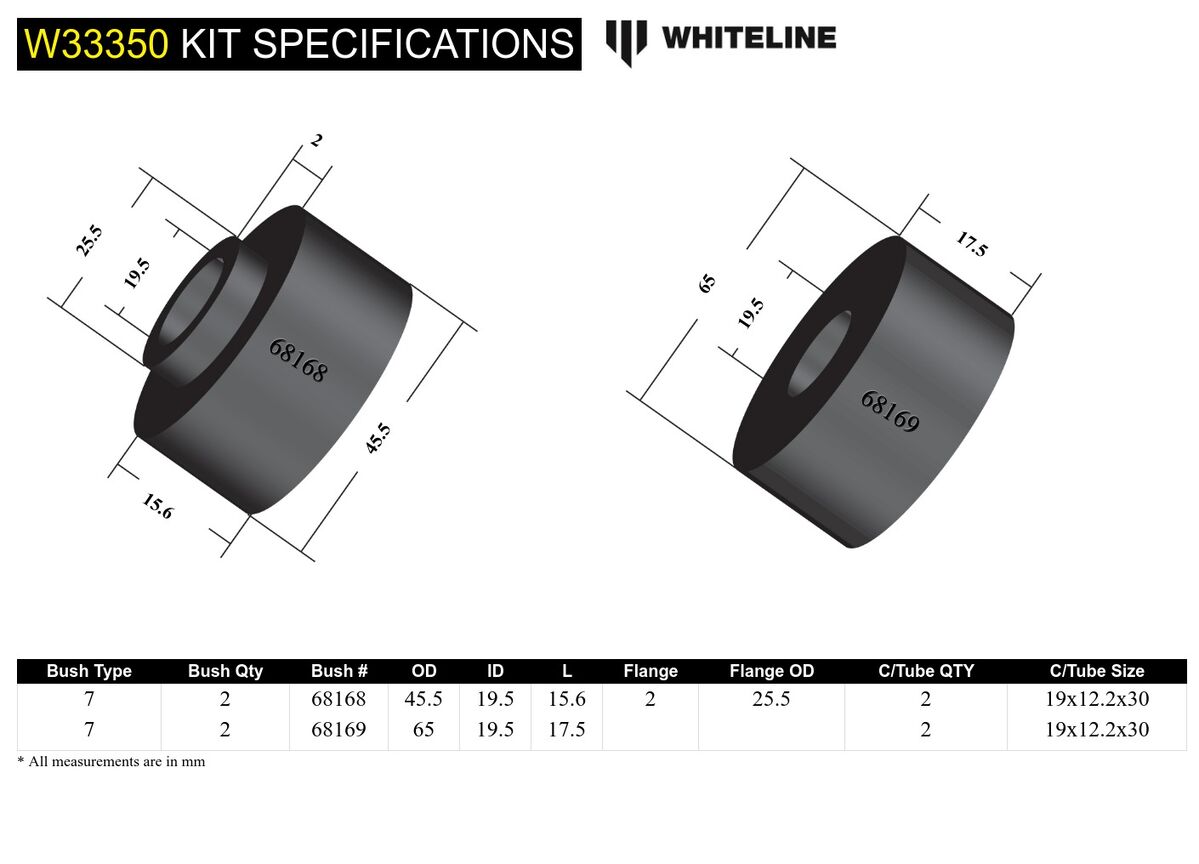

Kit Specifications

Bush Type 7 - Pin Bush With & Without Spigot 7 - Pin Bush With & Without Spigot
Bush Quantity 2 mm 2 mm
OD (A) 45.5 mm 65 mm
ID (B) 19.5 mm 19.5 mm
Length (C) 15.6 mm 17.5 mm
Flange Thickness (D) 2 mm
Flange OD (E) 25.5 mm
C/Tube Quantity 2 2
C/Tube ODxIDxL 19x12.2x30 mm 19x12.2x30 mm
Similar Bushing Size Click Here Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Bushing Type 7 - Pin Bush With & Without Spigot
Bushing Type 7 - Pin Bush With & Without Spigot

Bushing Design Dimensions (mm)

Bush Type 7 7
QTY 2 2
OD (A) 45.5 65
ID (B) 19.5 19.5
Length (C) 15.6 17.5
FL (D) 2
FLOD (E) 25.5
C/Tube Qty 2 2
C/Tube Size 19x12.2x30 19x12.2x30
Similar Bushings Click Here Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Bushing Type 7

Packaged Weight and Dimensions

Unitscm/kgin/lbs
Weight0.33kg0.73lbs
Length7cm2.76"
Width20cm7.87"
Height14cm5.51"

Misc. Product Information

More Information
SKUW33350

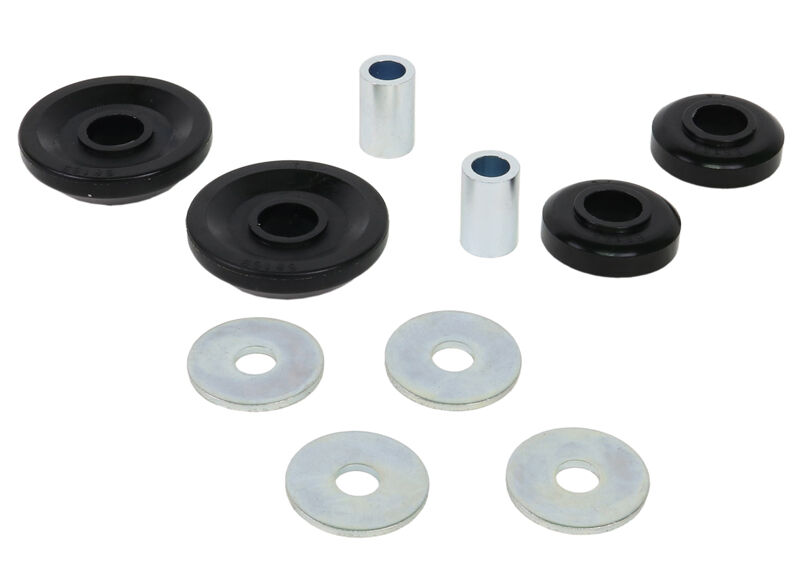

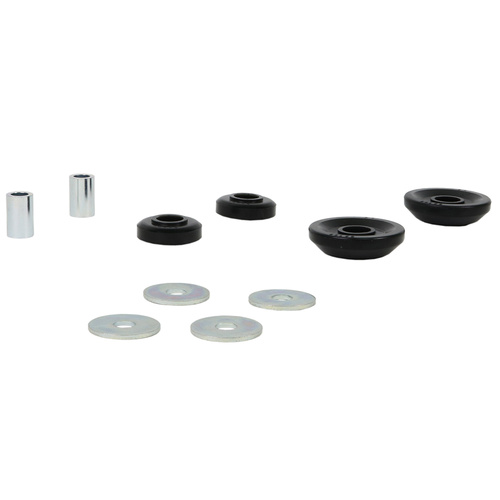

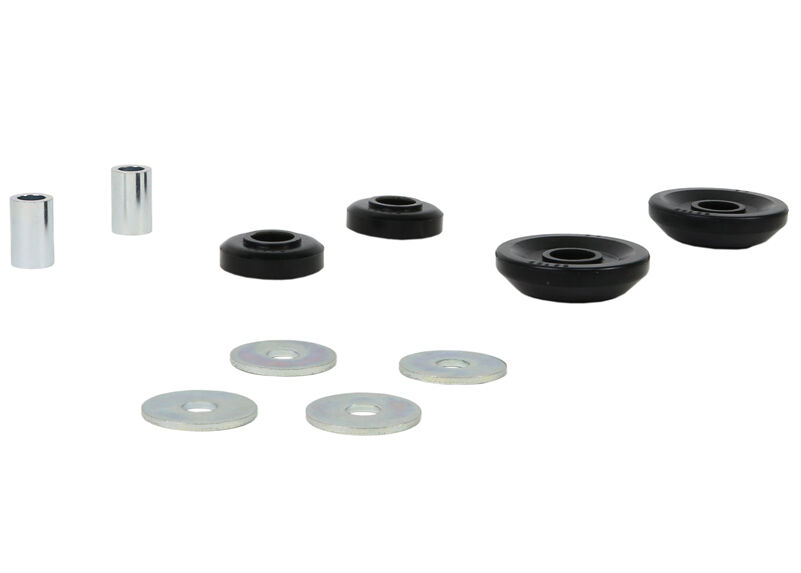

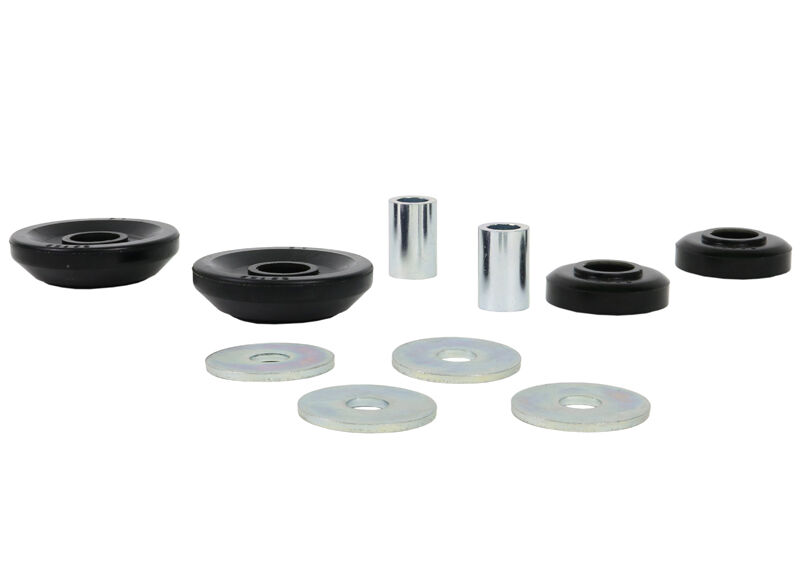

Components Per4 Bushings, 2 Tubes, 4 Washers
Kits Required1
Sub brandReplacement
Product NoteBuilt tough for better durability and long-lasting performance; the perfect, complete upgrade. Includes: 4 Bushings, 2 Tubes & 4 Washers
EAN9319924396764
  • Lifetime Warranty
Brand Whiteline
SKU W33350
Unit Of Measure Kit
