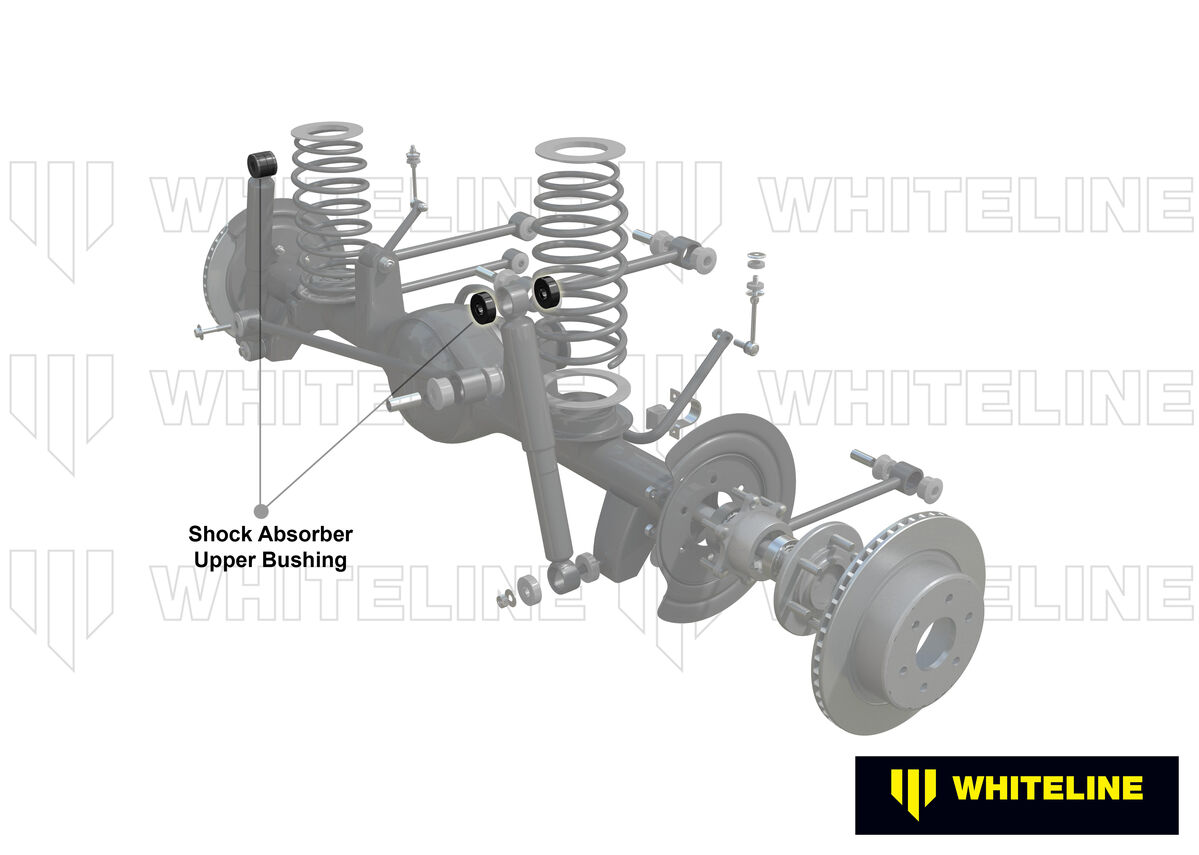

Whiteline Front Shock Absorber - Upper Bushing Kit to Suit Jeep Wrangler JK

SKU: W33345

Benefit Note: Shock absorber advances and demands for improved travel and load bearing has placed extra importance and stress on shock absorber bushings. Whiteline's superior formulation shock bushings enhance the performance of new and used shock absorbers.

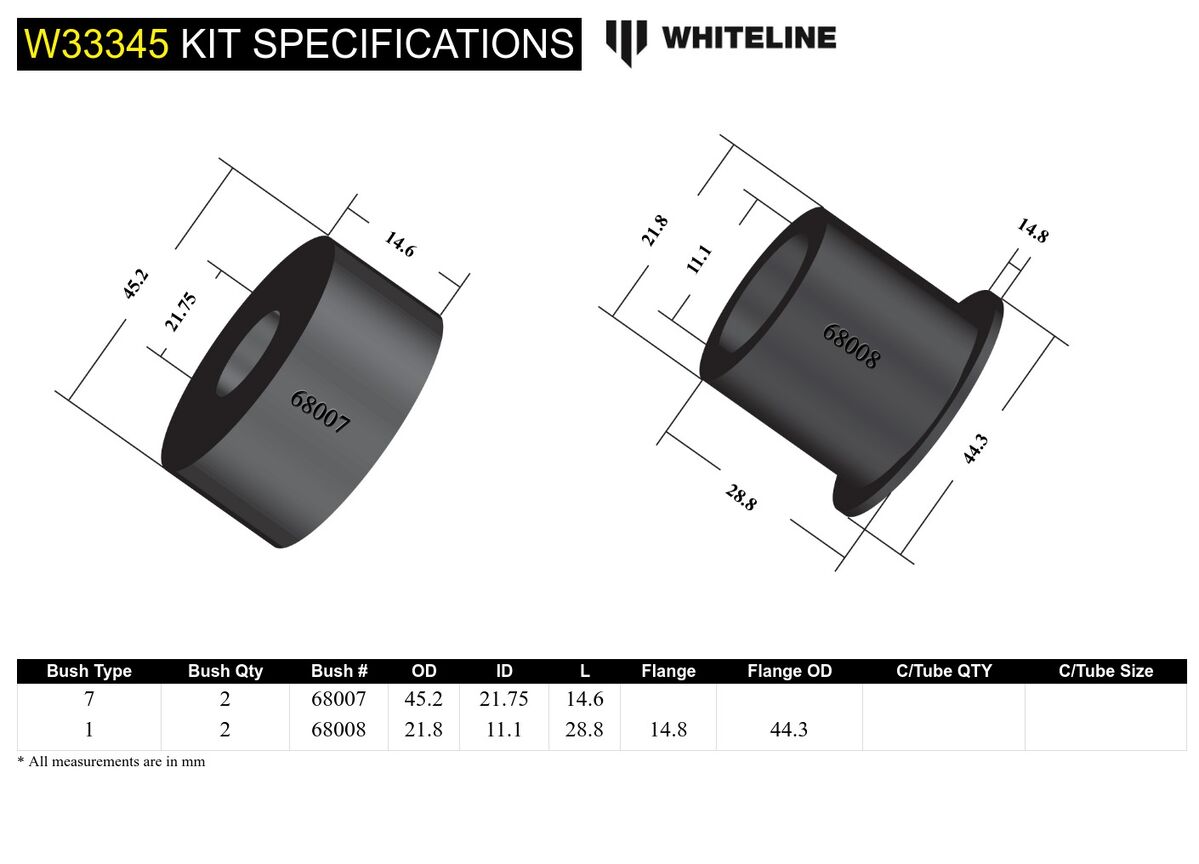

Kit Specifications

Bush Type 7 - Pin Bush With & Without Spigot 1 - Shackle Bushing
Bush Quantity 2 mm 2 mm
OD (A) 45.2 mm 21.8 mm
ID (B) 21.75 mm 11.1 mm
Length (C) 14.6 mm 28.8 mm
Flange Thickness (D) 14.8 mm
Flange OD (E) 44.3 mm
C/Tube Quantity
C/Tube ODxIDxL
Similar Bushing Size Click Here Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Bushing Type 7 - Pin Bush With & Without Spigot
Bushing Type 1 - Shackle Bushing

Bushing Design Dimensions (mm)

Bush Type 7 1
QTY 2 2
OD (A) 45.2 21.8
ID (B) 21.75 11.1
Length (C) 14.6 28.8
FL (D) 14.8
FLOD (E) 44.3
C/Tube Qty
C/Tube Size
Similar Bushings Click Here Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Bushing Type 1
Bushing Type 7

Packaged Weight and Dimensions

Unitscm/kgin/lbs
Weight0.13kg0.29lbs
Length7cm2.76"
Width20cm7.87"
Height14cm5.51"

Misc. Product Information

More Information
SKUW33345
Components Per4 Bushings
Kits Required1
Sub brandReplacement

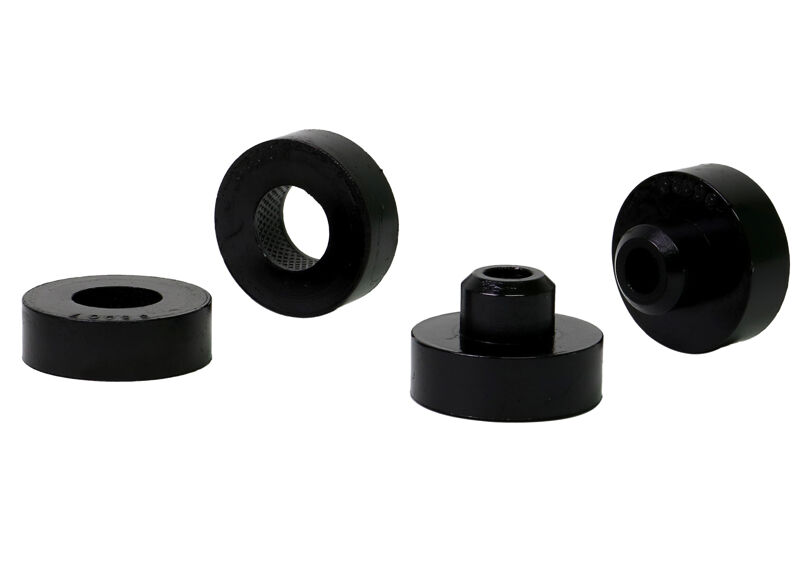

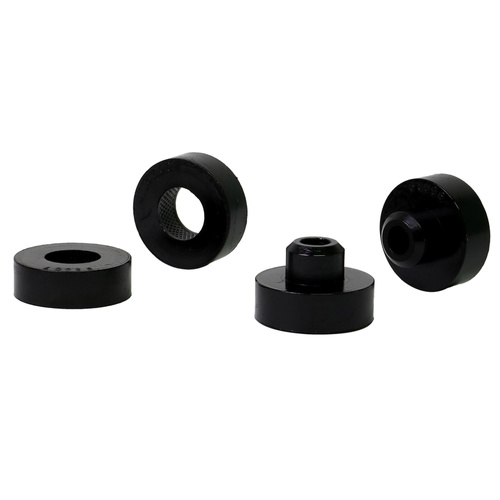

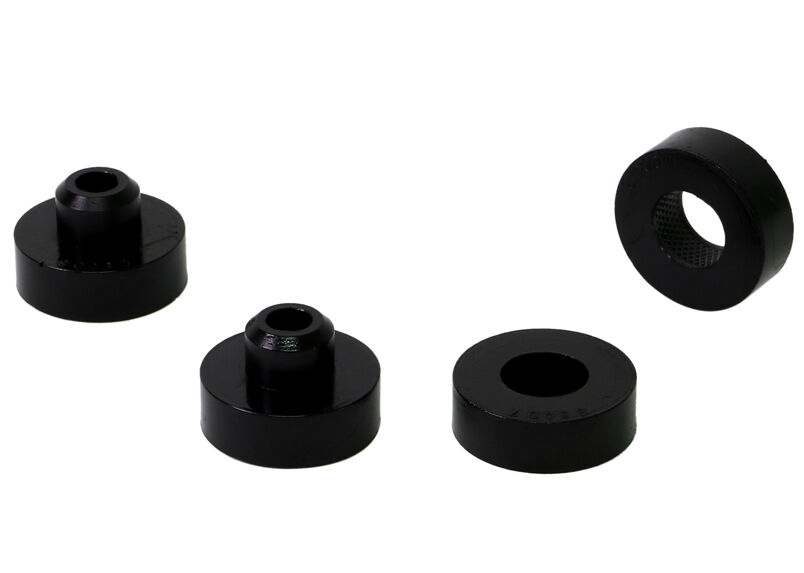

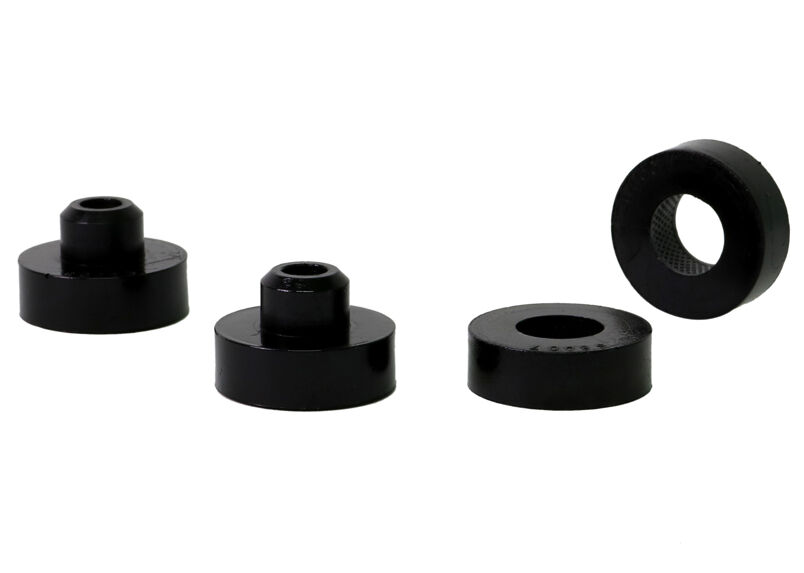

Product NoteBalances comfort with performance while minimising noise and vibrations; the perfect, complete upgrade. Includes: 4 Bushings
EAN9319924392421
  • Lifetime Warranty
Brand Whiteline
SKU W33345
Unit Of Measure Kit
