Whiteline Front Shock Absorber - Upper Bushing Kit to Suit Toyota Land Cruiser 200 Series

SKU: W33344

Benefit Note: Shock absorber advances and demands for improved travel and load bearing has placed extra importance and stress on shock absorber bushings. Whiteline's superior formulation shock bushings enhance the performance of new and used shock absorbers.

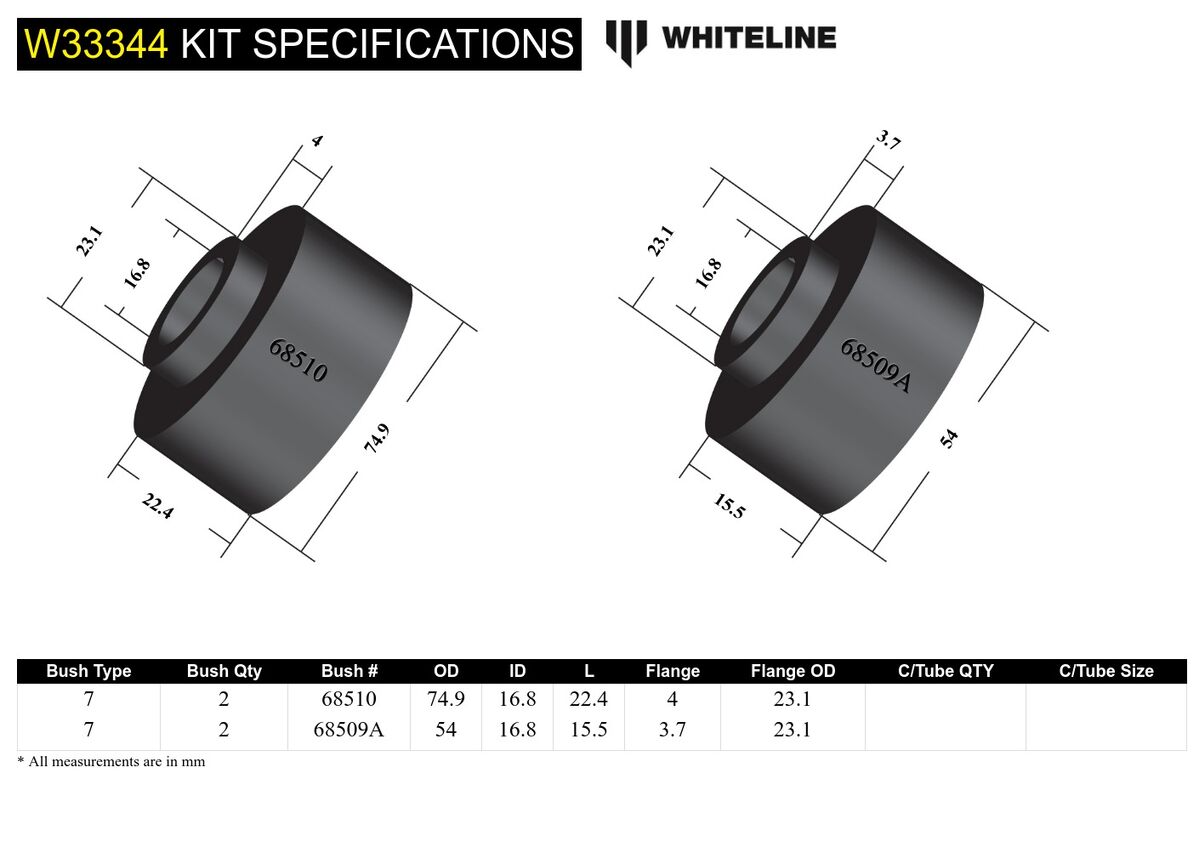

Kit Specifications

Bush Type 7 - Pin Bush With & Without Spigot 7 - Pin Bush With & Without Spigot
Bush Quantity 2 mm 2 mm
OD (A) 74.9 mm 54 mm
ID (B) 16.8 mm 16.8 mm
Length (C) 22.4 mm 15.5 mm
Flange Thickness (D) 4 mm 3.7 mm
Flange OD (E) 23.1 mm 23.1 mm
C/Tube Quantity
C/Tube ODxIDxL
Similar Bushing Size Click Here Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Bushing Type 7 - Pin Bush With & Without Spigot
Bushing Type 7 - Pin Bush With & Without Spigot

Bushing Design Dimensions (mm)

Bush Type 7 7
QTY 2 2
OD (A) 74.9 54
ID (B) 16.8 16.8
Length (C) 22.4 15.5
FL (D) 4 3.7
FLOD (E) 23.1 23.1
C/Tube Qty
C/Tube Size
Similar Bushings Click Here Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Bushing Type 7

Packaged Weight and Dimensions

Unitscm/kgin/lbs
Weight0.45kg0.99lbs
Length10cm3.94"
Width26cm10.24"
Height16cm6.3"

Misc. Product Information

More Information
SKUW33344

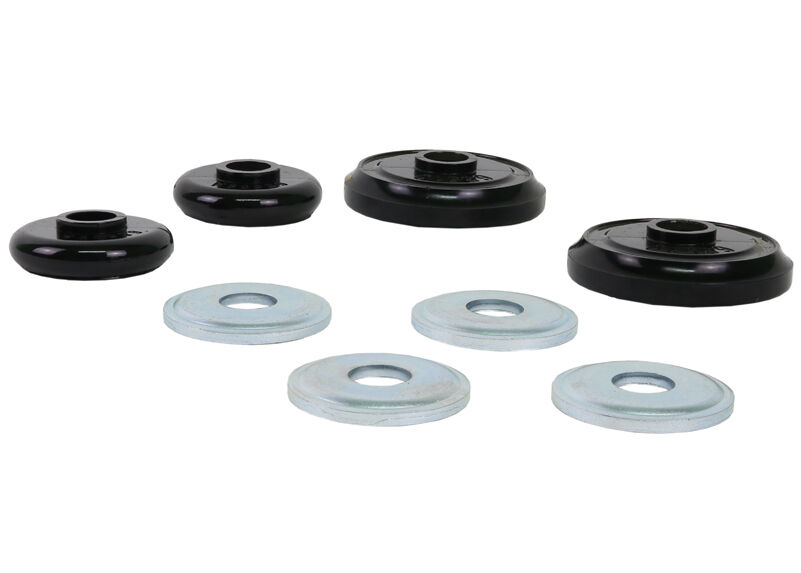

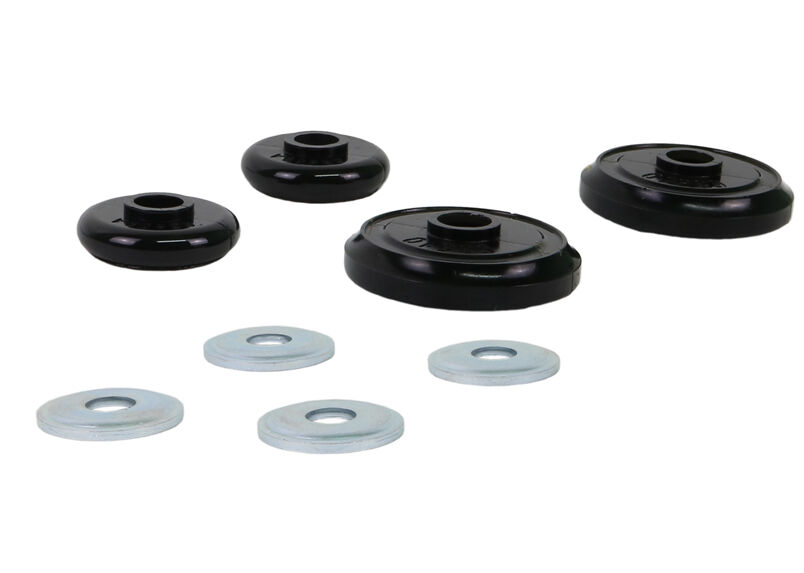

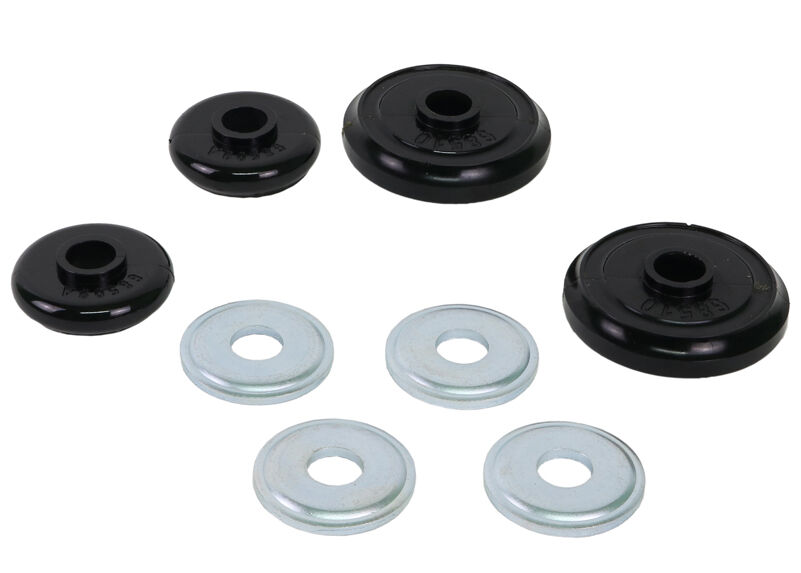

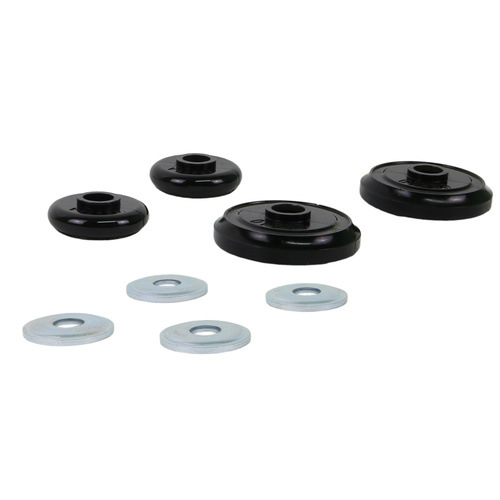

Components Per4 Bushings, 4 Washers
Kits Required1
Sub brandReplacement
Product NoteMaximises grip and stability for better control; the perfect, complete upgrade. Includes: 4 Bushings & 4 Washers
EAN9330074011079
  • Lifetime Warranty
Brand Whiteline
SKU W33344
Unit Of Measure Kit
