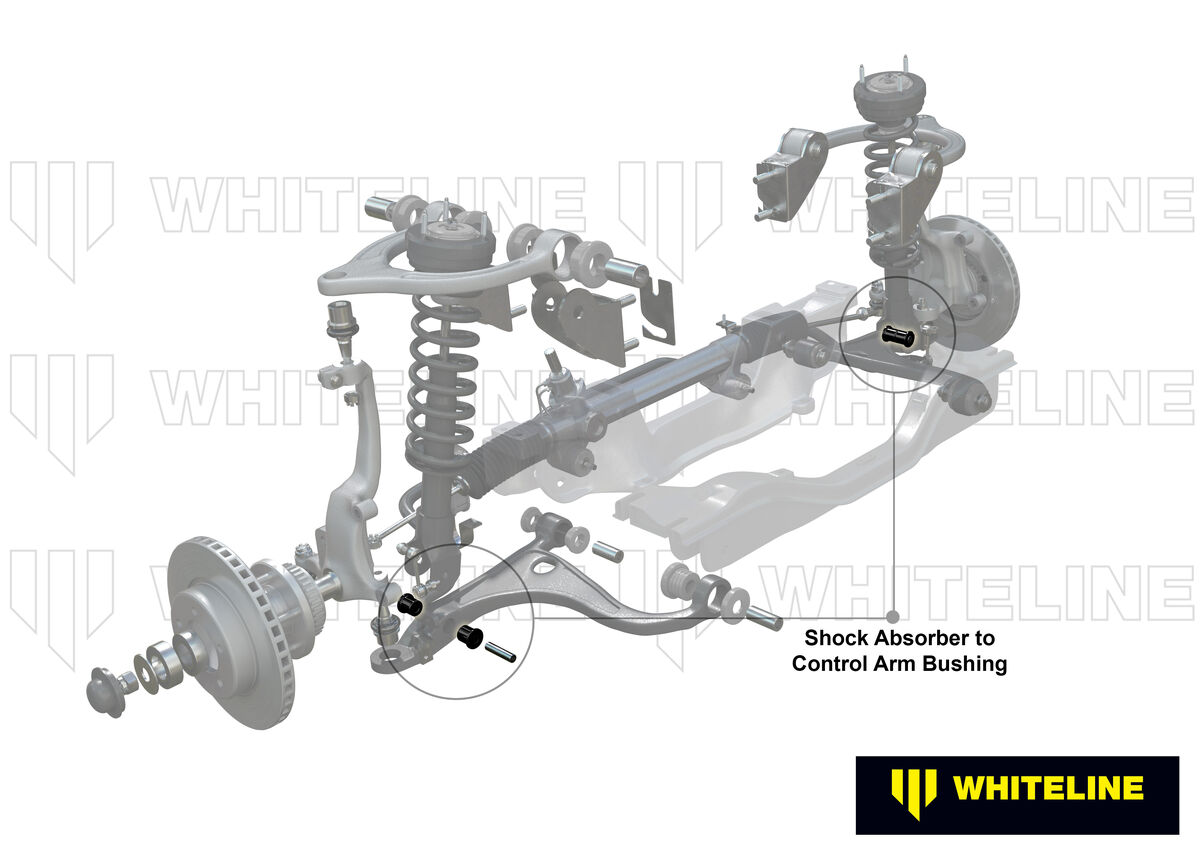

Whiteline Front Shock Absorber - To Control Arm Bushing Kit to Suit Mazda MX-5 NC and RX-8 FE

SKU: W33338

Benefit Note: Shock absorber advances and demands for improved travel and load bearing has placed extra importance and stress on shock absorber bushings. Whiteline's superior formulation shock bushings enhance the performance of new and used shock absorbers.


Kit Specifications

Bush Type 16 - Shell Without Flange Bushing
Bush Quantity 2 mm
OD (A) 40.9 mm
ID (B) 25 mm
Length (C) 50.3 mm
Flange Thickness (D) 6 mm
Flange OD (E) 36.7 mm
C/Tube Quantity 2
C/Tube ODxIDxL 25x12.2x50 mm
Similar Bushing Size Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Bushing Type 16 - Shell Without Flange Bushing

Bushing Design Dimensions (mm)

Bush Type 16
QTY 2
OD (A) 40.9
ID (B) 25
Length (C) 50.3
FL (D) 6
FLOD (E) 36.7
C/Tube Qty 2
C/Tube Size 25x12.2x50
Similar Bushings Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Bushing Type 16

Packaged Weight and Dimensions

Unitscm/kgin/lbs
Weight0.505kg1.11lbs
Length7cm2.76"
Width14cm5.51"
Height20cm7.87"

Misc. Product Information

More Information
SKUW33338

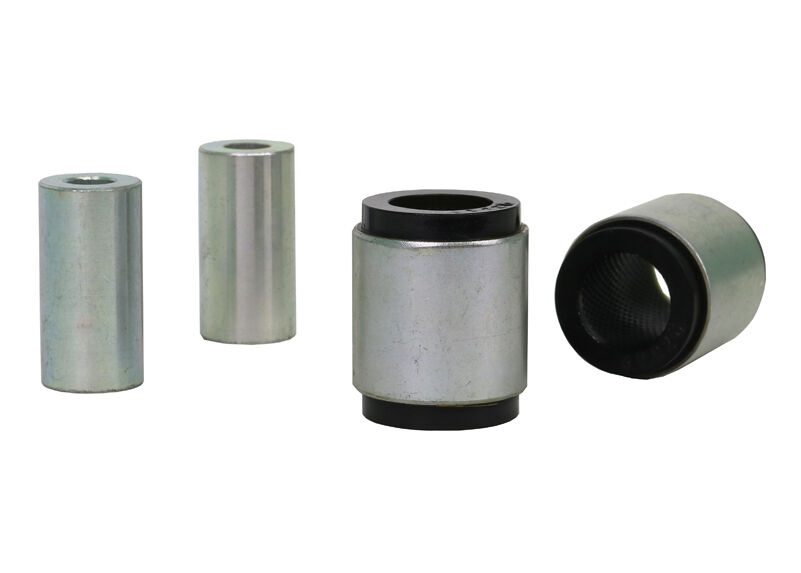

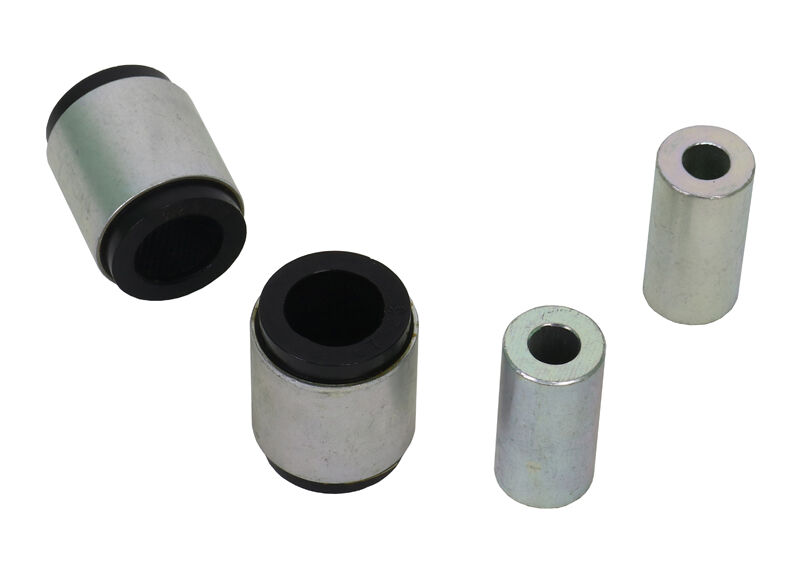

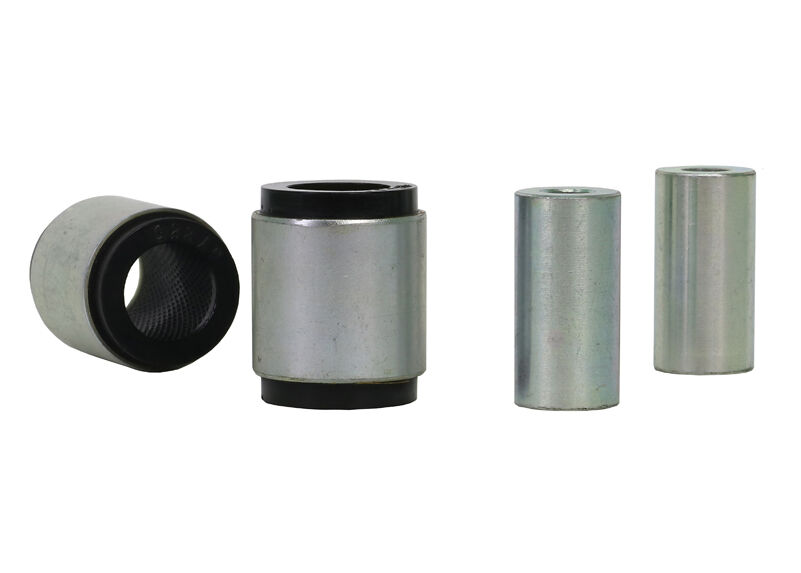

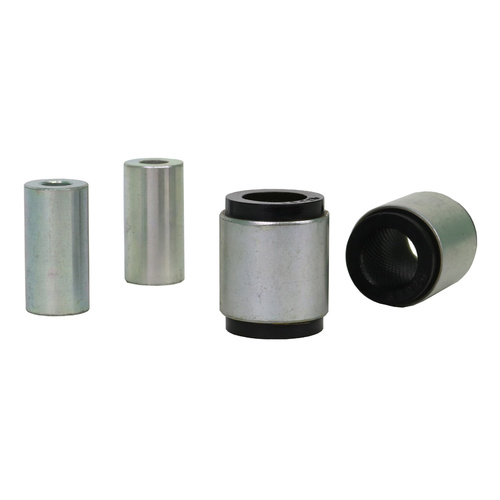

Components Per2 Shell Bushings, 2 Tubes
Kits Required1
Sub brandReplacement
Product NoteGreatly increases control and confidence; the perfect, complete upgrade. Includes: 2 Shell Bushings, 2 Tubes
EAN9319924383092
  • Lifetime Warranty
Brand Whiteline
SKU W33338
Unit Of Measure Kit
