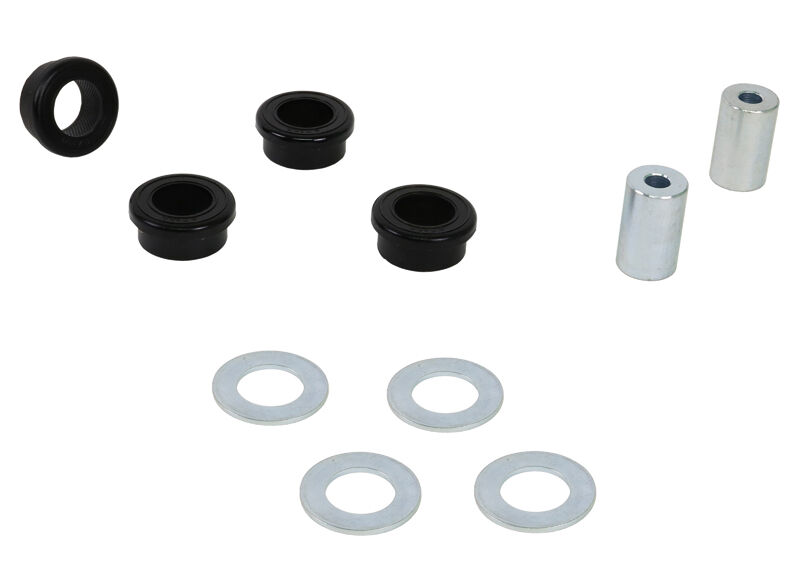

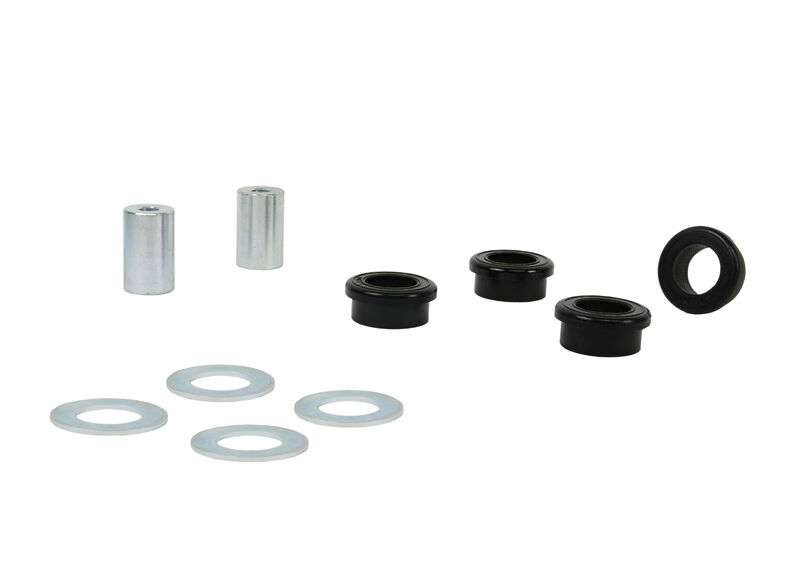

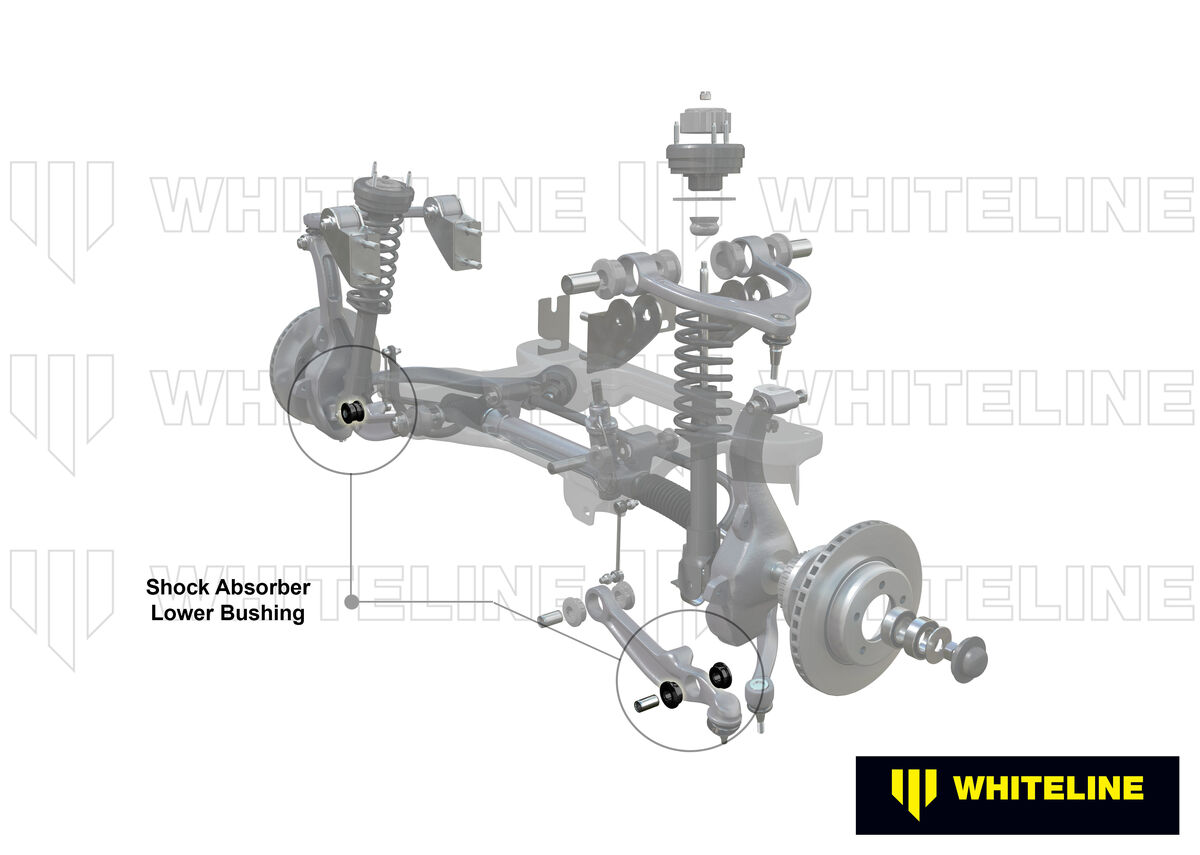

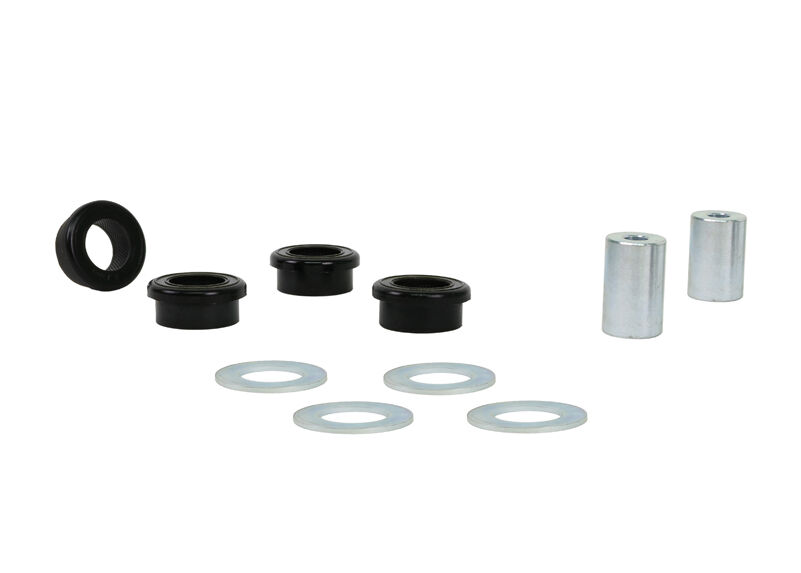

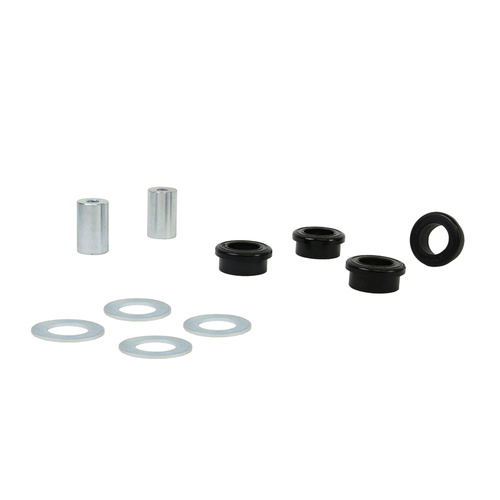

Whiteline Front Shock Absorber - To Control Arm Bushing Kit to Suit Mazda6 GG incl MPS

SKU: W33335

Benefit Note: Shock absorber advances and demands for improved travel and load bearing has placed extra importance and stress on shock absorber bushings. Whiteline's superior formulation shock bushings enhance the performance of new and used shock absorbers.


Kit Specifications

Bush Type 1 - Shackle Bushing
Bush Quantity 4 mm
OD (A) 44 mm
ID (B) 30 mm
Length (C) 22.2 mm
Flange Thickness (D) 7.2 mm
Flange OD (E) 52 mm
C/Tube Quantity 2
C/Tube ODxIDxL 30x12.5x49 mm
Similar Bushing Size Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Bushing Type 1 - Shackle Bushing

Bushing Design Dimensions (mm)

Bush Type 1
QTY 4
OD (A) 44
ID (B) 30
Length (C) 22.2
FL (D) 7.2
FLOD (E) 52
C/Tube Qty 2
C/Tube Size 30x12.5x49
Similar Bushings Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Bushing Type 1

Packaged Weight and Dimensions

Unitscm/kgin/lbs
Weight0.573kg1.26lbs
Length7cm2.76"
Width20cm7.87"
Height14cm5.51"

Misc. Product Information

More Information
SKUW33335
Components Per4 Bushings, 2 Tubes
Kits Required1
Sub brandReplacement
Product NoteMaximises tyre contact with the road, improving cornering and grip; the perfect, complete upgrade. Includes: 4 Bushings, 2 Tubes
EAN9319924380213
  • Lifetime Warranty
Brand Whiteline
SKU W33335
Unit Of Measure Kit
