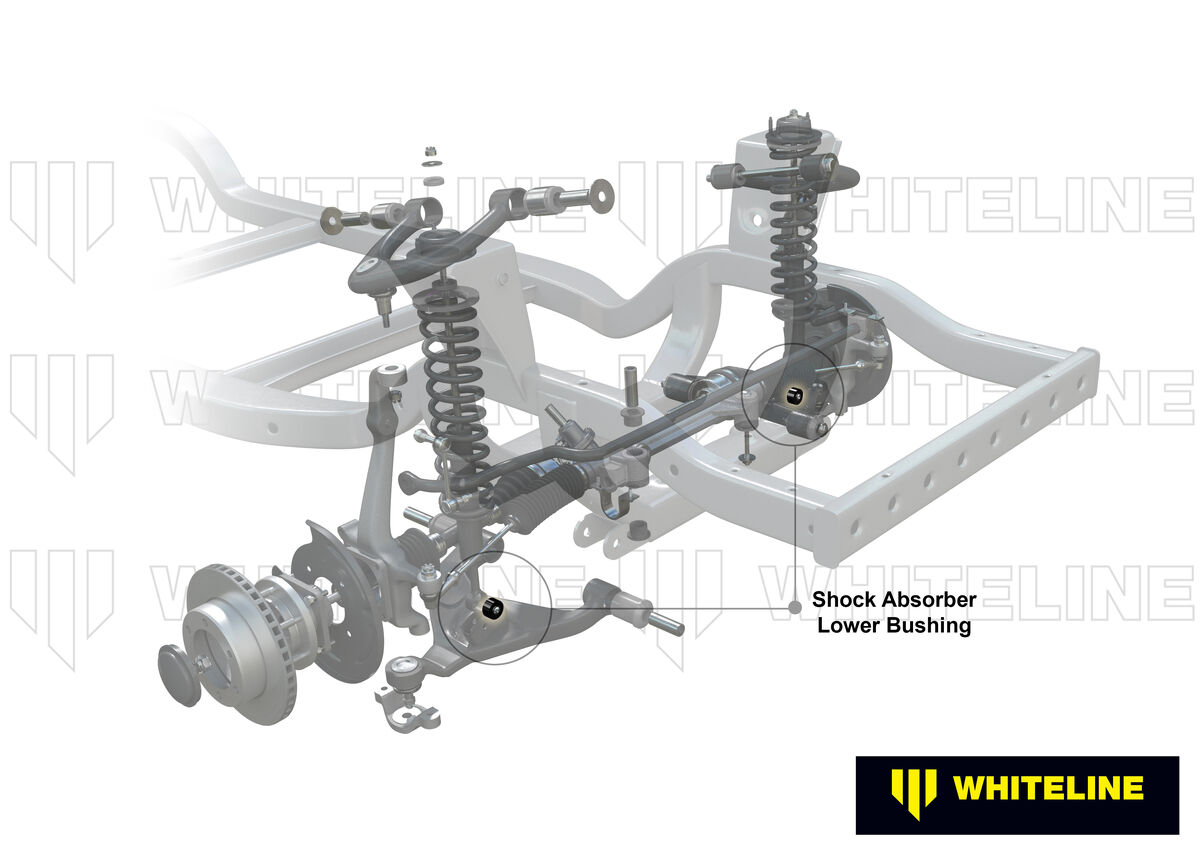

Whiteline Front Shock Absorber - To Control Arm Bushing Kit to Suit Nissan Navara D40 and D23 2wd/4wd

SKU: W33324

Benefit Note: Shock absorber advances and demands for improved travel and load bearing has placed extra importance and stress on shock absorber bushings. Whiteline's superior formulation shock bushings enhance the performance of new and used shock absorbers.

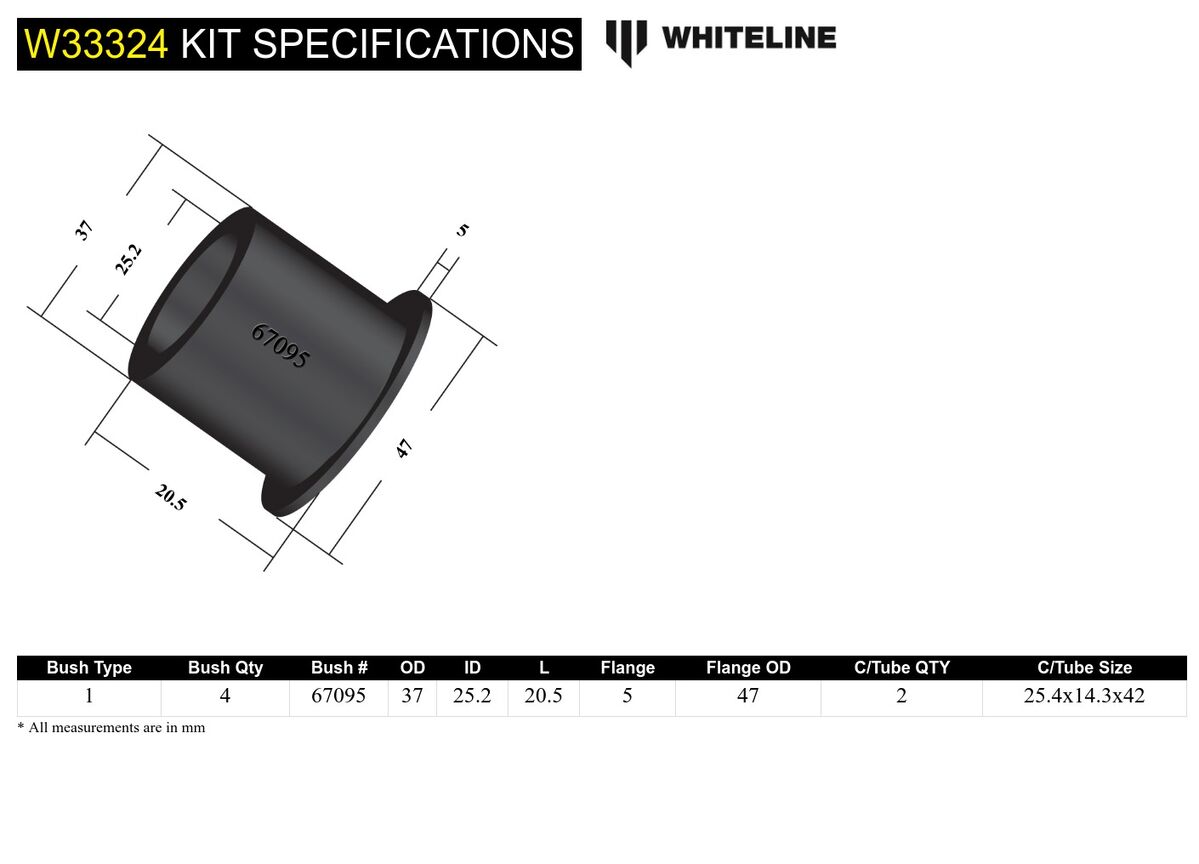

Kit Specifications

Bush Type 1 - Shackle Bushing
Bush Quantity 4 mm
OD (A) 37 mm
ID (B) 25.2 mm
Length (C) 20.5 mm
Flange Thickness (D) 5 mm
Flange OD (E) 47 mm
C/Tube Quantity 2
C/Tube ODxIDxL 25.4x14.3x42 mm
Similar Bushing Size Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Bushing Type 1 - Shackle Bushing

Bushing Design Dimensions (mm)

Bush Type 1
QTY 4
OD (A) 37
ID (B) 25.2
Length (C) 20.5
FL (D) 5
FLOD (E) 47
C/Tube Qty 2
C/Tube Size 25.4x14.3x42
Similar Bushings Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Bushing Type 1

Packaged Weight and Dimensions

Unitscm/kgin/lbs
Weight0.32kg0.71lbs
Length7cm2.76"
Width20cm7.87"
Height14cm5.51"

Misc. Product Information

More Information
SKUW33324

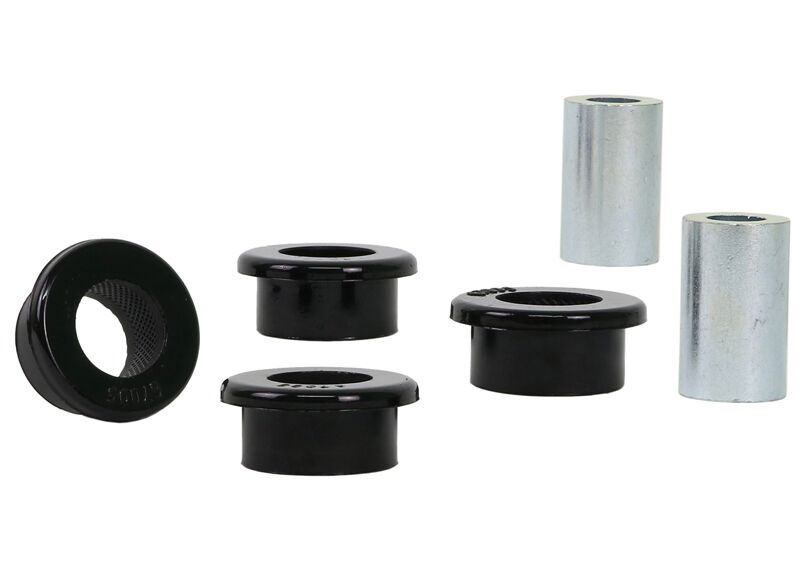

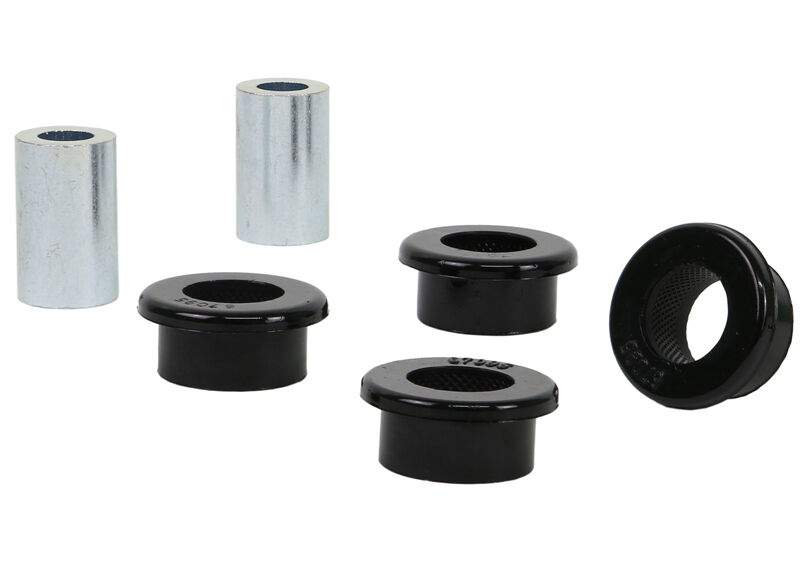

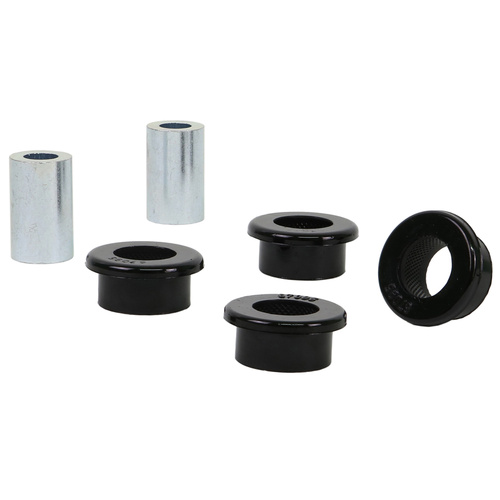

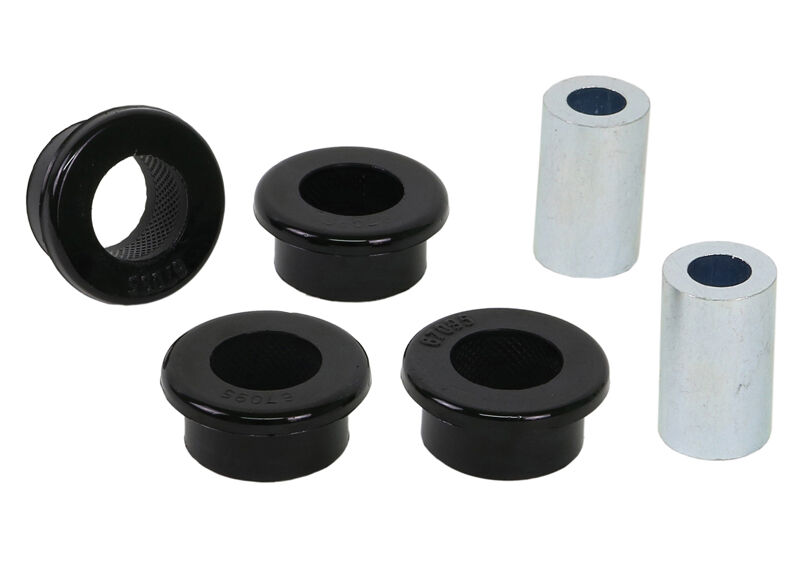

Components Per4 Bushings, 2 Tubes
Kits Required1
Sub brandReplacement
Product NoteMaximises tyre contact with the road, improving cornering and grip; the perfect, complete upgrade. Includes: 4 Bushings, 2 Tubes
EAN9319924376209
  • Lifetime Warranty
Brand Whiteline
SKU W33324
Unit Of Measure Kit
