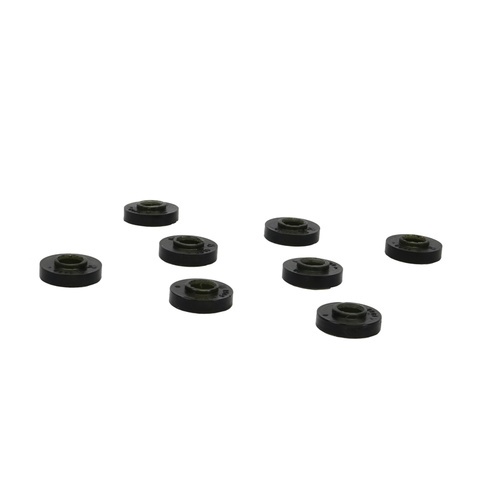

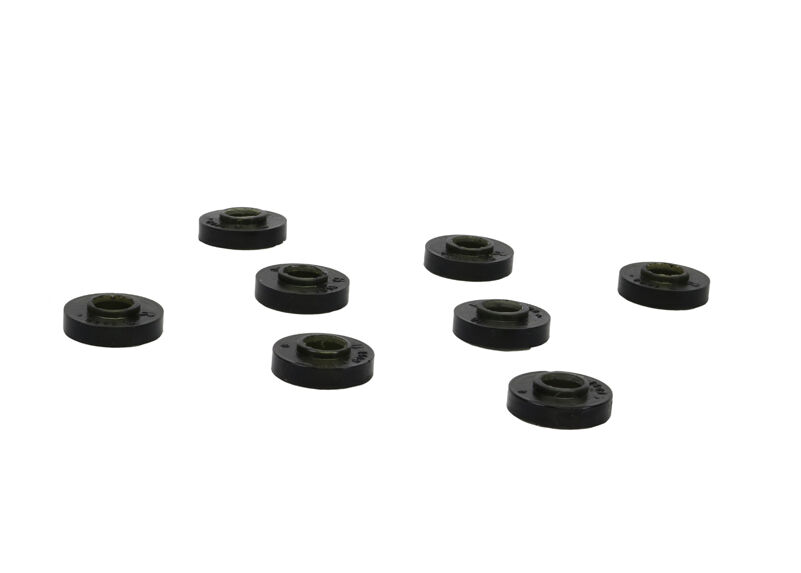

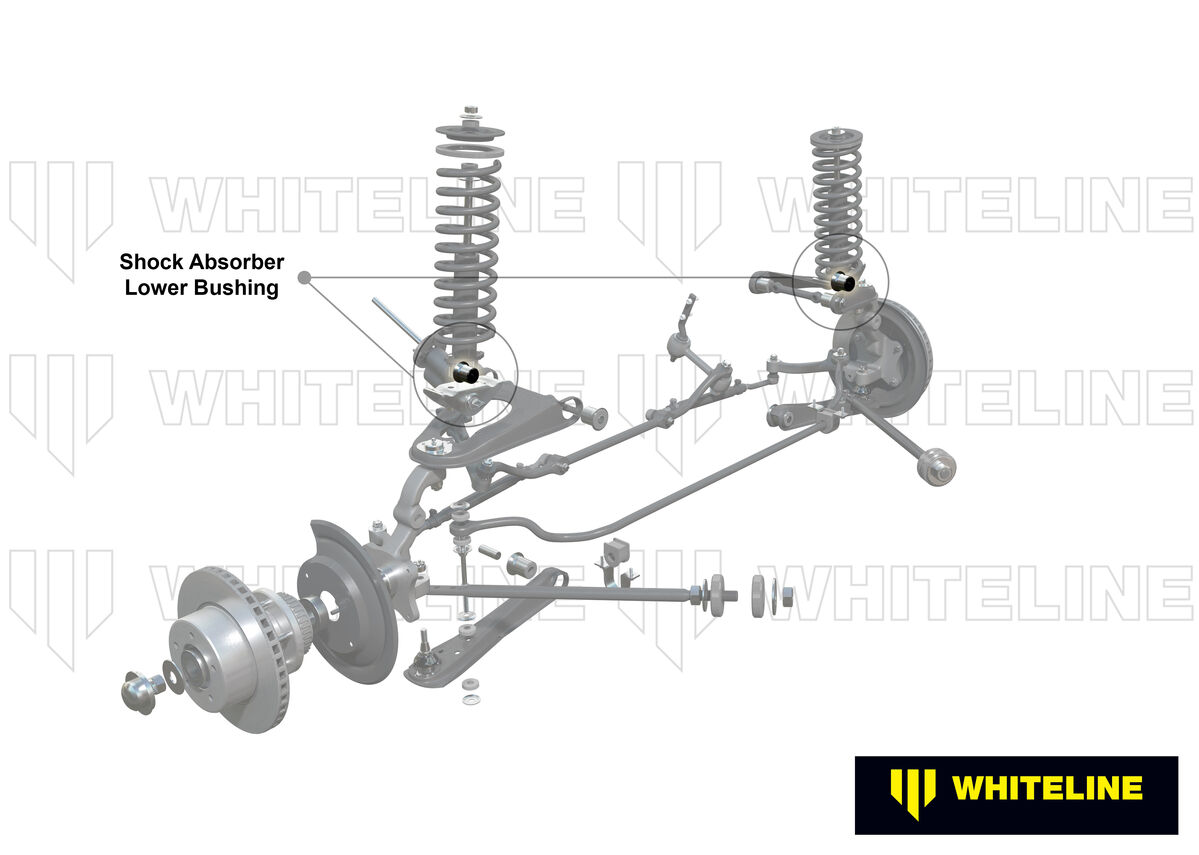

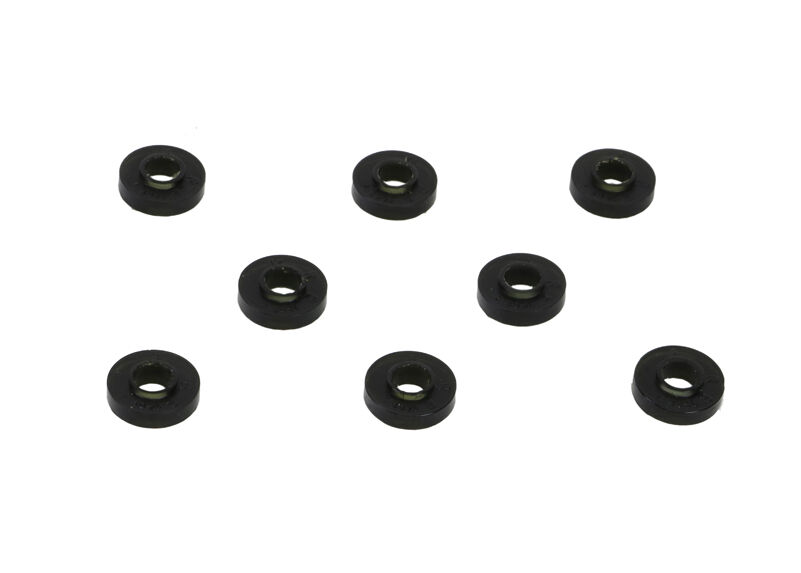

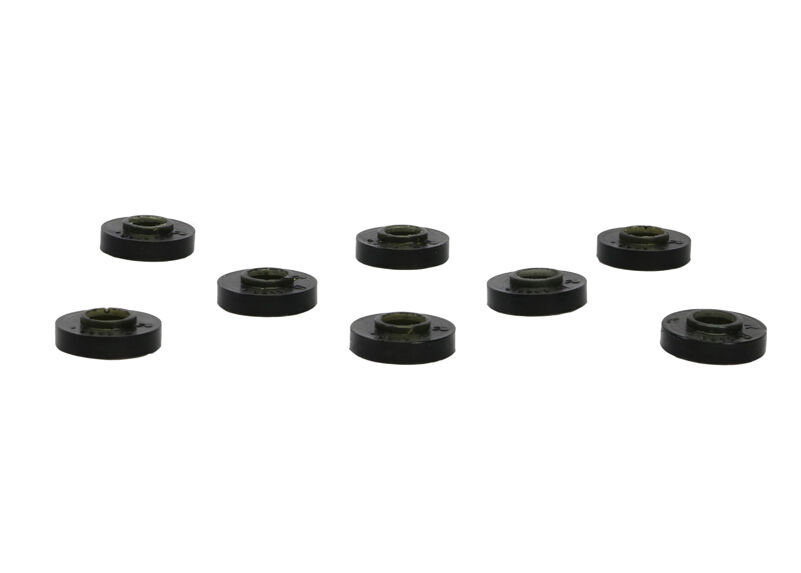

Whiteline Front Shock Absorber - Lower Bushing Kit to Suit Ford Falcon/Fairlane XK-XF and Mustang Classic

SKU: W31409

Benefit Note: Shock absorber advances and demands for improved travel and load bearing has placed extra importance and stress on shock absorber bushings. Whiteline's superior formulation shock bushings enhance the performance of new and used shock absorbers.

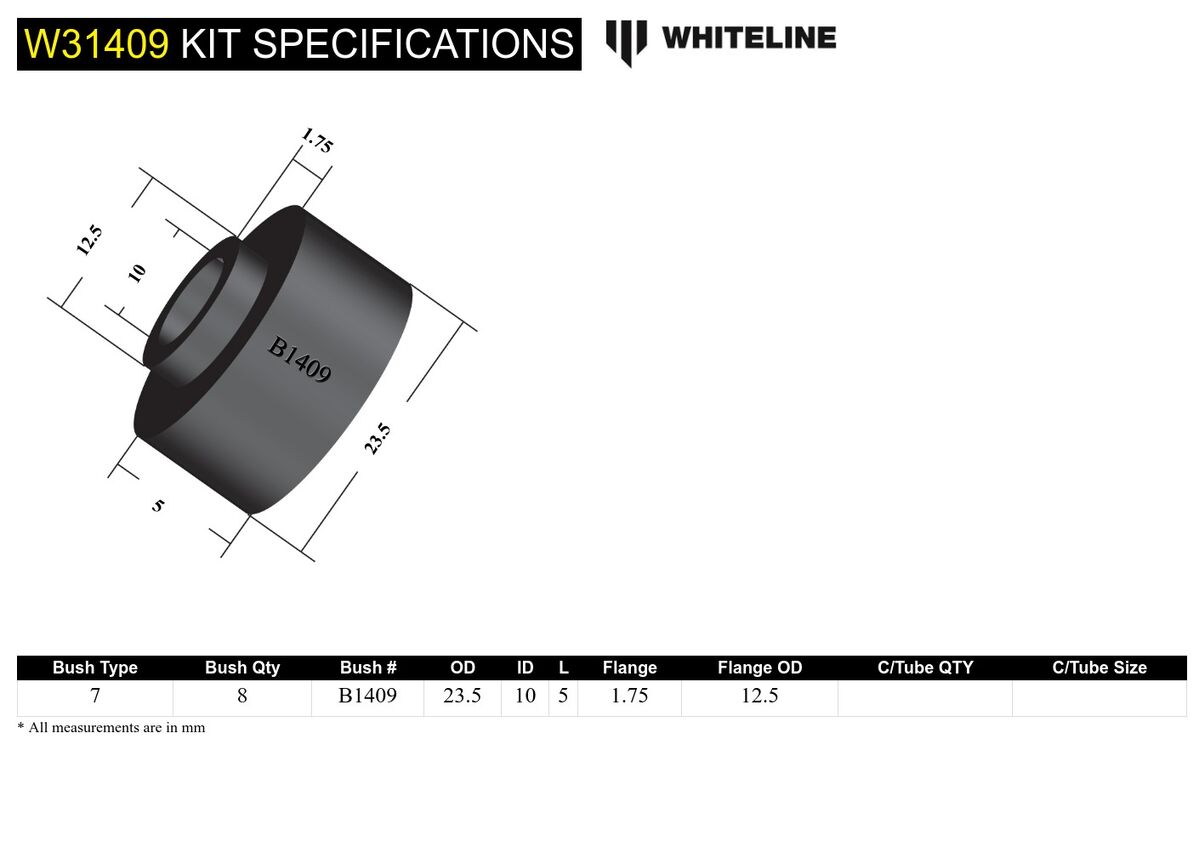

Kit Specifications

Bush Type 7 - Pin Bush With & Without Spigot
Bush Quantity 8 mm
OD (A) 23.5 mm
ID (B) 10 mm
Length (C) 5 mm
Flange Thickness (D) 1.75 mm
Flange OD (E) 12.5 mm
C/Tube Quantity
C/Tube ODxIDxL
Similar Bushing Size Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Bushing Type 7 - Pin Bush With & Without Spigot

Bushing Design Dimensions (mm)

Bush Type 7
QTY 8
OD (A) 23.5
ID (B) 10
Length (C) 5.0
FL (D) 1.75
FLOD (E) 12.5
C/Tube Qty
C/Tube Size
Similar Bushings Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Bushing Type 7

Packaged Weight and Dimensions

Unitscm/kgin/lbs
Weight0.028kg0.06lbs
Length7cm2.76"
Width20cm7.87"
Height14cm5.51"

Misc. Product Information

More Information
SKUW31409
Components Per8 Bushings
Kits Required1
Sub brandReplacement
Product NoteMaximises grip and stability for better control; the perfect, complete upgrade. Includes: 8 Bushings
EAN9319924351169
  • Lifetime Warranty
Brand Whiteline
SKU W31409
Unit Of Measure Kit
