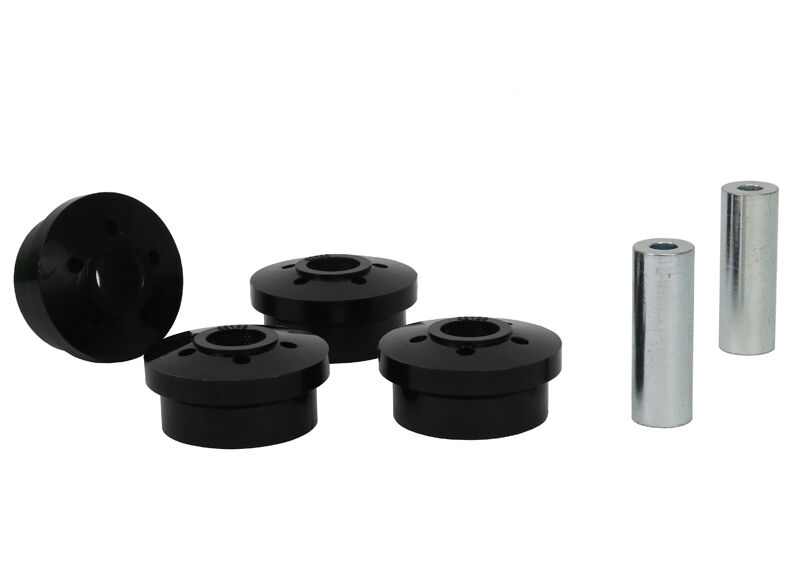

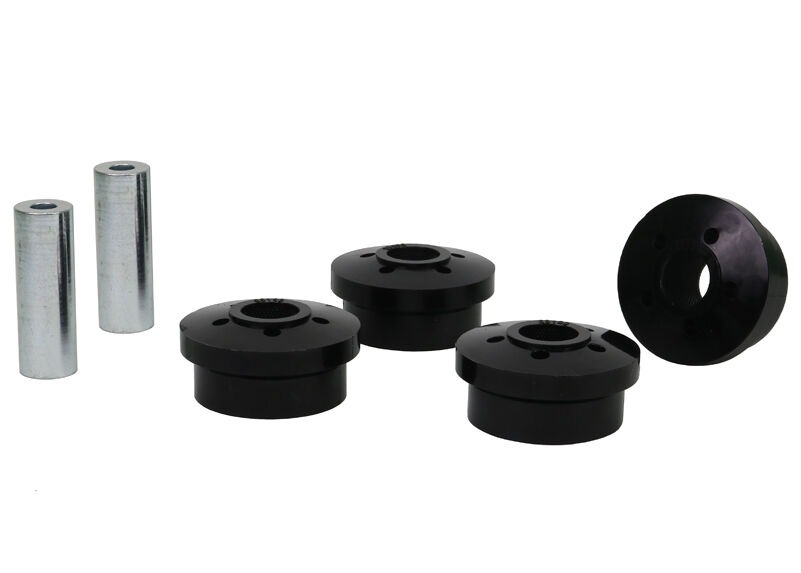

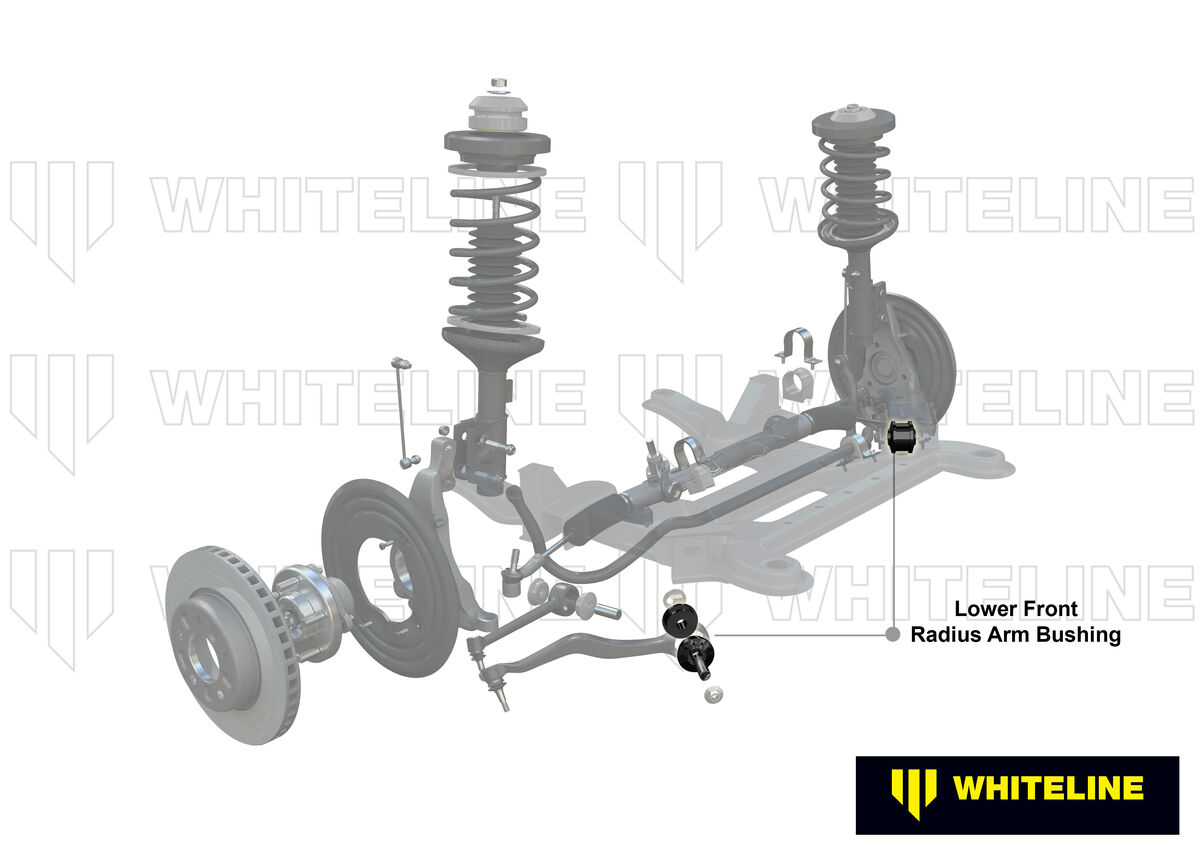

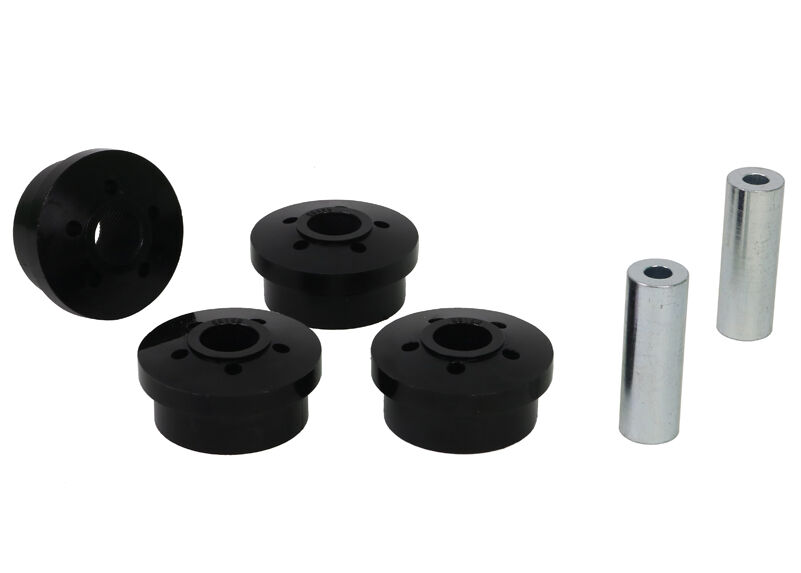

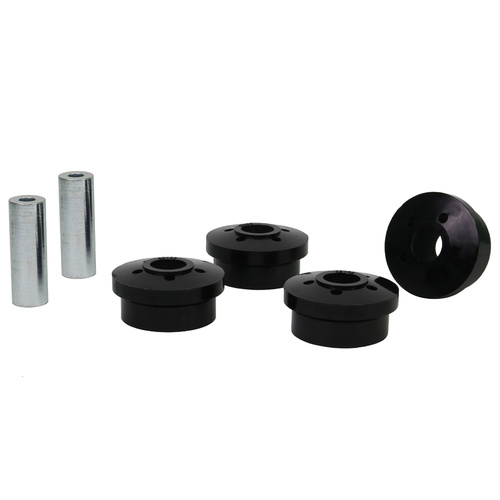

Whiteline Front Radius Arm Lower - Bushing Kit to Suit Holden Commodore VE and HSV

SKU: W83402

Benefit Note: Not many know but worn suspension bushings have an effect on braking performance. In particular these bushings tend to absorb most of the loads under braking resulting in severe wear and reduced braking efficiency over time. Replace these worn parts with Whiteline synthetic elastomer bushings that offer long lasting durability for a safer more predictable vehicle.

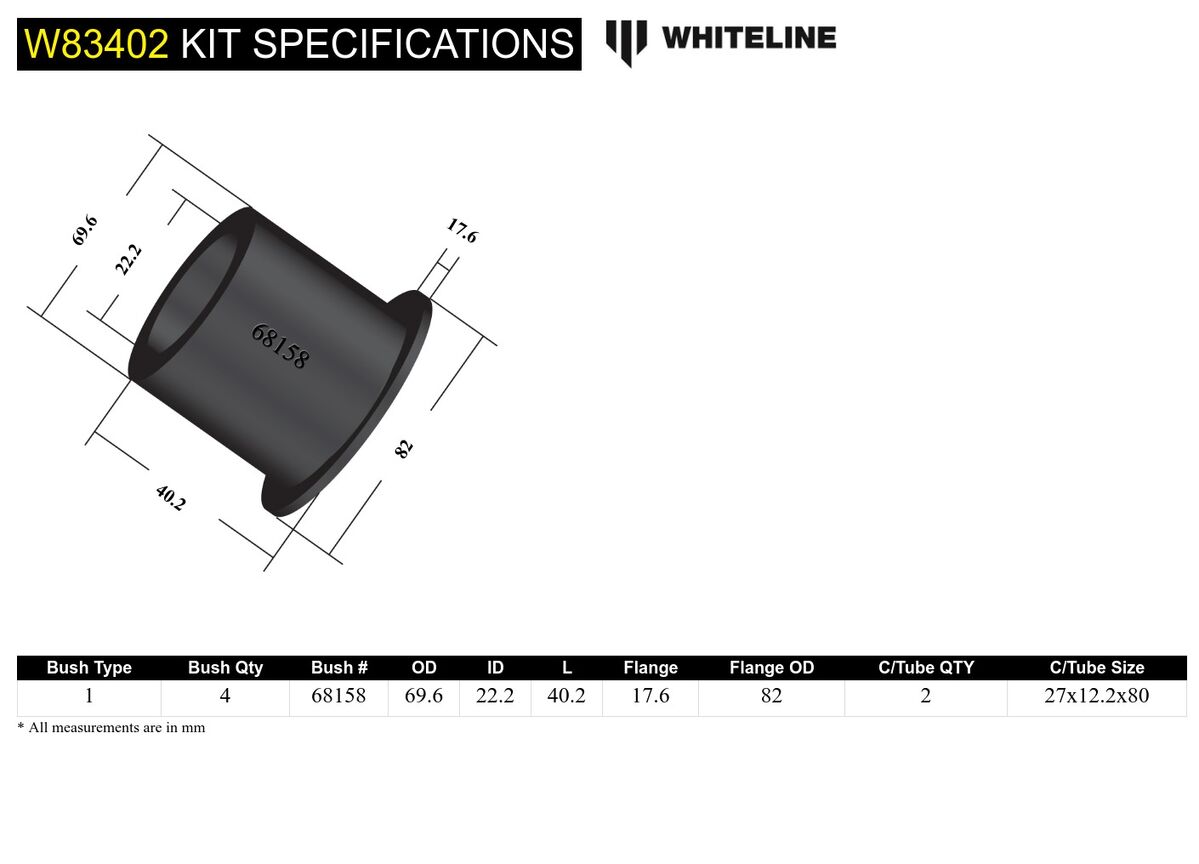

Kit Specifications

Bush Type 1 - Shackle Bushing
Bush Quantity 4 mm
OD (A) 69.6 mm
ID (B) 22.2 mm
Length (C) 40.2 mm
Flange Thickness (D) 17.6 mm
Flange OD (E) 82 mm
C/Tube Quantity 2
C/Tube ODxIDxL 27x12.2x80 mm
Similar Bushing Size Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Bushing Type 1 - Shackle Bushing

Bushing Design Dimensions (mm)

Bush Type 1
QTY 4
OD (A) 69.6
ID (B) 22.2
Length (C) 40.2
FL (D) 17.6
FLOD (E) 82
C/Tube Qty 2
C/Tube Size 27x12.2x80
Similar Bushings Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Bushing Type 1

Packaged Weight and Dimensions

Unitscm/kgin/lbs
Weight1.114kg2.46lbs
Length10cm3.94"
Width26cm10.24"
Height16cm6.3"

Misc. Product Information

More Information
SKUW83402
Components Per4 Bushings, 2 Tubes
Kits Required1
Sub brandReplacement
Product NoteGreatly increases control and confidence; the perfect, complete upgrade. Includes: 4 Bushings, 2 Tubes
EAN9319924395101
  • Lifetime Warranty
Brand Whiteline
SKU W83402
Unit Of Measure Kit
