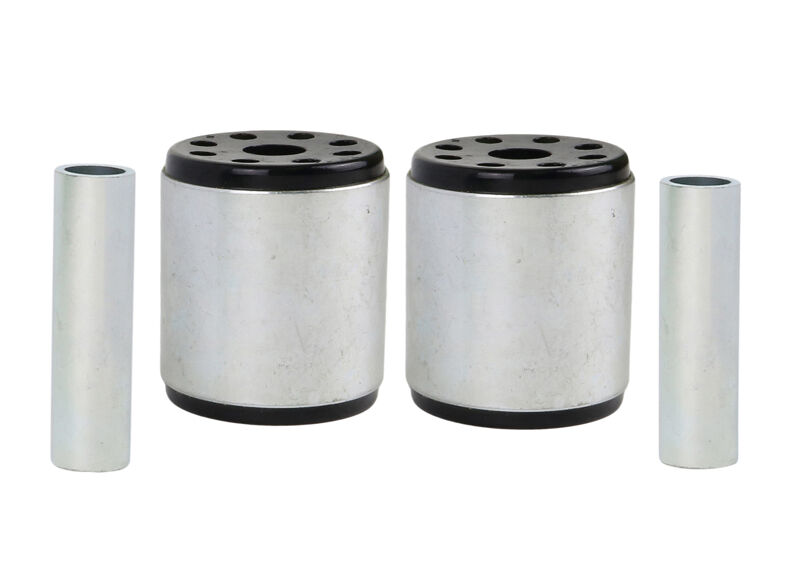

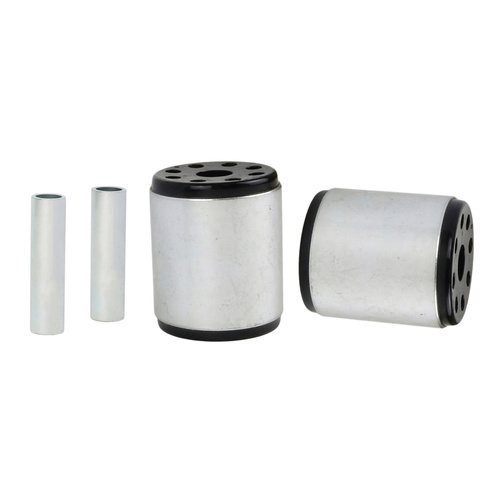

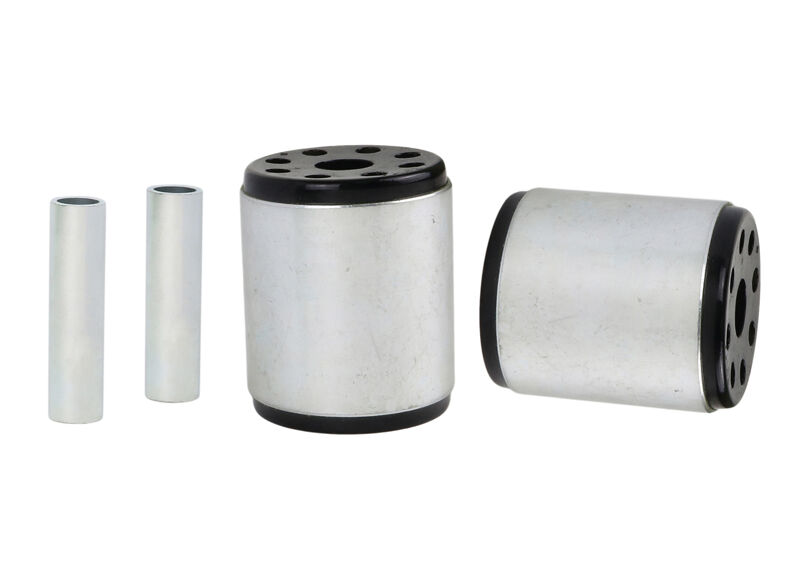

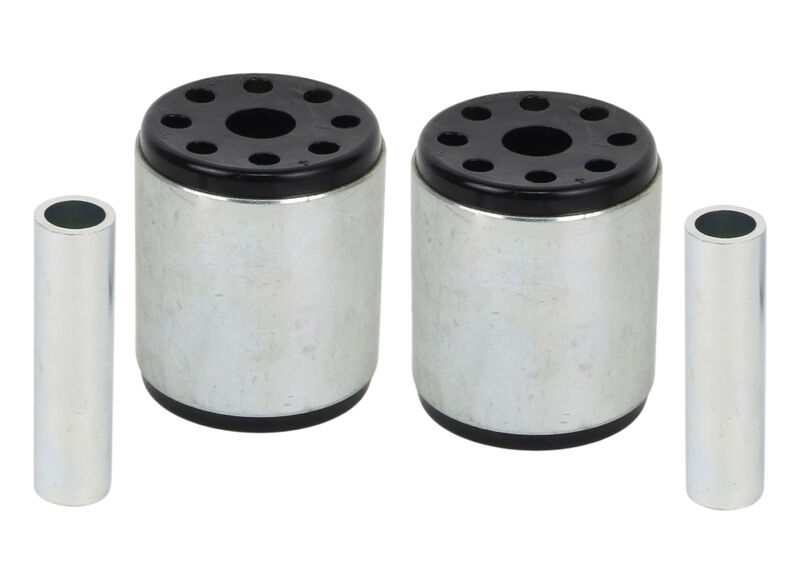

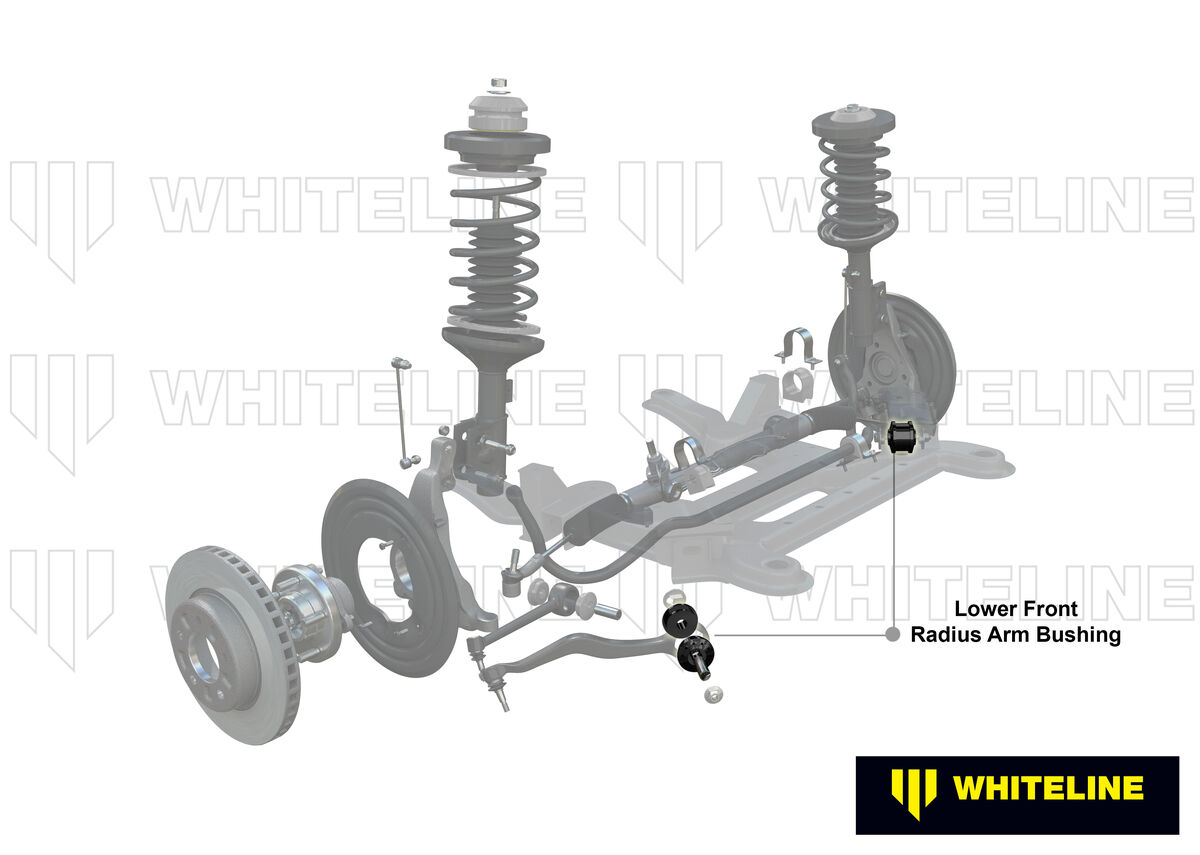

Whiteline Front Radius Arm Lower - Bushing Kit to Suit BMW 5, 7 Series, X3 and X5

SKU: W82977

Benefit Note: Not many know but worn suspension bushings have an effect on braking performance. In particular these bushings tend to absorb most of the loads under braking resulting in severe wear and reduced braking efficiency over time. Replace these worn parts with Whiteline synthetic elastomer bushings that offer long lasting durability for a safer more predictable vehicle.


Kit Specifications

Bush Type 16 - Shell Without Flange Bushing
Bush Quantity 2 mm
OD (A) 66.2 mm
ID (B) 19 mm
Length (C) 76 mm
Flange Thickness (D) 6.5 mm
Flange OD (E) 63 mm
C/Tube Quantity 2
C/Tube ODxIDxL 19x14.3x76 mm
Similar Bushing Size Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Bushing Type 16 - Shell Without Flange Bushing

Bushing Design Dimensions (mm)

Bush Type 16
QTY 2
OD (A) 66.2
ID (B) 19
Length (C) 76.0
FL (D) 6.5
FLOD (E) 63
C/Tube Qty 2
C/Tube Size 19x14.3x76
Similar Bushings Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Bushing Type 16

Packaged Weight and Dimensions

Unitscm/kgin/lbs
Weight0.906kg2lbs
Length10cm3.94"
Width26cm10.24"
Height16cm6.3"

Misc. Product Information

More Information
SKUW82977
Components Per2 Shell Bushings, 2 Tubes
Kits Required1
Sub brandReplacement
Product NoteMaximises tyre contact with the road, improving cornering and grip; the perfect, complete upgrade. Includes: 2 Shell Bushings, 2 Tubes
EAN9319924357505
  • Lifetime Warranty
Brand Whiteline
SKU W82977
Unit Of Measure Kit
