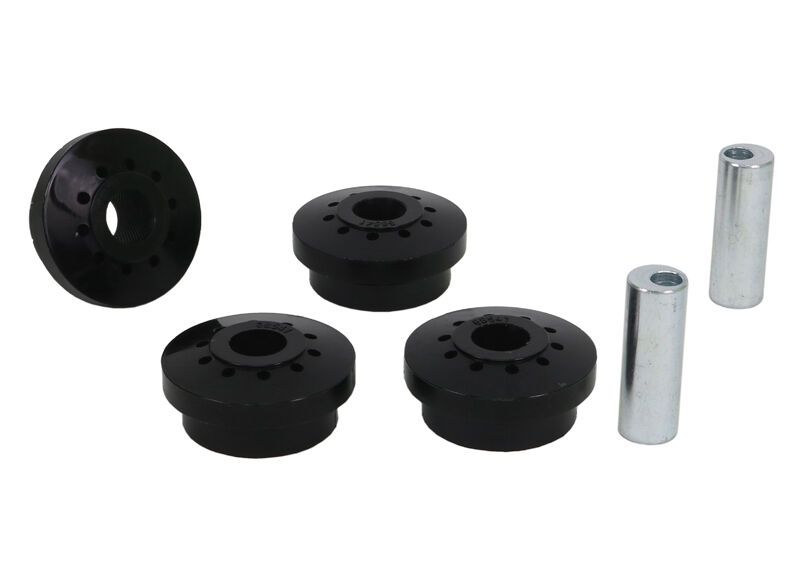

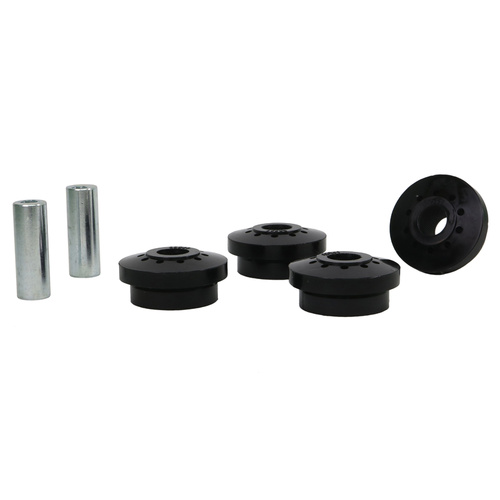

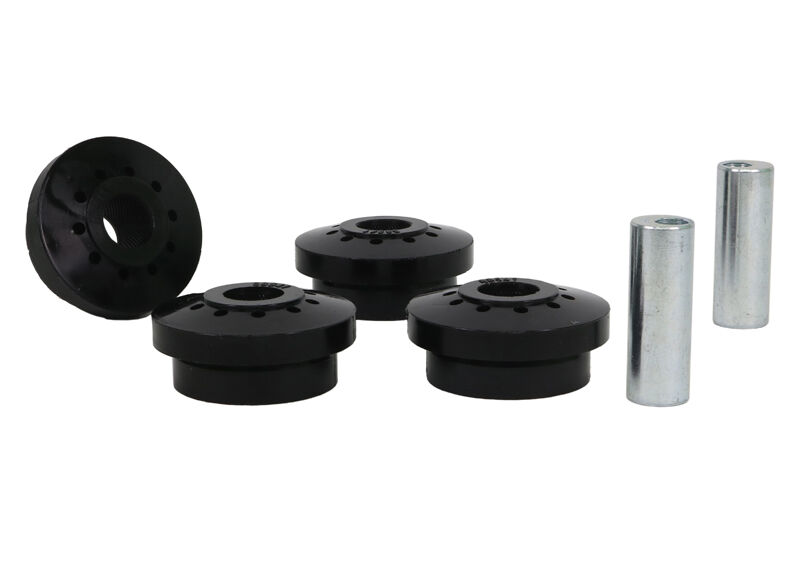

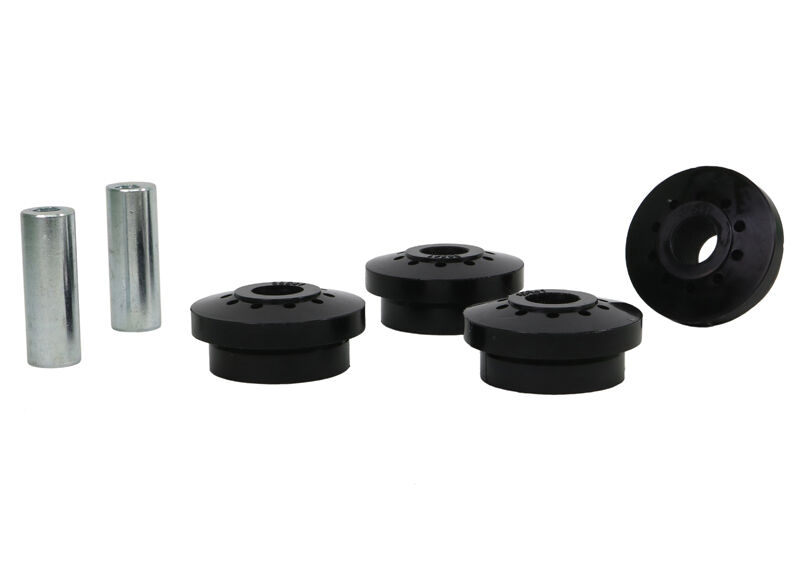

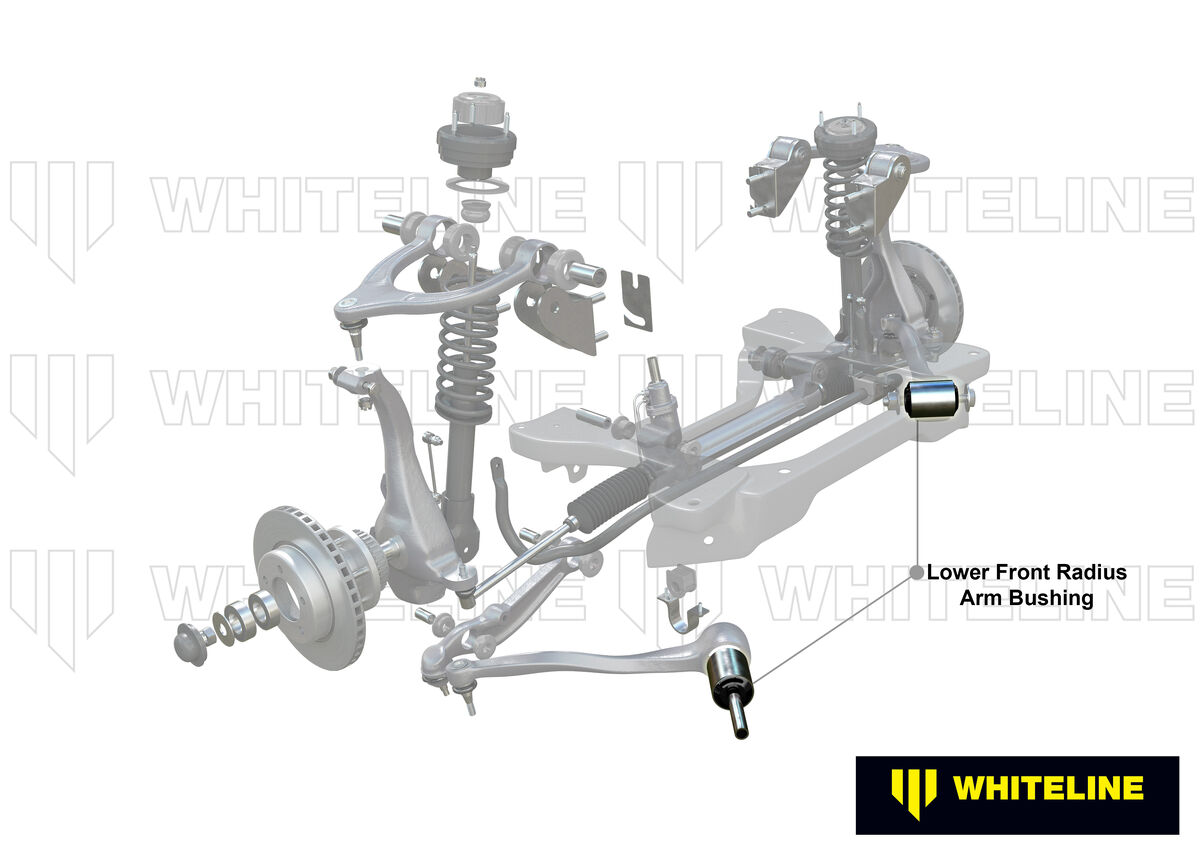

Whiteline Front Radius Arm Lower - Bushing Kit to Suit Ford Territory SX-SZ and FPV

SKU: W53621

Benefit Note: Not many know but worn suspension bushings have an effect on braking performance. In particular these bushings tend to absorb most of the loads under braking resulting in severe wear and reduced braking efficiency over time. Replace these worn parts with Whiteline synthetic elastomer bushings that offer long lasting durability for a safer more predictable vehicle.


Kit Specifications

Bush Type 1 - Shackle Bushing
Bush Quantity 4 mm
OD (A) 69.7 mm
ID (B) 26 mm
Length (C) 38.3 mm
Flange Thickness (D) 19.3 mm
Flange OD (E) 86 mm
C/Tube Quantity 2
C/Tube ODxIDxL 27x14.2x78.5 mm
Similar Bushing Size Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Bushing Type 1 - Shackle Bushing

Bushing Design Dimensions (mm)

Bush Type 1
QTY 4
OD (A) 69.7
ID (B) 26
Length (C) 38.3
FL (D) 19.3
FLOD (E) 86
C/Tube Qty 2
C/Tube Size 27x14.2x78.5
Similar Bushings Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Bushing Type 1

Packaged Weight and Dimensions

Unitscm/kgin/lbs
Weight0.816kg1.8lbs
Length10cm3.94"
Width26cm10.24"
Height16cm6.3"

Misc. Product Information

More Information
SKUW53621
Components Per4 Bushings, 2 Tubes
Kits Required1
Sub brandReplacement
Product NoteMaximises tyre contact with the road, improving cornering and grip; the perfect, complete upgrade. Includes: 4 Bushings, 2 Tubes
EAN9319924448036
  • Lifetime Warranty
Brand Whiteline
SKU W53621
Unit Of Measure Kit
