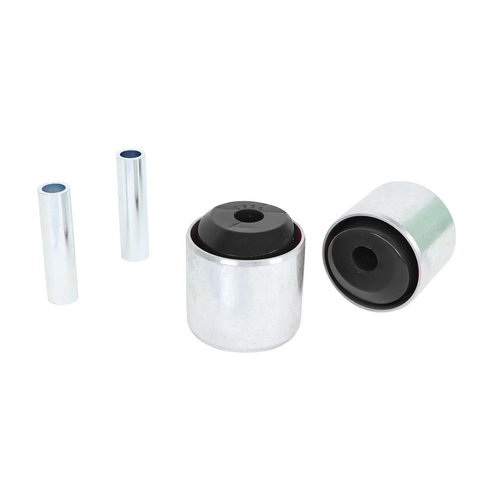

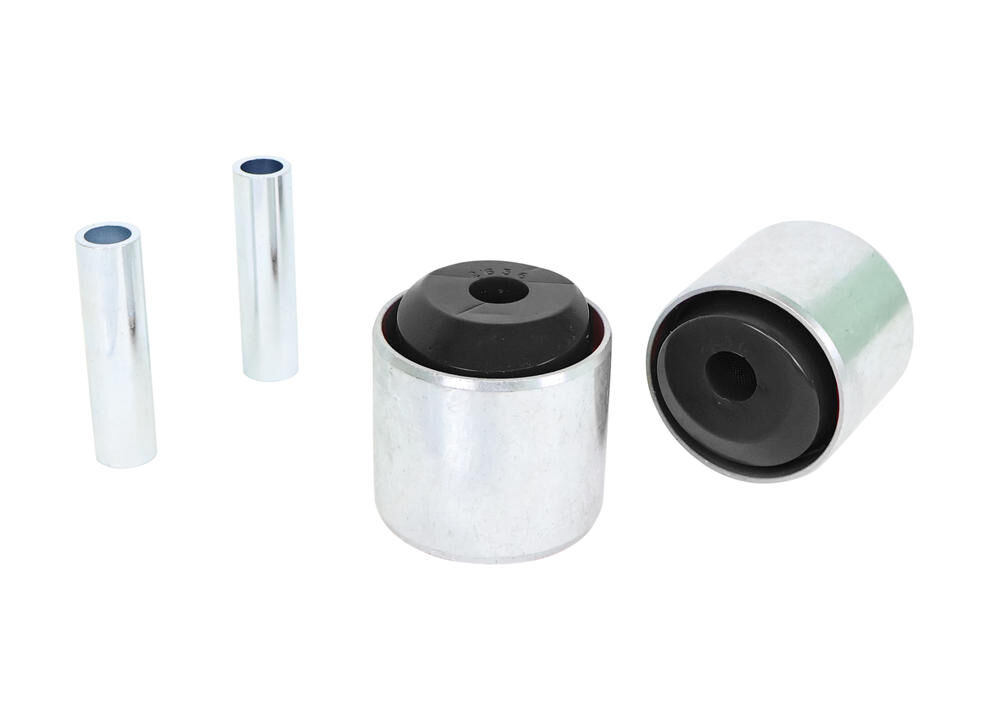

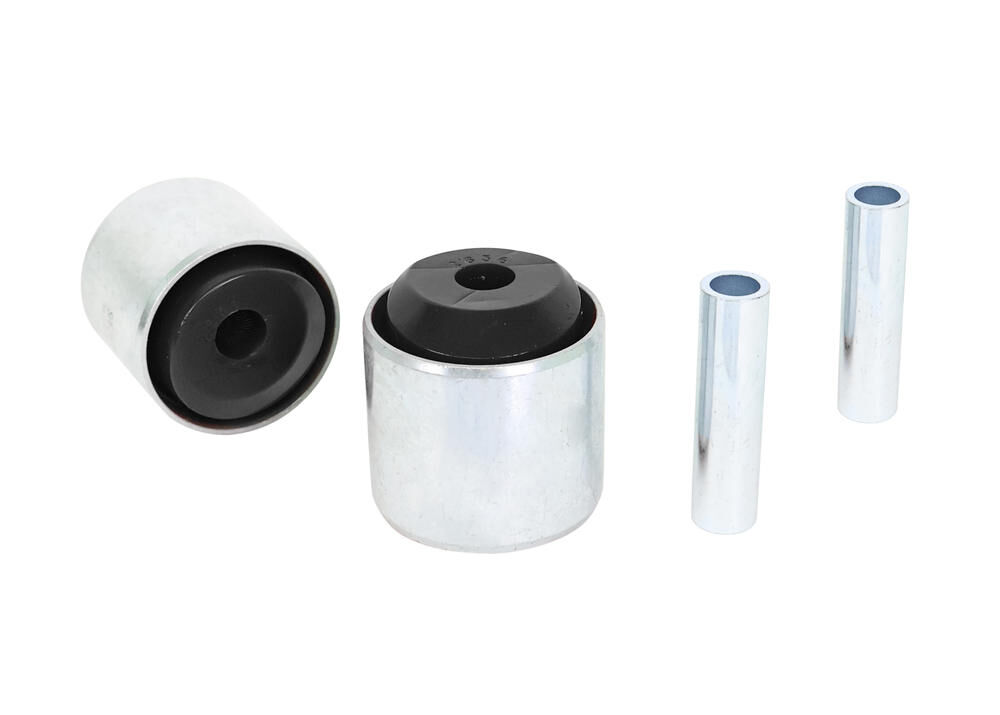

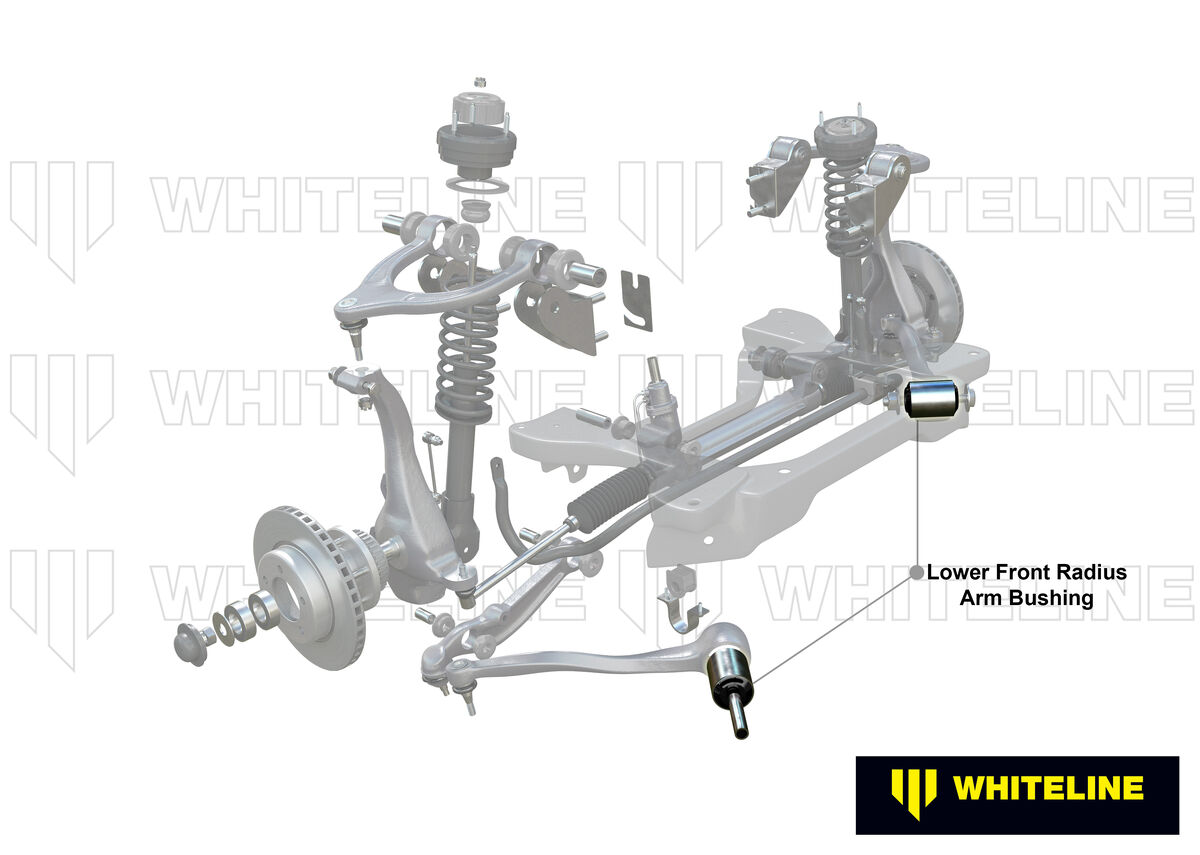

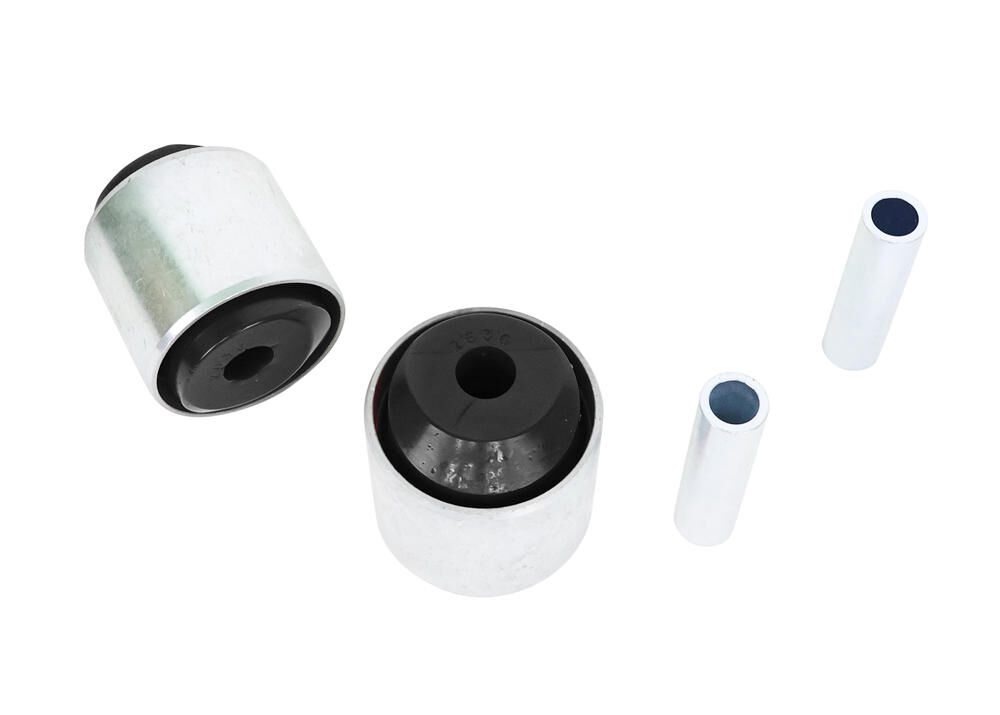

Whiteline Front Radius Arm Lower - Bushing Kit to Suit Ford Territory SX-SZ and FPV

SKU: W53477

Benefit Note: Not many know but worn suspension bushings have an effect on braking performance. In particular these bushings tend to absorb most of the loads under braking resulting in severe wear and reduced braking efficiency over time. Replace these worn parts with Whiteline synthetic elastomer bushings that offer long lasting durability for a safer more predictable vehicle.


Kit Specifications

Bush Type 17 - Shell With Flange Bushing
Bush Quantity 2 mm
OD (A) AI=70.2 AII=69 mm
ID (B) 26.5 mm
Length (C) 79.5 mm
Flange Thickness (D) 9 mm
Flange OD (E) 46 mm
C/Tube Quantity 2
C/Tube ODxIDxL 27x14.2x78.5 mm
Similar Bushing Size Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Bushing Type 17 - Shell With Flange Bushing

Bushing Design Dimensions (mm)

Bush Type 17
QTY 2
OD (A) AI=70.2 AII=69
ID (B) 26.5
Length (C) 79.5
FL (D) 9
FLOD (E) 46
C/Tube Qty 2
C/Tube Size 27x14.2x78.5
Similar Bushings Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Bushing Type 17

Packaged Weight and Dimensions

Unitscm/kgin/lbs
Weight1.2kg2.65lbs
Length10cm3.94"
Width26cm10.24"
Height16cm6.3"

Misc. Product Information

More Information
SKUW53477
Components Per2 Shell Bushings, 2 Tubes
Kits Required1
Sub brandReplacement
Product NoteEnsures long-lasting durability, matter matter the purpose; the perfect, complete upgrade. Includes: 2 Shell Bushings, 2 Tubes
EAN9319924389513
  • Lifetime Warranty
Brand Whiteline
SKU W53477
Unit Of Measure Kit
